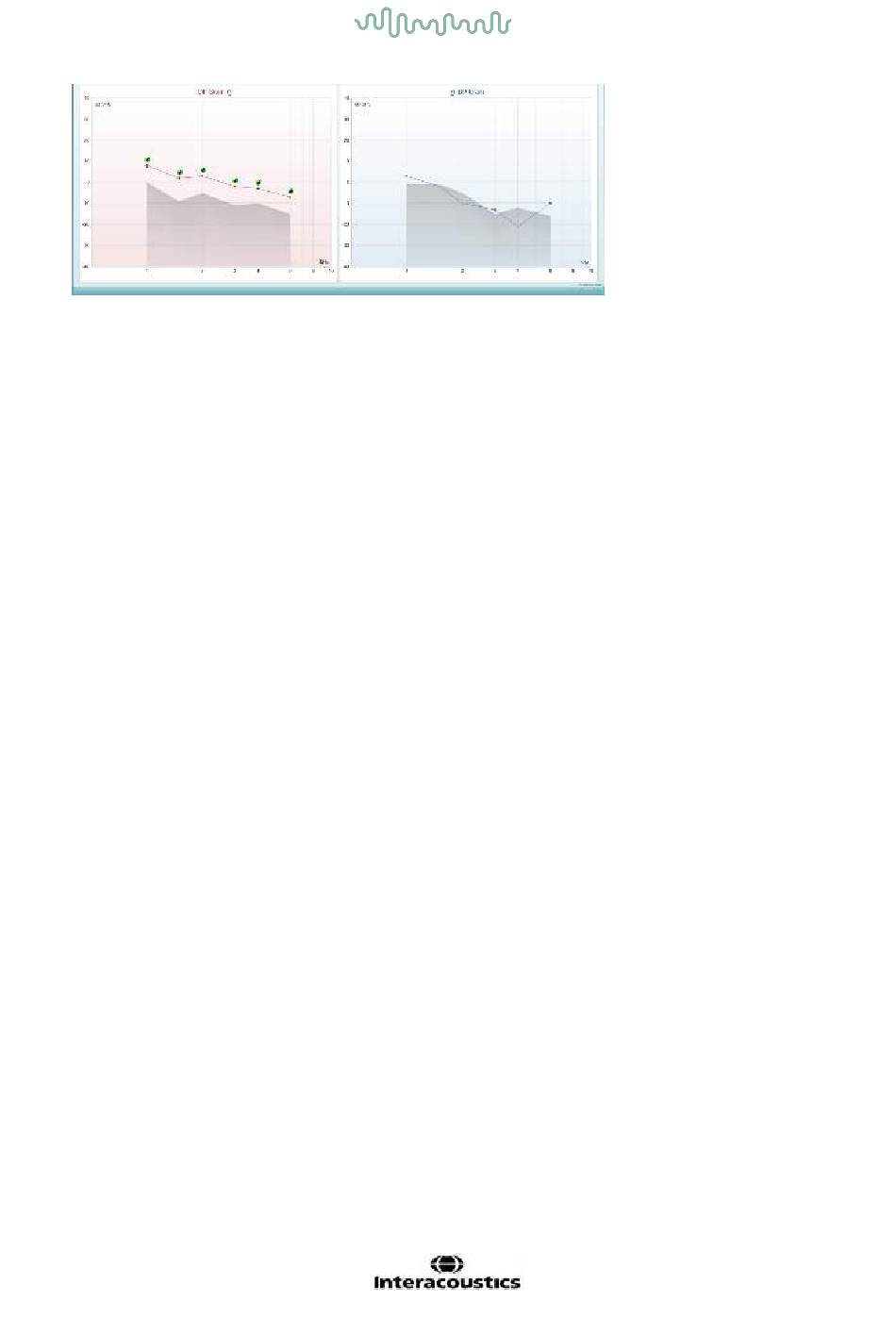

The type of test (DP-Gram or DP-IO) and ear side symbol and color is written on the top of the graph.
The green checkmarks indicates the DP points there have met the DP criteria as set in the protocol, as
show above for the right ear.
The DP points having no checkmark did not meet the DP criterion and can be either below the noise
or absent.
The DP points are line connected with the ear side color, to give an overall impression of the DPOAE
levels.
The grey area is the background noise in the DP test.
