D-0120588-B – 2019/03
Eclipse – Instructions for Use - EN

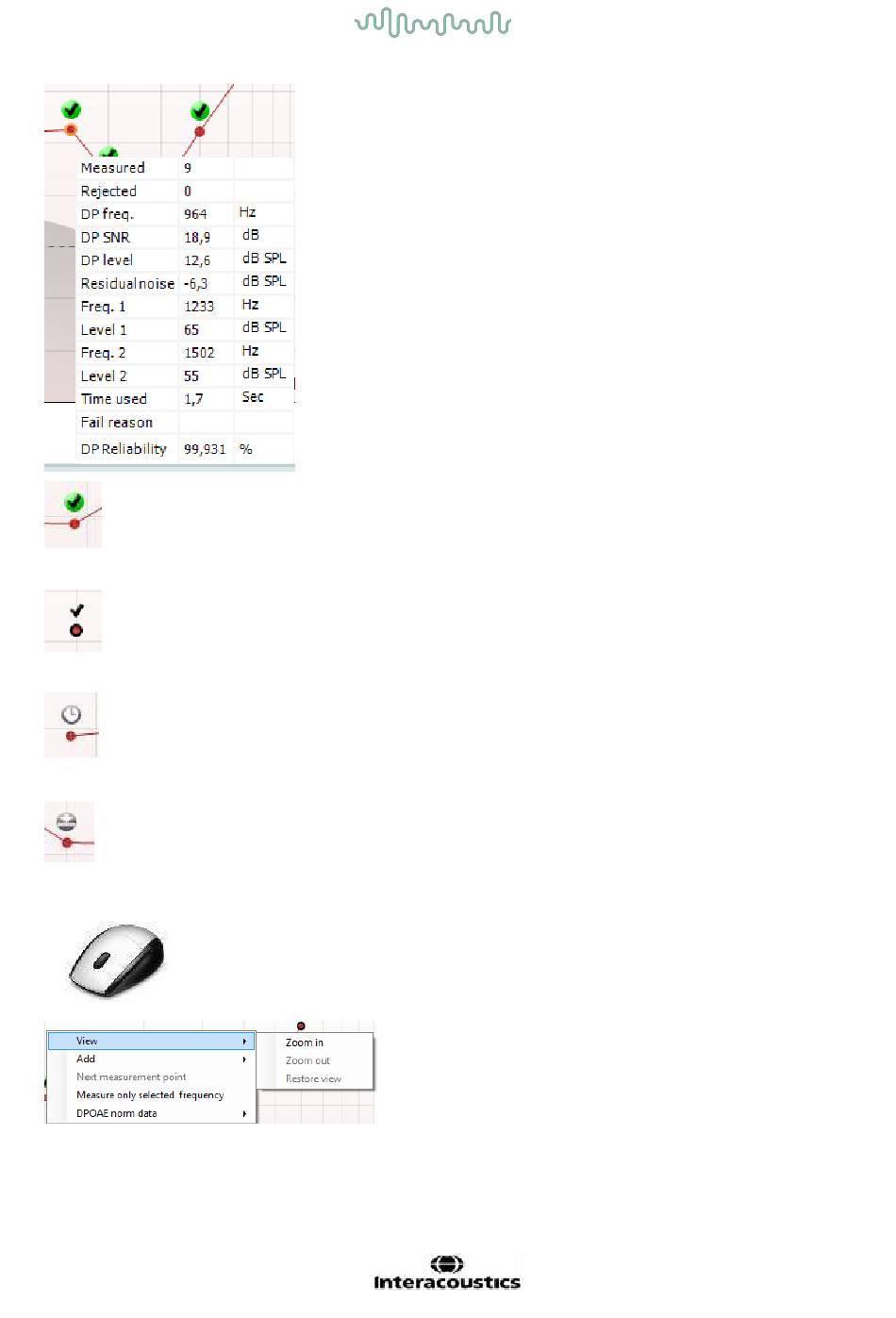

Hovering the mouse over a measurement point shows
details about the ongoing or finished measurement.
See the Additional Information document for more specific
details of each item in the mouse over table.
The DP found checkmark symbol, a black checkmark in a
green circle, indicates that this individual measurement met
its specified criterion and no further testing at this frequency
will occur.
The DP found checkmark symbol, a black checkmark,
indicates that this individual measurement met its specified
criterion, but testing will continue until the test time runs out
or the test is manually stopped.
The time out symbol, a clock, indicates that the
measurement has ended without reaching the specified
criterion for the individual point within the time allowed. In the
general setup it can be chosen whether or not this type of
indication is shown.
The noise floor symbol, an arrow pointing at a line,
indicates that the measurement has ended because the
residual noise floor limit was reached. In the general setup it
can be chosen whether or not this type of indication is
shown.
Pointing at the desired graph and then using the scroll
wheel of your mouse allows zooming in and out on the
Response and DP-Gram graph. Once zoomed in on, the
graph then can be dragged in respect to the frequency axis.
Right clicking on the DP-Gram graph provides the following
options:
The scroll wheel of your mouse allows zooming in and out
with respect to the frequency axis. Additionally you can
Zoom in, Zoom out or Restore view by selecting the
appropriate item from the right mouse click menu.
Page 85
