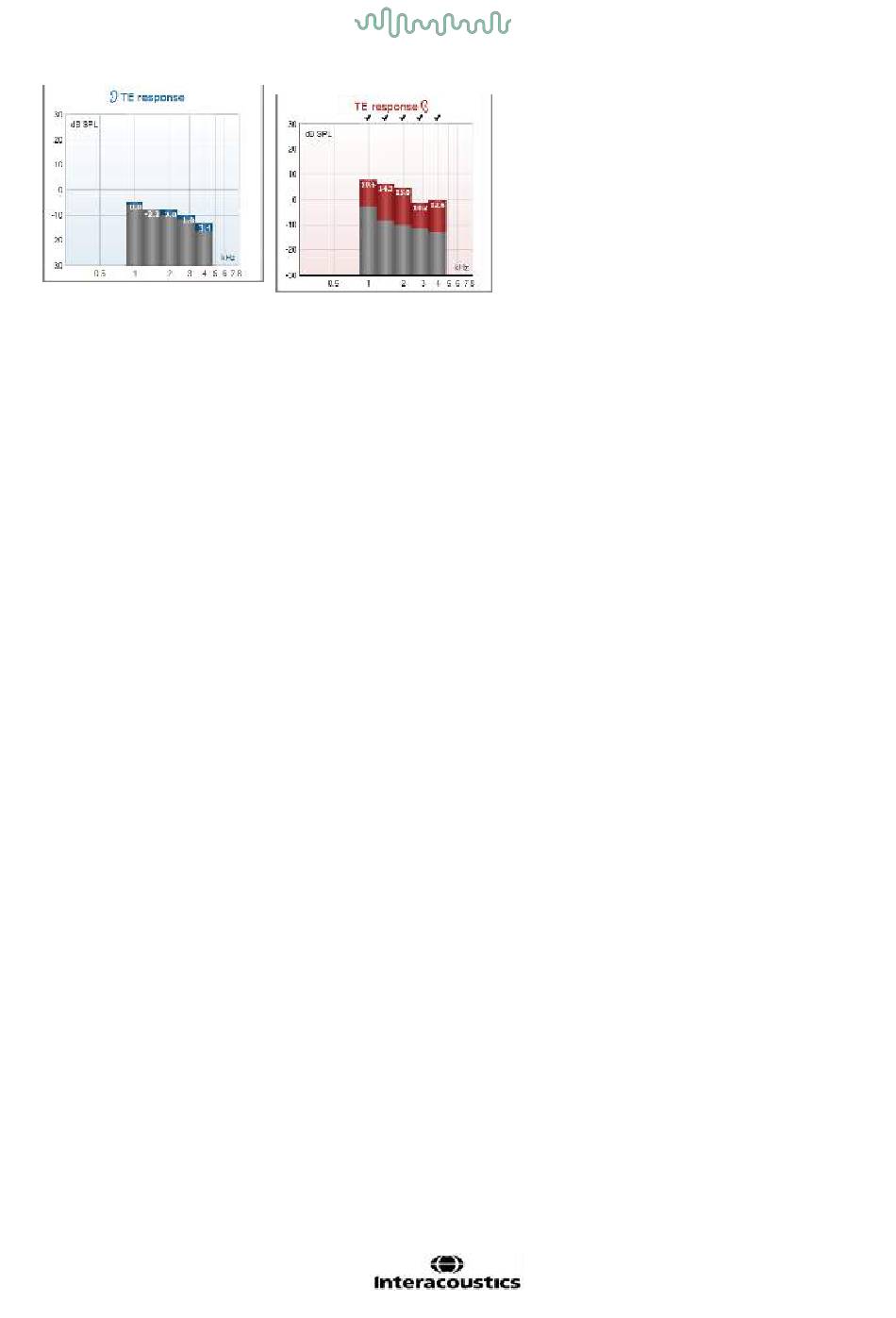

The ear side symbol and color is written on the top of the graph.
The checkmarks indicates the TE bars there have met the criteria as set in the protocol, as show
above for the right ear.
The TE bars having no checkmark did not meet the TE criterion and can be either below the noise or
absent.
The grey area is the ambient background noise in the TE test.
D-0120588-B – 2019/03
Eclipse – Instructions for Use - EN
Page 89
