IP pool
IP pool list
IP pool options
230
You can add an IP pool if you want to add NAT mode policies that translate source
addresses to addresses randomly selected from the IP pool rather than being limited
to the IP address of the destination interface.
If you add an IP pool to port1, you can select Dynamic IP pool for policies with the
port1 interface as the destination. For example, you can add IP pools to port2->port1
and port3->port1 policies.
You can add multiple IP pools to any interface and select the IP pool to use when
configuring a firewall policy.
You can enter an IP address range using the following formats.
•
x.x.x.x-x.x.x.x, for example 192.168.110.100-192.168.110.120
•
x.x.x.[x-x], for example 192.168.110.[100-120]
This section describes:
•
IP pool list
•
IP pool options
•
Configuring IP pools
•
IP Pools for firewall policies that use fixed ports
•
IP pools and dynamic NAT

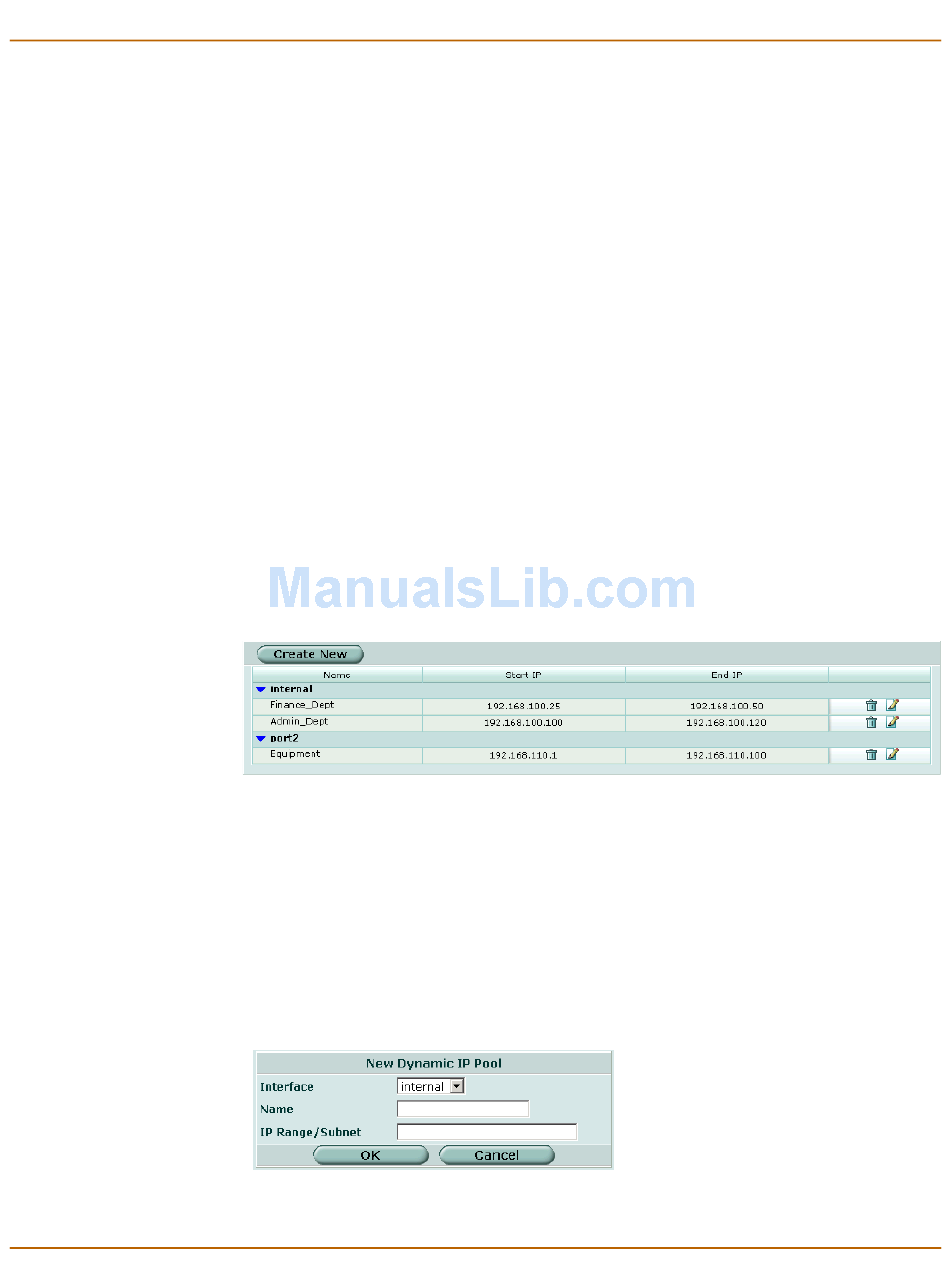

Figure 108:Sample IP pool list
The IP pool list has the following icons and features.
Create New
Select Create New to add an IP pool.
Start IP
The start IP defines the start of an address range.
End IP
The end IP defines the end of an address range.
The Delete and Edit/View icons.
Figure 109:IP pool options
01-28008-0013-20050204
Firewall
Fortinet Inc.
