RIP
Distribute list options
162
Filter
Interface
Enable
Delete and Edit
icons

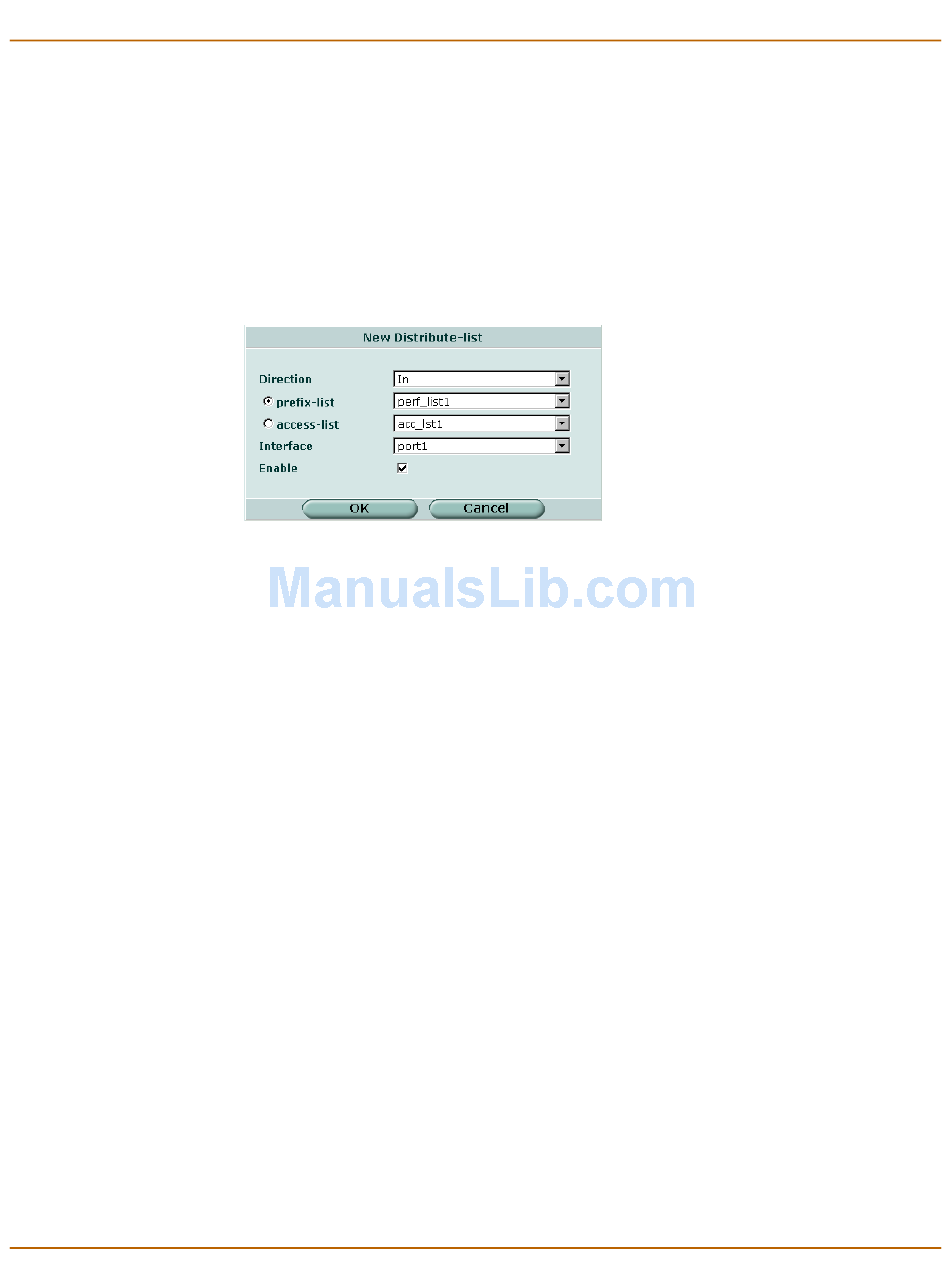

Figure 69: RIP Distribute list configuration
Direction
prefix-list
access-list
Interface
Enable
To configure a distribute list
1
Go to Router > RIP > Distribute List.
2
Select Create New to add a new distribute list or select the edit icon beside an existing
distribute list to edit that distribute list.
3
Set Direction to In or Out.
4
Select either prefix-list or access-list.
5
Select the prefix list or access list to use for this distribute list.
6
Select an interface to apply this distribute list to, or select the blank entry to apply this
distribute list to all interfaces.
7
Select or clear the Enable check box to enable or disable this distribute list.
8
Select OK.
The type of filter and the filter name.
The interface to use this filter on. If no interface name is displayed, this
distribute list is used for all interfaces.
The status of this distribute list.
Delete or edit a RIP distribute list.
Set the direction for the filter. Select In to filter incoming packets. Select
Out to filter outgoing packets.
Select prefix-list to use a prefix list for this distribute list. Select the name
of the prefix list to use for this distribute list.
Select access-list to use an access list for this distribute list. Select the
name of the access list to use for this distribute list.
Select the name of the interface to apply this distribute list to. If you do
not specify an interface, this distribute list will be used for all interfaces.
Select Enable to enable the distribute list.
01-28008-0013-20050204
Router
Fortinet Inc.
