Figure 16 Attach The Kiosk To The Base Plate - Mircom TX3 Series Installation And Operation Manual

2.

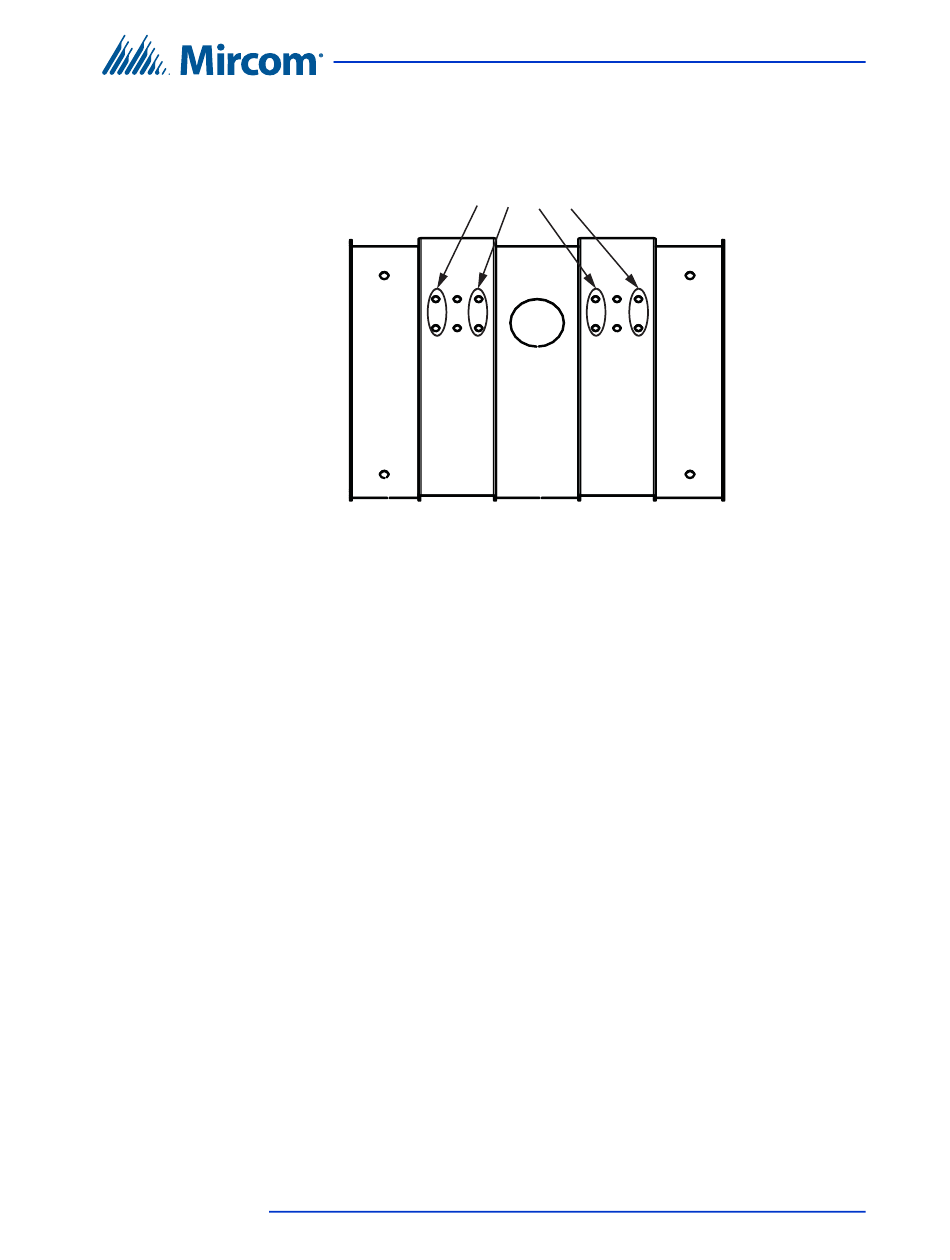

Figure 16. Attach the Kiosk to the base plate
3.
4.
5.
TX3 Telephone Access System Installation and Operation Manual
Version 5.4
LT-969 Copyright 2019
Secure the Kiosk onto the base plate using the 8 of the 12 base plate bolts
in the holes shown in figure 16.
Attach the Kiosk to the base plate
with bolts in these holes first
Position the reinforcement bracket over the 6 studs on the inside of the
Kiosk, and screw the 6 nuts on to the studs as shown in figure 9.
Secure the reinforcement bracket to the base plate using the remaining 4
base plate bolts in the remaining 4 holes in the base plate.
Fit the door to the Kiosk.
Enclosure Installation
37
