Figure 9 Reinforcement Bracket With Nuts; Figure 10 Kiosk Base Plate With Bolts - Mircom TX3 Series Installation And Operation Manual

4.
Figure 9.
5.
Figure 10. Kiosk Base Plate with bolts
TX3 Telephone Access System Installation and Operation Manual
Version 5.4
LT-969 Copyright 2019

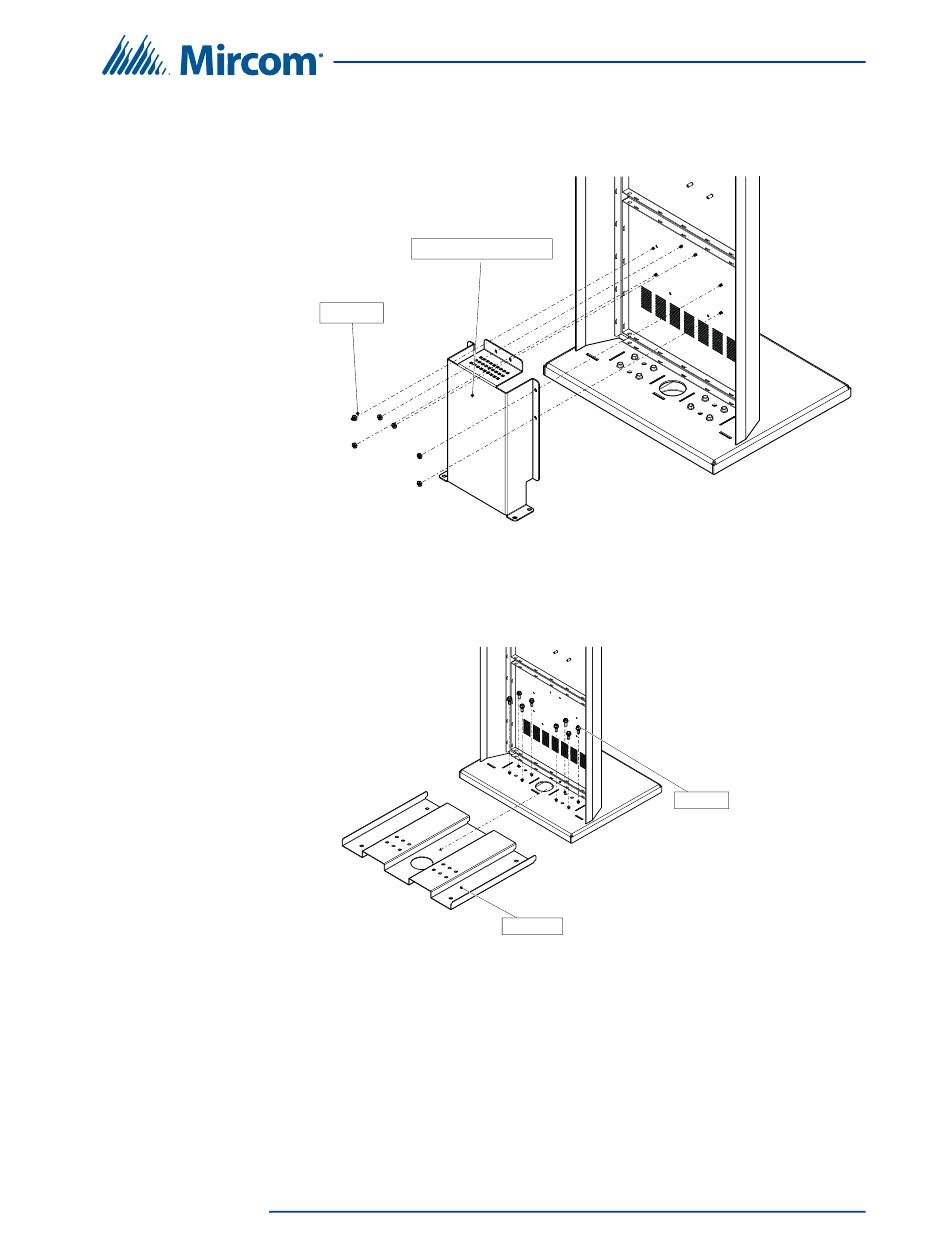

Remove the 6 nuts on the reinforcement bracket, as show in figure 9, and
then remove the bracket.
Reinforcement Bracket
Nuts (x6)
Reinforcement Bracket with nuts
Remove the remaining 8 bolts that attach the Kiosk to the base plate, as
shown in figure 10.
Bolts (x8)
Base Plate
Enclosure Installation
33
