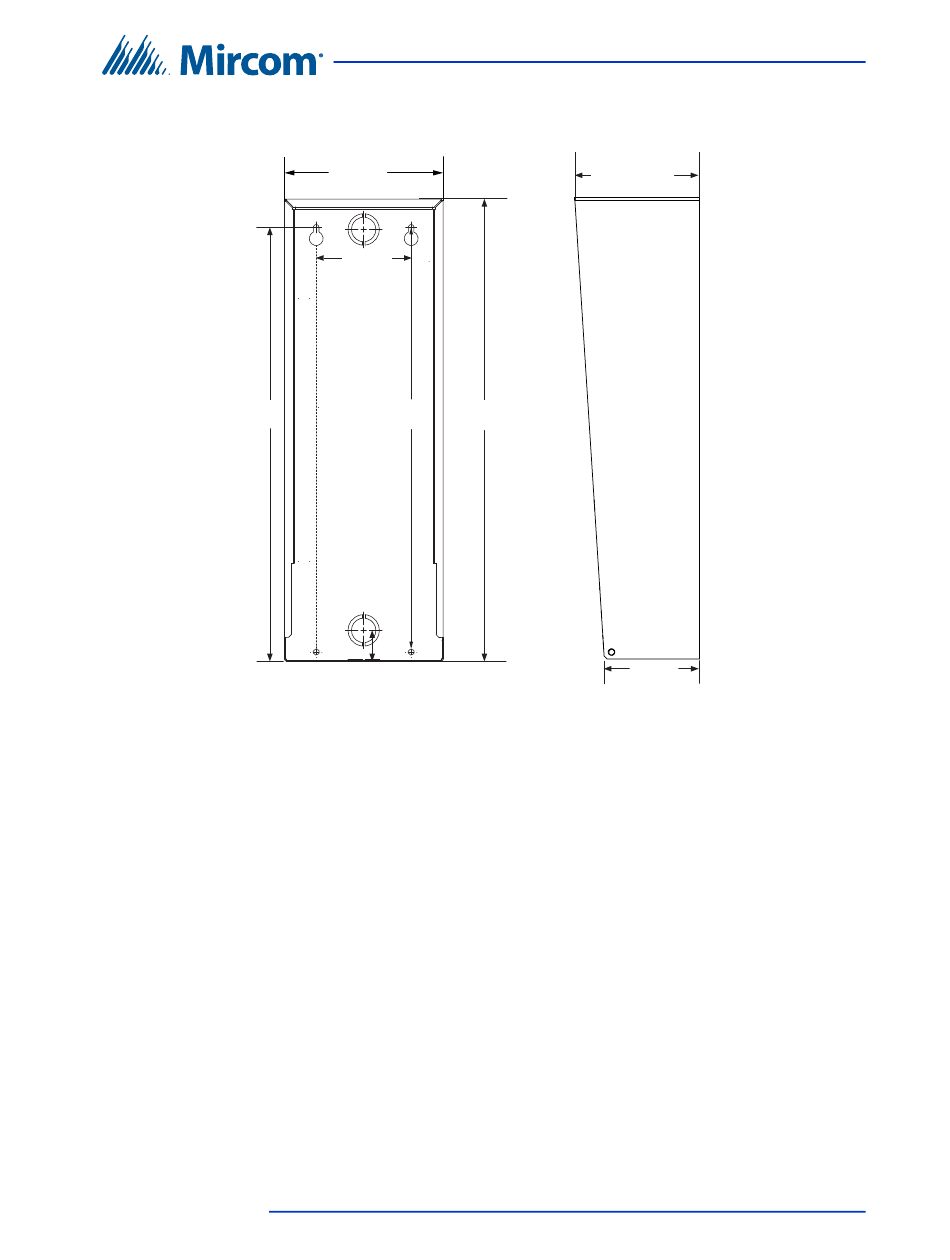

Figure 3 Dimensions Of Universal Slim-Line Models - Mircom TX3 Series Installation And Operation Manual

2.2.2 Installing the Universal Slim-line enclosure
15 17/32"
(394 mm)
Figure 3.
TX3 Telephone Access System Installation and Operation Manual
Version 5.4
LT-969 Copyright 2019
5 27/32"
(149 mm)
3 13/32"
(86 mm)
15 13/64" 16 5/8"
(386 mm)
(422 mm)
1 27/64"
(36 mm)
Dimensions of Universal Slim-line models
Enclosure Installation
4 1/2" (114 mm)
3 3/8"
(86 mm)
