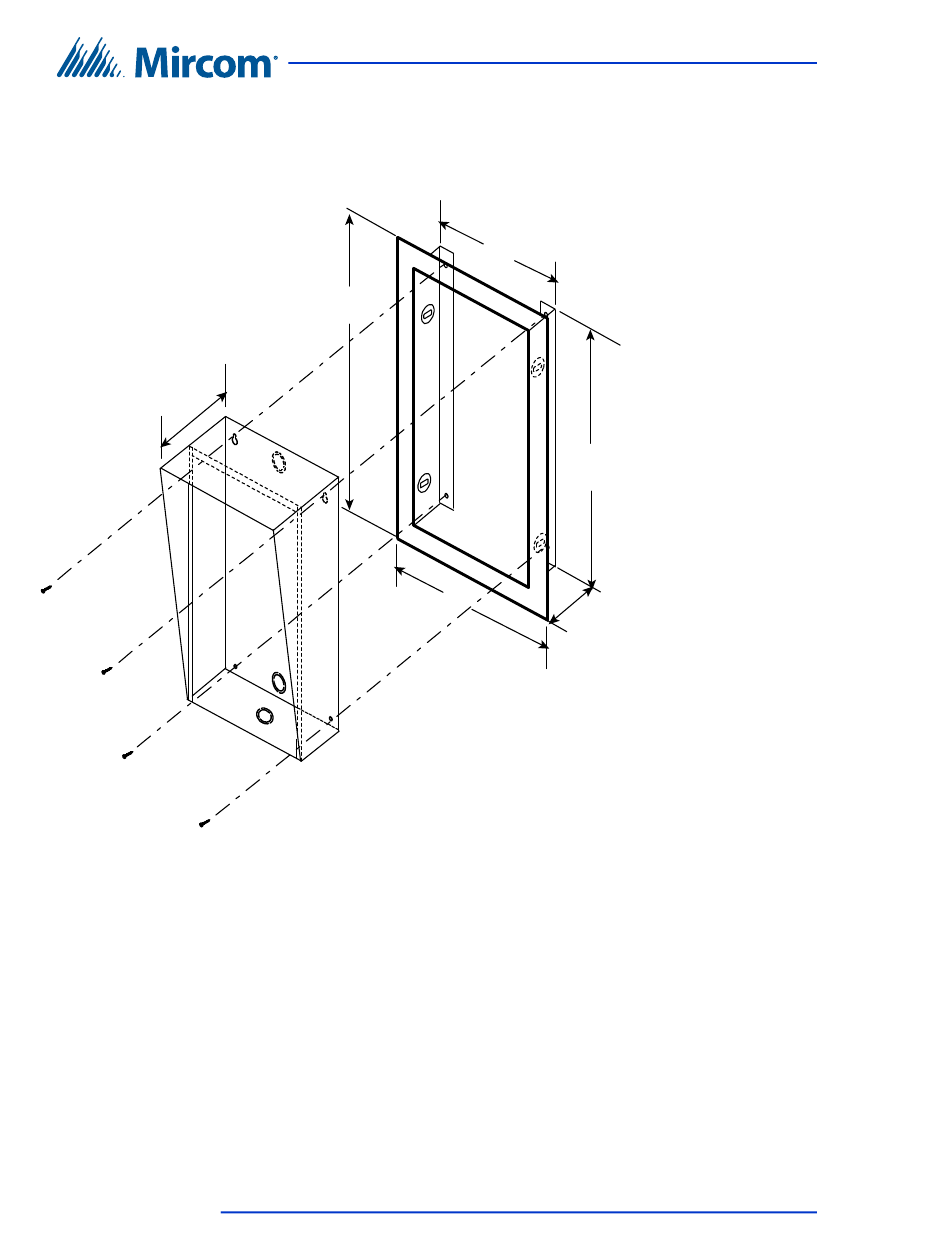

Figure 4 Tx3-Usft Slim Line Universal Flush Trim Ring - Mircom TX3 Series Installation And Operation Manual

The Universal enclosure mounts inside the wall with or without the Universal
Series Flush Trim Ring TX3-USFT. The Trim Ring houses the universal series
enclosure as shown in figure 4
4 1/2 "
Figure 4.
To install the Universal Slim-line enclosure with or without the Flush
Trim Ring
1.
28 TX3 Telephone Access System Installation and Operation Manual
LT-969 Copyright 2019
19 "
5/8
8
UNIVERSAL SLIM
LINE ENCLOSURE
TX3-USFT Slim Line Universal Flush Trim Ring
Follow the instructions in section 2.2.1 on page 23 using the Universal
Slim-line enclosure.
6 "
13/32
16 "
1/4
"
7/8
2 "
3/4
TX3-USFT SLIM LINE
SEMI-FLUSH TRIM
Dimension of the Universal Slim Line Enclosure
without the flush trim is:
16.25" H x 6.4" W x 2.75"D at bottom, 3" D at top
Enclosure Installation
Version 5.4
