2.4 Installing TX3-2000-8K-A

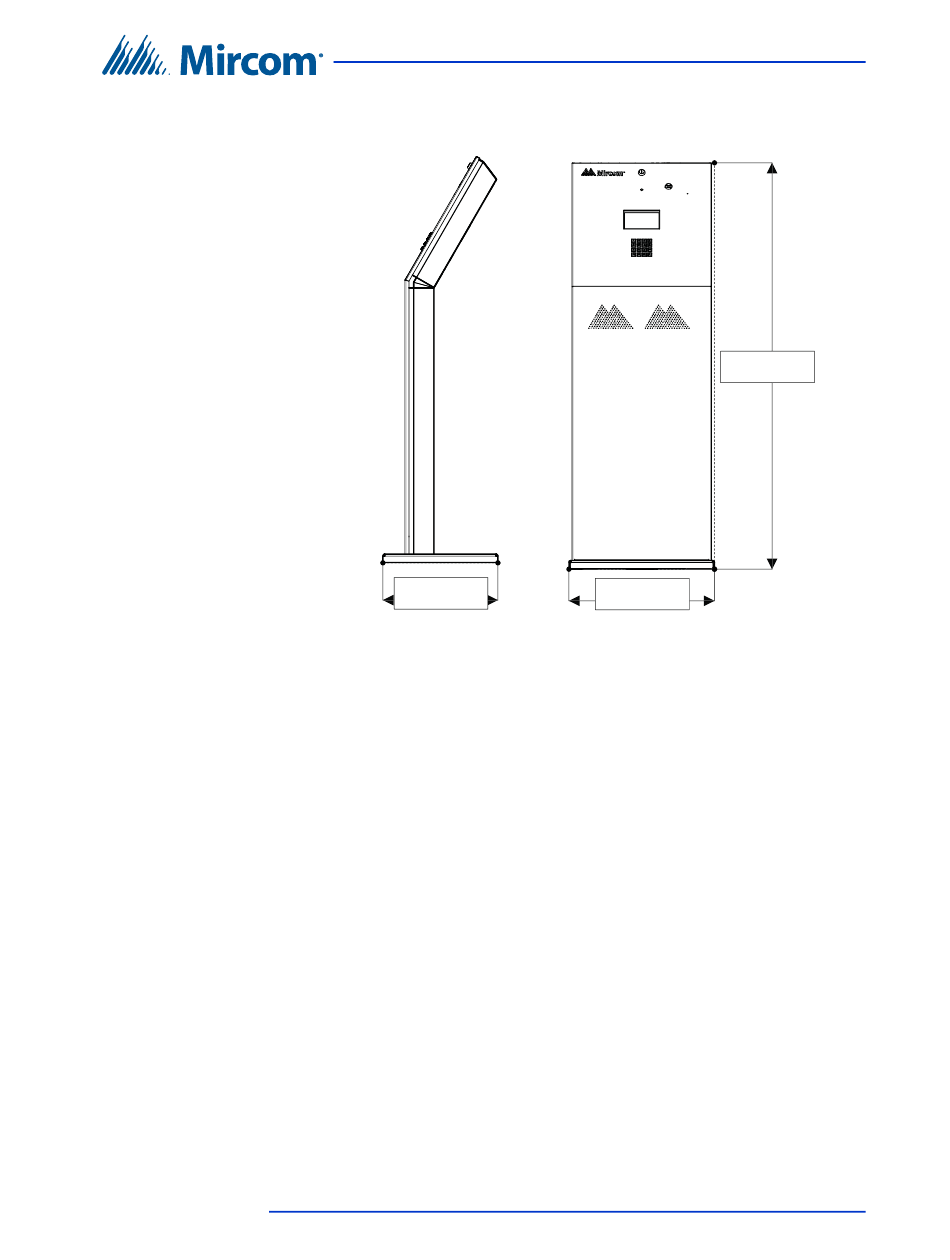

Figure 7.
The Kiosk mounts to the floor inside the building near the entrance, close to the
power source and telephone infrastructure. Access for the power and
communication cables is provided through a cutout in the base plate.
To install the Kiosk you must:
•
•
•
•
Follow the instructions below to complete these steps.
You will need:
4 bolts to attach the base plate to the floor. The holes in the base plate are 0.406"
in diameter.
TX3 Telephone Access System Installation and Operation Manual
Version 5.4
LT-969 Copyright 2019
14.187 "
Dimensions of the 8 Line Kiosk (inches)
Remove the reinforcement bracket and the base plate.
Attach the base plate to the floor, and run the wiring through the base plate
opening.
Attach the Kiosk to the base plate.
Attach the reinforcement bracket to the Kiosk.
Enclosure Installation
50.117 "
17.950 "
