Figure 1 Dimensions Of Universal Series Models - Mircom TX3 Series Installation And Operation Manual

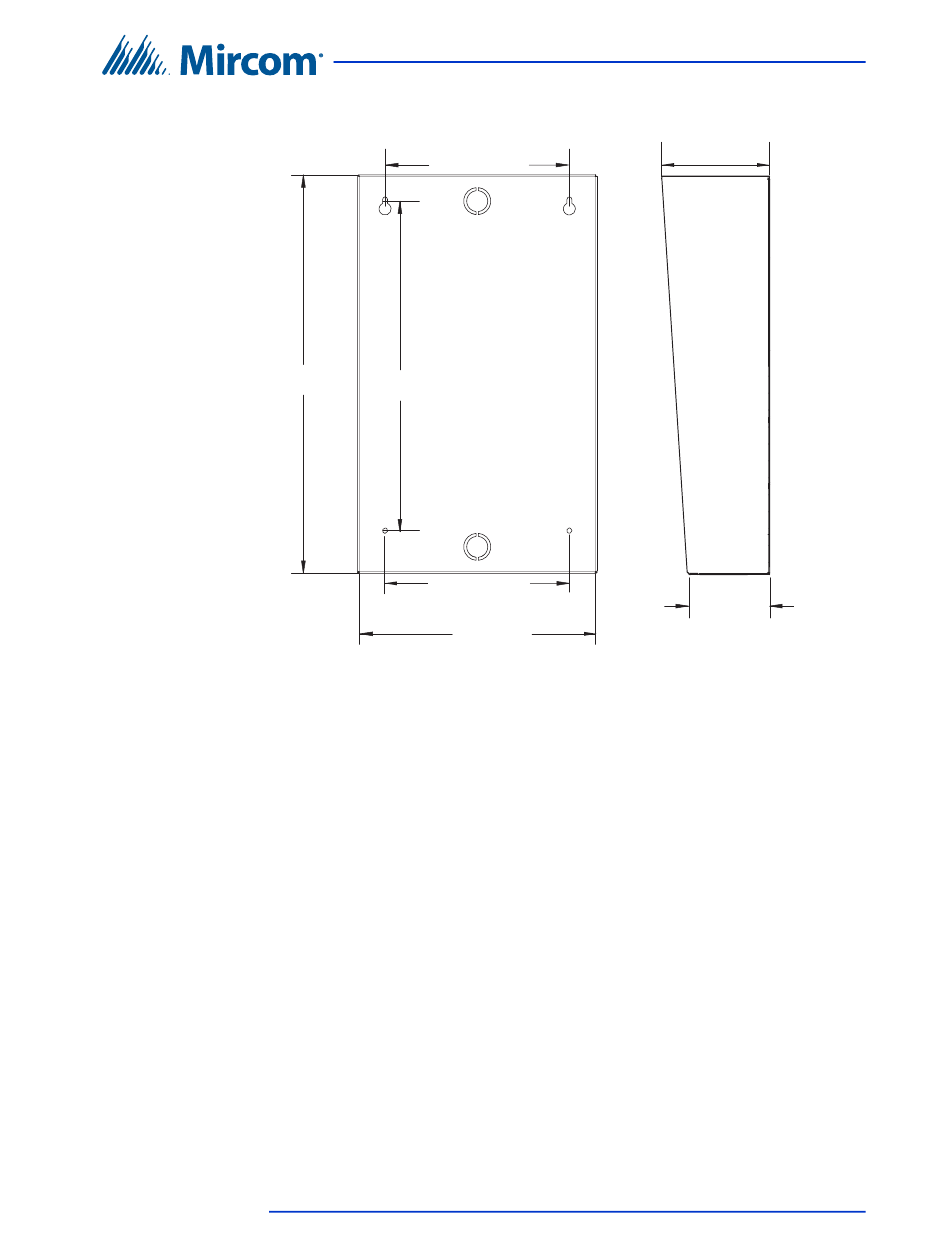

2.2.1 Installing the Universal enclosure
16 5/8"
(422 mm)
Figure 1.
TX3 Telephone Access System Installation and Operation Manual
Version 5.4
LT-969 Copyright 2019
7 21/32" (194 mm)
13 3/4"
(394 mm)
7 21/32" (194 mm)
10" (254 mm)
Dimensions of Universal Series Models
Enclosure Installation
4 1/2" (114 mm)
3 3/8"
(86 mm)
