8.2.7

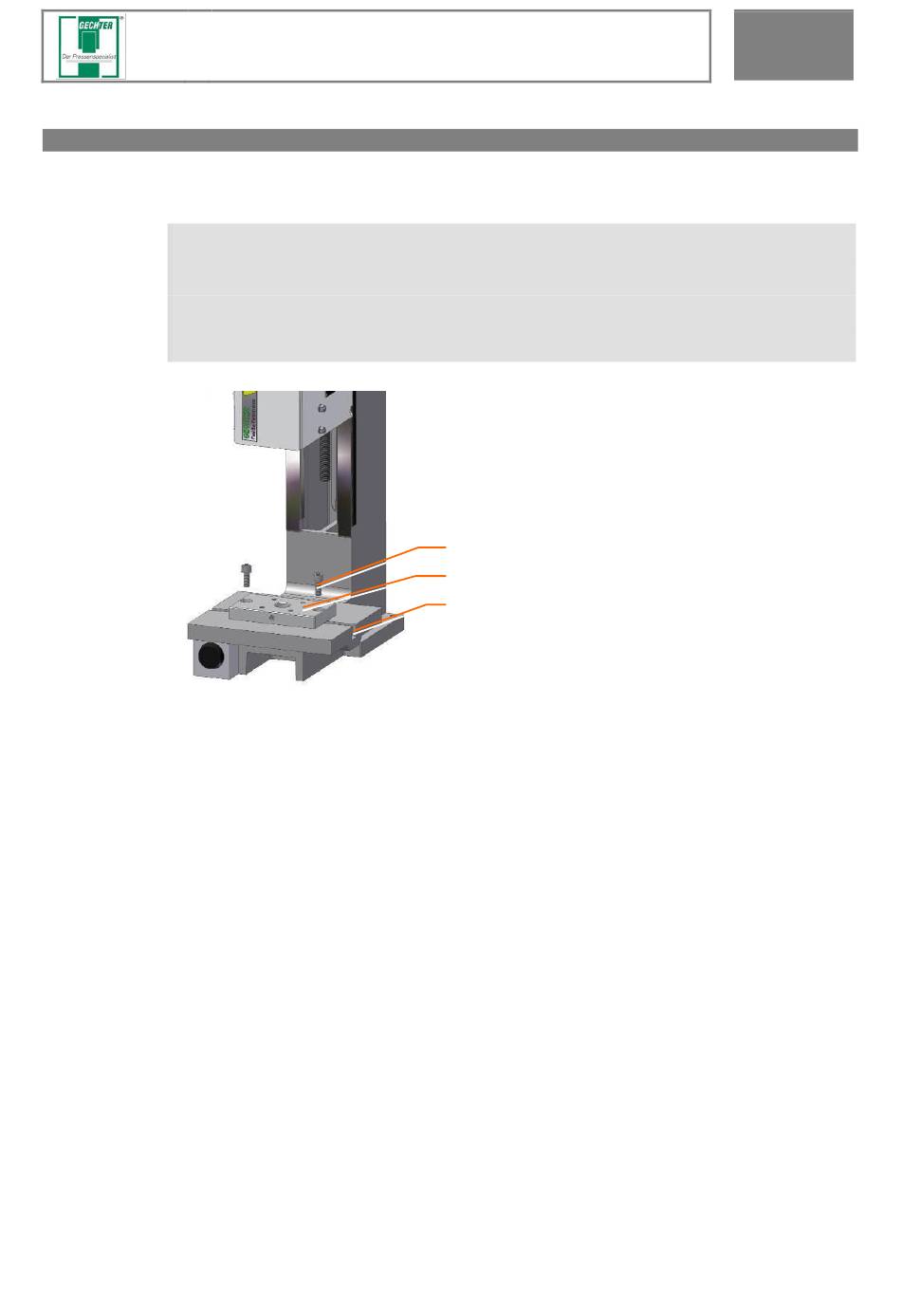

Centering plate
Carry out the following activities:
Slide the T-shaped sliding blocks into the T-groove guide.
Place the centering plate on the press table.
Affix the centering plate with the centering pin.
Tighten the centering plate onto the press table with the fastening screws.
1
2
–
HKPL-DS
Translation of the original operating manual
Setup and accessories
Centering plate
Fastening screw
Centering plate
1
2
3
3
T-shaped sliding blocks
