The sliding table with locking pin is used to absorb non-vertical
forces.
1
1
2
3
4
5
Operation:
Release the locking pin by hand.
Move the sliding table into the loading and removal position.
Insert the workpiece
Bring the sliding table into the press position. The locking pin automatical-
ly locks into place.
Carry out the pressing process.
Unlock the locking pin.
Move the sliding table into the loading and removal position.
Lubricate the sliding table once daily.
–
HKPL-DS
Translation of the original operating manual
Setup and accessories
4
2
3

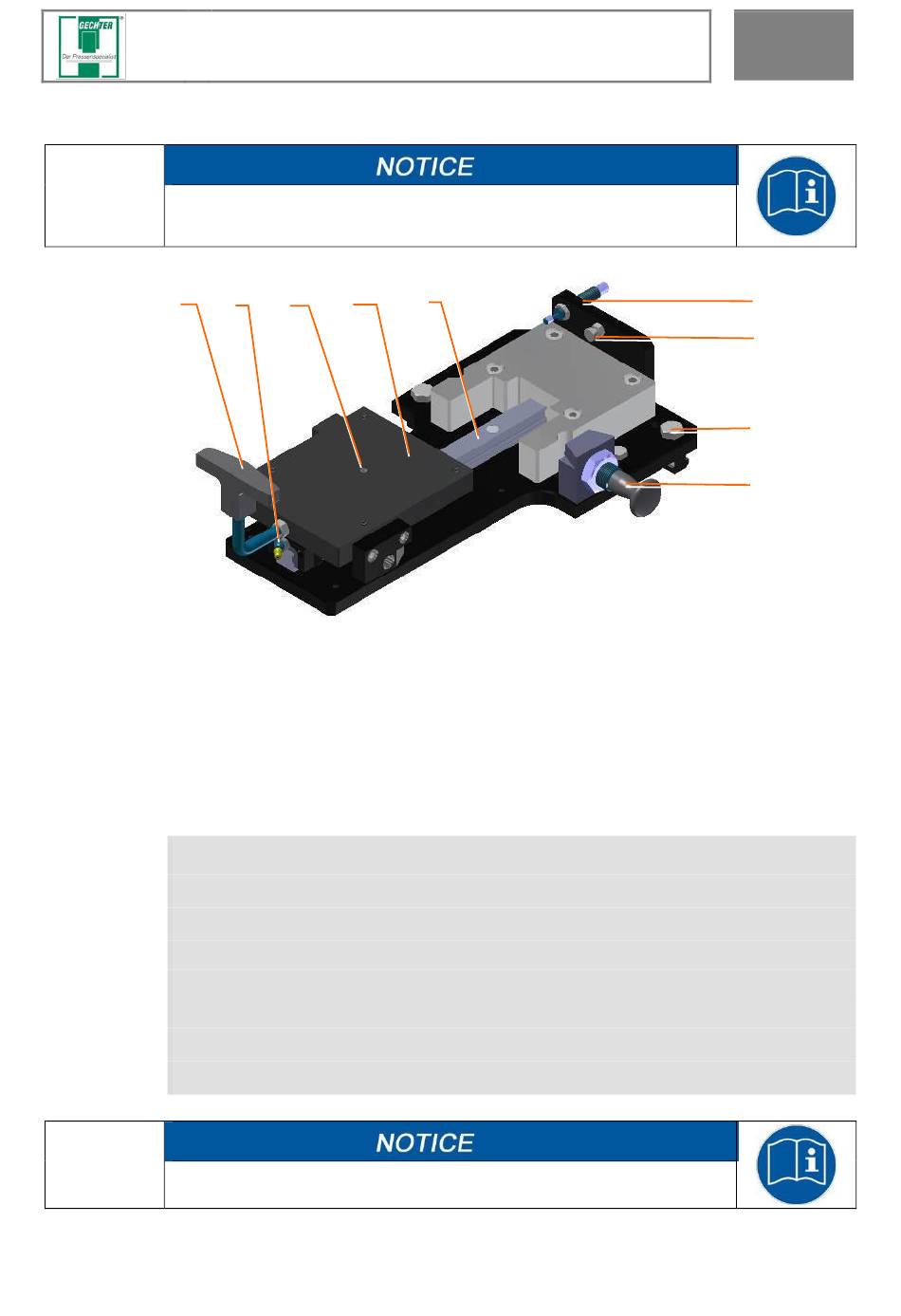

Sliding table with locking pin in the loading and removal position
Push handle
Lubricating nipple
Center hole
Mounting plate for tools
Linear guidance
5
6
Shock absorber
7
Front end stop
8
Fastening screw
9
Locking pin (press position)
79
8
6
7
8
9
