Adjustments and calibrations

NOTE: Use only properly maintained, calibrated and traceable measurement equipment for
the specified calibrations and adjustments to ensure accuracy.

5.1 NIBP calibrations

The electronics of the NIBP pressure measurement is calibrated at the factory. The processor
automatically maintains the zeroing pressure. If the zero point of the pressure transducer drifts
more than specified, an error message is given and the NIBP board should be recalibrated or
replaced.
Recalibrate the NIBP measurement once a year. The checking and recalibration can be done in
the NIBP service menu.
The calibration of the primary pressure channel can also be checked from the NIBP setup
menu (NIBP - NIBP Setup - Calibration Check). In this case, the auto zeroing is performed at
start - remove the hose before entering to ensure atmospheric pressure to the pressure
transducers - the primary pressure is displayed. The zero-offset value should then be zero.
Check the intake air filter as part of the calibration check. Change the filter if it is visibly dirty.
Calibration check

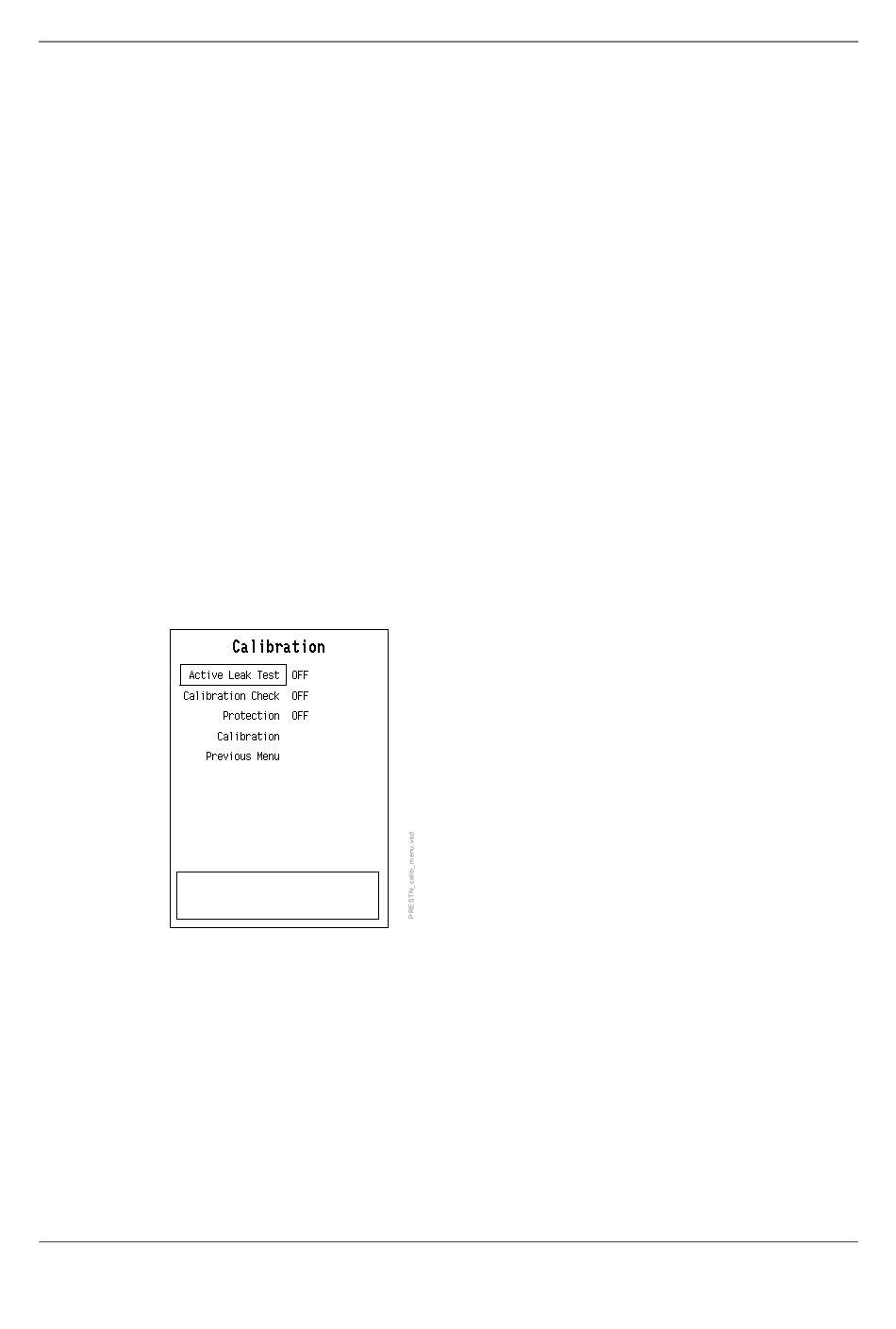

1. Enter Calibration menu:
Monitor Setup -
NIBP - Calibrations
2. Select Calibration Check and push the ComWheel.
3. Connect an external precision manometer to the module.
4. Pump the following pressures to manometer and check the difference between the
manometer and monitor pressure display (The zeroing offset is automatically subtracted
from the pressure readings).
3-32
.
Document no 2044677-001
Install/Service (password 16-4-34) -Service (26-23-8) - Parameters -
