AS-i 3.0 PROFINET Gateway in Stainless Steel
Electrical connection
7.4.1

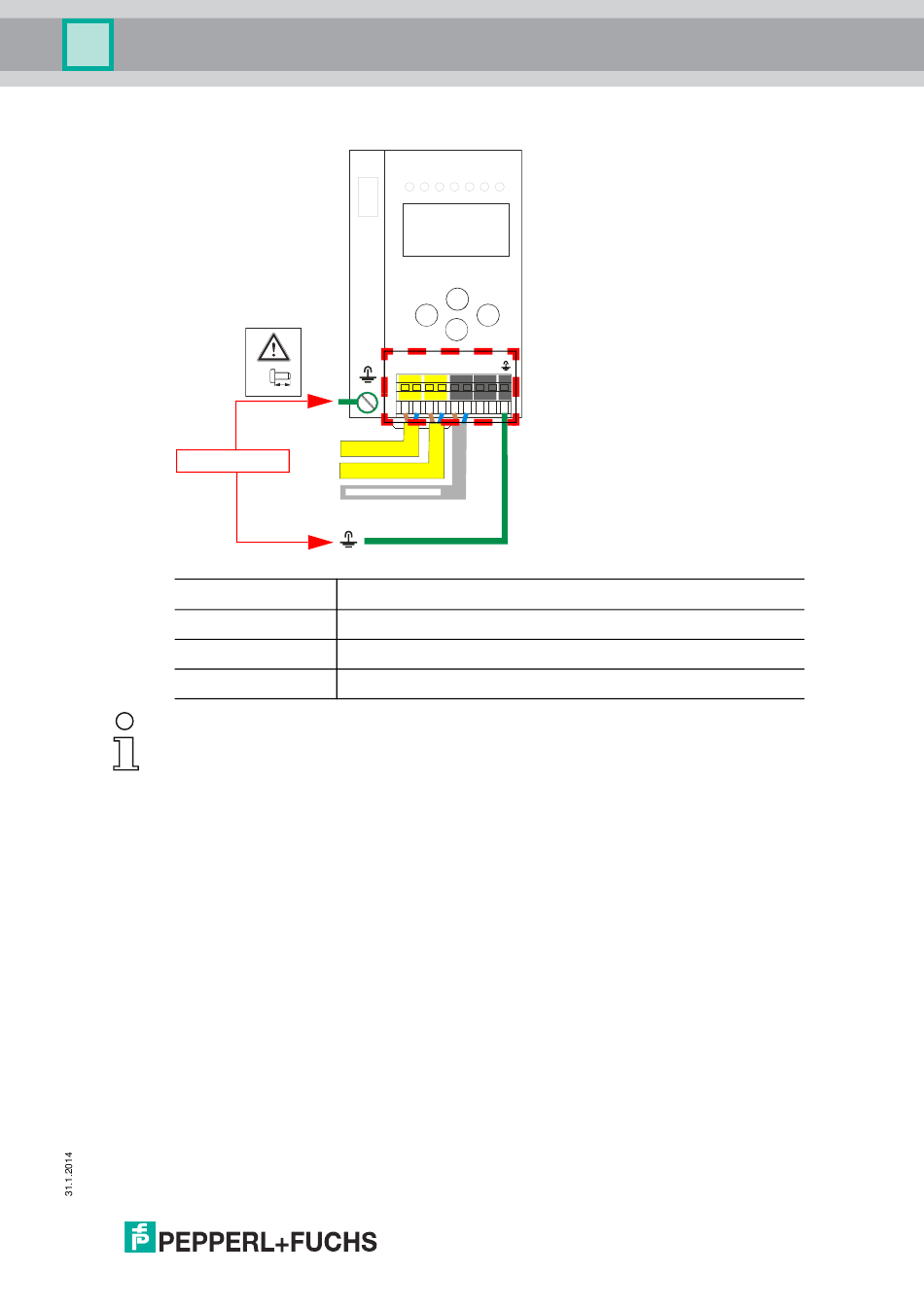

Electrical connection VBG-PN-K20-D, VBG-PN-K20-D-BV
M4
5 mm max!
Function ground
Terminal
+AS-i–
ASI +PWR–
FE
Information!
For additional information, please refer to the section <AS-i and power supply terminal
assignments>.
ASI
-
-
-
+ASI
+ASI
+PWR
NC NC
+
-
+
-
+
-
+ASI –
+ASI –
ASI +PWR– (max. 8A)
Signal / Description
Connection to AS-i Circuit
Supply voltage for AS-i Circuit (max. 8 A)
Function ground
25
