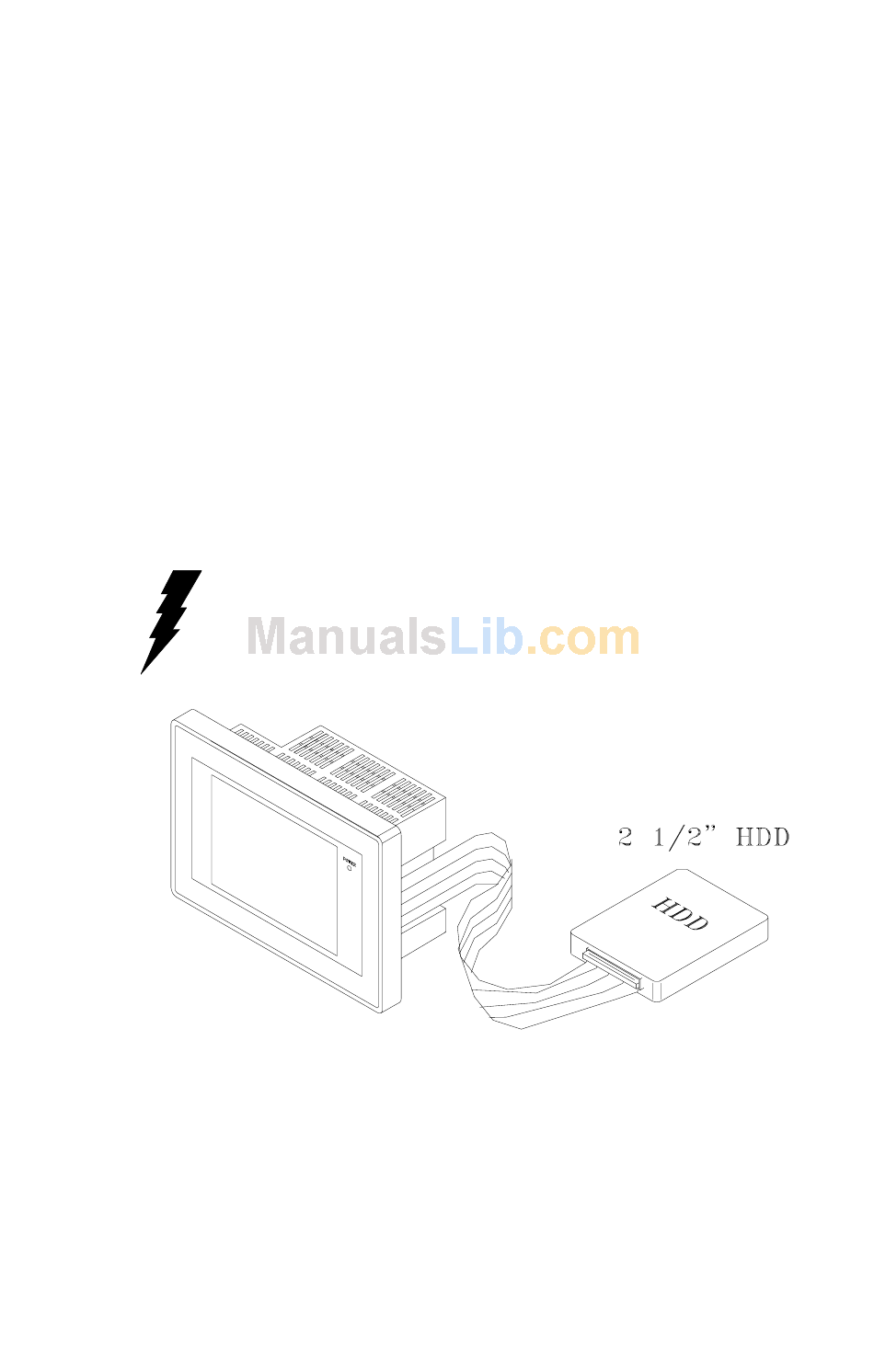

Installing a 2.5" HDD

HMI-640S is designed as a HDD-less platform of a high reliability.

However, if a HDD should be used, its installation procedure is

described as follows:

1. Verify that the power source to the HMI-640S has been properly

disconnected.

2. Connect the HDD via a cable to the IDE-compatible slot on the

HMI-640S. Make sure that you have inserted the cable connector

properly into the slot.

Warning!

When connecting the cable to the HDD, make sure

that pin 1 on the cable is connected to pin 1 on the

connector of the HDD. Faulty or wrong connection

might damage your HDD.

Chapter 2 System Setup

1 5
