ATM Sample Configuration 1

ATM Sample Configuration 1

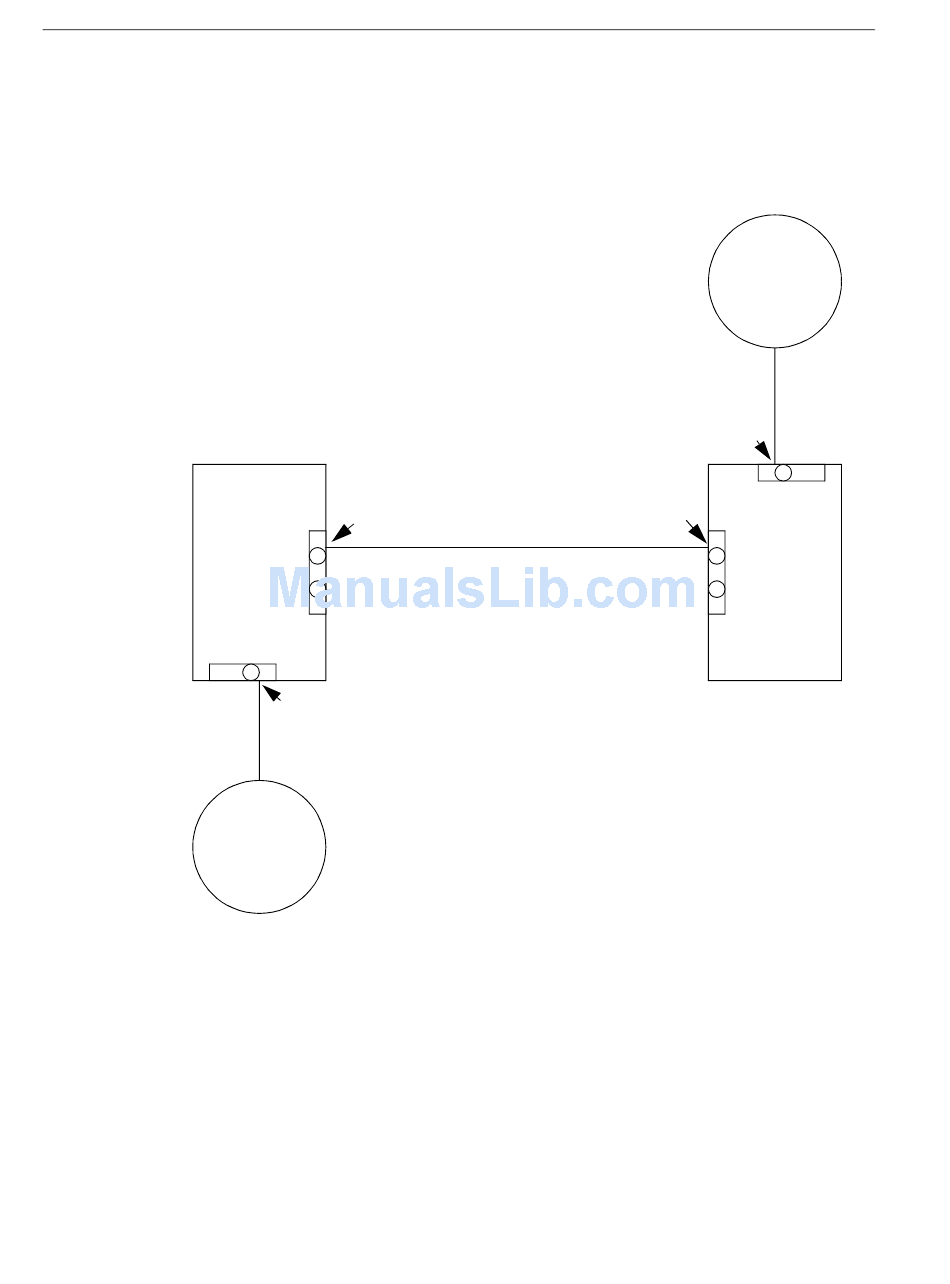

Consider the following network configuration:
Subnet 11.1.1.0
The network shown consists of two SmartSwitch Routers, VLAN A, and VLAN B. Both
SSRs have an ATM module with two ATM ports. Also both SSRs contain a 10/100 TX
Ethernet module. SSR1 is connected to VLAN A through Ethernet port et.2.1, while SSR2
is connected to VLAN B through Ethernet port et.1.1.
This example shows how to configure this network so that we are able to pass traffic from
VLAN B to VLAN A. The following steps will lead you through the configuration process.
52
SSR 1
11.1.100.1/24
at.1.1
et.2.1
11.1.1.1/24
VLAN A
11.1.2.1/24
11.1.2.1/24
SmartSwitch Router User Reference Manual
VLAN B
Subnet 11.1.2.0
et.1.1
at.2.1
SSR 2
