Maintenance

Maintenance
IMPORTANT! Disconnect Power Prior To Maintaining Or Cleaning The Fan. The fan may start
automatically causing serious injury or death.
• Service and repair of fans should be done only by a qualified technician.
•Minimize contact of moisture or corrosive chemicals to the surfaces of the fan components to maximize
fan life.
•After washing fans, operate fans long enough to remove moisture from all fan surfaces.
• Keep the fan clean for maximum life and best performance. Do Not spray water on the Fan Shaft
Bearings, the Belt Tensioner, or the Motor.

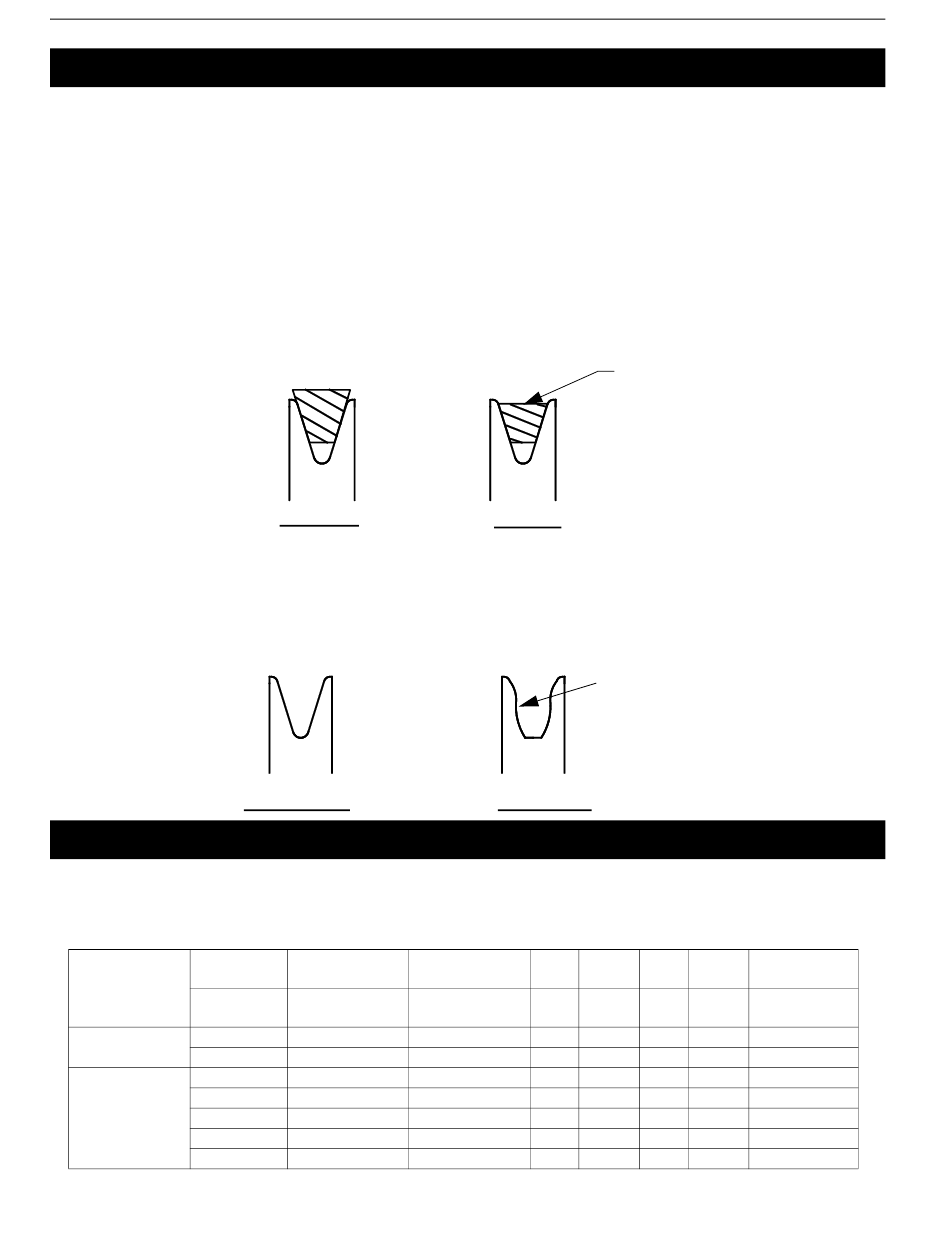

• Periodically check the V-Belt and replace if necessary. A worn Belt will cause a substantial drop in Fan
performance or it can break and cause Fan failure. If a Belt rides below the Sheave edge, replace the
belt. (See below)
1747-054 04/03
• The motor and Fan Shaft Bearings are pre-lubricated. Grease zerks are provided on the fan shaft bear-
ings for installations where re-lubrication is needed. Add only a small amount of grease to purge impu-
rities out of the bearing seals. Use only high quality lithium soap base grease and clean all dirt from
zerk before applying grease. Chore-Time recommends using Shell Alvania # 2 in the fan shaft bear-
ings.
•Check Sheaves for wear. Replace if a Sheave groove is worn.

Shutter Fan Specification

Assembled
Fans
Fan Description Fan Part No.
36" Direct Drive 44453-3620
Shutter Fans
44453-3640
41134-4820
48" Belt Drive 41134-4830
Shutter Fans 41134-4840
41134-4850
41134-4860
20
Good Belt
Good Sheave
Unassembled
Fans
Fan Part No.
115/230
208-230/460
40921-4820 230
40921-4830 230
40921-4840 208-230/460
40921-4850 220-240/380-415
40921-4860 230/380-415
Bad Belt
Bad Sheave (Needs Replaced)
1747-053 04/03
Bad Sheave
Electrical
Volt HZ Phase
60 1
60 3
60 1
50 1
60 3
50 3
60 3
36" & 48" Shutter Box Fan
Bad Belt (Needs Replaced)
HP Motor Motor Sheave
Part No.
1/2 28936 N/A
1/2 42098 N/A
1 37729 35333
1 37729 8773
1 40157 35333
1 36142 24697
1 36142 35333
MV1666D
