Step 5 - Shutter Louver Installation - Chore-Time Mv1666-021 Installation & Operator's Instruction Manual

36" & 48" Shutter Box Fan
1
2

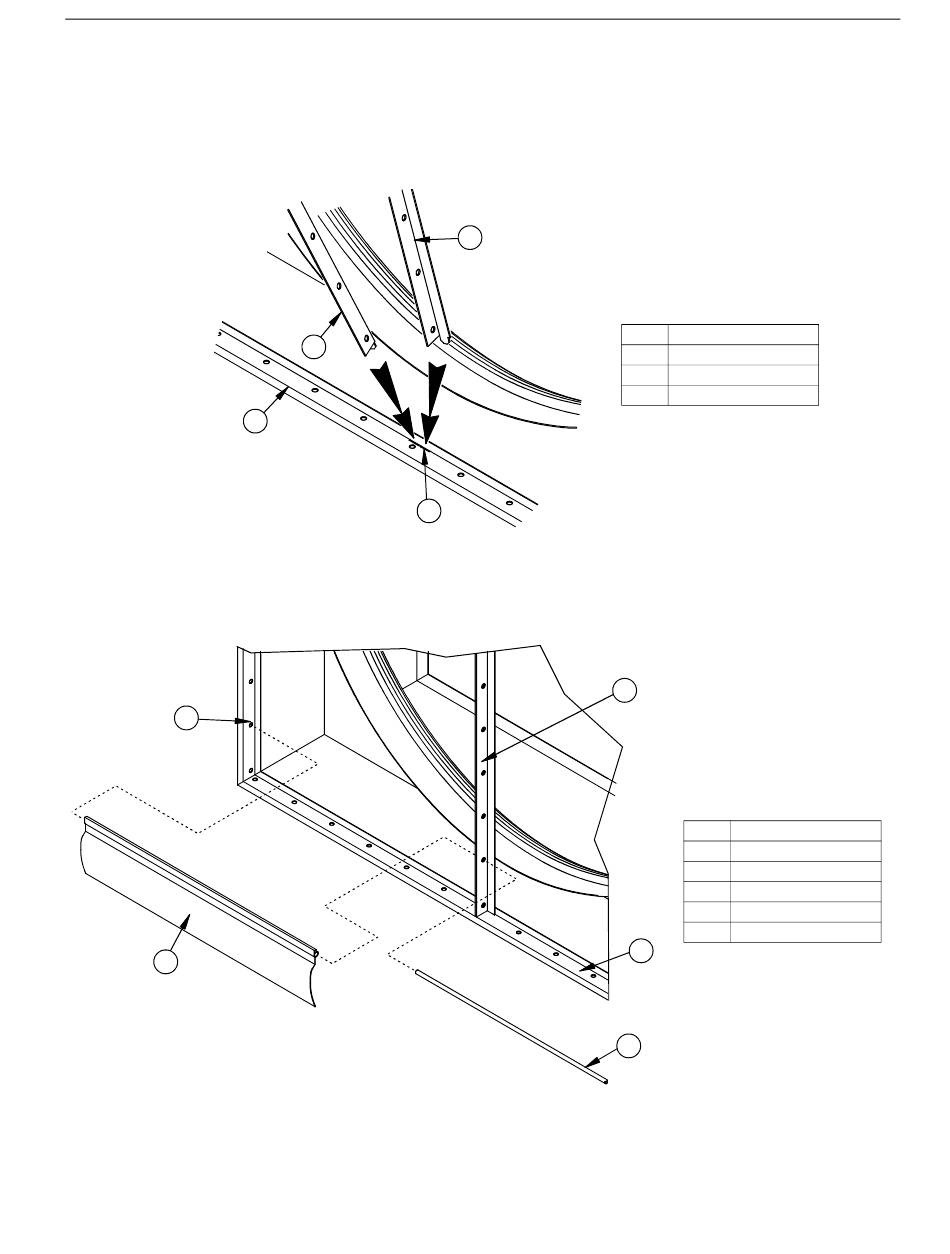

Figure 13. Installing the first Shutter Louver
MV1666D

Step 5 - Shutter Louver Installation

Orient the Shutter Fan Assembly so that the drain holes are on the bottom. Insert the
tab on the end of one of the Center Rails into the slot on the Bottom Side Panel. Slide
the top of the Center Rail until it snaps into the corresponding slot in the Top Side
Panel. Repeat for the other Center Rail. (See Figure 12)
2
1
3
Insert a Shutter Pivot Rod in the second hole up from the bottom of the Center Rails,
through a Shutter Louver, and into the second hole up from the bottom on the Side
Panel. (See Figure 13)
Mv1666-008 01/01
2
Item
1
2
3
MV1544-5A 8/99
Figure 12. Installing Center Rails
3
4
5
Fan Assembly Procedure
Description
Bottom Side Panel
Center Rail
Slot for Center Rail
Item Description
1 Side Panel
2 Shutter Louver
3 Center Rails
4 Bottom Side Panel
5 Shutter Pivot Rod
