Fan Assembly Procedure
DANGER!

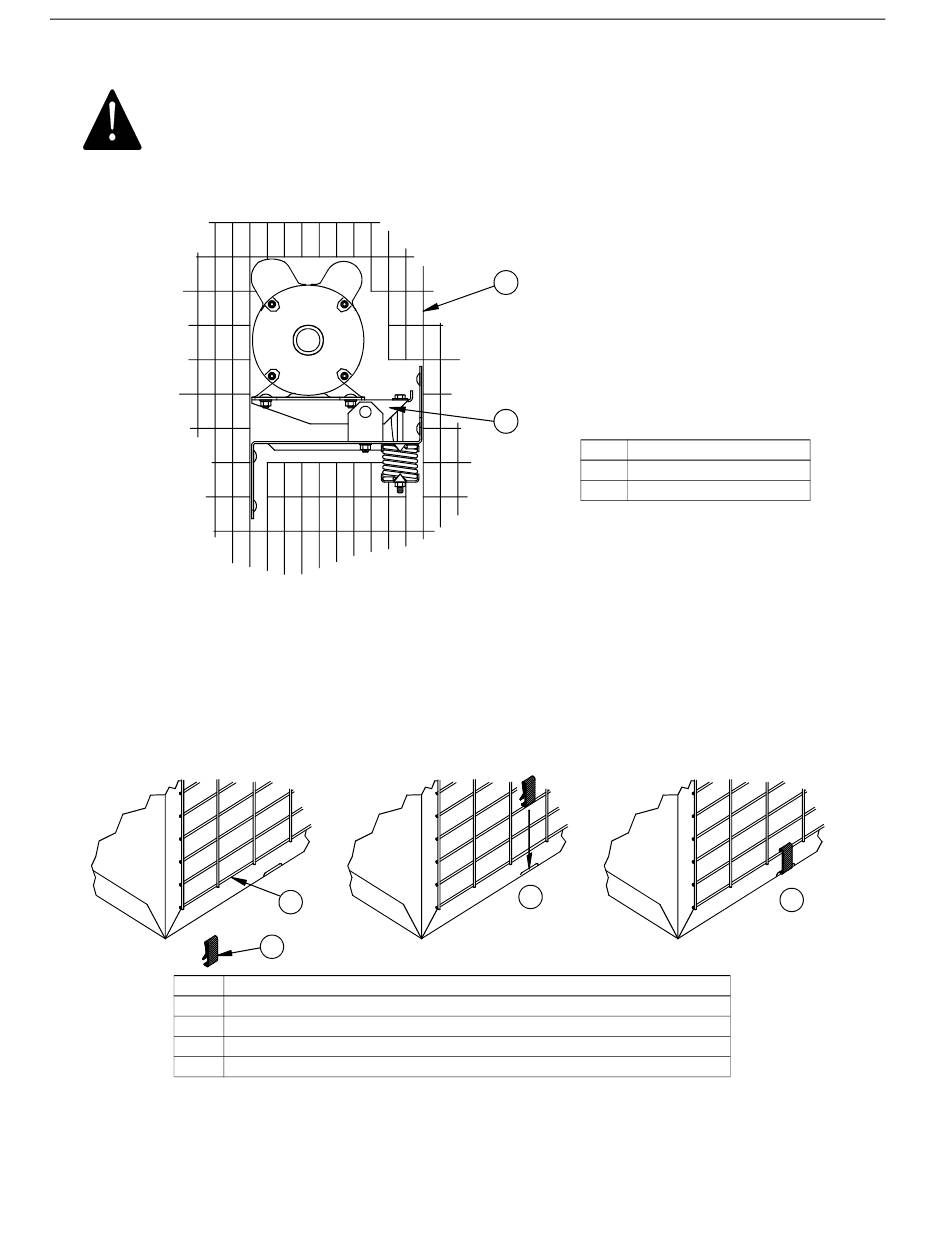

Figure 10. Positioning the Wire Inlet Screen to fit the Motor and Motor Module
MV1544-3B 8/99
Item
1
2
3
4
16

Step 4 - Screen Installation

The Wire Inlet Screen MUST be installed to prevent serious injury or
death.
The Wire Inlet Screen has an opening to accommodate the Motor and Motor
Mounting. Position the Wire Inlet Screen over the back of the fan with the screens
natural bow out away from the fan.
Mv1666-006 12/00
(Blade and Posts not shown for Clarity)
Install (4) Wire Clips on each side to secure the Wire Inlet Screen to the Side Panels.
See Figure 11.
2
1
Description
Screen Clip Part Number 38891
Wire Screen Part Numbers (36") 36629, and (48") 45865
Slip Screen Clip over Screen Wire.
Snap in slot on Fan Side Panel to secure.
Figure 11. Screen Installation
2
1
Item Description
1 Motor Module
2 Wire Inlet Screen
3
36" & 48" Shutter Box Fan
4
MV1666D
