Step 3A - (Direct Drive) Assembly Procedures; Motor Assembly; Blade Assembly - Chore-Time Mv1666-021 Installation & Operator's Instruction Manual

Fan Assembly Procedure
2
3
10

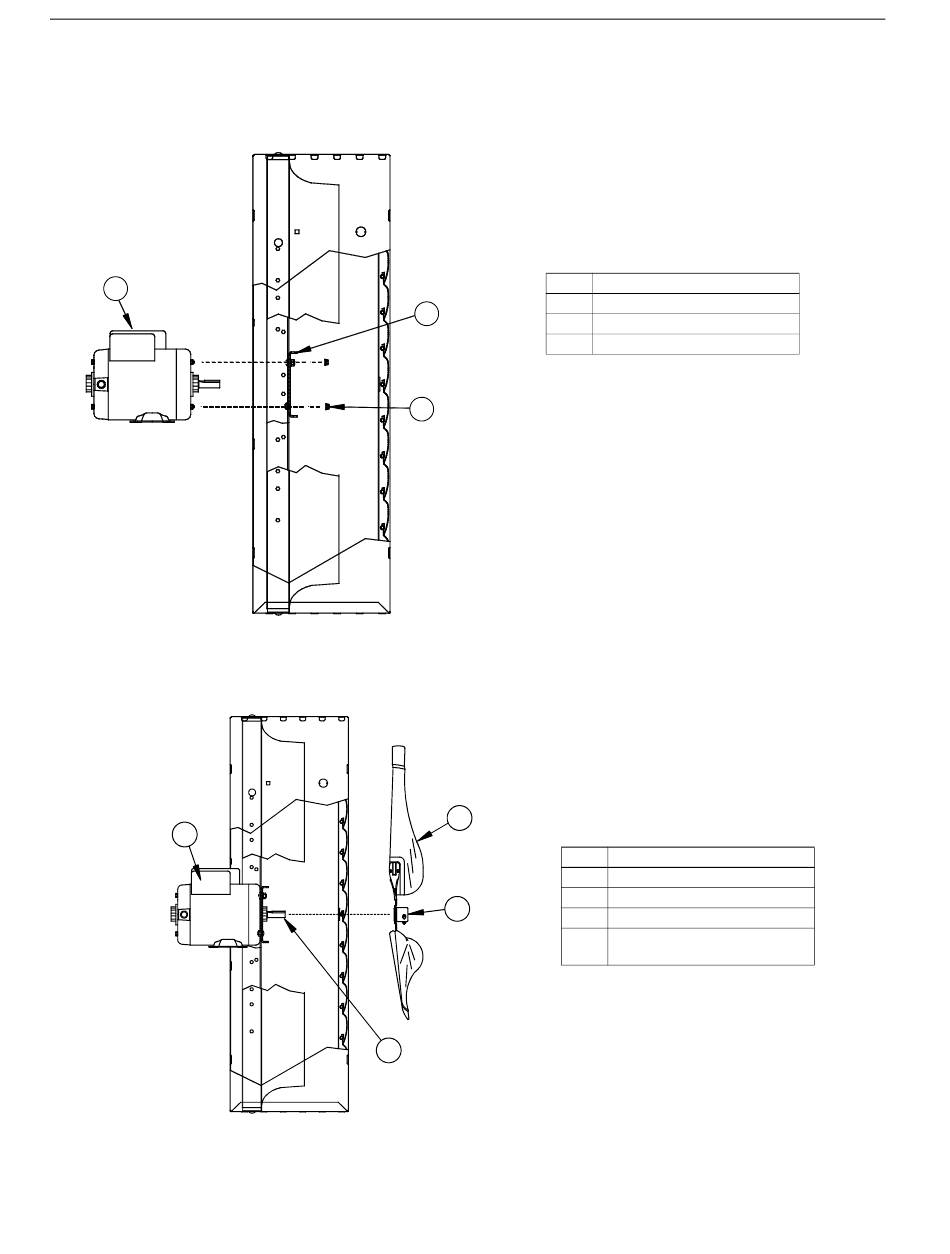

Step 3A - (Direct Drive) Assembly Procedures

Motor Assembly

1
3
Mv1666-010 01/01

Blade Assembly

4
Mv1666-011 01/01
Item Description
1 Motor Support
2 Motor
3 #10-32 Serrated Flange Nut
1
Item Description
1 Blade Assembly
2 Fan Blade Hub
2
3 Motor
4 Motor Shaft With Key/Keyway
and Flat
36" & 48" Shutter Box Fan
MV1666D
