Fan Assembly Procedure

Fan Assembly Procedure
1
2
8
For Factory Assembled Fans see Steps 3 through 6.

Step 1 - Secure Motor Mount Post to Fan Shroud

Secure the Motor Mount Post to the Fan Shroud using the 5/16-18 x 5/8'' carriage
bolts and hex nuts provided in the Hardware Package
The Motor Mount Post must be installed as shown in Figure 2.
4
1
Mv1666-002 12/00

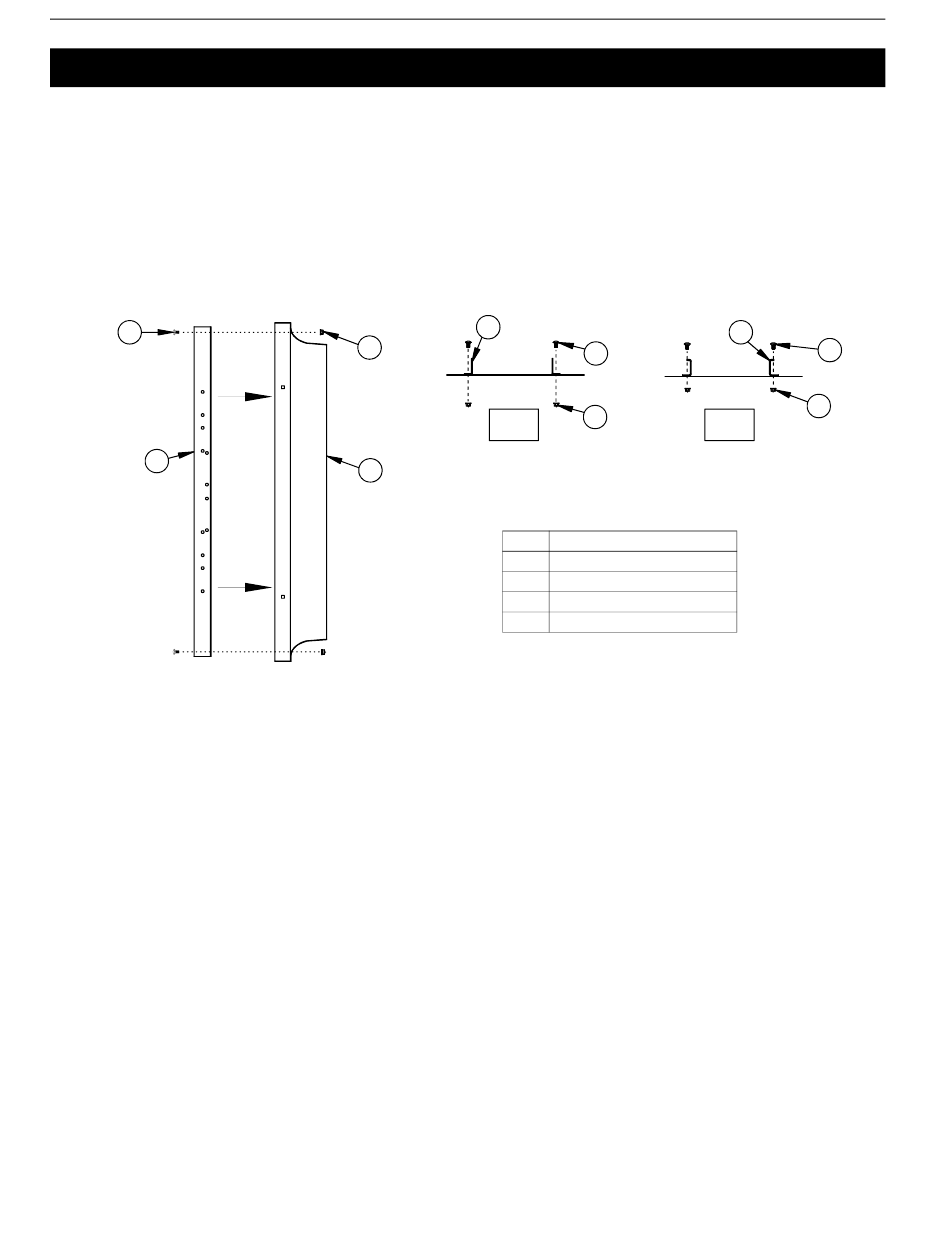

Figure 2. Motor Mount Installation
2
3
4
36"
Key Description
1 Fan Shroud
2 Motor Mount Post
3 5/16-18 x 5/8'' Carriage Bolt
4 5/16-18 Serrated Nut
36" & 48" Shutter Box Fan
