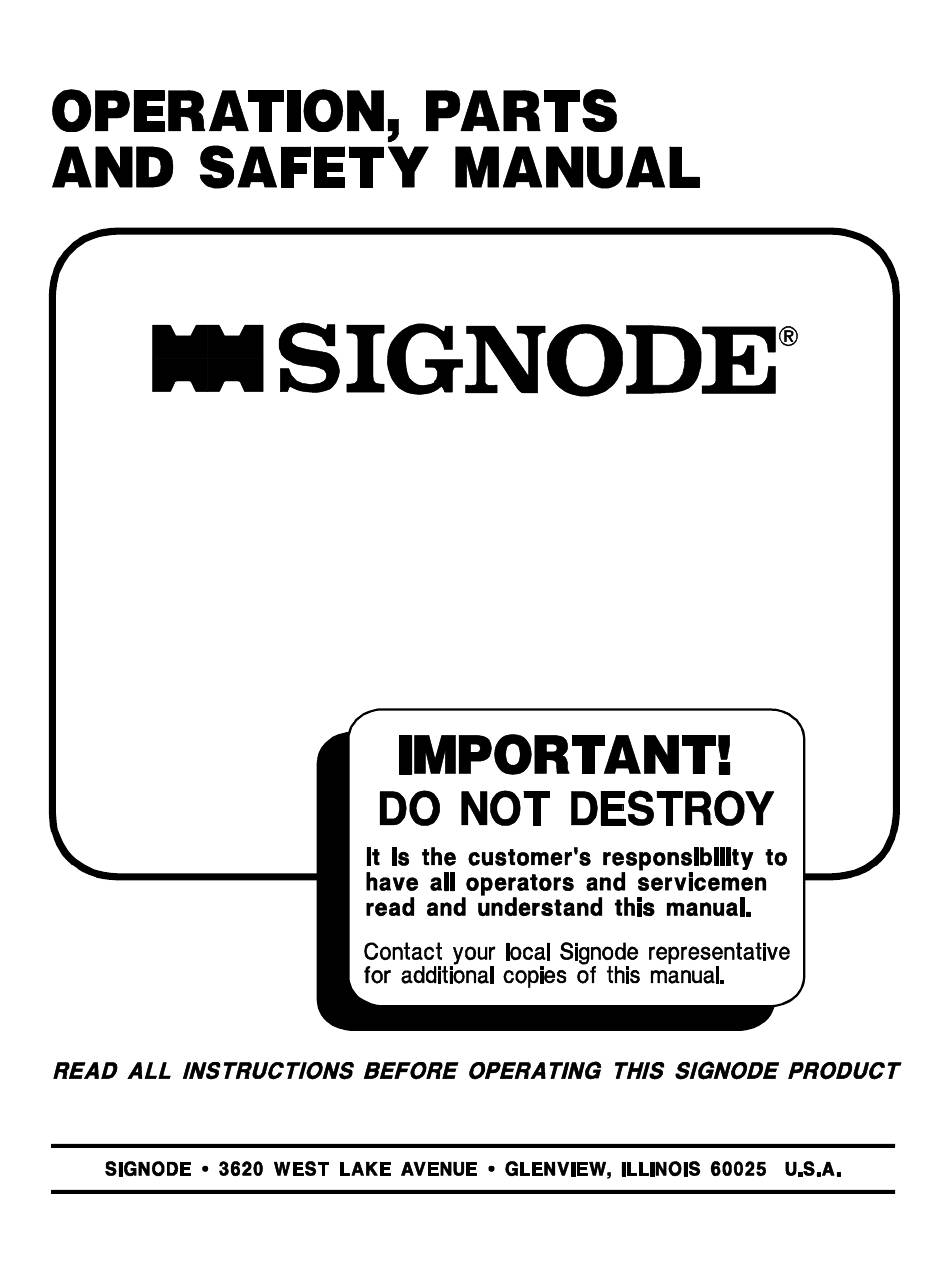

- Page 1 PRHR-34/114 PUSH TYPE POWER COMBINATION STRAPPING TOOL...
- Page 2 2. TRAINING. This tool must not be used by persons not properly trained in its use. Be certain that you receive proper training from your employer. If you have any questions contact your Signode Representative. 3. EYE INJURY HAZARD.
- Page 3 Using claw hammers, crowbars, chisels, axes or similar tools will cause tensioned strap to fly apart with hazardous force. Use only cutters designed for cutting strap. Read the instructions in the cutters manual for proper procedure in cutting strap. Before using any Signode product read its Operation and Safety Manual.
- Page 4 Tool Installation Major Components Signode tools and machines are designed and warranted to work together with Pneumatic Information Signode strapping and seals. Use of non- Signode strap, seals and/or manufactured Strap Tension or specified replacement parts may result Operating Instructions...
- Page 5 MAJOR COMPONENTS To better operate the PRHR become familiar with the major components of the tool.
- Page 6 A filter-regulated-lubricator unit (Signode Part No. 008559) must be installed as close to the air tool as possible, preferably within 10 feet. It should be placed in a convenient location where it can easily be drained, adjusted, and filled with oil.
- Page 7 The remaining moisture is removed at the water leg in the piping system or in the filter (Part No. 173111). NOTE: Additional information is available in the Signode publication, "Air Supply Manual" (Part No. 186038). If you have any questions, contact your local Signode Representative.
- Page 8 An air line dryer adjacent to the compressor. b. Use lubricant recommended by Signode. Signode has tested the use of anti-freezes, none work well in air tools; the tool will gum up when anti-freezes are introduced and will not function properly.
- Page 9 Refer to the Specifications section to make sure the seal has been chosen. Insert the lead end of the strap into the seal Signode No. 114P. Pass the strap over the top of the package then bring the lead end around and up and rethread it into the seal.
- Page 10 OPERATING INSTRUCTIONS, Continued CYCLING THE TOOL Grasp the TOP STRAP and insert it sideways into the tool between the feedwheel and the breaker foot. Make sure the strap is in full contact with the inside surface of the breaker foot. When the TOP STRAP is properly loaded, the sealing mechanism will be in line with the seal.
- Page 11 If not, remove the strap and check the tool for worn or broken parts. Repair the tool before applying another strap. Failure to follow this procedure could result in serious injury or death. If you have questions regarding proper joint formation, contact your Signode Sales Representative.
- Page 12 #1 SYMPTOM: Inadequate strap tension. CAUSE REMEDY Improper strapping being used. Check that Signode lubricated strap is used. Supply air pressure is set incorrectly. Make sure that the air pressure is set between 70-90 psig (4.8-6.1 BAR) at the tool.
- Page 13 Operating Instructions. Incorrect seals being used for tool. Check that Signode 114P seals are being used. Worn or broken sealer jaws Check jaws (94), side plates (85,96), notcher (88), and cutter (36) or leading edge breaker foot (43).
- Page 14 It is hereby declared that the undermentioned machinery has been designed and constructed to comply with the health and safety requirements defined in EC Directive 89/392/EEC Machine Supplier: Signode, Division of ITW Ltd. Queensway, Fforestfach Swansea SA5 4ED Machine Description:...
- Page 15 Glenview, Illinois plant, any tool which proves to not operate per functional specifications within the stated period. Signode reserves the right to replace any tool which proves not to operate per functional specifications with a new or like-new tool of the same model if in Signode's judgement such replacement is appropriate.
