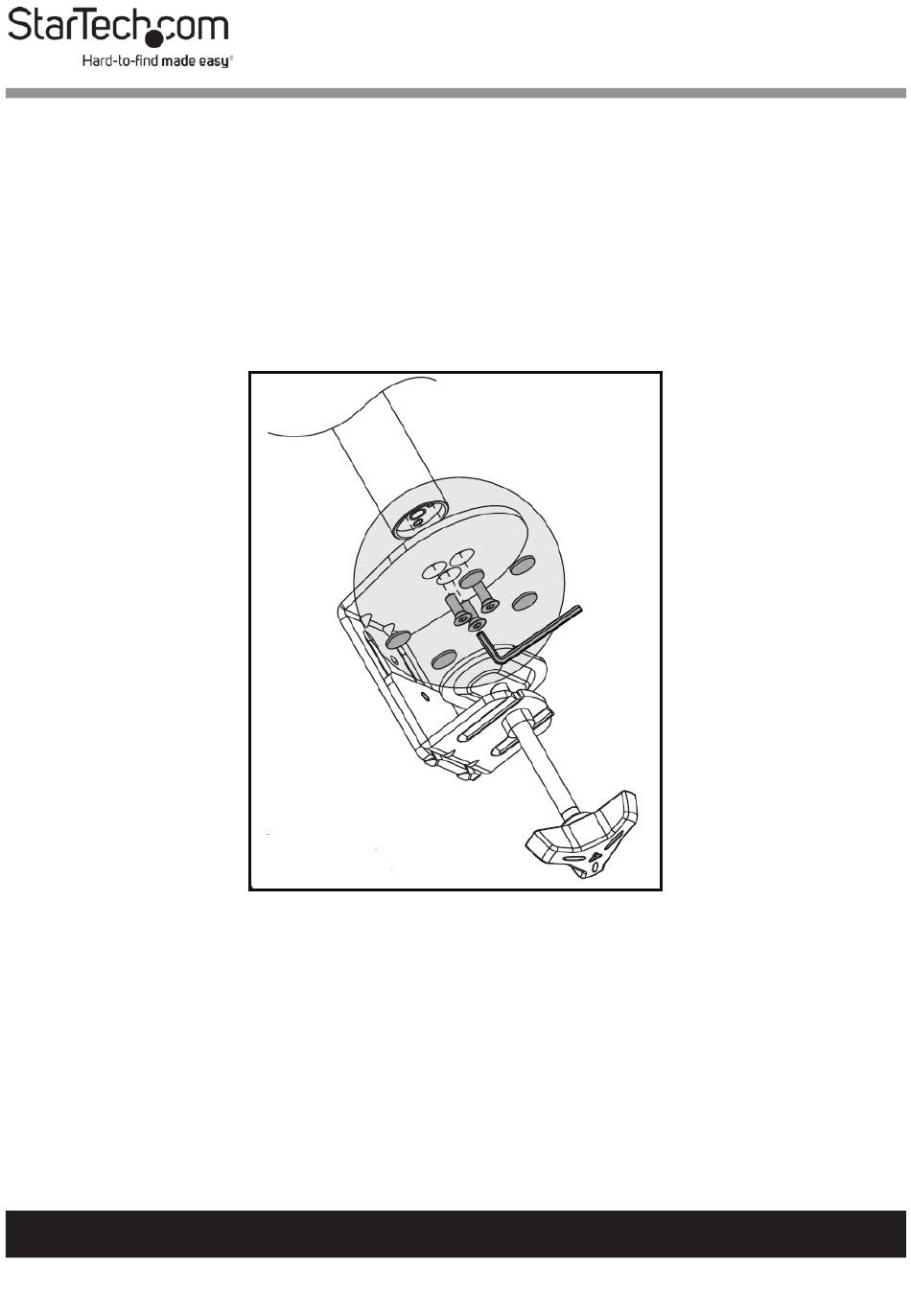

Using the 4 mm Hex Key, tighten the three Pole Assembly
5.
Screws. Being careful not to over-tighten the Pole Assembly
Screws.
Remove the backing from the Rubber Pads (x 5).
6.
Apply the adhesive side of the Rubber Pads to the under
7.
side of the top of the C-Clamp.
While supporting the weight of the Monitor Arm, slide the
8.
C-Clamp over the edge of the Mounting Surface.
Using your hand, tighten the Knob until the C-Clamp is
9.
pressed tightly against the Mounting Surface.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Attaching the C-Clamp to the Pole
14
