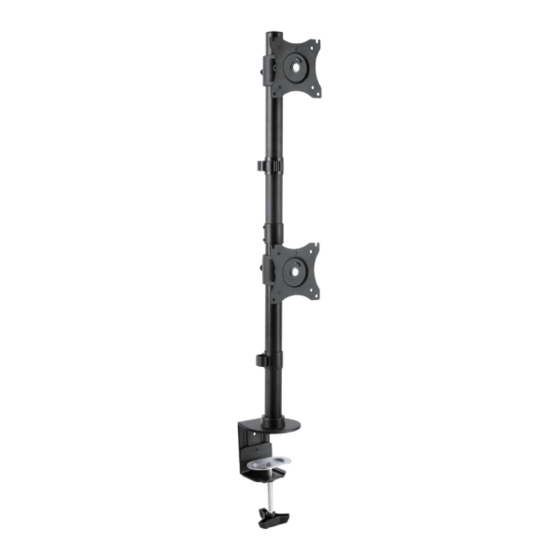

Dual-Monitor Mount - Vertical
ARMDUALV
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit
Manual Revision: 12/04/2018
www.StarTech.com/ARMDUALV
*actual product may vary from photos
.
Advertisement
Table of Contents
Related Manuals for StarTech.com ARMDUALV
Summary of Contents for StarTech.com ARMDUALV
- Page 1 Dual-Monitor Mount - Vertical ARMDUALV *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com For the latest information, technical specifications, and support for www.StarTech.com/ARMDUALV...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
- Page 3 Warning statements Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage. Make sure that the weight of the monitors doesn’t exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the equipment.
-
Page 4: Table Of Contents
Technical specifications .......................... 3 Package contents ............................4 Requirements ............................. 7 Assembly ....................7 Attach the ARMDUALV to your mounting surface ................ 7 Attach a VESA monitor mount......................12 Attach the upper pole ..........................13 Attach the second VESA monitor mount ..................14 Attach monitors to the VESA monitor mounts ................ -
Page 5: Introduction
Introduction Product diagram VESA monitor mount Upper pole Cable-management clip Pole connector VESA monitor mount Lower pole Cable-management clip Desk clamp Instruction manual... -
Page 6: Product Dimensions
Product dimensions ±45° ±45° 360° Instruction manual... -
Page 7: Technical Specifications
Technical specifications Type of measurement Measurement VESA mounting hole pattern 75x75 100x100 Weight capacity Up to 10 kg (22 lb.) per monitor mount Tilt +450 to -450 Screen size Maximum 686 mm (27 in.) Rotate 3600 Swivel +450 to -450 Instruction manual... -
Page 8: Package Contents
Package contents Lower pole Upper pole Qty: One Qty: One Desk clamp Grommet collar Qty: One Qty: One VESA monitor mounts Pole connector Qty: Two Qty: One Instruction manual... - Page 9 Cable-management clips Qty: Two Qty: One Rubber pads Grommet plate Qty: Five Qty: One 3 mm hex key 5 mm hex key Qty: One Qty: One Instruction manual...
- Page 10 6 mm hex key M4x12 mm screws Qty: One Qty: Eight M5x12 mm screws Washers Qty: Eight Qty: Eight Instruction manual Qty: One Instruction manual...
-
Page 11: Requirements
This product can support the following weight: Up to 10 kg (22 lb.) per monitor mount. Attach the ARMDUALV to your mounting surface You can use either the desk clamp or grommet mount to attach the ARMDUALV to your mounting surface. - Page 12 2. Thread the cable-management clip and the cap onto the lower pole. 3. Screw the lower pole into the top of the desk clamp. (figure 2) figure 2 Lower pole Cable-management clip Desk clamp 4. Use the 3 mm hex key to tighten the screws in the desk clamp, and push the cap down so that it sits flush against the top of the desk clamp and covers the screws.
- Page 13 5. Turn the knob on the desk clamp counterclockwise until you reach the thickness of the desk or table that you’re attaching the ARMDUALV to. Note: The desk clamp can accommodate a mounting surface that is between 10 and 88 mm (0.4 and 3.46 in.) thick.
- Page 14 Use the grommet mount to attach the ARMDUALV 1. Thread a Phillips screwdriver through the hole in the top of the desk clamp and unscrew the screw from the plate and rod. 2. Remove the rod from the bottom of the desk clamp. (figure 5) Tip! Keep the screw, plate, and rod in a safe place so that you can use them again if you want to switch back to the desk clamp mount.
- Page 15 4. Thread the cable-management clip and the cap onto the lower pole. 5. Screw the lower pole into the top of the grommet collar. (figure 7) figure 7 Lower pole Cable-management clip Grommet collar 6. Use the 3 mm hex key to tighten the screws in the grommet collar, and push the cap down so that it sits flush against the top of the grommet collar and covers the screws.
-
Page 16: Attach A Vesa Monitor Mount
7. Thread the grommet plate onto the rod. 8. Position the grommet collar and pole over the grommet hole. 9. On the underside of the mounting surface, thread the rod up through the grommet hole and into the grommet collar and pole, and turn the knob clockwise. (figure 9) figure 9 Knob Grommet plate... -
Page 17: Attach The Upper Pole
Attach the upper pole 1. Screw the pole connector onto the end of the lower pole. 2. Thread the other cable-management clip onto the end of the upper pole. 3. Screw the upper pole into the pole connector. (figure 11) 4. -
Page 18: Attach The Second Vesa Monitor Mount
Attach the second VESA monitor mount 1. Slide the other VESA monitor mount down the upper pole. 2. When the VESA monitor mount is at the desired height, use the 5 mm hex key to tighten the screw in the monitor mount. (figure 13) figure 13 VESA monitor mount Upper pole... -
Page 19: Attach Monitors To The Vesa Monitor Mounts
Warning! Attaching a monitor is a two-person job. Do not attempt to complete this task by yourself. ARMDUALV is designed to be used with monitors that are the same size and weight. If you attach monitors that are different sizes and weights to the ARMDUALV, you do so at your own risk. - Page 20 3. Carefully hook the screws into the top two slots on the VESA monitor mount on the upper pole. (figure 15) figure 15 Monitor M4x12 mm screw M5x12 mm screw VESA monitor mount 4. Use a Phillips screwdriver to tighten the screws. (figure 16) Caution! If the VESA monitor mount starts to slip down the upper pole when you add the weight of the monitor, remove the monitor and use the 5 mm hex key to tighten the screw in the side of the VESA monitor mount.
- Page 21 5. Place two washers over the mounting holes in the VESA monitor mount. 6. Insert two M4x12 mm screws or M5x12 mm screws through the washers, the mounting holes in the VESA monitor mount, and into the back of the monitor. (figure 17) Warning! Do not over-tighten the screws.
- Page 22 Use the 75x75 VESA mounting hole pattern to attach a monitor To accommodate different monitor sizes, the ARMDUALV comes with two sets of screws that are different lengths and diameters. To select the appropriate screws for the type of monitor that you’re using, complete the following: •...
-
Page 23: Adjust The Tilt Angle Of Your Monitor
Adjust the tilt angle of your monitor 1. To change the angle that the monitor is tilted at, use the 6 mm hex key to turn the screw in the side of the VESA monitor mount counterclockwise. 2. When the screw is loose, position the monitor at the angle that works best for you. 3. -
Page 24: Manage Your Cables
Manage your cables • Run your monitor cables down the length of both poles and through the cable-management clips located on the poles. (figure 21) figure 21 Cable-management clip Cable-management clip Instruction manual... -
Page 25: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 26 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
