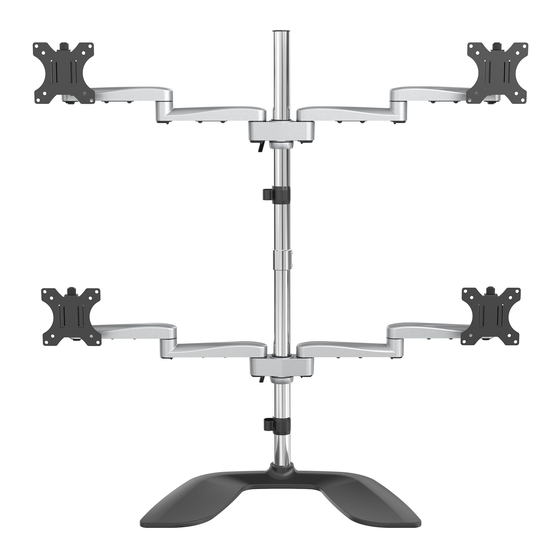

- Page 1 Quad Monitor Stand - Silver *actual product may vary from photos User Manual SKU#: ARMQUADSS Manual Revision: 05/31/2019 For the latest information and specifications visit www.startech.com/ARMQUADSS...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Safety Statements
• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 4: Warning Statements
Personen oder Schäden an Geräten führen. Dieses Produkt ist für folgendes Gewicht geeignet: 8 kg per monitor. • Das Produkt darf nicht bedient werden, wenn Teile fehlen oder beschädigt sind. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 5 Dit product ondersteunt het volgende gewicht: 8 kg per monitor. • Gebruik dit product nooit als er onderdelen ontbreken of beschadigd zijn. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 6 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 取り扱いを誤 った場合に、 傷害を負う恐れや物的損害が発生する恐れがあります。 • 取り付けるモニターの重量が、 本製品で定められた最大積載重量を超えな いようにして下さい。 最大積載重量をオーバーした場合、 傷害を負う恐れや モニターや本製品に損害が発生する恐れがあります。 本製品は、 モニター1 台あたり8 kgまで支持できます。 • 本製品で使用している部品の一部が紛失していたり損傷している状態で使 用するのは絶対に止めて下さい。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 7: Table Of Contents
Attach the Swivel Arms to the Upper Pole ..................17 Attach the VESA Mounts to the Monitors ..................18 Attach the VESA Mounts to the Swivel Arms .................. 20 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 8 Adjusting the Monitors ..................22 Tilt Adjustment ............................22 Swivel Adjustment ............................ 23 Rotation Adjustment ..........................23 Micro Height Adjustment........................24 Cable Management ................... 25 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 9: Product Information
Product Information Package Contents Swivel Arms VESA Mounts Shoulders Upper Pole Qty: 4 Qty: 4 Qty: 2 Qty: 1 Cable- Management Base Lower Pole Pole Connector Clips Qty: 1 Qty: 1 Qty: 1 Qty: 2 Screws: Screws: M4x12 mm M5x12 mm M4x16 mm M5x16 mm Spacers... - Page 10 3 mm Hex User Manual 6 mm Hex Key Key with Screwdriver Tip Qty: 1 Qty: 1 Qty: 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 11: Product Diagram
Product Diagram Dimensions To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 12: Front View
Front View VESA Mounts Swivel Arms Pole Connector Base To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Rear View
Rear View Shoulder Cable-Management Clip To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 14: Side View
Side View Upper Pole Lower Pole To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 15: Technical Specifications
VESA Mounting Hole Pattern 75x75 100x100 Weight Capacity Up to 17.6 lb. (8 kg) Per Monitor Tilt +900 to -400 Maximum Screen Size 32” (813 mm) Rotate 3600 Swivel 3600 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 16: Requirements
Note: All four Monitors must conform to the size, weight, and VESA pattern requirements (see Technical Specifications). Phillips Head Screwdriver • Two People for Installation • (Optional) Two People for Adjustments • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 17: Assembly
Tighten the Hex Screws that are located on the Base using the 3 mm Hex Key with Screwdriver Tip. (Figure 1) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 18: Adjust The Collar On The Lower Pole
Monitors. Tighten the two Flat-Head Screws that are located on the Collar, using the 3 mm Hex Key with Screwdriver Tip. (Figure 2) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 19: Attach The Shoulder To The Lower Pole
Slide the Shoulder over and down the Pole, until it makes contact with the Collar. Freely rotate the Lever to the bottom position and rotate the Lever up/clockwise to tighten the Shoulder. (Figure 3) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 20: Attach The Swivel Arms To The Lower Pole
Swivel Arm clicks into place. (Figure 4) To remove the Swivel Arms: Locate the Clip on the bottom of the Swivel Arms. Toggle this Clip sideways and pull upwards. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 21 Figure 4 Swivel Arms Swivel Arm Clip To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 22: Attach The Upper Pole
Connector using the 3 mm Hex Key with Screwdriver Tip. (Figure 5) Figure 5 3 mm Hex Key with Collar Screwdriver Tip Upper Pole Cable- Management Pole Clip Connector Lower Pole To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 23: Adjust The Collar On The Upper Pole
Tighten the two Flat-Head Screws that are located on the Collar, using the 3 mm Hex Key with Screwdriver Tip. (Figure 6) Figure 6 Collar 3 mm Hex Key with Screwdriver Tip To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 24: Attach The Shoulder To The Upper Pole
Attach the Shoulder to the Upper Pole Rotate the Lever on the Shoulder down/counterclockwise to loosen the Shoulder. Freely rotate the Lever by pulling it away from the Shoulder and rotating it to the top position, then rotate the Lever down/counterclockwise to loosen the Shoulder. -
Page 25: Attach The Swivel Arms To The Upper Pole
To remove the Swivel Arms: Release the Clip that is located on the bottom of the Swivel Arms, where the Swivel Arms connect to the Shoulder, and pull upwards. Figure 8 Swivel Arms Upper Pole Clip Lower Pole To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 26: Attach The Vesa Mounts To The Monitors
ARMQUADSS is designed to be used with Monitors that are the same size and weight. If you attach Monitors that are different sizes and weights to ARMQUADSS, you do so at your own risk. To accommodate different Monitor designs, ARMQUADSS comes with six sets of Screws that are different lengths and diameters. - Page 27 Warning! Do not over-tighten the Screws. If you encounter resistance while you’re tightening the Screws, stop tightening. Failure to do so could result in damage to the Monitor. Figure 10 Screw Washer Spacers To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 28: Attach The Vesa Mounts To The Swivel Arms
Swivel Arm Receptacle on the upper left-hand side until you hear the VESA Mount click into place. (Figure 11) Repeat steps 1-2 for the Monitor on the upper right-hand side. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 29 Figure 11 VESA Mount To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 30: Adjusting The Monitors
Hex Screw is hand tight. (Figure 12) Note: A second person may be required to hold the Monitors as you tighten the Hex Screws. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 31: Swivel Adjustment
Note: Ensure that there is ample clearance to fit all four Moni tors. Some adjustments to the height of the Shoulders will be necessary in order to rotate your Monitors. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 32: Micro Height Adjustment
Monitors or counterclockwise to raise the Monitors. (Figure 13) (Optional) Turn the Height-Adjustment Knob with a hand to raise or lower the Monitors. Figure 13 6 mm Hex Key To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 33: Cable Management
Cable-Management Channel and feed the Cables into the Channel. Route the Cables along the Upper and Lower Poles, through the Cable-Management Clips, and towards the Video Source(s) and Power Source(s). (Figure 14) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 34 Figure 14 Cable-Management Channel To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 35 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 36 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
