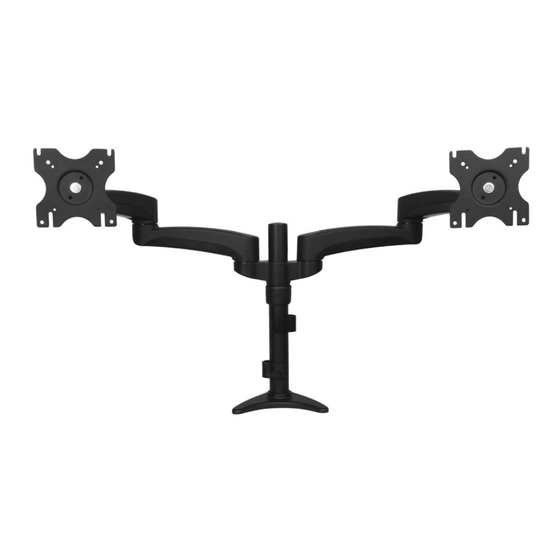

Desk Mount Articulating Dual Monitor Arm
with Cable Management & Height Adjust
ARMDUAL
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 12/04/2018
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ARMDUAL
Summary of Contents for StarTech.com ARMDUAL
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 12/04/2018...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Package contents ............................1 Product diagram ..................2 Installation ....................3 Convert the desk clamp to a grommet clamp ................3 Desk or grommet mounting ......................... 5 Attach the displays ........................... 7 Cable management ..........................10 Adjusting LCD arm resistance ....................... 11 Specifications ..................12 Technical Support ..................13 Warranty Information ................13... -
Page 4: Introduction
Introduction Package contents LCD arms Dual mount Desk clamp Qty: Two Qty: One Qty: One Spacers M4x12 mm screws M4x25 mm screws Qty: Eight Qty: Eight Qty: Eight Grommet mount M4 Allen key M5 Allen key Qty: One Qty: One Qty: One Cover plate assembly Plastic gasket cushions... -
Page 5: Product Diagram
Instruction manual Qty: One Product diagram Instruction Manual... -
Page 6: Installation
Installation WARNING! The maximum weight capacity of the Dual Monitor Arm is 27.2 kg (60 lbs). Convert the desk clamp to a grommet clamp The Dual Monitor Arm can be clamped to a desk or table, or mounted through a grommet hole. - Page 7 3. Use the four hex screws that you removed in step 2 to install the grommet mount (7) to the base of the pole. 4. Use a Phillips screwdriver to remove the screw and two washers shown, and disconnect the threaded shaft from the base of the desk clamp (3). Slide the plate back onto the shaft.
-
Page 8: Desk Or Grommet Mounting
Desk or grommet mounting 1. Adjust the height of the desk clamp (3) to fit your desk surface (if applicable). The clamp can be extended up to 75 mm (3 in.). 2. Place the four plastic gasket cushions (11) as shown. Instruction Manual... - Page 9 3. Depending on the type of mount you are using, do one of the following: • Desk clamp: Place the desk clamp (3) opening around the edge of your desktop in your desired location and tighten the clamp by hand to secure it to the table.
-
Page 10: Attach The Displays
Attach the displays 1. Loosen the collar on the support post and adjust it to the desired height. 2. Attach each of the LCD arms (1) to the dual mount (2). 3. Use the M5 Allen key (9) to remove the M6 screws and washers from each of the cover plate assemblies (10). - Page 11 7. Repeat steps 4 and 5 on the other LCD arm (1). 8. Place the dual mount (2) and the attached LCD arms (1) attached onto the pole. Instruction Manual...
- Page 12 9. Use the M5 Allen key (9) to tighten the dual mount (2). To attach monitors, do one of the following: • If the VESA mount sits flush against the installation surface on the monitor, insert the four M4x12 mm screws (5) through the mounting slots on the VESA mount and into the mounting holes on the back of the monitor.
-
Page 13: Cable Management
Cable management Note: When you attach the cables and route them through the cable management channels, ensure that you leave enough slack to avoid stretching or pulling out the cables when you move the arm. 1. Connect your cables to your displays and position the mounting arm in its fully extended position to ensure that the cables you are using are long enough to allow for proper movement. -
Page 14: Adjusting Lcd Arm Resistance
Adjusting LCD arm resistance WARNING! Forced movement of the LCD arms or mount brackets without loosening the screws may damage the product or the mounted displays. Always support your display from underneath when making any adjustments to the LCD Arms to avoid damage to the display. Note: For all adjustments outlined below, turning the screw clockwise will increase the resistance, while turning the screw counter-clockwise will decrease resistance. -
Page 15: Specifications
Specifications Weight Capacity 60 lbs (27.2 kg) Max Display Size 24” VESA Compatibility 75x75 mm and 100x100 mm Maximum Extension 18.66 in (474 mm) Maximum Mounting Surface 3 in (75 mm) Thickness Instruction Manual... -
Page 16: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 17 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
