Using the 3 mm Hex Key, loosen the Adjustment Screw on
13.
the Collar.
Position the Collar at the height you want the Monitors to
14.
sit.
Using the 3 mm Hex Key, tighten the Adjustment Screw on
15.
the side of the Collar, securing the Collar to the Pole.
Clip the Arm Assembly Clips (x 4) into place along the
16.
Swivel Arm Assembly.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

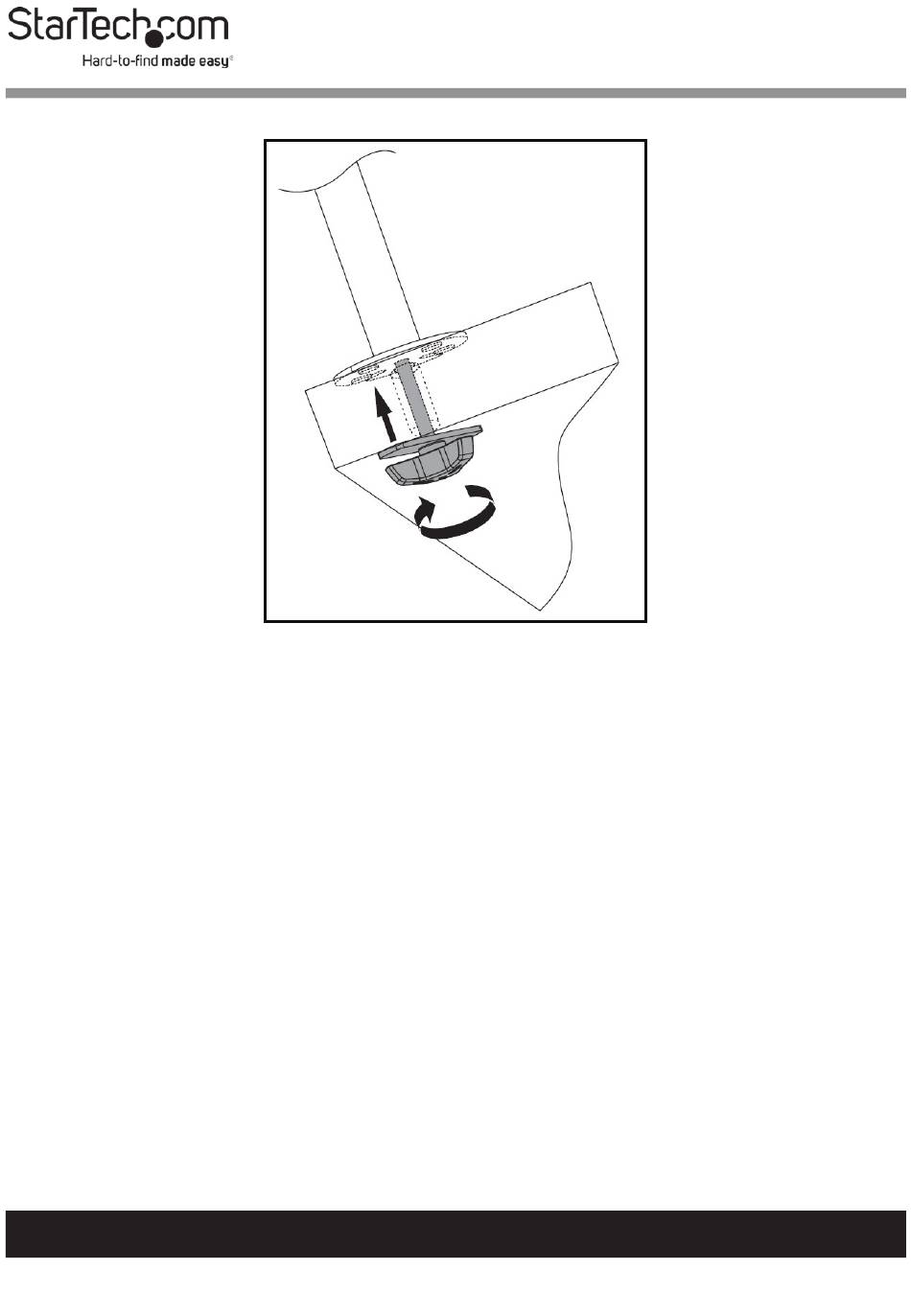

Tightening the Knob
21
