Summary of Contents for StarTech.com ARMDUAL3

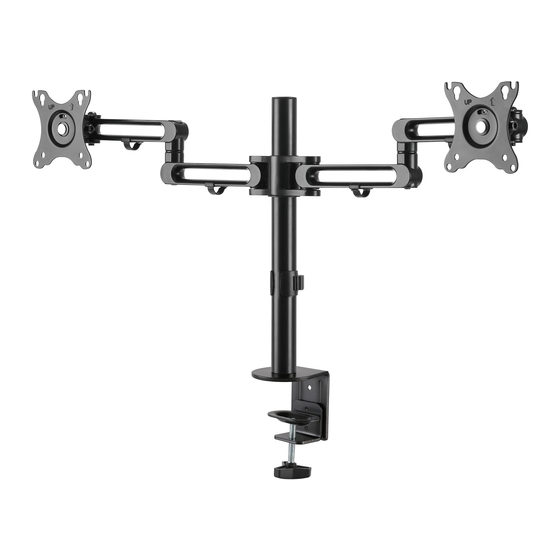

- Page 1 Desk Mount Dual Monitor Arm | Articulating Actual product may vary from photos User Manual SKU#: ARMDUAL3 For the latest information and specifications visit www.startech.com/ARMDUAL3 Manual Revision: 09/19/2019...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
-
Page 3: Warning Statements
Il prodotto è in grado di supportare i seguenti pesi: 2 x 8 kg. • Il prodotto è destinato all’uso in ambienti interni. Se ne sconsiglia l’impiego in ambienti esterni. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 4 • Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt. 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 • 本製品で定められた最大積載重量を超えないようにして下さい。 最大積載重量をオーバーした 場合、 怪我をする恐れや器物破損の恐れがあります。 本製品は、 モニター1台あたり2 x 8 kgまで 支持できます。 • 本製品は、 室内での使用を想定しています。 戸外では使用しないで下さい。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 5: Table Of Contents
Product Specifications ..........................10 Requirements ............................. 11 Assembling the C-Clamp ..............12 Assembling the Monitor Arm ...............14 Mounting the Monitors .................16 Adjusting the Monitors .................19 Routing the Cables .................20 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 6: Product Diagram
Product Diagram Swivel Arm Assembly Monitor Mounts x 2 Pole C-Clamp Cable Management Clips x 5 (installed) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Product Dimensions
Product Dimensions To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Information
Product Information Package Contents Upper Desk Clamp Lower Desk Clamp Qty: One Qty: One Swivel Arm Assembly Pole Qty: One Qty: One To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 9 Desk Clamp Screws Pole Assembly Screws Qty: Two Qty: Three 4 mm Hex Key 6 mm Hex Key Qty: One Qty: One To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 10 M4 x 12 mm Screws M5 x 12 mm Screws Qty: Eight Qty: Eight Washers Cable Management Clip Qty: Eight Qty: One To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 11: Product Specifications
Product Specifications 75 x 75 100 x 100 VESA 35.2 lb. (2 x 8 kg) Total Weight (two monitors) Max. 32 “ Screen Size Rotation To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 12: Requirements
- 30 to +30 Tilt - 90 to +90 Swivel Requirements Phillips Head Screwdriver x 1 • Monitors x 2 • Mounting Surface x 1 • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Assembling The C-Clamp
Lower Desk Clamp. Using the 4 mm Hex Key tighten the two Desk Clamp Screws. Being careful not to over-tighten the Desk Clamp Screws. C-Clamp Assembly To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 14 Lower Desk Clamp. Using the 4 mm Hex Key, tighten the two Desk Clamp Screws. Being careful not to over-tighten the Desk Clamp Screws. C-Clamp Assembly To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 15: Assembling The Monitor Arm
Pole. Using the 4 mm Hex Key, tighten the three Pole Assembly Screws. Being careful not to over-tighten the Pole Assembly Screws. Attaching the C-Clamp to the Pole To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 16 While holding the weight of the Swivel Arm Assembly, use the 6 mm Hex Key to tighten the Adjustment Screw on the Swivel Arm Assembly to secure the Swivel Arm Assembly in place. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 17: Mounting The Monitors
Monitors to the Monitor Mounts. Determine the size of screw to use to mount the Monitors to the Monitor Mounts (M4 x 12 mm or M5 x 12 mm). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 18 Washer and Screw Hole on the Monitor Mount and into the Screw Holes on the back of the Monitor. Using a Phillips Head Screwdriver (sold separately) tighten the Screws, being careful not to over-tighten. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 19 Failure to do so could result in damage to the monitor. Attaching a Monitor to the Monitor Mount Repeat steps 1 - 5 to mount the second Monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 20: Adjusting The Monitors
Monitor Mount. Adjusting the Monitor Tilt Adjust the tilt of the Monitor. Once the Monitor is in the desired position, tighten the Adjustment Screw, securing the Monitor in place. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 21: Routing The Cables
Cable Management Clip. Once the Monitor Arm is assembled the Hex Keys can be • placed in the front of the Cable Management Clip on the Pole. Routing Cables To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 22 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 23 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
