LiNX® Control System

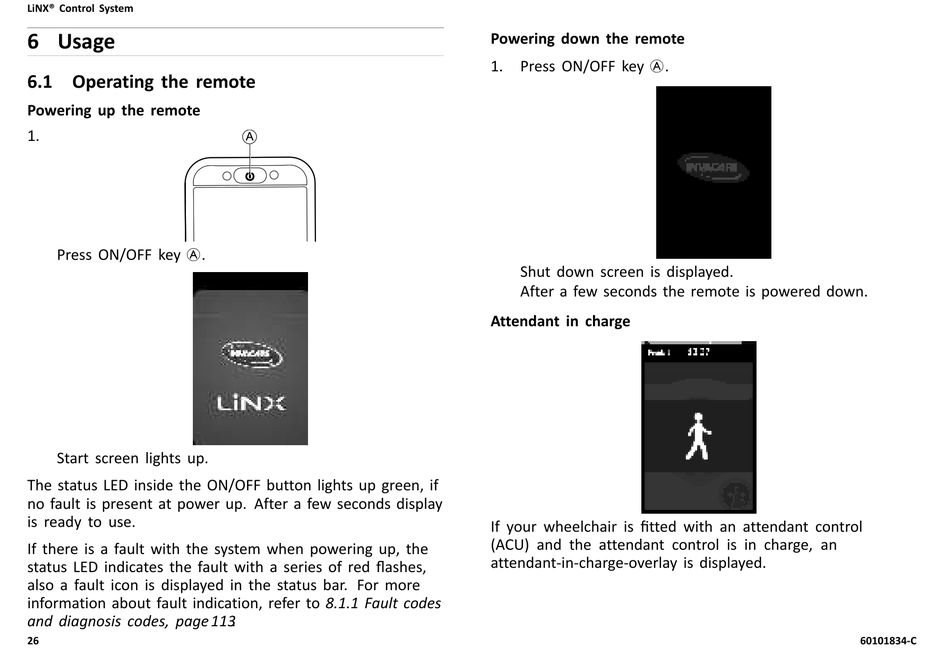

6 Usage

6.1 Operating the remote

Powering up the remote
1.
Press ON/OFF key A.
Start screen lights up.
The status LED inside the ON/OFF button lights up green, if
no fault is present at power up. After a few seconds display
is ready to use.
If there is a fault with the system when powering up, the
status LED indicates the fault with a series of red flashes,
also a fault icon is displayed in the status bar. For more
information about fault indication, refer to 8.1.1 Fault codes
and diagnosis codes, page 113 .
26
Powering down the remote
1. Press ON/OFF key A.
Shut down screen is displayed.
After a few seconds the remote is powered down.
Attendant in charge
If your wheelchair is fitted with an attendant control
(ACU) and the attendant control is in charge, an
attendant-in-charge-overlay is displayed.
60101834-C
