Invacare® LiNX

5 Usage

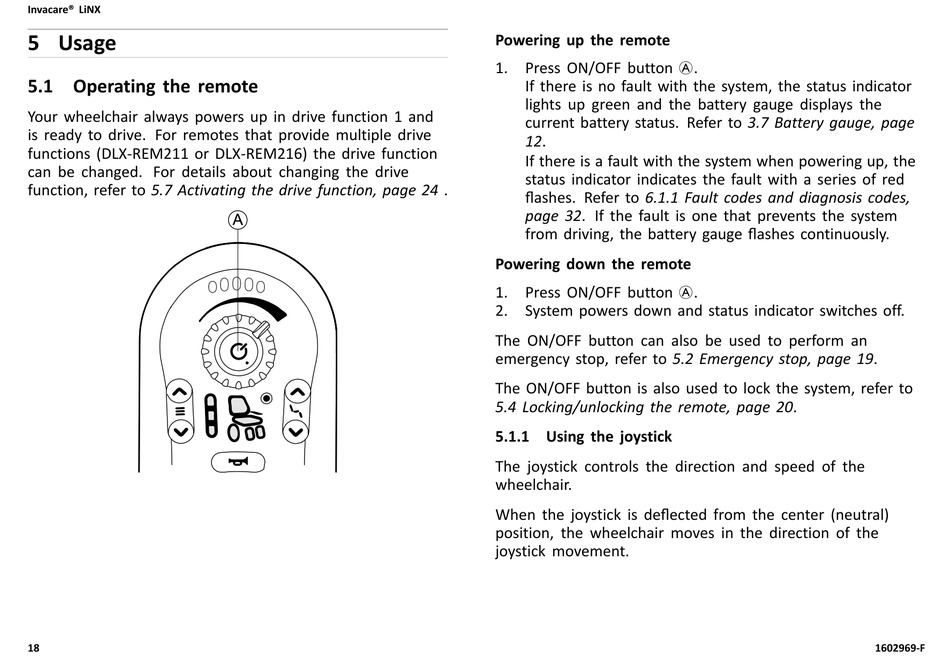

5.1 Operating the remote

Your wheelchair always powers up in drive function 1 and
is ready to drive. For remotes that provide multiple drive
functions (DLX-REM211 or DLX-REM216) the drive function
can be changed. For details about changing the drive
function, refer to 5.7 Activating the drive function, page 24 .
18
Powering up the remote
1. Press ON/OFF button A.
If there is no fault with the system, the status indicator
lights up green and the battery gauge displays the
current battery status. Refer to 3.7 Battery gauge, page
12.
If there is a fault with the system when powering up, the
status indicator indicates the fault with a series of red
flashes. Refer to 6.1.1 Fault codes and diagnosis codes,
page 32. If the fault is one that prevents the system
from driving, the battery gauge flashes continuously.
Powering down the remote
1. Press ON/OFF button A.
2. System powers down and status indicator switches off.
The ON/OFF button can also be used to perform an
emergency stop, refer to 5.2 Emergency stop, page 19.
The ON/OFF button is also used to lock the system, refer to
5.4 Locking/unlocking the remote, page 20.

5.1.1 Using the joystick

The joystick controls the direction and speed of the
wheelchair.
When the joystick is deflected from the center (neutral)
position, the wheelchair moves in the direction of the
joystick movement.
1602969-F
