LiNX® Control System

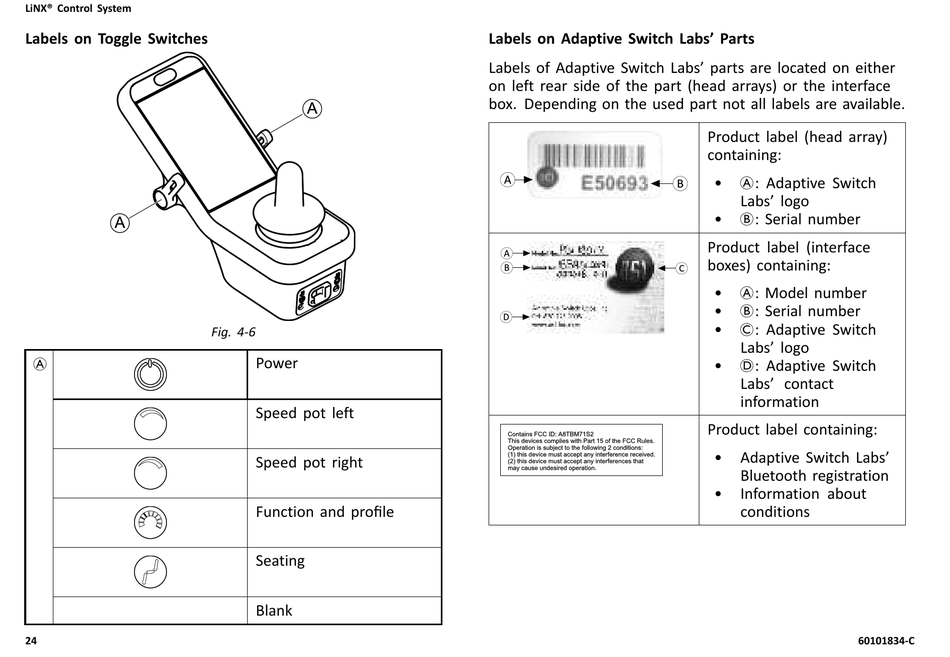

Labels on Toggle Switches
A
24
Fig. 4-6
Power
Speed pot left
Speed pot right
Function and profile
Seating
Blank
Labels on Adaptive Switch Labs' Parts
Labels of Adaptive Switch Labs' parts are located on either
on left rear side of the part (head arrays) or the interface
box. Depending on the used part not all labels are available.
Product label (head array)
containing:
• A: Adaptive Switch
Labs' logo
• B: Serial number
Product label (interface
boxes) containing:
• A: Model number
• B: Serial number
• C: Adaptive Switch
Labs' logo
• D: Adaptive Switch
Labs' contact
information
Product label containing:
• Adaptive Switch Labs'
Bluetooth registration
• Information about
conditions
