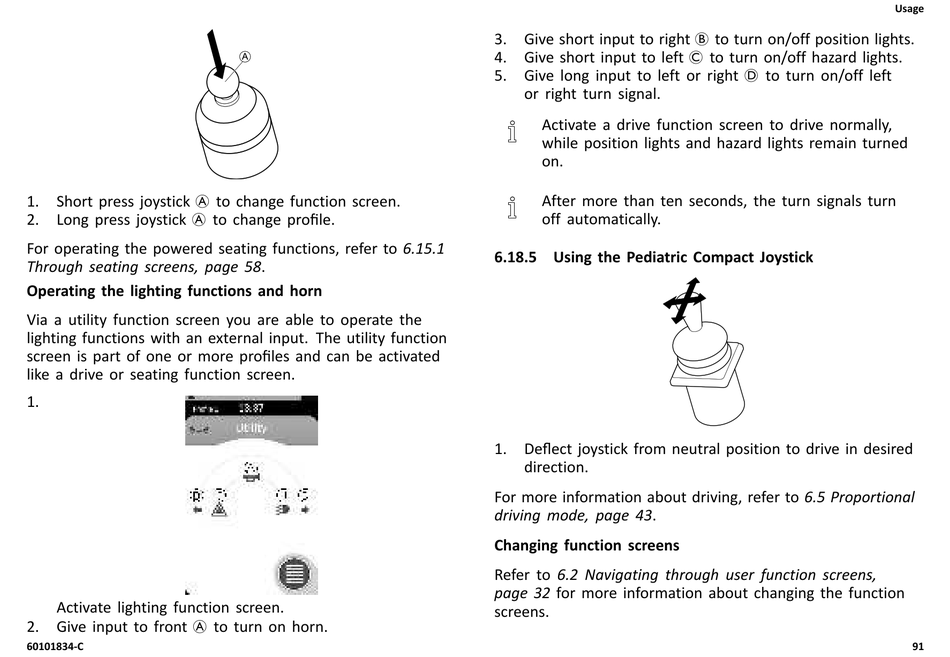

1. Short press joystick A to change function screen.
2. Long press joystick A to change profile.
For operating the powered seating functions, refer to 6.15.1
Through seating screens, page 58.
Operating the lighting functions and horn
Via a utility function screen you are able to operate the
lighting functions with an external input. The utility function
screen is part of one or more profiles and can be activated
like a drive or seating function screen.
1.
Activate lighting function screen.
2. Give input to front A to turn on horn.
60101834-C
3. Give short input to right B to turn on/off position lights.
4. Give short input to left C to turn on/off hazard lights.
5. Give long input to left or right D to turn on/off left
or right turn signal.
Activate a drive function screen to drive normally,
while position lights and hazard lights remain turned
on.
After more than ten seconds, the turn signals turn
off automatically.

6.18.5 Using the Pediatric Compact Joystick

1. Deflect joystick from neutral position to drive in desired
direction.
For more information about driving, refer to 6.5 Proportional
driving mode, page 43.
Changing function screens
Refer to 6.2 Navigating through user function screens,
page 32 for more information about changing the function
screens.
