Control); Using The Extremity Control Joystick - Invacare LiNX REM400 User's Manual Supplement

LiNX® Control System
4. Give short input to left C to turn on/off hazard lights.
5. Give long input to left or right D to turn on/off left
or right turn signal.
Activate a drive function screen to drive normally,
while position lights and hazard lights remain turned
on.
After more than ten seconds, the turn signals turn
off automatically.

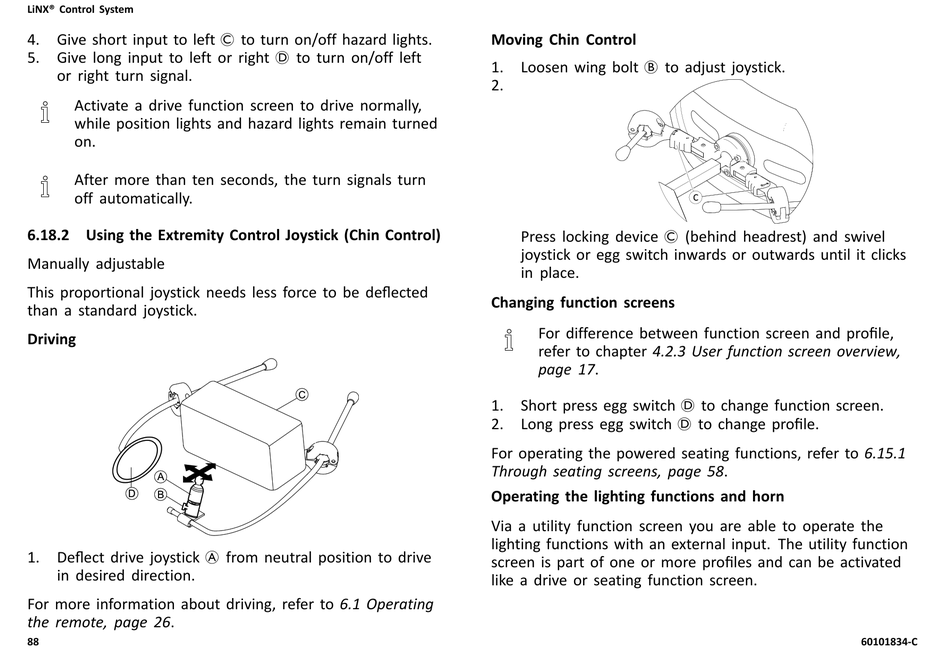

6.18.2 Using the Extremity Control Joystick (Chin Control)
Manually adjustable
This proportional joystick needs less force to be deflected
than a standard joystick.
Driving
1. Deflect drive joystick A from neutral position to drive
in desired direction.
For more information about driving, refer to 6.1 Operating
the remote, page 26.
88
Moving Chin Control
1. Loosen wing bolt B to adjust joystick.
2.
Press locking device C (behind headrest) and swivel
joystick or egg switch inwards or outwards until it clicks
in place.
Changing function screens
For difference between function screen and profile,
refer to chapter 4.2.3 User function screen overview,
page 17.
1. Short press egg switch D to change function screen.
2. Long press egg switch D to change profile.
For operating the powered seating functions, refer to 6.15.1
Through seating screens, page 58.
Operating the lighting functions and horn
Via a utility function screen you are able to operate the
lighting functions with an external input. The utility function
screen is part of one or more profiles and can be activated
like a drive or seating function screen.
60101834-C
