LiNX® Control System

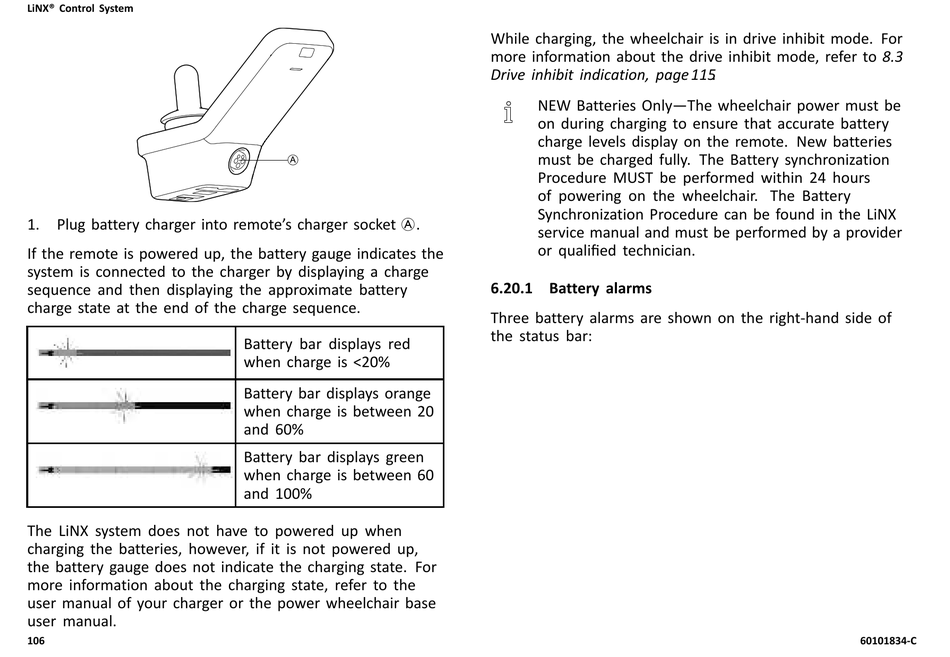

1. Plug battery charger into remote's charger socket A.
If the remote is powered up, the battery gauge indicates the
system is connected to the charger by displaying a charge
sequence and then displaying the approximate battery
charge state at the end of the charge sequence.
The LiNX system does not have to powered up when
charging the batteries, however, if it is not powered up,
the battery gauge does not indicate the charging state. For
more information about the charging state, refer to the
user manual of your charger or the power wheelchair base
user manual.
106
Battery bar displays red
when charge is <20%
Battery bar displays orange
when charge is between 20
and 60%
Battery bar displays green
when charge is between 60
and 100%
While charging, the wheelchair is in drive inhibit mode. For
more information about the drive inhibit mode, refer to 8.3
Drive inhibit indication, page 115 .
NEW Batteries Only—The wheelchair power must be
on during charging to ensure that accurate battery
charge levels display on the remote. New batteries
must be charged fully. The Battery synchronization
Procedure MUST be performed within 24 hours
of powering on the wheelchair. The Battery
Synchronization Procedure can be found in the LiNX
service manual and must be performed by a provider
or qualified technician.

6.20.1 Battery alarms

Three battery alarms are shown on the right-hand side of
the status bar:
