LiNX® Control System

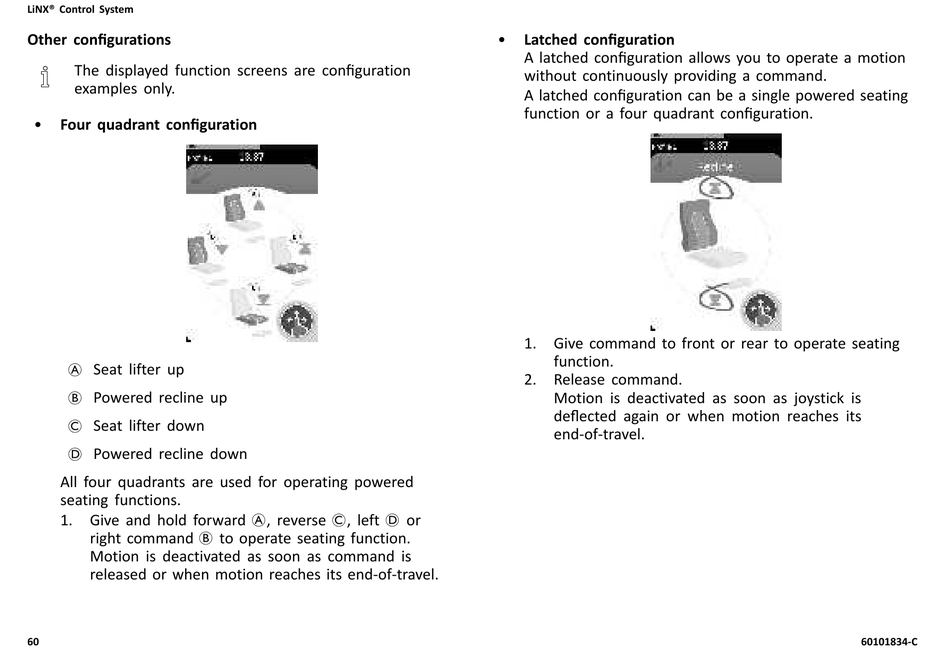

Other configurations
The displayed function screens are configuration
examples only.
• Four quadrant configuration
A Seat lifter up
B Powered recline up
C Seat lifter down
D Powered recline down
All four quadrants are used for operating powered
seating functions.
1. Give and hold forward A, reverse C, left D or
right command B to operate seating function.
Motion is deactivated as soon as command is
released or when motion reaches its end-of-travel.
60
• Latched configuration
A latched configuration allows you to operate a motion
without continuously providing a command.
A latched configuration can be a single powered seating
function or a four quadrant configuration.
1. Give command to front or rear to operate seating
function.
2. Release command.
Motion is deactivated as soon as joystick is
deflected again or when motion reaches its
end-of-travel.
