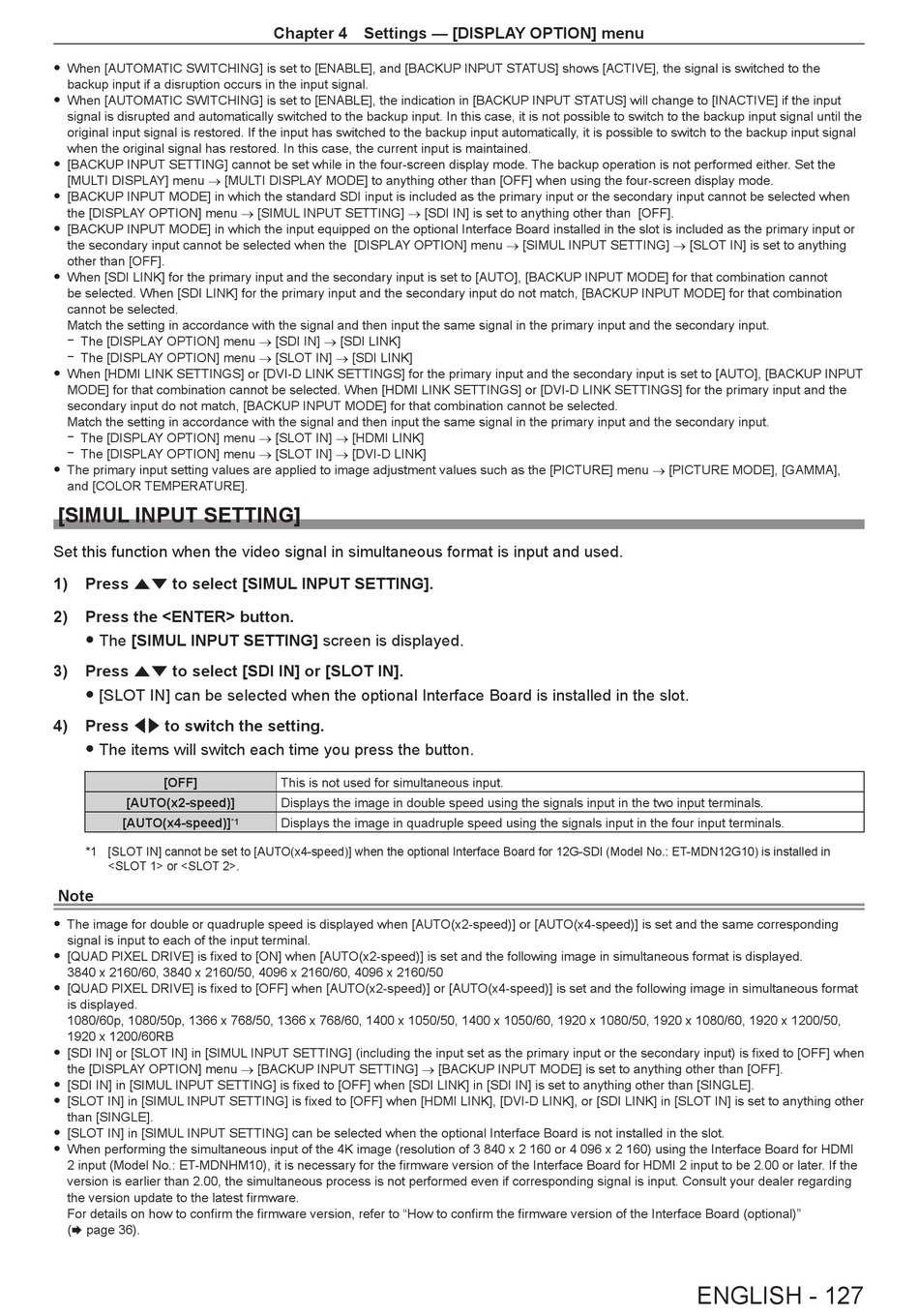

f When [AUTOMATIC SWITCHING] is set to [ENABLE], and [BACKUP INPUT STATUS] shows [ACTIVE], the signal is switched to the
backup input if a disruption occurs in the input signal.
f When [AUTOMATIC SWITCHING] is set to [ENABLE], the indication in [BACKUP INPUT STATUS] will change to [INACTIVE] if the input
signal is disrupted and automatically switched to the backup input. In this case, it is not possible to switch to the backup input signal until the
original input signal is restored. If the input has switched to the backup input automatically, it is possible to switch to the backup input signal
when the original signal has restored. In this case, the current input is maintained.
f [BACKUP INPUT SETTING] cannot be set while in the four-screen display mode. The backup operation is not performed either. Set the
[MULTI DISPLAY] menu → [MULTI DISPLAY MODE] to anything other than [OFF] when using the four-screen display mode.
f [BACKUP INPUT MODE] in which the standard SDI input is included as the primary input or the secondary input cannot be selected when
the [DISPLAY OPTION] menu → [SIMUL INPUT SETTING] → [SDI IN] is set to anything other than [OFF].
f [BACKUP INPUT MODE] in which the input equipped on the optional Interface Board installed in the slot is included as the primary input or
the secondary input cannot be selected when the [DISPLAY OPTION] menu → [SIMUL INPUT SETTING] → [SLOT IN] is set to anything
other than [OFF].
f When [SDI LINK] for the primary input and the secondary input is set to [AUTO], [BACKUP INPUT MODE] for that combination cannot
be selected. When [SDI LINK] for the primary input and the secondary input do not match, [BACKUP INPUT MODE] for that combination
cannot be selected.
Match the setting in accordance with the signal and then input the same signal in the primary input and the secondary input.
g The [DISPLAY OPTION] menu → [SDI IN] → [SDI LINK]
g The [DISPLAY OPTION] menu → [SLOT IN] → [SDI LINK]
f When [HDMI LINK SETTINGS] or [DVI-D LINK SETTINGS] for the primary input and the secondary input is set to [AUTO], [BACKUP INPUT
MODE] for that combination cannot be selected. When [HDMI LINK SETTINGS] or [DVI-D LINK SETTINGS] for the primary input and the
secondary input do not match, [BACKUP INPUT MODE] for that combination cannot be selected.
Match the setting in accordance with the signal and then input the same signal in the primary input and the secondary input.
g The [DISPLAY OPTION] menu → [SLOT IN] → [HDMI LINK]
g The [DISPLAY OPTION] menu → [SLOT IN] → [DVI-D LINK]
f The primary input setting values are applied to image adjustment values such as the [PICTURE] menu → [PICTURE MODE], [GAMMA],
and [COLOR TEMPERATURE].
[SIMUL INPUT SETTING]
Set this function when the video signal in simultaneous format is input and used.
1)
Press as to select [SIMUL INPUT SETTING].
2)
Press the <ENTER> button.
f The [SIMUL INPUT SETTING] screen is displayed.
3)
Press as to select [SDI IN] or [SLOT IN].
f [SLOT IN] can be selected when the optional Interface Board is installed in the slot.
4)
Press qw to switch the setting.
f The items will switch each time you press the button.
[OFF]
[AUTO(x2-speed)]
[AUTO(x4-speed)]
*1 [SLOT IN] cannot be set to [AUTO(x4-speed)] when the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) is installed in
<SLOT 1> or <SLOT 2>.
Note
f The image for double or quadruple speed is displayed when [AUTO(x2-speed)] or [AUTO(x4-speed)] is set and the same corresponding
signal is input to each of the input terminal.
f [QUAD PIXEL DRIVE] is fixed to [ON] when [AUTO(x2-speed)] is set and the following image in simultaneous format is displayed.
3840 x 2160/60, 3840 x 2160/50, 4096 x 2160/60, 4096 x 2160/50
f [QUAD PIXEL DRIVE] is fixed to [OFF] when [AUTO(x2-speed)] or [AUTO(x4-speed)] is set and the following image in simultaneous format
is displayed.
1080/60p, 1080/50p, 1366 x 768/50, 1366 x 768/60, 1400 x 1050/50, 1400 x 1050/60, 1920 x 1080/50, 1920 x 1080/60, 1920 x 1200/50,
1920 x 1200/60RB
f [SDI IN] or [SLOT IN] in [SIMUL INPUT SETTING] (including the input set as the primary input or the secondary input) is fixed to [OFF] when
the [DISPLAY OPTION] menu → [BACKUP INPUT SETTING] → [BACKUP INPUT MODE] is set to anything other than [OFF].
f [SDI IN] in [SIMUL INPUT SETTING] is fixed to [OFF] when [SDI LINK] in [SDI IN] is set to anything other than [SINGLE].
f [SLOT IN] in [SIMUL INPUT SETTING] is fixed to [OFF] when [HDMI LINK], [DVI-D LINK], or [SDI LINK] in [SLOT IN] is set to anything other
than [SINGLE].
f [SLOT IN] in [SIMUL INPUT SETTING] can be selected when the optional Interface Board is not installed in the slot.
f When performing the simultaneous input of the 4K image (resolution of 3 840 x 2 160 or 4 096 x 2 160) using the Interface Board for HDMI
2 input (Model No.: ET-MDNHM10), it is necessary for the firmware version of the Interface Board for HDMI 2 input to be 2.00 or later. If the
version is earlier than 2.00, the simultaneous process is not performed even if corresponding signal is input. Consult your dealer regarding
the version update to the latest firmware.
For details on how to confirm the firmware version, refer to "How to confirm the firmware version of the Interface Board (optional)"
(x page 36).
Chapter 4 Settings — [DISPLAY OPTION] menu
This is not used for simultaneous input.
Displays the image in double speed using the signals input in the two input terminals.
Displays the image in quadruple speed using the signals input in the four input terminals.
*1
ENGLISH - 127
