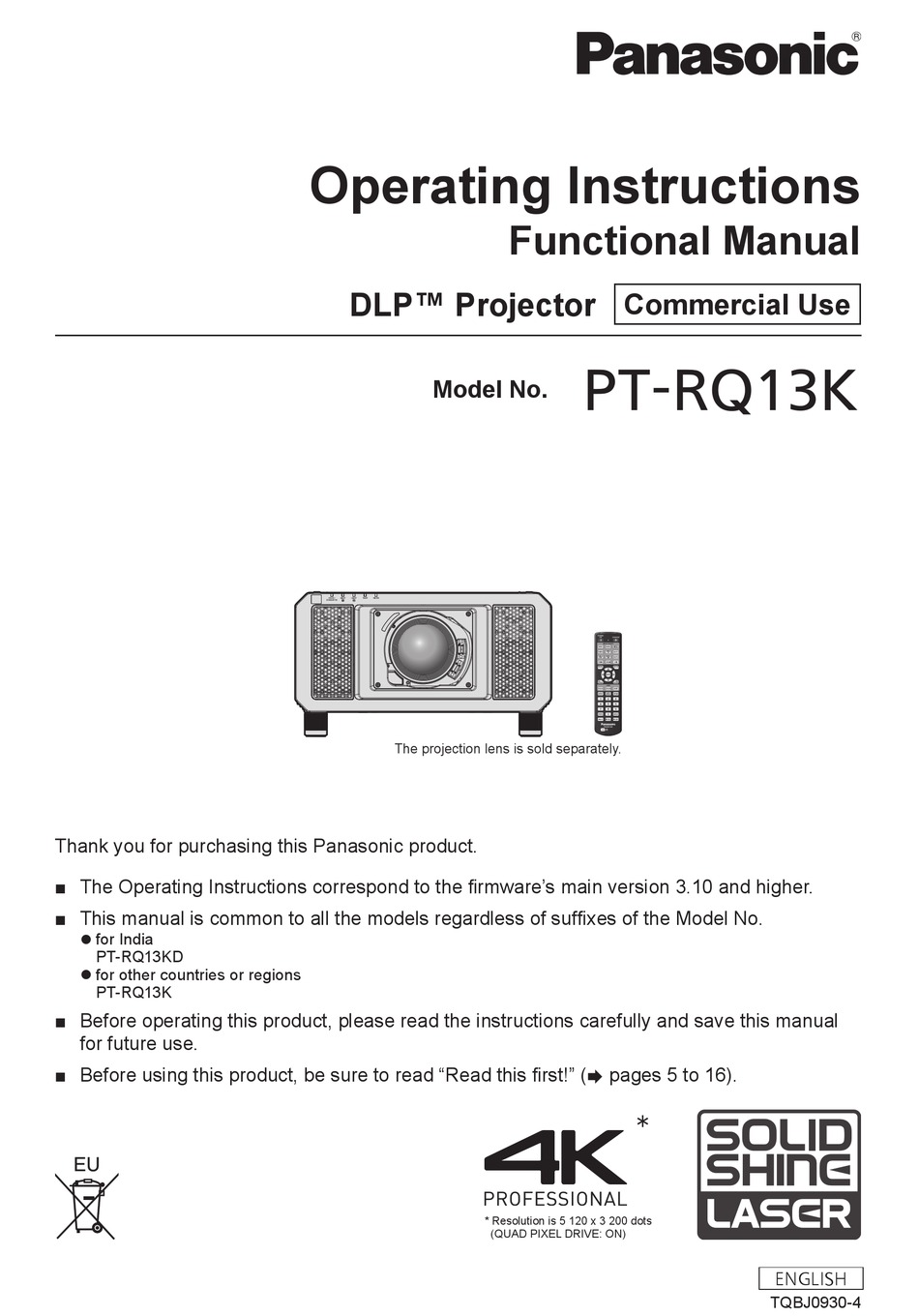

Page 1 Model No. The projection lens is sold separately. Thank you for purchasing this Panasonic product. ■ The Operating Instructions correspond to the firmware’s main version 3.10 and higher. ■ This manual is common to all the models regardless of suffixes of the Model No.
Page 2: Table Of Contents
Contents Contents Read this first! Chapter 3 Basic Operations Switching on/off the projector Chapter 1 Preparation Connecting the power cord Power indicator Precautions for use Switching on the projector Cautions when transporting When the initial setting screen is displayed Cautions when installing Making adjustments and selections Security Switching off the projector...
Page 3 Contents [PICTURE] menu [PROJECTOR SETUP] menu [PICTURE MODE] [PROJECTOR ID] [CONTRAST] [PROJECTION METHOD] [BRIGHTNESS] [OPERATION SETTING] [COLOR] [LIGHT OUTPUT] [TINT] [BRIGHTNESS CONTROL] [COLOR TEMPERATURE] [STANDBY MODE] [GAMMA] [NO SIGNAL SHUT-OFF] [SYSTEM DAYLIGHT VIEW] [NO SIGNAL LIGHTS-OUT] [SHARPNESS] [INITIAL STARTUP] [NOISE REDUCTION] [STARTUP INPUT SELECT] [DYNAMIC CONTRAST] [DATE AND TIME]...
Page 4 Contents [NETWORK] menu [DIGITAL LINK MODE] [DIGITAL LINK SETUP] [DIGITAL LINK STATUS] [NETWORK SETUP] [NETWORK CONTROL] [NETWORK STATUS] [DIGITAL LINK MENU] [Art-Net SETUP] [Art-Net CHANNEL SETTING] [Art-Net STATUS] Network connection Connecting to a twisted-pair-cable transmitter Accessing from the web browser Chapter 5 Maintenance Light source/temperature/filter indicators...
Page 5: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view.
Page 6 Read this first! WARNING: Do not look at the light emitted from the lens while the projector is being used. As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015. Indicated on the projector Notice on laser (for USA and Canada) This projector is the Class 3R laser product that complies with IEC 60825-1:2007.
Page 7 Read this first! (for other countries or regions) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. TQFX340 CAUTION (North/Middle/South America) This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only fit a grounding-type power outlet.
Page 8 FCC NOTICE (USA) Verification Model Number: PT-RQ13K Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: https://panasonic.net/cns/projector/ This device complies with Part 15 of the FCC Rules.
Page 9 L or colored RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse. Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany...
Page 10 Read this first! r Hazard distance (IEC 62471-5:2015) The distance from the projection lens surface, at which the level of exposure has reached the level of the applicable Exposure Limit Value, is known as the hazard distance (HD) or safety distance. Do not look into the projected light from inside the hazard distance (within RG3 range).
Page 11 Read this first! Each dimension inside the hazard distance (within RG3 range) for combination with projection lens which the hazard distance exceeds 1 m (39-3/8") is as follows. (Unit: m) Projection lens Model No. ET-D75LE30 0.68 0.68 ET-D75LE40 0.38 0.38 0.43 0.43 ET-D75LE8...
Page 12 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock. f If foreign objects or water get inside the projector, cut off the power supply.
Page 13 If liquid enters inside of the projector, consult your dealer. f Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Using the ceiling mount bracket other than the specified one will result in falling accidents.
Page 14 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
Page 15 Read this first! CAUTION: r ACCESSORIES When not using the projector for an extended period of time, remove the batteries from the remote control. Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire or contamination of surrounding area.
Page 16 Read this first! Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento.
Page 17 SOLID SHINE is a trademark of Panasonic Corporation. f Windows and Internet Explorer are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. f Mac, macOS, and Safari are trademarks of Apple Inc., registered in the United States and other countries.
Page 18 Features of the Projector Quick Steps For details, refer to the corresponding pages. 1. Set up the projector. High picture quality (x page 38) ▶ In addition to high luminance of 10 000 lm and high contrast of 20 000:1, high-density image exceeding 4K is realized with the 2.
Page 19: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. ENGLISH - 19...
Page 20: Precautions For Use
Chapter 1 Preparation — Precautions for use Precautions for use Cautions when transporting f Before using the projector, remove the dust sponge from the mounting portion of the projection lens and store it for the future use. When transporting the projector, remove the projection lens before attaching the dust sponge. Otherwise dust will accumulate inside and may cause malfunctions.
Page 21 Chapter 1 Preparation — Precautions for use rDo not install the projector at an altitude of 4 200 m (13 780') or higher above sea level. rDo not use the projector in a location that the ambient temperature exceeds 45 °C (113 °F).
Page 22 Chapter 1 Preparation — Precautions for use f When installing the projector in a method other than the floor installation using the adjustable feet, or the ceiling installation, remove the adjustable feet (4 locations) and use the six screw holes for ceiling mount to fix the projector to a mount (as shown in the figure).
Page 23: Security
Make your password difficult to guess as much as possible. f Change your password periodically. f Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in case you receive such inquiries.
Page 24: Digital Link
Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers. This projector does not support audio transmission because it is not equipped with audio function.
Page 25 The input for HDMI, DVI-D, and SDI can be added by installing the optional Interface Board in the slot. “SLOT NX” is a name of the slot unique to Panasonic supporting the signal input for the 4K image. ENGLISH - 25...
Page 26: Accessories
Chapter 1 Preparation — Precautions for use Accessories Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories. Wireless/wired remote control unit <1> (K2CZ3YY00058): for 200 V - 240 V (N2QAYB001052) (K2CZ3YY00032): for 200 V - 240 V Power cord...
Page 27: Optional Accessories
The model numbers of optional accessories are subject to change without prior notice. f The optional accessories described in this document are as of December 2017. Optional accessories may be added or changed without prior notice. For the latest information, visit the Panasonic website (https://panasonic.net/cns/projector/). ENGLISH - 27...
Page 28: About Your Projector
Chapter 1 Preparation — About your projector About your projector Remote control Front Bottom A strap can be attached depending on the usage. Remote control indicator 12 Input selection buttons (<DIGITAL LINK>, <DVI-D>, <HDMI>, <SLOT 1>, <SLOT 2>, <SDI>) Blinks if any button in the remote control is pressed. Switches the input signal to project.
Page 29 Chapter 1 Preparation — About your projector 23 Strap hole Attention f Do not drop the remote control. f Avoid contact with liquids or moisture. f Do not attempt to modify or disassemble the remote control. f Do not swing the remote control holding onto the strap when a strap is attached. f Observe the following instructions that are indicated on the caution label at the back of the remote control: g Do not use old battery with new one.
Page 30: Projector Body
Chapter 1 Preparation — About your projector Projector body Front Side 1 2 3 4 5 6 Rear Light source indicator <LIGHT2> Bottom Indicates the status of light source 2. Temperature indicator <TEMP> Indicates the internal temperature status. Filter indicator <FILTER> Indicates the status of the air filter unit.
Page 31 Chapter 1 Preparation — About your projector r Control panel Power on <b> button <MENU> button Sets the projector to projection mode when the <MAIN Displays or hides the main menu. (x page 80) POWER> switch on the projector is set to <ON> and the power Returns to the previous menu when a sub-menu is displayed.
Page 32 Chapter 1 Preparation — About your projector r Connecting terminals <REMOTE 1 IN> terminal/<REMOTE 1 OUT> terminal <FRAME SYNC 1 IN/OUT> terminal/<FRAME SYNC 2 OUT> These are terminals to connect the remote control for serial terminal control in a multiple projector environment. These are terminals to input and output the control signal to synchronize the projected images in a multiple projector <REMOTE 2 IN>...
Page 33: Names And Functions Of The Interface Board (Optional)
Chapter 1 Preparation — About your projector Names and functions of the Interface Board (optional) This projector is equipped with two SLOT NX-specification slots. There are four SDI input terminals and one DIGITAL LINK input terminal equipped on this projector as the standard video input terminals.
Page 34 Chapter 1 Preparation — About your projector r Interface Board for 12G-SDI (Model No.: ET-MDN12G10) This board supports the SD-SDI signal, HD-SDI signal, 3G-SDI signal, 6G-SDI signal, and 12G-SDI signal. <SDI 1 IN> terminal <SDI 3 IN> terminal This is a terminal to input SDI signal (SD-SDI/ This is a terminal to input SDI signal (SD-SDI/ HD-SDI/3G-SDI/6G-SDI/12G-SDI).
Page 35: Preparing The Remote Control
Chapter 1 Preparation — Preparing the remote control Preparing the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order.
Page 36: Connecting The Remote Control To The Projector With A Cable
Chapter 1 Preparation — Preparing the remote control Connecting the remote control to the projector with a cable If you control the multiple projectors with a single remote control, use commercially available M3 stereo mini jack cables to connect to the <REMOTE 1 IN>/<REMOTE 1 OUT> terminals of the projectors. The remote control is effective even in places where an obstacle stands in the light path or where devices are susceptible to outside light.
Page 37: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. ENGLISH - 37...
Page 38: Setting Up
Chapter 2 Getting Started — Setting up Setting up Note f The light output will decrease as much as the power supply voltage is decreased. It is recommended to use with AC 200 V or higher to prioritize luminance. Installation mode The installation modes of the projector are as follows.
Page 39: Parts For Installation (Optional)
Chapter 2 Getting Started — Setting up Parts for installation (optional) The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.: ET-PKD520H (for High Ceilings), ET-PKD520S (for Low Ceilings)) and Ceiling Mount Bracket (Model No.: ET-PKD520B (Projector Mount Bracket)).
Page 40 Chapter 2 Getting Started — Setting up r For the Fixed-focus Lens (Model No.: ET-D75LE90) Projected image Screen Screen (Unit: m) Projected image height Projected image width Projected image size Projection distance (from the screen to the mirror reflection surface Distance between the projector and the screen (from the screen to the tip of the lens) Distance between the projector and the screen (from the screen to the front surface of the projector) Distance between the projector and the screen (from the screen to the rear surface of the projector) Distance between the projector and the screen (from the screen bottom edge to the projector top)
Page 41 Chapter 2 Getting Started — Setting up [GEOMETRY] projection range [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above) Screen Screen Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above) Projection distance Projection distance Arc radius Arc radius Screen Screen...
Page 42 Chapter 2 Getting Started — Setting up Standard status Only [KEYSTONE] used [KEYSTONE] and [CURVED] used together Only [CURVED] used Projection Vertical Horizontal Vertical Horizontal lens Model keystone keystone keystone keystone Min. value of Min. value of Min. value of Min. value of correction correction correction...
Page 43 Chapter 2 Getting Started — Setting up Projection distance of each projection lens A ±5 % error in listed projection distances may occur. When [GEOMETRY] is used, distance is corrected to become smaller than the specified image size. r When the image aspect ratio is 16:10 (Unit: m) Lens type Zoom Lens...
Page 44 Chapter 2 Getting Started — Setting up r When the image aspect ratio is 16:9 (Unit: m) Lens type Zoom Lens Projection lens Model No. ET-D75LE6 ET-D75LE10 ET-D75LE20 ET-D75LE30 ET-D75LE40 ET-D75LE8 Throw ratio 1.0-1.2:1 1.4-1.8:1 1.8-2.6:1 2.6-5.0:1 4.9-7.9:1 7.9-14.9:1 Projected image size Projection distance (L) Height Min.
Page 45 Chapter 2 Getting Started — Setting up r When the image aspect ratio is 4:3 (Unit: m) Lens type Zoom Lens Projection lens Model No. ET-D75LE6 ET-D75LE10 ET-D75LE20 ET-D75LE30 ET-D75LE40 ET-D75LE8 Throw ratio 1.2-1.4:1 1.7-2.2:1 2.1-3.1:1 3.1-6.0:1 5.9-9.5:1 9.5-17.8:1 Projected image size Projection distance (L) Height Min.
Page 46: Adjusting Adjustable Feet
Chapter 2 Getting Started — Setting up Projection distance (L) formula Projection lens Model No. Throw ratio Aspect ratio Min. (LW) Max. (LT) 2.6 - 5.0:1 16:10 = 2.2121 x SD - 0.1131 = 4.2901 x SD - 0.1765 ET-D75LE30 2.6 - 5.0:1 16:9 = 2.2736 x SD - 0.1131 = 4.4094 x SD - 0.1765...
Page 47: Attaching/Removing The Projection Lens (Optional)
Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Attaching/removing the projection lens (optional) Move the lens position to the home position before replacing or removing the projection lens. (x page 70) Attention f Replace the projection lens after turning off the power of the projector. f Do not touch the electric contacts of the projection lens.
Page 48: Removing The Projection Lens
Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Removing the projection lens Remove the projection lens using the following procedure. Lens release button Fig. 1 Remove the lens fixing screw. f Use a Phillips screwdriver to remove the first screw to the right of the mark on the projection lens (orange). Remove the projection lens by turning it counterclockwise while pressing the lens release button.
Page 49: Connecting
Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
Page 50 Chapter 2 Getting Started — Connecting f Directly connect the projector with the external device that will output the signal without going through a distributor, etc., when inputting quad link signals. A phase difference between the signals of Link 1, Link 2, Link 3, and Link 4 may occur, and the image may not be projected correctly.
Page 51 Chapter 2 Getting Started — Connecting For <SDI 1 IN>/<SDI 2 IN/1 OUT>/<SDI 3 IN>/<SDI 4 IN/3 OUT> terminals of the Interface Board This is an example when the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) is installed in <SLOT 1>. 12G-SDI signal output compatible device SD-SDI signal, HD-SDI signal, 3G-SDI signal, 6G-SDI signal, or 12G-SDI signal Note...
Page 52 Chapter 2 Getting Started — Connecting For <HDMI IN 1>/<HDMI IN 2> terminals and <HDMI IN 3>/<HDMI IN 4> terminals of the Interface Board This is an example when the optional Interface Board for HDMI 2 input (Model No.: ET-MDNHM10) is installed in <SLOT 1>.
Page 53: Connecting Example: Computers
Chapter 2 Getting Started — Connecting Connecting example: Computers This is an example of installing the optional Interface Board for HDMI 2 input (Model No.: ET-MDNHM10) to <SLOT 1>, and the optional Interface Board for DVI-D 2 input (Model No.: ET-MDNDV10) to <SLOT 2>. Control computer Computer Computer...
Page 54: Connecting Example Using Digital Link
Chapter 2 Getting Started — Connecting Connecting example using DIGITAL LINK Twisted-pair-cable transmitter based on the communication standard HDBaseT such as the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) uses the twisted pair cable to transmit input images, Ethernet, and serial control signal, and the projector can input such digital signal to the <DIGITAL LINK/LAN>...
Page 55: Connection Example When Multiple Projected Images Are To Be Synchronized
(https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 56 Chapter 2 Getting Started — Connecting When the frames are synchronized and the contrast is balanced Set [FRAME SYNC] of the one projector that is to be the synchronization source to [MASTER]. Set [FRAME SYNC] of the other projectors that are to be the synchronization target to [SLAVE]. Set [CONTRAST SYNC] to [ON] on all projectors.
Page 57: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. ENGLISH - 57...
Page 58: Switching On/Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily. Confirm that the <MAIN POWER> switch is on the <OFF> side before connecting the power cord. Use the power cord matching with the power supply voltage and the shape of the outlet.
Page 59: Switching On The Projector
Chapter 3 Basic Operations — Switching on/off the projector Note f While the power indicator <ON (G)/STANDBY (R)> lights in orange, the fan is running to cool the projector. f For approximately 15 seconds after the projector is switched off, the indicator does not light up even if the power is switched on. Turn on the power again after the power indicator <ON (G)/STANDBY (R)>...
Page 60: When The Initial Setting Screen Is Displayed
Chapter 3 Basic Operations — Switching on/off the projector When the initial setting screen is displayed When the projector is switched on for the first time after purchase, as well as when [ALL USER DATA] is executed from the [PROJECTOR SETUP] menu → [INITIALIZE], the focus adjustment screen is displayed after projection starts, then the [INITIAL SETTING] screen is displayed.
Page 61 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (operation setting) Set the items for the operating method depending on the projector’s application and duration of usage. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP] menu.
Page 62 Chapter 3 Basic Operations — Switching on/off the projector Press qw to adjust. Adjustment Operation Range of adjustment Brightness Runtime (estimate) The screen becomes brighter. The runtime becomes shorter. Press w. 8.0 % - 100.0 % Press q. The screen becomes darker. The runtime becomes longer.
Page 63 Chapter 3 Basic Operations — Switching on/off the projector Interrelation of luminance and runtime You can use the projector with desired brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP]. Interrelation of luminance and runtime is as follows.
Page 64 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (installation setting) Set [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 38) for details. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [PROJECTION METHOD].
Page 65 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (screen setting) Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING]. Press as to select an item.
Page 66: Making Adjustments And Selections
Chapter 3 Basic Operations — Switching on/off the projector Initial setting (date and time) Set the local date and time. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE AND TIME]. To set the date and time automatically, refer to “Setting the date and time automatically” (x page 149). Press as to select an item.
Page 67: Switching Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Press the <ZOOM> button to adjust the image size to match the screen. Press the <FOCUS> button again to adjust the focus. Press the <ZOOM> button again to adjust the zoom and the image size to match the screen. Note f When the projector is switched on for the first time after purchase, as well as when [ALL USER DATA] is executed from the [PROJECTOR SETUP] menu →...
Page 68: Projecting
Chapter 3 Basic Operations — Projecting Projecting Check the projection lens attachment (x page 47), external device connection (x page 49), power cord connection (x page 58), switch on the power (x page 59) to start projecting. Select the video for projection, and adjust appearance of the projected image.
Page 69: Adjusting The Lens Position And Focus When The Fixed-Focus Lens (Model No.: Et-D75Le90) Is Used
Chapter 3 Basic Operations — Projecting f When the Fixed-focus Lens (Model No.: ET-D75LE50) is used, do not use the shift adjustment, and use the projector with the lens position at the home position. (x page 70) f The adjustment can be performed faster by pressing and holding asqw for approximately three seconds or longer while adjusting the focus and shift.
Page 70: Setting The Lens Position
Chapter 3 Basic Operations — Projecting Setting the lens position To move the lens position to the home position or the lens standard position, perform the following procedure. Press the <DEFAULT> button on the remote control while the shift adjustment screen is displayed. f The [HOME POSITION] screen is displayed.
Page 71: Adjusting The Lens Mounter When The Focus Is Unbalanced
Chapter 3 Basic Operations — Projecting Adjusting the lens mounter when the focus is unbalanced Focus balance Relationship between the tilt of the lens and the screen focus surface When the projection lens is tilted in contrast with the image forming surface, tilting the front side (screen side) of the projection lens downwards (in the direction of the dotted arrow line), the upper side of the screen focus surface will tilt inwards and the lower side will tilt outwards as shown in the example.
Page 72 Chapter 3 Basic Operations — Projecting Adjustment procedure r Relationship between the adjustment location and adjustment screws (b)+(c) Adjustment location: Location where the just focus point of the screen is in the inner side of the screen When the just focus point of When the just focus point of the When the just focus point of When the just focus point of the...
Page 73: Switching The Input
Chapter 3 Basic Operations — Projecting Switching the input Remote control Control panel The input for projection can be switched. Method to switch the input is as follows. f Press the input selection button on the remote control and directly specify the input to project. f Press the input selection button on the control panel and directly specify the input to project.
Page 74 Chapter 3 Basic Operations — Projecting Press the input selection button (<SDI 1/2>, <SDI 3/4>, <DIGITAL LINK>, <SLOT 1>, <SLOT 2>). Switches the input to SDI1 or SDI2 equipped on the projector as standard. <SDI 1/2> The input is switched every time the button is pressed when either of the SDI1 or SDI2 input is selected.
Page 75: Operating With The Remote Control
Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the shutter function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image temporarily. button Press the <SHUTTER>...
Page 76: Using The Automatic Setup Function
Chapter 3 Basic Operations — Operating with the remote control Note f If you press the <MENU> button on the control panel for at least three seconds while the on-screen display is off (hidden), the on-screen display is turned on. Using the automatic setup function The image position when DVI-D/HDMI signal is input can be adjusted automatically.
Page 77: Displaying Internal Test Pattern
Chapter 3 Basic Operations — Operating with the remote control Displaying internal test pattern The projector has eight types of internal test patterns to check the condition of the projector body. To display test patterns, perform the following steps. button Press the <TEST PATTERN> button. Press qw to select the test pattern.
Page 78: Using The Ac Voltage Monitor Function
Chapter 3 Basic Operations — Operating with the remote control Using the AC voltage monitor function The value of input supply voltage can be displayed on the self-diagnosis display at the side of the projector. r To display during projection Press the power on <b> button. f The value of the input supply voltage is displayed only as numeric value on the self-diagnosis display.
Page 79: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. ENGLISH - 79...
Page 80: Menu Navigation
Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed.
Page 81: Main Menu
Chapter 4 Settings — Menu navigation Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings. f Some items will switch in order as follows each time you press qw. f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note...
Page 82: Sub-Menu
Chapter 4 Settings — Menu navigation Main menu item Page [DISPLAY OPTION] [PROJECTOR SETUP] [MULTI DISPLAY] [TEST PATTERN] [SIGNAL LIST] [SECURITY] [NETWORK] Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. [PICTURE] Sub-menu item Factory default...
Page 83 Chapter 4 Settings — Menu navigation Note f Sub-menu items and factory default settings vary depending on the selected input terminal. [DISPLAY LANGUAGE] Details (x page 104) [DISPLAY OPTION] Sub-menu item Factory default Page [COLOR MATCHING] [OFF] [LARGE SCREEN CORRECTION] [OFF] [SCREEN SETTING] ―...
Page 84 Chapter 4 Settings — Menu navigation [MULTI DISPLAY] Details (x page 160) [TEST PATTERN] Details (x page 162) [SIGNAL LIST] Details (x page 163) [SECURITY] Sub-menu item Factory default Page [SECURITY PASSWORD] [OFF] [SECURITY PASSWORD CHANGE] ― [DISPLAY SETTING] [OFF] [TEXT CHANGE] ―...
Page 85: [Picture] Menu
Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 80) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
Page 86: [Brightness]
Chapter 4 Settings — [PICTURE] menu Attention f Adjust [BRIGHTNESS] first when you need to adjust the black level. [BRIGHTNESS] You can adjust the dark (black) part of the projected image. Press as to select [BRIGHTNESS]. Press qw or the <ENTER> button. f The [BRIGHTNESS] individual adjustment screen is displayed.
Page 87 Chapter 4 Settings — [PICTURE] menu [USER1] Adjusts white balance as desired. Refer to “Adjusting desired white balance” (x page 87) for details. [USER2] [3200K] - [9300K] Allows you to set in increments of 100 K. Select so that images become natural. Note f When [PICTURE MODE] (x page 85) is set to [USER] or [DICOM SIM.], [DEFAULT] cannot be selected.
Page 88: [Gamma]
Chapter 4 Settings — [PICTURE] menu Press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. f The [USER1] or [USER2] data is overwritten. f If you press qw to select [CANCEL] and then press the <ENTER> button, the data will not be overwritten. f The [WHITE BALANCE HIGH] screen is displayed.
Page 89: [System Daylight View]
Chapter 4 Settings — [PICTURE] menu Note f DICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices. Although the DICOM name is used, the projector is not a medical device, and display images should not be used for medical purposes such as diagnosis. Changing the name of [USER1] or [USER2] Press as to select [GAMMA].
Page 90: [Noise Reduction]
Chapter 4 Settings — [PICTURE] menu [NOISE REDUCTION] You can reduce noises when the input image is degraded and noise is occurring in the image signal. Press as to select [NOISE REDUCTION]. Press qw or the <ENTER> button. f The [NOISE REDUCTION] individual adjustment screen is displayed. Press qw to switch the item.
Page 91: [System Selector]
Chapter 4 Settings — [PICTURE] menu Setting item Details [DISABLE] Does not turn off the light source. Turns off the light source when the brightness level of the video [LIGHTS OUT TIMER] signal being input goes under the value set in [LIGHTS OUT (Time setting until the light turns [0.0s] - [10.0s] SIGNAL LEVEL].
Page 92: Srgb-Compliant Video
Chapter 4 Settings — [PICTURE] menu f The selection item for the input signal to the <DVI-D IN 3> terminal and the <DVI-D IN 4> terminal can be selected when the optional Interface Board equipped with the DVI-D input is installed in <SLOT 2>. f For the SDI input, the signal format can be set in detail in the [DISPLAY OPTION] menu →...
Page 93: [Position] Menu
Chapter 4 Settings — [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 80) for the operation of the menu screen. Note f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/ LAN>...
Page 94: [Zoom]
Chapter 4 Settings — [POSITION] menu Displays images with the aspect ratio converted to 16:9 when standard signals are input . When [16:9] wide-screen signals are input , the images are displayed without changing the aspect ratio. Displays images without changing the aspect ratio when standard signals are input .
Page 95: [Geometry]
Chapter 4 Settings — [POSITION] menu Press as to select [MODE]. Press qw to switch the item. [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT]. [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT]. Press as to select [INTERLOCKED].
Page 96 Chapter 4 Settings — [POSITION] menu [KEYSTONE] [VERTICAL KEYSTONE] [HORIZONTAL KEYSTONE] [VERTICAL BALANCE] [HORIZONTAL BALANCE] Adjust the setting according to the lens shift range in the vertical Adjust the setting according to the lens shift range in the horizontal direction. direction. [CURVED] [LENS THROW RATIO] Set the throw ratio for the lens used.
Page 97 Chapter 4 Settings — [POSITION] menu [CORNER CORRECTION] [UPPER LEFT] [UPPER RIGHT] [LOWER LEFT] [LOWER RIGHT] [LINEARITY] Horizontal direction Vertical direction Note f The menu or logo may run off the screen when [GEOMETRY] is set. f If [EDGE BLENDING] (x page 99) adjustment and [GEOMETRY] are used together, correct edge blending adjustment may not be possible in certain environments.
Page 98: [Advanced Menu] Menu
[OFF] ([PC-1], [PC-2], [PC-3]). Up to three blanking settings adjusted using the computer can be saved. [CUSTOM MASKING] is using the masking function of the Panasonic computer application. To use the [CUSTOM MASKING] function, the optional Upgrade Kit (Model No.: ET-UK20) is required. To purchase the product, consult your dealer.
Page 99: [Edge Blending]
*1 The actual blanking width cannot be adjusted exceeding the center of the projected image. Note f The [CUSTOM MASKING] setting in [BLANKING] is disabled in the following cases, and the masking function of Panasonic computer application cannot be used.
Page 100 Chapter 4 Settings — [ADVANCED MENU] menu Press as to select [MARKER]. Press qw to switch to [ON]. f A marker for image position adjustment is displayed. The position where the red and green lines overlap for the projectors to be joined will be the optimal point. Make sure to set the correction width for the projectors to be joined with the same value.
Page 101: [Frame Response]
Chapter 4 Settings — [ADVANCED MENU] menu 24) Press as to select an item, and press qw to adjust the setting. [BLACK BORDER WIDTH] (Right) Projection range Edge blending [WIDTH] (Right) [MARKER] (Red) Edge blending [START] (Right) ([MARKER] (Green)) [OVERLAPPED BLACK LEVEL] (Right) [NON-OVERLAPPED BLACK LEVEL] [BLACK BORDER LEVEL] Note...
Page 102: [Quad Pixel Drive]
Chapter 4 Settings — [ADVANCED MENU] menu Press the <ENTER> button. f The [FRAME CREATION] screen is displayed. Press as to select [FRAME CREATION MODE]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Disables the frame creation function.
Page 103: [Raster Position]
Chapter 4 Settings — [ADVANCED MENU] menu Press qw to switch the item. f The items will switch each time you press the button. [ON] Enables the QUAD PIXEL DRIVE function. [OFF] Disables the QUAD PIXEL DRIVE function. Note f [QUAD PIXEL DRIVE] is fixed to [ON] in the following cases. g When the [POSITION] menu →...
Page 104: [Display Language] Menu
Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu. Refer to “Navigating through the menu” (x page 80) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display.
Page 105: [Display Option] Menu
Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 80) for the operation of the menu screen. [COLOR MATCHING] Correct the color difference between projectors when using multiple projectors simultaneously.
Page 106: [Large Screen Correction]
Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [MEASURED DATA] screen is displayed. Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter. Press as to select a color, and press qw to adjust the setting. f Set [AUTO TESTPATTERN] to [ON] to display a test pattern of selected colors.
Page 107: [Auto Signal]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to adjust [SCREEN POSITION]. [AUTO SIGNAL] Set whether to execute automatic setup of signals automatically. The screen display position or signal level can be adjusted automatically without pressing the <AUTO SETUP> button on the remote control on each occasion if you input unregistered signals frequently at meetings, etc. Press as to select [AUTO SIGNAL].
Page 108: [Backup Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. [OFF] Does not perform automatic adjustment. Adjusts black level (on-screen menu [BRIGHTNESS]) and white level (on-screen menu [ON] [CONTRAST]) when automatic setup is executed. Note f [SIGNAL LEVEL ADJUST] may not function properly unless a still image containing clear blacks and whites is input. [BACKUP INPUT SETTING] Set the backup function that switches the signal to the backup input signal as seamless as possible when input signal is disrupted.
Page 109: [Simul Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu [ENABLE] Switches to the secondary input automatically when the input signal for primary input is disrupted. [DISABLE] Disables the automatic input switching function. Note f The backup function is enabled when [BACKUP INPUT MODE] is set to anything other than [OFF] and same signal is input to the primary input and the secondary input.
Page 110: [Sdi In]
[OFF] ([PC-1], [PC-2], [PC-3]). [CUSTOM MASKING] is using the masking function of the Panasonic computer application. f [SIMUL INPUT SETTING] cannot be set when the [MULTI DISPLAY] menu → [MULTI DISPLAY MODE] is set to anything other than [OFF] and displaying the four-screen display.
Page 111 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. Note f The single link is a setting to display one image with one input signal. The dual link is a setting to display one image with two input signals. The quad link is a setting to display one image with four input signals.
Page 112 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [3G-SDI MAPPING] in [SDI IN] Press as to select [SDI IN]. Press the <ENTER> button. f The [SDI IN] screen is displayed. Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the <ENTER>...
Page 113 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the <ENTER> button. f The [SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING] screen is displayed.
Page 114: [Digital Link In]
Chapter 4 Settings — [DISPLAY OPTION] menu [64-940] Normally use this setting. [4-1019] Select this item when gray is displayed as black. [DIGITAL LINK IN] Set this item in accordance with the video signal input to the <DIGITAL LINK/LAN> terminal. Setting [SIGNAL LEVEL] in [DIGITAL LINK IN] Press as to select [DIGITAL LINK IN].
Page 115: [Slot In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [EDID MODE]. Press the <ENTER> button. f The [DIGITAL LINK EDID MODE] screen is displayed. Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT] Standard setting.
Page 116 Chapter 4 Settings — [DISPLAY OPTION] menu Automatically selects the single link, the dual link, or the quad link. Selects the quad link when the signal in the same format (such as resolution and timing) is input in the four inputs of HDMI1, HDMI2, HDMI3, and HDMI4. Selects the dual link when the signal in the [AUTO] same format is input in the HDMI1 input and the HDMI2 input, or the HDMI3 input and the HDMI4.
Page 117 Chapter 4 Settings — [DISPLAY OPTION] menu Select this item when the DVI-D terminal output from the external device (such as computer) is input to the <HDMI IN 1> terminal, the <HDMI IN 2> terminal, the <HDMI IN 3> terminal, or the <HDMI IN 4>...
Page 118 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [RESOLUTION] screen is displayed. Press asqw to select [RESOLUTION]. f Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], [1920x1200p], [1920x2160p], [2048x1080p], [2048x2160p], [2560x1600p], or [3840x2400p]. Press the <ENTER>...
Page 119 Chapter 4 Settings — [DISPLAY OPTION] menu Note f [DVI-D LINK] is fixed to [SINGLE] in the following cases. g When [SIMUL INPUT SETTING] is set to anything other than [OFF] g When the [MULTI DISPLAY] menu → [MULTI DISPLAY MODE] is set to anything other than [OFF] and displaying the four-screen display f The [DVI-D LINK] setting cannot be changed when [BACKUP INPUT MODE] in [BACKUP INPUT SETTING] is set as the combination used for the DVI-D input of the Interface Board.
Page 120 Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. [EDID3] Recognizes moving image signals and still image signals automatically. Select this item mainly when the external device (such as Blu-ray disc player) which outputs the [EDID1] moving image signal is connected to the <DVI-D IN 1>...
Page 121 Chapter 4 Settings — [DISPLAY OPTION] menu f The resolution and vertical scanning frequency settings may also be required on your computer or video device. f After configuring settings, your computer or video device or the projector may be required to be turned off and on. f A signal may not be output with the resolution and vertical scanning frequency that have been set, depending on your computer or video device.
Page 122 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the <ENTER> button. f The [SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING] screen is displayed.
Page 123 Chapter 4 Settings — [DISPLAY OPTION] menu [LEVEL A] Fixes the mapping method to 3G-SDI Level-A. [LEVEL B] Fixes the mapping method to 3G-SDI Level-B. Note f This function does not operate when the SD-SDI signal or the HD-SDI signal is input. f [3G-SDI MAPPING] cannot be set when [SDI LINK] is set to [AUTO].
Page 124 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [SLOT IN] screen is displayed. Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the <ENTER> button. f The [SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING] screen is displayed.
Page 125 Chapter 4 Settings — [DISPLAY OPTION] menu Select this item when the signal input to the <SDI 1 IN> terminal is output from the <SDI 2 IN/1 [OUTPUT] OUT> terminal, and the signal input to the <SDI 3 IN> terminal is output from the <SDI 4 IN/3 OUT> terminal.
Page 126 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select an item, and press the <ENTER> button. f Select [AUTO], [720x480i], [720x576i], [1280x720p], [1920x1080i], [1920x1080p], [1920x1080sF], [2048x1080p], [3840x2160p], or [4096x2160p] when SDI1 input or SDI3 input is selected for [SINGLE LINK SETTING].
Page 127 Chapter 4 Settings — [DISPLAY OPTION] menu Note f This function does not operate when the SD-SDI signal or the HD-SDI signal is input. f [SDI MAPPING] cannot be set when [SDI LINK] is set to [AUTO]. Setting [3G-SDI MAPPING] in [SLOT IN] (SDI input) Set the mapping method for the SDI2 input and the SDI4 input.
Page 128 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [SAMPLING] in [SLOT IN] (SDI input) Press as to select [SLOT IN]. Press the <ENTER> button. f The [SLOT IN] screen is displayed. Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the <ENTER>...
Page 129: [Frame Sync Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SDI1], [SDI2], [SDI3], or [SDI4], and press the <ENTER> button. f The [SINGLE LINK SETTING] screen for the selected item is displayed. Press as to select [SIGNAL LEVEL]. Press qw to switch the item. f The items will switch each time you press the button.
Page 130: [On-Screen Display]
Chapter 4 Settings — [DISPLAY OPTION] menu f When [ON] is selected, the usage of the <FRAME SYNC 1 IN/OUT> terminal displayed in [FRAME SYNC1] is switched. The contents that are displayed are as follows. [FRAME SYNC] [FRAME SYNC1] [FRAME SYNC2] [INPUT] is displayed.
Page 131 Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. [NORMAL] Does not enlarge the text size. [DOUBLE] Displays the menu screen with the text size enlarged to double size. Note f [OSD SIZE] cannot be set when the [ADVANCED MENU] menu →...
Page 132: [Back Color]
The items will switch each time you press the button. [BLUE] Displays the entire projection area in blue. [BLACK] Displays the entire projection area in black. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. 132 - ENGLISH...
Page 133: [Startup Logo]
Press as to select [STARTUP LOGO]. Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. [NONE] Disables the startup logo display.
Page 134: [Shutter Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Note f The [UNIFORMITY] setting value will not return to factory default even if [ALL USER DATA] is executed from the [PROJECTOR SETUP] menu → [INITIALIZE] (x page 158). [SHUTTER SETTING] Set the image fade-in and fade-out when the shutter function operates. You can also configure the setting to automatically enable/disable the shutter (shutter: close/open) when the power is turned off/on, and to use the mechanical shutter or not.
Page 135: [Freeze]
Chapter 4 Settings — [DISPLAY OPTION] menu The projector goes into projection mode with the shutter function disabled (shutter: opened) when the [OPEN] power is turned on. The projector goes into projection mode with the shutter function enabled (shutter: closed) when the [CLOSE] power is turned on.
Page 136 Chapter 4 Settings — [DISPLAY OPTION] menu f The waveform monitor cannot be displayed while in the four-screen display mode. Set the [MULTI DISPLAY] menu → [MULTI DISPLAY MODE] to anything other than [OFF] when using the four-screen display mode. f The waveform monitor turns off when [MULTI DISPLAY] is executed during waveform monitoring. f The waveform monitor is not displayed when on-screen display is hidden (off).
Page 137: [Cut Off]
Chapter 4 Settings — [DISPLAY OPTION] menu [CUT OFF] Each red, green, and blue color component can be removed. Press as to select [CUT OFF]. Press the <ENTER> button. f The [CUT OFF] screen is displayed. Press as to select [RED], [GREEN], or [BLUE]. Press qw to switch the item.
Page 138: [Projector Setup] Menu
Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 80) for the operation of the menu screen. [PROJECTOR ID] The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control.
Page 139 Chapter 4 Settings — [PROJECTOR SETUP] menu Set this item to increase the life of the light source though it will lower the luminance than [NORMAL]. [ECO] The estimated runtime is approximately 24 000 hours. Set this item to increase the life of the light source though it will lower the luminance than [ECO]. The [LONG LIFE1] estimated runtime is approximately 43 000 hours.
Page 140 Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [LIGHT OUTPUT]. Press qw to adjust. Adjustment Operation Range of adjustment Brightness Runtime (estimate) The screen becomes brighter. The runtime becomes shorter. Press w. 8.0 % - 100.0 % The screen becomes darker. The runtime becomes longer.
Page 141 Chapter 4 Settings — [PROJECTOR SETUP] menu Setting [BRIGHTNESS CONTROL SETUP] Set the operation of the brightness control function. The [BRIGHTNESS CONTROL SETUP] setting is synchronized with the [PROJECTOR SETUP] menu → [BRIGHTNESS CONTROL] → [BRIGHTNESS CONTROL SETUP]. The most recent setting is reflected in both items.
Page 142: [Light Output]
Chapter 4 Settings — [PROJECTOR SETUP] menu 14) Press the <ENTER> button. f When [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP] is set to anything other than [OFF], the brightness and white balance of light source at the time when the <ENTER> button is pressed is recorded as the standard brightness and white balance.
Page 143: [Brightness Control]
Chapter 4 Settings — [PROJECTOR SETUP] menu [BRIGHTNESS CONTROL] The projector is equipped with a brightness sensor to measure brightness and color of the light source, and corrects brightness and white balance of the projected image according to the changes in brightness and color of the light source.
Page 144 Chapter 4 Settings — [PROJECTOR SETUP] menu f Brightness and color are measured at the specified time. The dynamic contrast function does not operate during measurement. 13) Press as to select [CALIBRATION MESSAGE]. 14) Press qw to switch the item. f The items will switch each time you press the button. [ON] Displays messages during calibration.
Page 145 Chapter 4 Settings — [PROJECTOR SETUP] menu [BRIGHTNESS CONTROL STATUS] screen display example When [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] is set to [OFF] The screen shows the status that the brightness control is disabled. BRIGHTNESS CONTROL STATUS CONSTANT MODE PROJECTOR RETURN MENU When [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] is set to [AUTO] and [LINK] is set to [OFF]...
Page 146 Chapter 4 Settings — [PROJECTOR SETUP] menu Display the status by color. Green: There is an allowance for brightness correction. Yellow: There is little allowance for brightness correction. Red: There is a brightness control error. Display error detailed messages. Display error messages. When the message [Failed to apply BRIGHTNESS CONTROL to some projectors.] appears, it means that synchronization with the projector displayed in red has failed.
Page 147: [Standby Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu 12) Adjust [LIGHT OUTPUT] of each projector. f Adjust [LIGHT OUTPUT] of all the other projectors so that the brightness will be the same as the projector with the least brightness. 13) Set [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in all projectors.
Page 148: [Initial Startup]
Sets the input to SDI3 of the Interface Board. [SDI4 [SLOT2]] Sets the input to SDI4 of the Interface Board. Sets the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable [INPUT1] - [INPUT10] transmitter to the specified input.
Page 149: [Date And Time]
Chapter 4 Settings — [PROJECTOR SETUP] menu Note f When the [DISPLAY OPTION] menu → [BACKUP INPUT SETTING] (x page 108) → [BACKUP INPUT MODE] is set to anything other than [OFF], and the power was turned off with the secondary input at the previous use, the projection is started with the primary input even if [STARTUP INPUT SELECT] is set to [LAST USED].
Page 150: [Schedule]
Chapter 4 Settings — [PROJECTOR SETUP] menu [SCHEDULE] Set the command execution schedule for each day of the week. Enabling/disabling the schedule function Press as to select [SCHEDULE]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Disables the schedule function.
Page 151 Switches the input to SDI4 of the Interface Board. Switches the input to DIGITAL LINK, and switches the input of the [INPUT1] - [INPUT10] Panasonic twisted-pair-cable transmitter to the specified input. [NORMAL] Prioritizes luminance. Controls the power to increase the life of the light source with higher [ECO] luminance.
Page 152 Chapter 4 Settings — [PROJECTOR SETUP] menu Note f To delete a command that has been already set, press the <DEFAULT> button on the remote control while the screen in Step 5) is displayed, or select [DELETE] at the screen in Step 6) and press the <ENTER> button. f If multiple commands have been set for the same time, they are executed in chronological order starting from the smallest command number.
Page 153: [Remote2 Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press qw to switch the item. f The items will switch each time you press the button. [NONE] [EVEN] Select the parity condition. [ODD] Setting the response Press as to select [RS-232C]. Press the <ENTER> button. f The [RS-232C] screen is displayed.
Page 154: [Lens Calibration]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [FUNCTION BUTTON] screen is displayed. Press as to select a function. [DISABLE] Disables the <FUNCTION> button. [MULTI DISPLAY] Switches the [MULTI DISPLAY MODE] setting. (x page 160) [SUB MEMORY] Displays the sub memory list.
Page 155 Chapter 4 Settings — [PROJECTOR SETUP] menu When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button. f The [LENS MEMORY NAME INPUT] screen is displayed. Press asqw to select the text, and press the <ENTER> button to enter the text. After the name is input, press asqw to select [OK], and press the <ENTER>...
Page 156: [Status]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [LENS MEMORY EDIT] screen is displayed. Press as to select [LENS MEMORY NAME CHANGE]. Press the <ENTER> button. f The [LENS MEMORY NAME CHANGE] screen is displayed. Press as to select the name to change, and press the <ENTER> button. f The [LENS MEMORY NAME INPUT] screen is displayed.
Page 157: [Ac Voltage Monitor]
Chapter 4 Settings — [PROJECTOR SETUP] menu Displays the product number of the Interface Board installed in <SLOT 1>. [SLOT1] When the 3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) is installed, the firmware version is displayed after the product number. Displays the product number of the Interface Board installed in <SLOT 2>.
Page 158: [Save All User Data]
Chapter 4 Settings — [PROJECTOR SETUP] menu Note f When [ON] is set, the value of the input supply voltage is always displayed in the self-diagnosis display while the main power of the projector is turned on. f Even when [OFF] is set, the value of input supply voltage can be displayed temporarily in the self-diagnosis display by operating the button on the remote control.
Page 159: [Service Password]
Chapter 4 Settings — [PROJECTOR SETUP] menu Note f Even when [ALL USER DATA] is executed, the settings of [UNIFORMITY], [OPERATING MODE], [MAX LIGHT OUTPUT LEVEL], and [STANDBY MODE] are not initialized. [SERVICE PASSWORD] This function is used by a service person. ENGLISH - 159...
Page 160: [Multi Display] Menu
Chapter 4 Settings — [MULTI DISPLAY] menu [MULTI DISPLAY] menu On the menu screen, select [MULTI DISPLAY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 80) for the operation of the menu screen. Using the multi-display function Four images can be displayed simultaneously by dividing the projection screen into four.
Page 161 Chapter 4 Settings — [MULTI DISPLAY] menu g When the [DISPLAY OPTION] menu → [SIMUL INPUT SETTING] is set to anything other than [OFF] g When the [DISPLAY OPTION] menu → [SDI IN] → [SDI LINK] is set to anything other than [SINGLE] g When the [DISPLAY OPTION] menu →...
Page 162: [Test Pattern] Menu
Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 80) for the operation of the menu screen. [TEST PATTERN] Display the test pattern built-in to the projector. Settings of position, size, and other factors will not be reflected in test patterns.
Page 163: [Signal List] Menu
Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 80) for the operation of the menu screen. r Registered signal details Memory number: A1 (1-2) Sub memory number...
Page 164: Protecting The Registered Signal
Chapter 4 Settings — [SIGNAL LIST] menu Note f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen. Protecting the registered signal Press asqw to select the signal to protect. Press the <ENTER> button. f The [REGISTERED SIGNAL STATUS] screen is displayed.
Page 165: Sub Memory
Chapter 4 Settings — [SIGNAL LIST] menu f In an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the setting is set to [WIDE]. Sub memory The projector has a sub memory function that can register the multiple image adjustment data, even if it is recognized as the same signal by the frequency or format of the synchronization signal source.
Page 166: [Security] Menu
Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 80) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>...
Page 167: [Text Change]
Chapter 4 Settings — [SECURITY] menu Press qw to switch the item. f The items will switch each time you press the button. [OFF] Hides the security message. [TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE]. [USER LOGO] Displays the image registered by the user.
Page 168 Chapter 4 Settings — [SECURITY] menu Press the <ENTER> button. f The [CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed. Press as to select [CONTROL PANEL] or [REMOTE CONTROL]. Press qw to switch [USER]. Press as to select the button item to set. f When [INPUT SELECT BUTTON] is selected, press the <ENTER>...
Page 169 Chapter 4 Settings — [SECURITY] menu r [SDI3/4 BUTTON] [TOGGLE] Switches between [SDI3] and [SDI4] when the button is operated. [SDI3] Fixes to selection operation of the SDI3 input. [SDI4] Fixes to selection operation of the SDI4 input. [DISABLE] Disables button operations. r [DVI-D BUTTON] [DVI-D1 [SLOT1]] and [DVI-D2 [SLOT1]] can be selected when the optional Interface Board for DVI-D 2 input (Model No.: ET-MDNDV10) is installed in <SLOT 1>.
Page 170: [Control Device Password Change]
Chapter 4 Settings — [SECURITY] menu r [SLOT1 BUTTON] The items from [SDI1 [SLOT1]] to [SDI4 [SLOT1]] can be selected when the optional Interface Board with the corresponding input (3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) or Interface Board for 12G-SDI (Model No.: ET-MDN12G10)) is installed in <SLOT 1>.
Page 171: [Network] Menu
Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 80) for the operation of the menu screen. [DIGITAL LINK MODE] Switch the communication method of the <DIGITAL LINK/LAN>...
Page 172: [Digital Link Status]
Chapter 4 Settings — [NETWORK] menu Press as to select [STORE]. Press the <ENTER> button. When the confirmation screen is displayed, press qw to select [OK], and then press the <ENTER> button. Note f The projector does not support 10BaseT Full/Half. When the projector is connected to a twisted-pair-cable transmitter Press as to select [DIGITAL LINK SETUP].
Page 173: [Network Control]
Chapter 4 Settings — [NETWORK] menu If a DHCP server exists in the network where the projector is to be [ON] connected, obtains the IP address automatically. [DHCP] If a DHCP server does not exist in the network where the projector [OFF] is to be connected, set [IP ADDRESS], [SUBNET MASK], and [DEFAULT GATEWAY].
Page 174: [Digital Link Menu]
Chapter 4 Settings — [NETWORK] menu [DIGITAL LINK MENU] When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/LAN> terminal, the main menu of the connected DIGITAL LINK output supported device is displayed. Refer to the Operating Instructions of the DIGITAL LINK output supported device for details. Note f [DIGITAL LINK MENU] cannot be selected when [EXTRON XTP] is set to [ON].
Page 175: [Art-Net Status]
Chapter 4 Settings — [NETWORK] menu [LIGHT OUTPUT] Adjusts the amount of light. [INPUT SELECT] Switches the input. [LENS POSITION] Moves the lens position. [LENS H SHIFT] Adjusts the lens shift in the horizontal direction. [LENS V SHIFT] Adjusts the lens shift in the vertical direction. [LENS FOCUS] Adjusts the focus.
Page 176: Connecting To A Twisted-Pair-Cable Transmitter
Chapter 4 Settings — [NETWORK] menu r Example of a normal network connection Computer Projector LAN cable (straight) LAN cable (straight) f A web browser is required to use this function. Confirm that the web browser can be used beforehand. Supported browser: Internet Explorer 8.0/9.0/10.0/11.0 (Windows OS), Safari 6.0/7.0/8.0 (Mac OS) f Communication with an E-mail server is required to use the E-mail function.
Page 177: Accessing From The Web Browser
(https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 178 Chapter 4 Settings — [NETWORK] menu Click OK. f The [Projector status] page is displayed. Note f If you use a web browser to control the projector, set [WEB CONTROL] to [ON] in [NETWORK CONTROL] (x page 173). f Do not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple computers.
Page 179 Chapter 4 Settings — [NETWORK] menu Descriptions of items Page tab [Detailed set up] Switches pages by clicking this item. The [Detailed set up] page is displayed by clicking this item. [Status] [Change password] The status of the projector is displayed by clicking this item. The [Change password] page is displayed by clicking this item.
Page 180 Chapter 4 Settings — [NETWORK] menu [Projector status] page Click [Status] → [Projector status]. Display the status of the projector for the following items. [PROJECTOR TYPE] 11 [LIGHT OUTPUT] Displays the type of the projector. Displays the setting status of [LIGHT OUTPUT]. [MAIN VERSION] 12 [INPUT] Displays the firmware version of the projector.
Page 181 Chapter 4 Settings — [NETWORK] menu Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status] screen, click it to display the content of the error/warning. f The projector may go into the standby status to protect the projector depending on the contents of the error. Self-diagnosis result display Displays the item check results.
Page 182 Chapter 4 Settings — [NETWORK] menu Item Description There is a problem with the luminance sensor. If problems persist even after switching [BRIGHTNESS SENSOR] on the power, consult your dealer. There is a problem with the phosphor wheel 1 or phosphor wheel 1 drive circuit. Consult [PHOSPHOR WHEEL1] your dealer.
Page 183 Chapter 4 Settings — [NETWORK] menu [Access error log] page Click [Status] → [Access error log]. The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or passwords. [Mail error log] page Click [Status] →...
Page 184 Chapter 4 Settings — [NETWORK] menu [Basic control] page Click [Projector control] → [Basic control]. [POWER] On-screen display of the projector Turns on/off the power. Displays the same items as shown on the on-screen display of the projector. You can check or change the settings of the [SHUTTER] menus.
Page 185 Chapter 4 Settings — [NETWORK] menu [Network config] page Click [Detailed set up] → [Network config]. f Click [Network config] to display the [CAUTION!] screen. f The current settings are displayed by pressing the [Next] button. f Click [Change] to display the setting change screen. [PROJECTOR NAME] [DNS1] Enter the name of the projector.
Page 186 Chapter 4 Settings — [NETWORK] menu [Adjust clock] page Click [Detailed set up] → [Adjust clock]. [Time Zone] [Date] Select the time zone. Enter the date to be changed. [Set time zone] [Time] Updates the time zone setting. Enter the time to be changed. [NTP SYNCHRONIZATION] [Submit] Set to [ON] to adjust the date and time automatically.
Page 187 Chapter 4 Settings — [NETWORK] menu [E-mail set up] page Send an E-mail to preset E-mail addresses (up to two addresses) when a problem has occurred. Click [Detailed set up] → [E-mail set up]. [ENABLE] [MINIMUM TIME] Select [Enable] to use the E-mail function. Change the minimum interval for the temperature warning E-mail.
Page 188 Chapter 4 Settings — [NETWORK] menu [E-MAIL ADDRESS 1], [E-MAIL ADDRESS 2] Settings of the conditions to send E-mail Enter the E-mail address to be sent. Leave [E-MAIL ADDRESS Select the conditions to send E-mail. 2] blank when two E-mail addresses are not to be used. [MAIL CONTENTS]: Select either [NORMAL] or [SIMPLE].
Page 189 Chapter 4 Settings — [NETWORK] menu Contents of E-mail sent Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : RQ13K Serial No...
Page 190 Chapter 4 Settings — [NETWORK] menu Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : RQ13K Serial No : 123456789012 ----- check system -----...
Page 191 Chapter 4 Settings — [NETWORK] menu [Change password] page Click [Change password]. [Administrator] [Next] Used to change the setting of the [Administrator]. Used to change the setting of the password. [User] Used to change the setting of the [User]. [Administrator] account [Account] [New] [User name]:...
Page 192 Chapter 4 Settings — [NETWORK] menu [User] account [Account] [OK] Displays the account to change. Determines the change of password. [New] [User name]: Enter the desired new user name. (Up to 16 characters in single byte) [Password]: Enter the desired new password. (Up to 16 characters in single byte) [Password(Retype)]: Enter the desired new password again.
Page 193 Chapter 4 Settings — [NETWORK] menu Operation page [Tools], [Info], [Help] [Input Select] Tabs for selecting the setting, information, or help page of the Controls input selection. projector. Not available when the power of the projector is turned off. [POWER] Menu screen control buttons Turns on/off the power.
Page 194 Chapter 4 Settings — [NETWORK] menu [Info] page Click [Info] in the operation page. [Projector Name] [Source] Displays the projector name. Displays the selected input. [Mac Address] [Error Status] Displays the MAC address. Displays the error status. [Lamp1 Hours], [Lamp2 Hours] [Exit] Displays the runtime of the light source 1 and the light source 2.
Page 195: Chapter 5 Maintenance
Maintenance Chapter 5 This chapter describes methods of inspection when there are problems, maintenance, and replacement of the units. ENGLISH - 195...
Page 196: Light Source/Temperature/Filter Indicators
Chapter 5 Maintenance — Light source/temperature/filter indicators Light source/temperature/filter indicators When an indicator lights up If a problem occurs inside the projector, the light source indicators <LIGHT1>/<LIGHT2>, temperature indicator <TEMP>, or filter indicator <FILTER> will inform you by lighting or blinking in red. Check the status of the indicators and take following measures.
Page 197 Chapter 5 Maintenance — Light source/temperature/filter indicators Temperature indicator <TEMP> Blinking in red Blinking in red Indicator status Lighting in red (2 times) (3 times) Internal temperature is high Internal temperature is high The cooling fan has Status Warm-up status (warning). (standby status).
Page 198: Maintenance/Replacement
Chapter 5 Maintenance — Maintenance/replacement Maintenance/replacement Before performing maintenance/replacement f Make sure to turn off the power before maintaining or replacing the unit. (x pages 58, 67) f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 67).
Page 199 Chapter 5 Maintenance — Maintenance/replacement ii) Pull out the air filter unit. (Fig. 3) f When pulling out, confirm that the air filter unit comes off from the tabs on the projector body (d). f After pulling out the air filter unit, remove large foreign objects and dust from the air filter unit compartment and the air intake port of the projector body if there are any.
Page 200: Replacing The Unit
Chapter 5 Maintenance — Maintenance/replacement Attention f After washing the air filter unit, dry it thoroughly before attaching it back to the projector. Attaching a wet unit will cause an electric shock or malfunction. f Do not disassemble the air filter unit. f Take care not to touch the air intake fan in the air filter unit compartment when removing dirt or dust.
Page 201: Troubleshooting
Chapter 5 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―...
Page 202 Chapter 5 Maintenance — Troubleshooting Problems Points to be checked Page f Perform [LENS CALIBRATION]. Lens shift cannot be adjusted. f Is the Fixed-focus Lens (Model No.: ET-D75LE50) attached? ― f Is [QUAD PIXEL DRIVE] set to [OFF]? Geometric adjustment is not possible.
Page 203: Self-Diagnosis Display
Chapter 5 Maintenance — Self-diagnosis display Self-diagnosis display There is a self-diagnosis display on the side of the projector. Self-diagnosis display will automatically display the value of the input supply voltage, or details of errors or warnings when they occur. (x page 31) The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and its details.
Page 204 Chapter 5 Maintenance — Self-diagnosis display Error/warning display Details Action number LD driver fan warning Lens mounter error Light source 1 error Light source 2 error Radiator fan 1 error Radiator fan 2 error Radiator fan 3 error Radiator fan 4 error Radiator fan 5 error Radiator fan 6 error Exhaust fan 1 error...
Page 205: Chapter 6 Appendix
Appendix Chapter 6 This chapter describes the specification of the projector, how to install the optional Interface Board, and after-sales service. ENGLISH - 205...
Page 206: Technical Information
Input selection list query ― Returns the name set in [PROJECTOR NAME] of [NETWORK NAME? Projector name query xxxxx SETUP]. Manufacturer name INF1? Panasonic Returns manufacturer name. query INF2? Model name query RQ13K Returns model name. Other information INF0? xxxxx Returns information such as version number.
Page 207: Using Art-Net Function
Chapter 6 Appendix — Technical information PJLink security authentication The password used for PJLink is the same as that of the password set for web control. When using the projector without security authentication, do not set a password for web control. f For specifications related to PJLink, visit the website of Japan Business Machine and Information System Industries Association.
Page 208 Chapter 6 Appendix — Technical information r INPUT SELECT (when [Art-Net CHANNEL SETTING] is set to [2] or [USER]) Performance Parameter Default value No operation 0-39 DIGITAL LINK 40-47 SDI1 48-55 SDI2 56-63 SDI3 64-71 SDI4 72-79 SLOT1-1 80-87 SLOT1-2 88-95 SLOT2-3 96-103 SLOT2-4...
Page 209 Chapter 6 Appendix — Technical information r LENS H SHIFT, LENS V SHIFT, LENS FOCUS, LENS ZOOM Performance Parameter Default value (-) High speed 0-31 Lens adjustment (-) Low speed 32-63 (-) Fine adjustment 64-95 Operation stop 96-159 (+) Fine adjustment 160-191 Lens adjustment (+) Low speed...
Page 210 Chapter 6 Appendix — Technical information r FADE-IN, FADE-OUT (when [Art-Net CHANNEL SETTING] is set to [1]) Operate together with SHUTTER. Performance Parameter Default value 0-15 0.5s 16-31 1.0s 32-47 1.5s 48-63 2.0s 64-79 2.5s 80-95 3.0s 96-111 3.5s 112-127 4.0s 128-143 5.0s 144-159...
Page 211: Control Commands Via Lan
Chapter 6 Appendix — Technical information r COLOR, TINT Performance Parameter Default value No operation 0-31 Factory default setting 32-63 64-65 … … 128-129 … … 190-191 No operation 192-255 r RASTER PATTERN Performance Parameter Default value No operation 0-15 16-31 WHITE 32-47 YELLOW...
Page 212 “xxxxxx:yyyyy:zzzzzzzz” xxxxxx Administrator rights user name for the web control (default user name is “admin1”) yyyyy Password of above administrator rights user (default password is “panasonic”) zzzzzzzz 8-byte random number obtained in Step 2) Command transmission method Transmit using the following command formats.
Page 213 Chapter 6 Appendix — Technical information When web control administrator rights password is not set (Non-protect mode) Connecting Obtain the IP address and port number (Initial set value = 1024) of the projector and request a connection to the projector. f You can obtain both the IP address and the port number from the menu screen of the projector. IP address Obtain from the [NETWORK] menu →...
Page 214: Serial In>/ Terminal
Chapter 6 Appendix — Technical information <SERIAL IN>/<SERIAL OUT> terminal The <SERIAL IN>/<SERIAL OUT> terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled from a computer. Connection Single projector Projector connecting terminals Computer D-Sub 9p (female) D-Sub 9p (male) D-Sub 9p (male)
Page 215 Chapter 6 Appendix — Technical information D-Sub 9-pin (male) Pin No. Signal name Details Outside view ― Received data Transmitted data ― Earth ― Connected internally ― Communication conditions (Factory default) Signal level RS-232C-compliant Sync. method Asynchronous Baud rate 9 600 bps Parity None Character length...
Page 216 Chapter 6 Appendix — Technical information Attention f If a command is sent after the light source starts lighting, there may be a delay in response or the command may not be executed. Try sending or receiving any command after 60 seconds. f When transmitting multiple commands, be sure to wait until 0.5 seconds has elapsed after receiving the response from the projector before sending the next command.
Page 217 Chapter 6 Appendix — Technical information Control command The following table lists the commands that can be used to control the projector using a computer. r Projector control command Parameter/response Command Details Remark (parameter) string Power on ― To check if the power is on, use the “Power query” command. Power standby STANDBY Power query...
Page 218: Remote 2 In> Terminal
Chapter 6 Appendix — Technical information r Lens control command Command Sub command Details Remark LNSI2 Lens H shift +00000 = Fine adjustment 1+, +00001 = Fine adjustment 1-, +00100 LNSI3 Lens V shift = Fine adjustment 2+, +00101 = Fine adjustment 2-, +00200 = Coarse LNSI4 Lens focus adjustment+, +00201 = Coarse adjustment-...
Page 219: Control Device Password
Chapter 6 Appendix — Technical information Control device password To initialize your password, consult your distributor. Upgrade Kit If the optional Upgrade Kit (Model No.: ET-UK20) is applied, the following functions are extended. Function Standard status When the Upgrade Kit is applied Adjustment range of Maximum of ±40°...
Page 220: List Of Compatible Signals
Chapter 6 Appendix — Technical information List of compatible signals The following table specifies the video signals that the projector can project. For details of SDI signal, refer to “List of single link SDI compatible signals” (x page 225), “List of dual link SDI compatible signals” (x page 229), “List of quad link SDI compatible signals”...
Page 221 Chapter 6 Appendix — Technical information Scanning freq. Compatible signal Dot clock Resolution DIGITAL Signal format freq. HDMI DVI-D Horizontal Vertical (Dots) LINK (MHz) (kHz) (Hz) 800 x 600/56 800 x 600 35.2 56.3 36.0 ― ― ― ― 800 x 600/60 800 x 600 37.9 60.3...
Page 222 Chapter 6 Appendix — Technical information Scanning freq. Compatible signal Dot clock Resolution DIGITAL Signal format freq. HDMI DVI-D Horizontal Vertical (Dots) LINK (MHz) (kHz) (Hz) 1600 x 1200/60 1 600 x 1 200 75.0 60.0 162.0 ― ― ― ― 1680 x 1050/50 1 680 x 1 050 54.1...
Page 223 Chapter 6 Appendix — Technical information List of plug and play compatible signals The following table specifies the video signals compatible with plug and play. Signal with l in the plug and play compatible signal column is the signal described in the EDID (extended display identification data) of the projector.
Page 224 Chapter 6 Appendix — Technical information Scanning Plug and play compatible signal freq. Dot clock Resolution Signal format freq. DIGITAL LINK HDMI DVI-D (Dots) Horizontal Vertical (MHz) EDID1: EDID2: EDID3: EDID1: EDID2: EDID3: (kHz) (Hz) EDID1 EDID2 EDID3 4K/60p 4K/30p 4K/60p 4K/30p 800 x 600/72 800 x 600...
Page 225 Chapter 6 Appendix — Technical information Scanning Plug and play compatible signal freq. Dot clock Resolution Signal format freq. DIGITAL LINK HDMI DVI-D (Dots) Horizontal Vertical (MHz) EDID1: EDID2: EDID3: EDID1: EDID2: EDID3: (kHz) (Hz) EDID1 EDID2 EDID3 4K/60p 4K/30p 4K/60p 4K/30p 1920 x 1080/50 1 920 x 1 080...
Page 226 Chapter 6 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 1 920 x 1 080 27.0 24.0 74.3 ― HD-SDI 4:2:2 10bit 1 920 x 1 080 27.0 24.0 74.3...
Page 227 Chapter 6 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 1 920 x 1 080 67.5 60.0 148.5 ― 3G-SDI Level-A 4:2:2 10bit 1 920 x 1 080 67.5 60.0 148.5...
Page 228 Chapter 6 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3 840 x 2 160 54.0 24.0 297.0 6G-SDI Type 2 4:2:2 10bit 3 840 x 2 160 54.0 24.0 297.0...
Page 229 Chapter 6 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 4 096 x 2 160 56.3 25.0 297.0 6G-SDI Type 2 4:2:2 10bit 4 096 x 2 160 56.3 25.0 297.0...
Page 230 Chapter 6 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 1 920 x 1 080i 27.0 48.0 74.3 ― HD-SDI 4:4:4 10bit 1 920 x 1 080i 27.0 48.0 74.3...
Page 231 Chapter 6 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 2 048 x 1 080 54.0 48.0 148.5 ― 3G-SDI Level-A 4:4:4 10bit 2 048 x 1 080 54.0 48.0 148.5...
Page 232 Chapter 6 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3G-SDI Level-B 3 840 x 2 160 56.3 30.0 297.0 4:2:2 10bit Dual Stream 3G-SDI Level-B 3 840 x 2 160 56.3...
Page 233 Chapter 6 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3G-SDI Level-B 4 096 x 2 160 67.5 30.0 297.0 4:2:2 10bit Dual Stream 3G-SDI Level-B 4 096 x 2 160 67.5...
Page 234 Chapter 6 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3 840 x 2 160 54.0 48.0 297.0 HD-SDI 4:2:2 10bit 3 840 x 2 160 54.0 48.0 297.0...
Page 235 Chapter 6 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3 840 x 2 160 67.5 30.0 297.0 HD-SDI 4:2:2 10bit 3 840 x 2 160 67.5 30.0 297.0...
Page 236 Chapter 6 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 4 096 x 2 160 54.0 24.0 297.0 HD-SDI 4:2:2 10bit 4 096 x 2 160 54.0 24.0 297.0...
Page 237 Chapter 6 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 4 096 x 2 160 67.5 30.0 297.0 HD-SDI 4:2:2 10bit 4 096 x 2 160 67.5 30.0 297.0...
Page 238 Chapter 6 Appendix — Technical information List of simultaneous input compatible signals The following table specifies the simultaneous input compatible video signals that the projector can project. Scanning freq. Simultaneous input compatible signal Resolution Dot clock freq. HDMI DVI-D Signal format Horizontal Vertical (Dots)
Page 239: Specifications
Chapter 6 Appendix — Specifications Specifications The specifications of the projector are as follows. Power supply 100 V - 240 V ~ (100 V - 240 V alternating current), 50 Hz/60 Hz 1 270 W (12.0 A - 6.0 A) Power consumption When [STANDBY MODE] is set to [ECO]: 0.3 W When [STANDBY MODE] is set to [NORMAL]: 4 W Size...
Page 240 Chapter 6 Appendix — Specifications Note f The light output will decrease as much as the power supply voltage is decreased. It is recommended to use with AC 200 V or higher to prioritize luminance. r Connecting terminal/slot Total 4 sets (BNC) Single link SD-SDI signal Single link HD-SDI signal Single link 3G-SDI signal...
Page 241 Chapter 6 Appendix — Specifications r Compatible signal For details of the types of video signals that can be used with the projector, refer to “List of compatible signals” (x page 220). SDI input SD-SDI signal HD-SDI signal 3G-SDI signal 6G-SDI signal 12G-SDI signal DIGITAL LINK input f Moving image signal resolution: 480i...
Page 242: Dimensions
Chapter 6 Appendix — Dimensions Dimensions Unit: mm 289 (11-3/8") 242 (9-17/32") 637 (25-3/32") 484 (19-1/16") 578 (22-3/4") * Actual dimensions may differ depending on the product. 242 - ENGLISH...
Page 243: Precautions For Attaching The Ceiling Mount Bracket
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of the Ceiling Mount Bracket not manufactured by Panasonic or the inappropriate choice of location for installing the Ceiling Mount Bracket, even if the warranty period of the projector has not expired.
Page 244: Installing The Interface Board (Optional)
Chapter 6 Appendix — Installing the Interface Board (optional) Installing the Interface Board (optional) This projector is equipped with two SLOT NX-specification slots. There are four SDI input terminals and one DIGITAL LINK input terminal equipped on this projector as the standard video input terminals.
Page 245: How To Remove The Interface Board
Chapter 6 Appendix — Installing the Interface Board (optional) Attention f The removed slot cover is required when the unnecessary Interface Board is removed. Store it so it can be attached in the future. How to remove the Interface Board Handle Fig.
Page 246: Index
Index Index Function button [PROJECTION METHOD] <FUNCTION> button Projector body Accessories Remote control 28, 76 [PROJECTOR ID] <AC IN> terminal 30, 58 [FUNCTION BUTTON] [PROJECTOR SETUP] 83, 138 [AC VOLTAGE MONITOR] Protecting the registered signal Adjusting adjustable feet [ADVANCED MENU] 82, 98 [GAMMA] Air filter unit...
Page 247 Index [UNIFORMITY] Upgrade Kit [WAVEFORM MONITOR] [ZOOM] <ZOOM> button Remote control 28, 68 ENGLISH - 247...
Page 248 Atıkların atılmasıyla ilgili yanlış uygulamalar yasayla belirlenmiş olan cezalara sebebiyet verebilir. Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ © Panasonic Corporation 2015 Panasonic System Solutions Company of North America Two Riverfront Plaza, Newark, NJ 07102 TEL: (877) 803 - 8492 Panasonic Canada Inc.

This manual is also suitable for:

Pt-rq13k Pt-rq13

Panasonic PT-RQ13KU Operating Instructions (Functional Manual)

Chapter 1 Preparation

Chapter 2 Getting Started

Chapter 3 Basic Operations

Chapter 4 Settings

Chapter 5 Maintenance

Chapter 6 Appendix

Quick Links

Related Manuals for Panasonic PT-RQ13KU

Summary of Contents for Panasonic PT-RQ13KU

This manual is also suitable for:

Table of Contents
