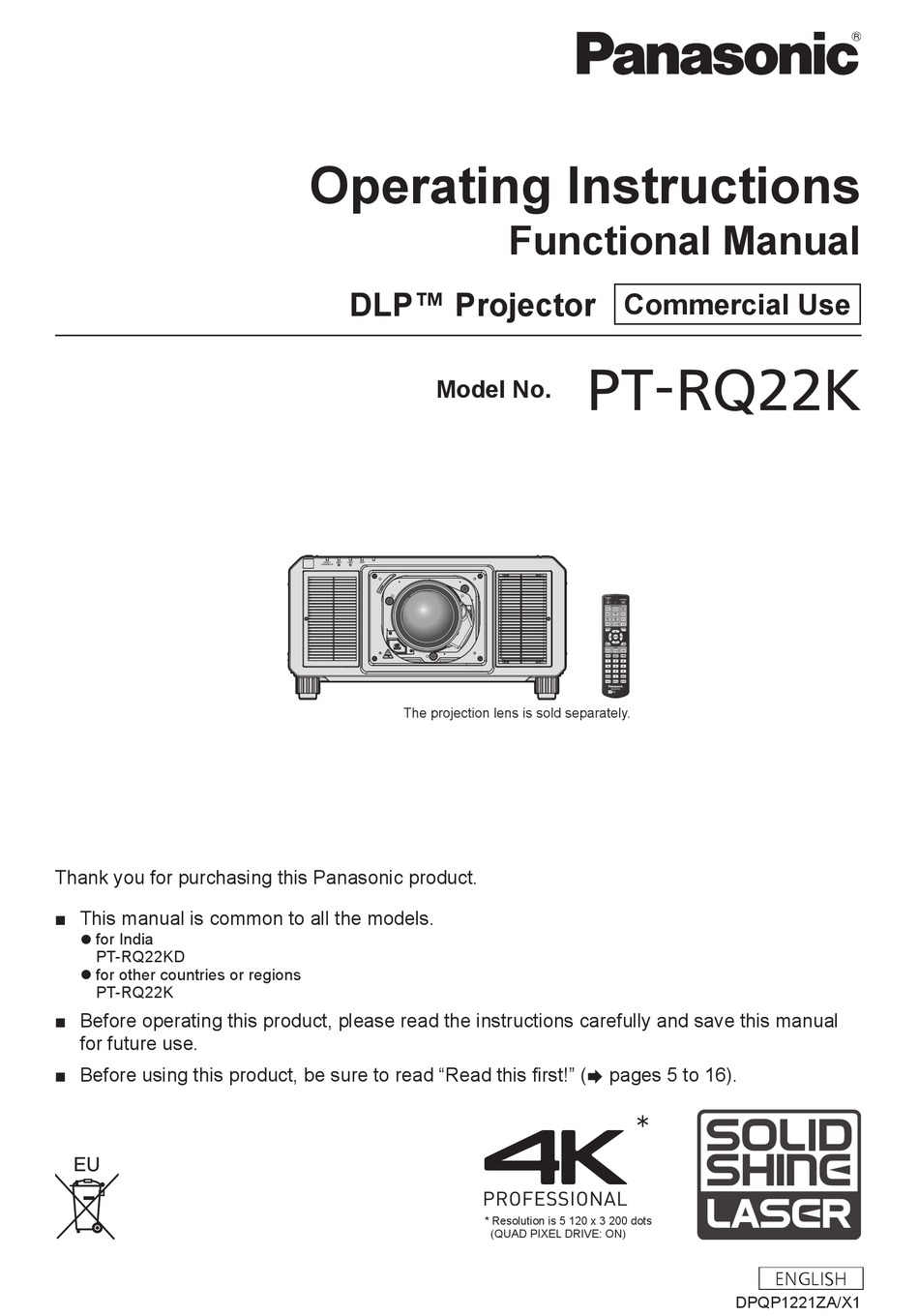

Panasonic PT-RQ22KD Operating Instructions (Functional Manual)

Table of Contents

Quick Links

Download this manual

Thank you for purchasing this Panasonic product.

■ This manual is common to all the models.

z for India

PT-RQ22KD

z for other countries or regions

PT-RQ22K

■ Before operating this product, please read the instructions carefully and save this manual

for future use.

■ Before using this product, be sure to read "Read this first!" ( x pages 5 to 16).

Operating Instructions

DLP™ Projector

Model No.

The projection lens is sold separately.

Functional Manual

Commercial Use

PT-RQ22K

* Resolution is 5 120 x 3 200 dots

(QUAD PIXEL DRIVE: ON)

ENGLISH

DPQP1221ZA/X1

Table of Contents

Need help?

Do you have a question about the PT-RQ22KD and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic PT-RQ22KD

Page 1 DLP™ Projector Commercial Use PT-RQ22K Model No. The projection lens is sold separately. Thank you for purchasing this Panasonic product. ■ This manual is common to all the models. z for India PT-RQ22KD z for other countries or regions PT-RQ22K ■...
Page 2: Table Of Contents
Contents Contents Read this first! Connecting Before connecting Connecting example: AV equipment Chapter 1 Preparation Connecting example: Computers Connecting example using DIGITAL LINK Precautions for use Connecting example when using the Intended use of the product contrast synchronization function/shutter Cautions when transporting synchronization function Cautions when installing Cautions when setting up the projector...
Page 3 Contents [PICTURE] menu [PROJECTOR SETUP] menu [PICTURE MODE] [PROJECTOR ID] [CONTRAST] [PROJECTION METHOD] [BRIGHTNESS] [LENS] [COLOR] [OPERATION SETTING] [TINT] [LIGHT OUTPUT] [COLOR TEMPERATURE] [BRIGHTNESS CONTROL] [GAMMA] [STANDBY MODE] [SYSTEM DAYLIGHT VIEW] [NO SIGNAL SHUT-OFF] [SHARPNESS] [NO SIGNAL LIGHTS-OUT] [NOISE REDUCTION] [INITIAL STARTUP] [DYNAMIC CONTRAST] [STARTUP INPUT SELECT]...
Page 4 Contents [NETWORK] menu [DIGITAL LINK MODE] [DIGITAL LINK STATUS] [NETWORK SETUP] [NETWORK CONTROL] [NETWORK STATUS] [DIGITAL LINK MENU] [Art-Net SETUP] [Art-Net CHANNEL SETTING] [Art-Net STATUS] Chapter 5 Operations Network connection Connecting to the network Web control function Computer that can be used for setting Accessing from the web browser Chapter 6 Maintenance...
Page 5: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view.
Page 6 Read this first! WARNING: RISK OF ELECTRIC SHOCK. DON’T OPEN Indicated on the projector The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Page 7 Read this first! (for India) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. (for other countries or regions) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
Page 8 FCC NOTICE (USA) Supplier’s Declaration of Conformity Model Number: PT-RQ22K Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: https://panasonic.net/cns/projector/ This device complies with Part 15 of the FCC Rules.
Page 9 L or colored RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse. Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany...
Page 10 Read this first! Hazard distance (IEC 62471-5:2015) The distance at which the level of exposure has reached the level of the applicable Exposure Limit Value is known as the hazard distance (HD) or safety distance. Do not look into the projected light from inside the hazard distance (within RG3 range). It is considered to be safe to look into the projected light from outside the hazard distance (within RG2 range).
Page 11 Read this first! Projection lens Model No. ET-D75LE95 1.95 0.19 1.82 1.82 < 1.0 ET-D75LE90 1.96 0.26 1.44 1.40 *1 HD: Hazard Distance *2 The values of D1 to D4, A1, and A2 will change in accordance with the lens shift amount. Each value in the table is the maximum value.
Page 12 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock, or will cause visual impairment.
Page 13 If liquid enters inside of the projector, consult your dealer. f Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Using the ceiling mount bracket other than the specified one will result in falling accidents.
Page 14 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
Page 15 Read this first! CAUTION: r ACCESSORIES When not using the projector for an extended period of time, remove the batteries from the remote control. Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire or contamination of surrounding area.
Page 16 Read this first! Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento.
Page 17 SOLID SHINE is a trademark of Panasonic Corporation. f Windows, Internet Explorer, and Microsoft Edge are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. f Mac, macOS, and Safari are trademarks of Apple Inc., registered in the United States and other countries.
Page 18 Features of the Projector Quick Steps For details, refer to the corresponding pages. 1. Set up the projector. High luminance and high contrast (x page 40) ▶ In addition to high luminance of 20 000 lm and high contrast of 20 000:1 , the HDR (High Dynamic Range) standard is 2.
Page 19: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. ENGLISH - 19...
Page 20: Precautions For Use
Chapter 1 Preparation — Precautions for use Precautions for use Intended use of the product The purpose of the projector is to project a video signal from imaging equipment or a computer on a screen or other surface as a still image or moving image. Cautions when transporting f Transport the projector with four or more people.
Page 21 Chapter 1 Preparation — Precautions for use rDo not install the projector at an altitude of 4 200 m (13 780') or higher above sea level. rDo not use the projector in a location that the ambient temperature exceeds 45 °C (113 °F).
Page 22: Cautions When Setting Up The Projector
Chapter 1 Preparation — Precautions for use Cautions when setting up the projector f Install the projector in a place or with a mount that can sufficiently tolerate the weight. The position of the projected image may shift if the strength is not sufficient. f Use the adjustable feet only for the floor standing installation and for adjusting the angle.
Page 23: Security
Panasonic takes no responsibility for any damage to the product caused by an inappropriate choice of location for installing the projector, even if the warranty period of the product has not expired.
Page 24: Quad Pixel Drive
QUAD PIXEL DRIVE “QUAD PIXEL DRIVE” is a technology unique to Panasonic that will enhance the resolution of the projected image with the signal processing for the high resolution of up to 5 120 x 3 200 dots and quadrupling the resolution by shifting the image pixels in horizontal and vertical directions.
Page 25: Cautions On Use
The input for HDMI, DVI-D, and SDI can be added by installing the optional Interface Board in the slot. “SLOT NX” is a name of the slot unique to Panasonic supporting the signal input for the 4K image. ENGLISH - 25...
Page 26: Accessories
Chapter 1 Preparation — Precautions for use Accessories Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories. Wireless/wired remote control unit <1> Lens hole cover <1> (N2QAYB001176) (1GE1RZ21K) (Attached to the product at the time of purchase) CD-ROM <1>...
Page 27 Chapter 1 Preparation — Precautions for use Lens hood screw <6> Knurled head screw <6> (XYN4+F8FJK) (DPHD1026ZA) Attention f After unpacking the projector, discard the power cord cap and packaging material properly. f Do not use the supplied power cord for devices other than this projector. f For missing accessories, consult your dealer.
Page 28: Optional Accessories
The model numbers of optional accessories are subject to change without prior notice. f The optional accessories described in this document are as of August 2018. Optional accessories may be added or changed without prior notice. For the latest information, visit the Panasonic website (https://panasonic.net/cns/projector/). 28 - ENGLISH...
Page 29: About Your Projector
Chapter 1 Preparation — About your projector About your projector Remote control Front Bottom A strap can be attached depending on the usage. Remote control indicator 12 Input selection buttons (<SDI>, <DIGITAL LINK>, <HDMI>, <DVI-D>, <SLOT 1>, <SLOT 2>) Blinks if any button in the remote control is pressed. Switches the input signal to project.
Page 30 Chapter 1 Preparation — About your projector 23 Strap hole Attention f Do not drop the remote control. f Avoid contact with liquids or moisture. f Do not attempt to modify or disassemble the remote control. f Do not swing the remote control holding onto the strap when a strap is attached. f Observe the following instructions that are indicated on the caution label at the back of the remote control: g Do not use old battery with new one.
Page 31: Projector Body
11 Connecting terminals (x page 33) 12 Security slot This security slot is compatible with the Kensington security cables. 13 Power cord holder (Except for PT-RQ22KD) 14 <AC IN> terminal Connect the supplied power cord. Projection direction 15 <MAIN POWER> switch Remote control signal receiver (front) Turns on/off the main power.
Page 32 Chapter 1 Preparation — About your projector r Control panel Power on <b> button <MENU> button Sets the projector to projection mode when the <MAIN Displays or hides the main menu. (x page 94) POWER> switch on the projector is set to <ON> and the power Returns to the previous menu when a sub-menu is displayed.
Page 33 Chapter 1 Preparation — About your projector r Connecting terminals <DC OUT 1> terminal/<DC OUT 2> terminal <MULTI PROJECTOR SYNC IN> terminal/<MULTI PROJECTOR SYNC OUT> terminal This is the USB terminal dedicated for power supply. (DC 5 V, total 2 A) This terminal is used to connect multiple projectors when Use this terminal when a power supply is required to wireless balancing the contrast as a combined screen or synchronizing...
Page 34: Names And Functions Of The Interface Board (Optional)
Chapter 1 Preparation — About your projector Names and functions of the Interface Board (optional) This projector is equipped with two SLOT NX-specification slots. There are four SDI input terminals and one DIGITAL LINK input terminal equipped on this projector as the standard video input terminals.
Page 35 Chapter 1 Preparation — About your projector r 3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) This board supports the SD-SDI signal, HD-SDI signal, and 3G-SDI signal. <3G-SDI 2 OUT> terminal (when installed in <SLOT 1>), <3G-SDI 1 OUT> terminal (when installed in <SLOT 1>), <3G-SDI 4 OUT>...
Page 36 Chapter 1 Preparation — About your projector How to confirm the firmware version of the Interface Board (optional) r Interface Board for HDMI 2 input (Model No.: ET-MDNHM10) The Interface Board for HDMI 2 input with the firmware version 2.00 or later has the version displayed on the product.
Page 37: Preparing The Remote Control
Chapter 1 Preparation — Preparing the remote control Preparing the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order.
Page 38: Connecting The Remote Control To The Projector With A Cable
Chapter 1 Preparation — Preparing the remote control Connecting the remote control to the projector with a cable If you control the multiple projectors with a single remote control, use commercially available M3 stereo mini jack cables to connect to the <REMOTE 1 IN>/<REMOTE 1 OUT> terminals of the projectors. The remote control is effective even in places where an obstacle stands in the light path or where devices are susceptible to outside light.
Page 39: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. ENGLISH - 39...
Page 40: Setting Up
Chapter 2 Getting Started — Setting up Setting up Usable outlet This projector supports AC100 V to AC120 V, and AC 200 V to AC 240 V as the power supply. A grounding outlet supporting 15 A is required with either voltage. The shape of the usable outlet differs depending on the power supply.
Page 41 Chapter 2 Getting Started — Setting up Mounting on the ceiling and projecting forward Mounting on the ceiling and projecting from rear (Using the translucent screen) Menu item Setting value Menu item Setting value [FRONT/REAR] [FRONT] [FRONT/REAR] [REAR] [FLOOR/CEILING] [AUTO] or [CEILING] [FLOOR/CEILING] [AUTO] or [CEILING] Portrait setting and projecting forward...
Page 42: Interface Board (Optional)
Chapter 2 Getting Started — Setting up Interface Board (optional) This projector is equipped with two SLOT NX-specification slots. There are four SDI input terminals and one DIGITAL LINK input terminal equipped on this projector as the standard video input terminals. The input for HDMI, DVI-D, and SDI can be added by installing the optional Interface Board in the slot.
Page 43 Chapter 2 Getting Started — Setting up Figure of projected image and throw distance Projected image Screen L (LW/LT) L (LW/LT) Screen Note f This illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen. Projected image height Projected image width Projected image size...
Page 44 Chapter 2 Getting Started — Setting up Fixed-focus Lens (Model No.: ET-D75LE95, ET-D75LE90) Projected image Screen Screen Note f This illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen. Projected image height Projected image width Projected image size...
Page 45 Chapter 2 Getting Started — Setting up Fisheye Lens (Model No.: ET-D3LEF70) Lens optical axis θ Screen Note f This illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen. f This illustration is not in accurate scale.
Page 46 Chapter 2 Getting Started — Setting up r Maximum projection angle of view for optical lens center position θ Screen θ Projector θ (Unit: °) Maximum projection angle of view for projected θ 61.3 image horizontal axis Maximum projection angle of view for projected θ...
Page 47 Chapter 2 Getting Started — Setting up [GEOMETRY] projection range [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above) Screen Screen Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above) Projection distance Projection distance Arc radius Arc radius Screen Screen...
Page 48 Chapter 2 Getting Started — Setting up Standard status Only [CURVED Only [KEYSTONE] used [KEYSTONE] and [CURVED CORRECTION] used together CORRECTION] used Projection Vertical Horizontal Vertical Horizontal lens Model keystone keystone keystone keystone Min. value of Min. value of Min. value of Min.
Page 49 Chapter 2 Getting Started — Setting up Projection distance of each projection lens A ±5 % error in listed projection distances may occur. When [GEOMETRY] is used, distance is corrected to become smaller than the specified image size. r When the image aspect ratio is 16:10 (Unit: m) Lens type Zoom Lens...
Page 50 Chapter 2 Getting Started — Setting up r When the image aspect ratio is 16:9 (Unit: m) Lens type Zoom Lens ET-D3LEW60/ ET-D3LES20/ Projection lens Model No. ET-D3LEW10 ET-D75LE10 ET-D75LE30 ET-D75LE40 ET-D75LE6 ET-D75LE20 Throw ratio 1.00-1.18:1 1.35-1.84:1 1.39-1.79:1 1.79-2.59:1 2.58-5.00:1 4.95-7.91:1 Projected image size Projection distance (L) Height...
Page 51 Chapter 2 Getting Started — Setting up r When the image aspect ratio is 4:3 (Unit: m) Lens type Zoom Lens ET-D3LEW60/ ET-D3LES20/ Projection lens Model No. ET-D3LEW10 ET-D75LE10 ET-D75LE30 ET-D75LE40 ET-D75LE6 ET-D75LE20 Throw ratio 1.20-1.42:1 1.63-2.22:1 1.67-2.15:1 2.15-3.11:1 3.10-6.01:1 5.95-9.50:1 Projected image size Projection distance (L) Height...
Page 52 Chapter 2 Getting Started — Setting up Formula for calculating the projection distance per projection lens To use a projected image size not listed in this manual, check the projected image size SD (m) and use the respective formula to calculate projection distance. The unit of all the formulae is m.
Page 53: Adjusting Adjustable Feet
Chapter 2 Getting Started — Setting up Adjusting adjustable feet Install the projector on a flat surface so that the front of the projector is parallel to the screen surface and the projection screen is rectangular. If the screen is tilted downward, extend the front adjustable feet so that the projected image becomes rectangular. The adjustable feet can also be used to adjust the projector to be level when it is tilted in the horizontal direction.
Page 54: Attaching/Removing The Projection Lens (Optional)
Do not install the Fixed-focus Lens (Model No.: ET-D75LE5 (production discontinued)) on the projector. Installing by mistake will cause malfunction of the projector. f Panasonic takes no responsibility for any damage or malfunction of the product resulting from the use of projection lenses which are not manufactured by Panasonic. Be sure to use the specified projection lenses.
Page 55: Attaching The Projection Lens
Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Attaching the projection lens Attach the projection lens using the following procedure. Start from Step 3) when the lens hole cover is already removed. Screw Lens hole cover Lens release button Fig.
Page 56: Removing The Projection Lens
Chapter 2 Getting Started — Attaching/removing the projection lens (optional) f The lens hood needs to be mounted to the projector when an interchangeable projection lens is used under the condition that throw ratio is greater than 3.0 in the North America region. Always ask a qualified technician or your dealer to mount the lens hood. The throw ratio described here is a value calculated by dividing the actual projection distance by the projected image width.
Page 57: Connecting
Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
Page 58: Connecting Example: Av Equipment
Chapter 2 Getting Started — Connecting Connecting example: AV equipment For <SDI IN 1>/<SDI IN 2>/<SDI IN 3>/<SDI IN 4> terminals 4K image SDI output compatible digital input recorder Quad link HD-SDI signal or quad link 3G-SDI signal Note f Use a 5C-FB or higher (such as 5C-FB, or 7C-FB) or a Belden 1694A or higher connection cable to properly transmit images. Use a connection cable of 100 m (328'1") length or less.
Page 59 Chapter 2 Getting Started — Connecting For <3G-SDI 1 IN>/<3G-SDI 2 IN> terminals and <3G-SDI 3 IN>/<3G-SDI 4 IN> terminals of the Interface Board This is an example when the optional 3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) is installed in <SLOT 1>.
Page 60 Chapter 2 Getting Started — Connecting For <SDI 1 IN>/<SDI 2 IN/1 OUT>/<SDI 3 IN>/<SDI 4 IN/3 OUT> terminals of the Interface Board This is an example when the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) is installed in <SLOT 1>. 12G-SDI signal output compatible device SD-SDI signal, HD-SDI signal, 3G-SDI signal, 6G-SDI signal, or 12G-SDI signal Note...
Page 61 Chapter 2 Getting Started — Connecting For <HDMI IN 1>/<HDMI IN 2> terminals and <HDMI IN 3>/<HDMI IN 4> terminals of the Interface Board This is an example when the optional Interface Board for HDMI 2 input (Model No.: ET-MDNHM10) is installed in <SLOT 1>.
Page 62: Connecting Example: Computers
Chapter 2 Getting Started — Connecting For <DVI-D IN 1>/<DVI-D IN 2> terminals and <DVI-D IN 3>/<DVI-D IN 4> terminals of the Interface Board This is an example when the optional Interface Board for DVI-D 2 input (Model No.: ET-MDNDV10) is installed in <SLOT 2>.
Page 63: Connecting Example Using Digital Link
Chapter 2 Getting Started — Connecting f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. However, when the following 4K video signal exceeding the supported transmission speed of the HDMI High Speed cable is to be input, use the HDMI cable supporting the high speed transmission of 18 Gbps such as the one with Premium HDMI cable authentication.
Page 64: Connecting Example When Using The Contrast Synchronization Function/Shutter Synchronization Function
(https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 65 Chapter 2 Getting Started — Connecting r Connecting example Connect all the projectors to be linked in a loop by daisy chain connection when using the contrast synchronization function/shutter synchronization function. The number of linked projectors is limited to the maximum of 64 projectors. Connecting terminals of the synchronization source Connecting terminals of the projector to synchronize...
Page 66: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. 66 - ENGLISH...
Page 67: Switching On/Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord Make sure that the supplied power cord is securely fixed to the <AC IN> terminal of the projector to prevent it from being removed easily. Confirm that the <MAIN POWER>...
Page 68: Power Indicator
Chapter 3 Basic Operations — Switching on/off the projector For other countries or regions (when using the power cord with the lock button) Lock button Fig. 1 Fig. 2 Confirm that the <MAIN POWER> switch on the side of the projector is on the <OFF> side, and remove the power plug from the outlet.
Page 69: Switching On The Projector
Chapter 3 Basic Operations — Switching on/off the projector Indicator status Projector status The power is switched off. (standby mode) Projection will start when the power on <b> button is pressed. f The projector may not operate when the light source indicators <LIGHT1>/<LIGHT2> or the temperature indicator <TEMP>...
Page 70: When The Initial Setting Screen Is Displayed
Chapter 3 Basic Operations — Switching on/off the projector f It may take longer to start the projection when the [PROJECTOR SETUP] menu → [STANDBY MODE] is set to [ECO] compared to the time when it is set to [NORMAL]. f If the power was turned off at the previous use by pressing the <OFF> side of the <MAIN POWER> switch or by using the breaker directly while projecting, the power indicator <ON (G)/STANDBY (R)>...
Page 71 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (operation setting) Set the items for the operating method depending on the projector’s application and duration of usage. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP] menu →...
Page 72 Chapter 3 Basic Operations — Switching on/off the projector Press the <ENTER> button to proceed to the initial setting. Interrelation of luminance and runtime The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL] and [LIGHT OUTPUT].
Page 73 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (installation setting) Set [FRONT/REAR] and [FLOOR/CEILING] in [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 40) for details. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [PROJECTION METHOD].
Page 74 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (screen setting) Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING].
Page 75 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (time zone) Set [TIME ZONE] in accordance with the country or region where you use the projector. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE AND TIME].
Page 76: Making Adjustments And Selections
Chapter 3 Basic Operations — Switching on/off the projector Making adjustments and selections It is recommended to perform the focus adjustment after 30 minutes have elapsed with the focus test pattern displayed. For details of the test pattern, refer to “[TEST PATTERN] menu” (x page 193). To use the active focus optimizer function, set the [PROJECTOR SETUP] menu →...
Page 77: Switching Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching off the projector Press the power standby <v> button. f The [POWER OFF(STANDBY)] confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. (Or press the power standby <v> button again.) f Projection of the image will stop, and the power indicator <ON (G)/STANDBY (R)>...
Page 78: Projecting
Chapter 3 Basic Operations — Projecting Projecting Check the projection lens attachment (x page 55), external device connection (x page 57), and power cord connection (x page 67), and then switch on the power (x page 69) to start projecting. Select the video for projection, and adjust appearance of the projected image.
Page 79 Chapter 3 Basic Operations — Projecting Note f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/ LAN> terminal, the input on the DIGITAL LINK output supported device changes each time the <DIGITAL LINK> button is pressed. The input can also be changed using the RS-232C control command.
Page 80: Adjusting The Focus, Zoom, And Lens Shift
Chapter 3 Basic Operations — Projecting Switching the input by displaying the input selection screen The input of the image for projection can be selected by displaying the input selection screen. Press the <INPUT MENU> button on the remote control or control panel. f The input selection screen is displayed.
Page 81: Adjusting The Focus Balance
Chapter 3 Basic Operations — Projecting CAUTION During the lens shift operation, do not insert your hand in any opening around the lens. Your hand may be caught in between, resulting to injury. Note f When the projection lens without the zoom function is attached, the zoom adjustment screen is not displayed. f When the Fixed-focus Lens (Model No.: ET-D3LEW50, ET-D75LE50) is used, do not adjust the lens shift, and use the projection lens in the home position.
Page 82 Chapter 3 Basic Operations — Projecting f The projected image size displayed in the periphery focus adjustment ring indicates the adjustment direction. This does not match the projected image size supported by the projector. r Fixed-focus Lens (Model No.: ET-D75LE95, ET-D75LE90) After attaching the projection lens, adjust the focus with the projector correctly installed against the screen.
Page 83: Setting The Lens Type
Chapter 3 Basic Operations — Projecting Loosen the lock screw and turn the periphery focus adjustment ring by hand to adjust the focus in the periphery of the screen. Lock screw Periphery focus adjustment ring Check the focus at the center of the image again and make fine adjustments. Tighten the lock screw.
Page 84: Executing The Lens Calibration
Chapter 3 Basic Operations — Projecting Executing the lens calibration Detect the lens adjustment limit value, and perform the calibration in the adjustment range. Execute the lens calibration after attaching the projection lens. Zoom Lens with DC motor, the Fixed-focus Lens This section describes the operating procedure when the Zoom Lens (Model No.: ET-D75LE6, ET-D75LE8, ET-D75LE10, ET-D75LE20, ET-D75LE30, ET-D75LE40, etc.) in which the DC motor has not been replaced with the stepping motor unit is attached, or when the Fixed-focus Lens (Model No.: ET-D3LEW50, ET-D75LE50,...
Page 85: Moving The Projection Lens To The Home Position
Chapter 3 Basic Operations — Projecting Press as to select an item. Executes the calibrations for the lens shift, focus, and zoom. [SHIFT/FOCUS/ZOOM] After completing the calibration in the adjustment range, the projection lens will move to the home position. Executes the calibrations for the lens shift and focus. [SHIFT/FOCUS] After completing the calibration in the adjustment range, the projection lens will move to the home position.
Page 86: Lens Shift Range
Chapter 3 Basic Operations — Projecting When operating from the lens shift adjustment screen Press the <DEFAULT> button on the remote control while displaying the lens shift adjustment screen. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. f [PROGRESS] is displayed in the [HOME POSITION] screen, and the projection lens is moved to the origin position.
Page 87: Adjusting The Lens Mounter When The Focus Is Unbalanced
Chapter 3 Basic Operations — Projecting Note f Use the projection lens in the standard projection position without adjusting the lens shift when the optional Fixed-focus Lens (Model No.: ET-D3LEW50, ET-D75LE50) is attached. Adjusting the lens mounter when the focus is unbalanced Focus balance Relationship between the tilt of the lens and the screen focus surface When the projection lens is tilted in contrast with the image forming surface, tilting the front side (screen side)
Page 88 Chapter 3 Basic Operations — Projecting Adjustment procedure r Relationship between the adjustment location and adjustment screws Adjustment location: (b)+(c) Location where the just focus point of the screen is in the inner side of the screen When the just focus point of When the just focus point of the When the just focus point of When the just focus point of the...
Page 89: Operating With The Remote Control
Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the shutter function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image temporarily. button Press the <SHUTTER>...
Page 90: Using The Automatic Setup Function
Chapter 3 Basic Operations — Operating with the remote control Note f The hide condition of the on-screen display can also be canceled by pressing the <MENU> button on the control panel for at least three seconds while the on-screen display is off (hidden). Using the automatic setup function The image position when DVI-D/HDMI signal is input can be adjusted automatically.
Page 91: Displaying Internal Test Pattern
Chapter 3 Basic Operations — Operating with the remote control Displaying internal test pattern The projector has nine types of internal test patterns to check the condition of the projector. To display test patterns, perform the following steps. button Press the <TEST PATTERN> button. Press qw to select the test pattern.
Page 92: Using The Ac Voltage Monitor Function
Chapter 3 Basic Operations — Operating with the remote control Using the AC voltage monitor function The value of input supply voltage can be displayed on the self-diagnosis display at the side of the projector. r To display during projection Press the power on <b> button. f The value of the input supply voltage is displayed only as numeric value on the self-diagnosis display.
Page 93: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. ENGLISH - 93...
Page 94: Menu Navigation
Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed.
Page 95: Main Menu
Chapter 4 Settings — Menu navigation Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings. f Some items will switch in order as follows each time you press qw. f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note...
Page 96: Sub-Menu
Chapter 4 Settings — Menu navigation Main menu item [SIMPLE] mode Page [DISPLAY LANGUAGE] [DISPLAY OPTION] [PROJECTOR SETUP] [MULTI DISPLAY] ― [TEST PATTERN] [SIGNAL LIST] [SECURITY] ― [NETWORK] Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. The menu item with l in the [SIMPLE] mode column indicates that this is displayed in the menu screen (OSD) when the [DISPLAY OPTION] menu →...
Page 97 Chapter 4 Settings — Menu navigation Sub-menu item Factory default [SIMPLE] mode Page [BLANKING] ― ― [EDGE BLENDING] [OFF] ― [FRAME RESPONSE] [NORMAL] ― [FRAME DELAY] [+0.00ms] ― [FRAME CREATION] ― ― [QUAD PIXEL DRIVE] [ON] ― [RASTER POSITION] ― ― *1 Depends on the signal input.
Page 98 Chapter 4 Settings — Menu navigation Sub-menu item Factory default [SIMPLE] mode Page [REMOTE2 MODE] [DEFAULT] ― [FUNCTION BUTTON] ― ― [STATUS] ― [AC VOLTAGE MONITOR] [OFF] ― [SAVE ALL USER DATA] ― ― [LOAD ALL USER DATA] ― ― [INITIALIZE] ―...
Page 99: [Picture] Menu
Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 94) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
Page 100: [Brightness]
Chapter 4 Settings — [PICTURE] menu Attention f Adjust [BRIGHTNESS] first when you need to adjust the black level. [BRIGHTNESS] You can adjust the dark (black) part of the projected image. Press as to select [BRIGHTNESS]. Press qw or the <ENTER> button. f The [BRIGHTNESS] individual adjustment screen is displayed.
Page 101 Chapter 4 Settings — [PICTURE] menu [USER1] Adjusts white balance as desired. Refer to “Adjusting desired white balance” (x page 101) for details. [USER2] [3200K] - [13000K] Allows you to set in increments of 100 K. Select so that images become natural. Note f When [PICTURE MODE] (x page 99) is set to [USER] or [DICOM SIM.], [DEFAULT] cannot be selected.
Page 102: [Gamma]
Chapter 4 Settings — [PICTURE] menu Press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. f The [USER1] or [USER2] data is overwritten. f If you press qw to select [CANCEL] and then press the <ENTER> button, the data will not be overwritten. f The [WHITE BALANCE HIGH] screen is displayed.
Page 103: [System Daylight View]
Chapter 4 Settings — [PICTURE] menu [1.0] [1.8] Set so that images become as you like. [2.0] - [2.8] can be set in increments of 0.1. [2.0] - [2.8] *1 When [PICTURE MODE] is set to [DYNAMIC], [USER], or [DICOM SIM.], [DEFAULT] cannot be selected. Note f DICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine”...
Page 104: [Sharpness]
Chapter 4 Settings — [PICTURE] menu Press qw or the <ENTER> button. f The [SYSTEM DAYLIGHT VIEW] individual adjustment screen is displayed. Press qw to switch the item. f The items will switch each time you press the button. [OFF] No correction. [1] - [6] Corrects the vividness of the image.
Page 105 Chapter 4 Settings — [PICTURE] menu Performing desired correction Press as to select [DYNAMIC CONTRAST]. Press qw or the <ENTER> button. f The [DYNAMIC CONTRAST] individual adjustment screen is displayed. Press qw to select [USER]. Press the <ENTER> button. f The [DYNAMIC CONTRAST] screen is displayed. Press as to select the item to set.
Page 106: [Color Space]
Chapter 4 Settings — [PICTURE] menu Note f [LIGHTS OUT SIGNAL LEVEL], [LIGHTS OUT FADE-IN], and [LIGHTS OUT FADE-OUT] cannot be set when [LIGHTS OUT TIMER] is set to [DISABLE]. f When [LIGHTS OUT TIMER] is set to anything other than [DISABLE], the following are the conditions to turn the light source back on again from the state that the light source has turned off by this function.
Page 107: Srgb-Compliant Video
Chapter 4 Settings — [PICTURE] menu f This may not function properly for some connected external devices. f The selection item for the input signal to the <HDMI IN 1> terminal and the <HDMI IN 2> terminal can be selected when the optional Interface Board equipped with the HDMI input is installed in <SLOT 1>.
Page 108: [Position] Menu
Chapter 4 Settings — [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 94) for the operation of the menu screen. Note f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/ LAN>...
Page 109: [Zoom]
Chapter 4 Settings — [POSITION] menu Displays images with the aspect ratio converted to 16:9 when standard signals are input . When [16:9] wide-screen signals are input , the images are displayed without changing the aspect ratio. Displays images without changing the aspect ratio when standard signals are input .
Page 110: [Geometry]
Chapter 4 Settings — [POSITION] menu Press the <ENTER> button. f The [ZOOM] screen is displayed. Press as to select [MODE]. Press qw to switch the item. [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT]. [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT]. Press as to select [INTERLOCKED].
Page 111 Chapter 4 Settings — [POSITION] menu [KEYSTONE] [LENS THROW RATIO] Set the throw ratio. Select the value close to the actual projection distance divided by projected image width here. [VERTICAL KEYSTONE] [HORIZONTAL KEYSTONE] [VERTICAL BALANCE] [HORIZONTAL BALANCE] Adjust the setting according to the lens shift range in the vertical Adjust the setting according to the lens shift range in the horizontal direction.
Page 112 Chapter 4 Settings — [POSITION] menu Press as to select the item to adjust, and press the <ENTER> button. f When [LINEARITY] is selected, press qw to select either adjustment method ([AUTO] or [MANUAL]). Select [AUTO] normally. For details of operation when [MANUAL] is selected, refer to “Adjusting to desired linearity” (x page 112). Press asqw to adjust.
Page 113: [Convergence]
Chapter 4 Settings — [POSITION] menu [CONVERGENCE] Correct the position shift of the three primary colors of red, green, and blue in the projected image. Press as to select [CONVERGENCE]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Disables the convergence function.
Page 114: [Advanced Menu] Menu
[OFF] ([PC-1], [PC-2], [PC-3]). Up to three blanking settings adjusted using the computer can be saved. [CUSTOM MASKING] uses the masking function of the Panasonic computer application. To use the [CUSTOM MASKING] function, the optional Upgrade Kit (Model No.: ET-UK20) is required. To purchase the product, consult your dealer.
Page 115: [Edge Blending]
The upper limit of the adjustment range may be restricted so that the entire projected image is not covered by blanking width. f The [CUSTOM MASKING] setting in [BLANKING] is disabled in the following cases, and the masking function of Panasonic computer application cannot be used.
Page 116 Chapter 4 Settings — [ADVANCED MENU] menu Press as to select [MARKER]. Press qw to switch to [ON]. f A marker for image position adjustment is displayed. The position where the red and green lines overlap for the projectors to be joined will be the optimal point. Make sure to set the correction width for the projectors to be joined with the same value.
Page 117: [Frame Response]
Chapter 4 Settings — [ADVANCED MENU] menu 24) Press as to select an item, and press qw to adjust the setting. [BLACK BORDER WIDTH] (Right) Projection range Edge blending [WIDTH] (Right) [MARKER] (Red) Edge blending [START] (Right) ([MARKER] (Green)) [OVERLAPPED BLACK LEVEL] (Right) [NON-OVERLAPPED BLACK LEVEL] [BLACK BORDER LEVEL] Note...
Page 118: [Frame Creation]
Chapter 4 Settings — [ADVANCED MENU] menu Press the <ENTER> button. f The [FRAME DELAY] screen is displayed. Press qw to switch the item. f The items will switch each time you press the button. [+0.00ms] - [+100.00ms] Sets the delay in 0.01 ms increments. f The delay time (approximate) from the point the video signal is input until the image is projected is displayed in [ACTUAL DELAY] of the [FRAME DELAY] screen.
Page 119: [Quad Pixel Drive]
Chapter 4 Settings — [ADVANCED MENU] menu Press as to select [FILM DETECTION]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Disables the film detection function. Enables the film detection function. The video resolution is enhanced for the contents that telecine is [ON] performed on the input signal.
Page 120: [Raster Position]
Chapter 4 Settings — [ADVANCED MENU] menu [RASTER POSITION] This will allow the position of the image to move within the display area arbitrarily when the input image is not using the whole display area. Press as to select [RASTER POSITION]. Press the <ENTER>...
Page 121: [Display Language] Menu
Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu. Refer to “Navigating through the menu” (x page 94) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display.
Page 122: [Display Option] Menu
Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 94) for the operation of the menu screen. [COLOR MATCHING] Correct the color difference between projectors when using multiple projectors simultaneously.
Page 123 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [MEASURED MODE] screen is displayed. Press as to select [MEASURED DATA]. f The adjustment condition can be reset by selecting [RESET]. For details regarding [RESET], refer to “Resetting the adjustment condition of the color matching” (x page 123). Press the <ENTER>...
Page 124: [Large Screen Correction]
Chapter 4 Settings — [DISPLAY OPTION] menu [LARGE SCREEN CORRECTION] Corrects the phenomenon in which colors that appear lighter when viewed on a large screen viewed from a close distance compared to when viewed on an average screen size so that colors appear the same. Press as to select [LARGE SCREEN CORRECTION].
Page 125: [Backup Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT] Standard setting. Select this item when an image aspect ratio is a wide-screen signal, which does not meet the [WIDE] [DEFAULT] setting.
Page 126 Chapter 4 Settings — [DISPLAY OPTION] menu Number of signals Primary input Secondary input constructing one Details screen [OFF] ― Disables the backup function. [SDI1] [SDI2] [HDMI1 [SLOT1]] [HDMI2 [SLOT1]] [HDMI3 [SLOT2]] [HDMI4 [SLOT2]] [DVI-D1 [SLOT1]] [DVI-D2 [SLOT1]] [DVI-D3 [SLOT2]] [DVI-D4 [SLOT2]] [SDI1 [SLOT1]] [SDI2 [SLOT1]] [SDI3 [SLOT2]]...
Page 127: [Simul Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu f When [AUTOMATIC SWITCHING] is set to [ENABLE], and [BACKUP INPUT STATUS] shows [ACTIVE], the signal is switched to the backup input if a disruption occurs in the input signal. f When [AUTOMATIC SWITCHING] is set to [ENABLE], the indication in [BACKUP INPUT STATUS] will change to [INACTIVE] if the input signal is disrupted and automatically switched to the backup input.
Page 128: [Sdi In]
[OFF] ([PC-1], [PC-2], [PC-3]). [CUSTOM MASKING] uses the masking function of the Panasonic computer application. f [SIMUL INPUT SETTING] cannot be set when the [MULTI DISPLAY] menu → [MULTI DISPLAY MODE] is set to anything other than [OFF] and displaying the four-screen display.
Page 129 Chapter 4 Settings — [DISPLAY OPTION] menu f When [SDI LINK] is set to [AUTO], use the same format for the signal to be input to the <SDI IN 1>/<SDI IN 2>/<SDI IN 3>/<SDI IN 4> terminals. If different format signal is input to even one terminal, currently displayed image may not be projected correctly. f [3G-SDI MAPPING] cannot be set when [SDI LINK] is set to [AUTO].
Page 130 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the <ENTER> button. f The [SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING] screen is displayed.
Page 131: [Digital Link In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SDI1], [SDI2], [SDI3], [SDI4], [SDI1-2], or [SDI3-4], and press the <ENTER> button. f The [SINGLE LINK SETTING] or [DUAL LINK SETTING] screen of the selected item is displayed. Press as to select [BIT DEPTH]. Press qw to switch the item.
Page 132 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [AUTO GAMMA SELECT] in [DIGITAL LINK IN] Set this item when the gamma mode is to be automatically set based on the InfoFrame information added to the video signal. Press as to select [DIGITAL LINK IN]. Press the <ENTER>...
Page 133 Chapter 4 Settings — [DISPLAY OPTION] menu Switches to EDID corresponding to the 4K video signal (maximum 4 096 x 2 160 dots, maximum [4K/30p/HDR] vertical scanning frequency 30 Hz). This is EDID supporting HDR (High Dynamic Range). Switches to EDID corresponding to the 4K video signal (maximum 4 096 x 2 160 dots, maximum vertical scanning frequency 30 Hz).
Page 134: [Slot In]
Chapter 4 Settings — [DISPLAY OPTION] menu f The resolution and vertical scanning frequency settings may also be required on your computer or video device. f After configuring settings, your computer or video device or the projector may be required to be turned off and on. f A signal may not be output with the resolution and vertical scanning frequency that have been set, depending on your computer or video device.
Page 135 Chapter 4 Settings — [DISPLAY OPTION] menu r Structure of the projected image The single link is a setting to display one image with one input signal. The dual link is a setting to display one image with two input signals. The quad link is a setting to display one image with four input signals. HDMI1 HDMI2 HDMI1/...
Page 136 Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. Select this item when the gamma mode is to be automatically set to the one compatible with HDR (High Dynamic Range) based on the InfoFrame information added to the video signal.
Page 137 Chapter 4 Settings — [DISPLAY OPTION] menu Switches to EDID corresponding to the 4K video signal (maximum 4 096 x 2 160 dots, maximum vertical scanning frequency 60 Hz). [4K/60p/SDR] This is EDID supporting SDR (Standard Dynamic Range). This does not support HDR (High Dynamic Range).
Page 138 Chapter 4 Settings — [DISPLAY OPTION] menu Note f The contents set in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] are displayed in [EDID STATUS] of the [OPTION SETTING] screen. f The resolution and vertical scanning frequency settings may also be required on your computer or video device. f After configuring settings, your computer or video device or the projector may be required to be turned off and on.
Page 139 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [SIGNAL LEVEL] in [SLOT IN] (DVI-D input) Press as to select [SLOT IN]. Press the <ENTER> button. f The [SLOT IN] screen is displayed. Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the <ENTER>...
Page 140 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [OPTION SETTING]. Press the <ENTER> button. f The [OPTION SETTING] screen is displayed. Press as to select [EDID MODE]. Press the <ENTER> button. f The [DVI-D EDID MODE] screen is displayed. Press qw to switch [EDID MODE].
Page 141 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SDI LINK], and press the <ENTER> button. f The [SDI LINK] screen is displayed. Press as to select the setting. Automatically selects the single link, the dual link, or the quad link. [AUTO] Quad link will be automatically selected when the optional 3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) is installed in both of the slots.
Page 142 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [4K DIVISION] in [SLOT IN] (SDI input) Set the transmission method in the 4K division when 4K image is displayed with SDI input. Press as to select [SLOT IN]. Press the <ENTER> button. f The [SLOT IN] screen is displayed.
Page 143 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SDI1], [SDI2], [SDI3], or [SDI4], and press the <ENTER> button. f The [SINGLE LINK SETTING] screen for the selected item is displayed. Press as to select [SYSTEM SELECTOR]. Press qw to switch the item. f The items will switch each time you press the button.
Page 144 Chapter 4 Settings — [DISPLAY OPTION] menu When the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) is installed Setting [SDI MODE] in [SLOT IN] (SDI input) Switch input/output of the <SDI 2 IN/1 OUT> terminal and the <SDI 4 IN/3 OUT> terminal. Press as to select [SLOT IN].
Page 145 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [RESOLUTION] in [SLOT IN] (SDI input) Press as to select [SLOT IN]. Press the <ENTER> button. f The [SLOT IN] screen is displayed. Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the <ENTER>...
Page 146 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [SLOT IN] screen is displayed. Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the <ENTER> button. f The [SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING] screen is displayed.
Page 147 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the <ENTER> button. f The [SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING] screen is displayed.
Page 148: [On-Screen Display]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. [64-940] Normally use this setting. [4-1019] Select this item when gray is displayed as black. [ON-SCREEN DISPLAY] Set the on-screen display.
Page 149 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [OSD ROTATION]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Does not rotate the screen. [CLOCKWISE] Rotates the screen by 90° clockwise. [COUNTERCLOCKWISE] Rotates the screen by 90°...
Page 150: [Menu Mode]
Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. Note f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). 150 - ENGLISH...
Page 151: [Startup Logo]
When [USER LOGO] is selected, the display of the startup logo will be kept for approximately 15 seconds. f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/).
Page 152: [Shutter Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Corrects the brightness unevenness and color unevenness using the correction value in the projector. The shape of the projected image and the compensation area of uniformity are not linked. [ON(POST)] Select this item to correct the brightness unevenness and the color unevenness of the light irradiated from the projection lens.
Page 153 Chapter 4 Settings — [DISPLAY OPTION] menu Item Adjustment [OFF] Does not set fade-in or fade-out. [FADE-IN] Sets the fade-in or fade-out time. [FADE-OUT] [0.5s] - [10.0s] Select an item from [0.5s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.5s] - [4.0s] can be selected in increments of 0.5. Note f Press the <SHUTTER>...
Page 154: [Freeze]
Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [MODE]. Press qw to switch the item. f The items will switch each time you press the button. Select this item when the contrast synchronization function and the shutter synchronization function [OFF] are not used.
Page 155: [Waveform Monitor]
Chapter 4 Settings — [DISPLAY OPTION] menu [WAVEFORM MONITOR] Use the input signals from a connected external device to display in a waveform. Check whether video output (luminance) signal level is within the recommended range for the projector and adjust. Press as to select [WAVEFORM MONITOR]. Press qw to switch the item.
Page 156: [Cut Off]
Chapter 4 Settings — [DISPLAY OPTION] menu Adjust dark red areas. f Use [RED] in [WHITE BALANCE LOW] to adjust the black level 0 % of the video signal to the 0 % position of the waveform monitor. Adjust bright red areas. f Use [RED] in [WHITE BALANCE HIGH] to adjust the white level 100 % of the video signal to the 100 % position of the waveform monitor.
Page 157: [Projector Setup] Menu
Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 94) for the operation of the menu screen. [PROJECTOR ID] The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control.
Page 158: [Lens]
Chapter 4 Settings — [PROJECTOR SETUP] menu Select this item when installing the projector with the top surface of the projector facing down such as [CEILING] ceiling attachment. Projected image is inverted upside down. Note f Refer to “Angle sensor” (x page 41) for details on the range of the installation attitude that can be detected by the built-in angle sensor. [LENS] Perform the setting and operation regarding the projection lens.
Page 159 Chapter 4 Settings — [PROJECTOR SETUP] menu [LENS INFORMATION SETTING] Confirming the projection lens information Press as to select [LENS]. Press the <ENTER> button. f The [LENS] screen is displayed. Press as to select [LENS INFORMATION SETTING]. Press the <ENTER> button. f The [LENS INFORMATION SETTING] screen is displayed.
Page 160 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [LENS INFORMATION SETTING] screen is displayed. Press as to select [LENS NAME]. Press the <ENTER> button. f The [LENS NAME INPUT] screen is displayed. Press asqw to select the character, and press the <ENTER> button to enter the character. Press asqw to select [OK], and press the <ENTER>...
Page 161 Chapter 4 Settings — [PROJECTOR SETUP] menu Note f The numeric value information of the zoom position is displayed only in following cases. g When the standard DC motor unit installed in the Zoom Lens (Model No.: ET-D75LE6, ET-D75LE8, ET-D75LE10, ET-D75LE20, ET-D75LE30, ET-D75LE40, etc.) is replaced with the stepping motor unit using the Stepping Motor Kit (Model No.: ET-D75MKS10) g When the Zoom Lens with the stepping motor (Model No.: ET-D3LEW60, ET-D3LET80, ET-D3LEW10, ET-D3LES20, etc.) is attached Loading the lens position...
Page 162 Chapter 4 Settings — [PROJECTOR SETUP] menu f The name of the saved lens memory and its lens position information ([VERTICAL POSITION]/ [HORIZONTAL POSITION]/[FOCUS POSITION]/[ZOOM POSITION]) are displayed in the [LENS MEMORY DELETE] screen. Press as to select the item to delete, and press the <ENTER> button. f The confirmation screen is displayed.
Page 163 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [LENS] screen is displayed. Press as to select [LENS HOME POSITION]. Press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. f [PROGRESS] is displayed in the [HOME POSITION] screen, and the projection lens is moved to the origin position.
Page 164 Chapter 4 Settings — [PROJECTOR SETUP] menu Performing simplified setting using the internal test pattern Set the parameters for [FOCUS OFFSET BRIGHT] and [FOCUS OFFSET DARK] using the test pattern built in the projector following the guidance of [SETUP ASSISTANT]. Press as to select [LENS]. Press the <ENTER>...
Page 165 Chapter 4 Settings — [PROJECTOR SETUP] menu f It will return to previous screen by selecting [BACK] and pressing the <ENTER> button. 18) Wait until [Waiting time] turns [0s]. f Wait until the focus is stabilized. f When the [Waiting time] turns [0s], the [Please wait...] message disappears, and [NEXT] becomes selectable.
Page 166 Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [ACTIVE FOCUS OPTIMIZER]. Press the <ENTER> button. f The [ACTIVE FOCUS OPTIMIZER] screen is displayed. Press as to select [FOCUS OFFSET SETUP]. Press the <ENTER> button. f The [FOCUS OFFSET SETUP] screen is displayed. Press as to select [SETUP ASSISTANT].
Page 167 Chapter 4 Settings — [PROJECTOR SETUP] menu 20) Press qw to select [NEXT], and press the <ENTER> button. f The [SETUP ASSISTANT] screen (page 5/8) is displayed. f It will return to previous screen by selecting [BACK] and pressing the <ENTER> button. 21) Press asqw to select [FOCUS POSITION].
Page 168 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [FOCUS OFFSET SETUP] screen is displayed. Press as to select [FOCUS OFFSET BRIGHT] or [FOCUS OFFSET DARK]. Press qw to set the parameter. f Set the parameter in the range from [-99] to [+99]. Displaying the test pattern The internal focus test pattern used with [SETUP ASSISTANT] is displayed.
Page 169 Chapter 4 Settings — [PROJECTOR SETUP] menu Zoom Lens with DC motor, the Fixed-focus Lens This section describes the operating procedure when the Zoom Lens (Model No.: ET-D75LE6, ET-D75LE8, ET-D75LE10, ET-D75LE20, ET-D75LE30, ET-D75LE40, etc.) in which the DC motor has not been replaced with the stepping motor unit is attached, or when the Fixed-focus Lens (Model No.: ET-D3LEW50, ET-D75LE50, ET-D75LE95, ET-D75LE90, ET-D3LEF70, etc.) without the zoom function is attached.
Page 170: [Operation Setting]
Chapter 4 Settings — [PROJECTOR SETUP] menu f To cancel, select [CANCEL]. Note f [LENS CALIBRATION] cannot be executed when the [PROJECTOR SETUP] menu → [LENS] → [LENS TYPE] is set to [NOT SELECTED]. f [PROGRESS] is displayed in the menu during lens calibration. The operation cannot be canceled during calibration. f [INCOMPLETE] is displayed when the lens calibration is not performed correctly.
Page 171 Chapter 4 Settings — [PROJECTOR SETUP] menu Operation Adjustment Range of adjustment Press w. Increases the maximum level of brightness correction. 8.0 % - 100.0 % Press q. Decreases the maximum level of brightness correction. Press as to select [APPLY]. Press the <ENTER> button. f The confirmation screen is displayed.
Page 172: [Light Output]
Chapter 4 Settings — [PROJECTOR SETUP] menu Interrelation of luminance and runtime The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP]. Interrelation of luminance and runtime is as follows.
Page 173: [Brightness Control]
Synchronizes nine or more projectors using a computer and the dedicated software “Multi Monitoring [PC] & Control Software” *1 “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). f When [PC] is selected, proceed to Step 9). Press as to select [LINK].
Page 174 Chapter 4 Settings — [PROJECTOR SETUP] menu Note f When [CONSTANT MODE] is set to [AUTO] or [PC], keep the shutter function disabled (shutter: open) for at least two minutes, since the brightness sensor calibration is performed after the [BRIGHTNESS CONTROL SETUP] setting has been completed. f When the projector operates with [CONSTANT MODE] set to [AUTO] or [PC], the brightness and color of the light source do not stabilize for approximately eight minutes after the light source is turned on.
Page 175 There is a problem with the brightness sensor. If problems persist even after switching on the [Brightness Sensor Error] power, consult your dealer. *1 “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). ENGLISH - 175...
Page 176: [Standby Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu Note f If the synchronized projectors are not displayed in the list, check the following: g Are there devices with the same IP address on the network? g Are the LAN cables connected correctly? (x page 208) g Are the subnets of the projectors the same? g Are the same [LINK] settings applied to a group? f Refer to [NETWORK SETUP] (x page 203) or “[Network config] page”...
Page 177: [No Signal Shut-Off]
The no signal lights-out function is disabled in following cases. g When the [DISPLAY OPTION] menu → [BACK COLOR] is set to [DEFAULT LOGO] or [USER LOGO], and the Panasonic logo or the image registered by the user is displayed on the projected image g When the [SECURITY] menu →...
Page 178: [Startup Input Select]
Sets the input to SDI3 of the Interface Board. [SDI4 [SLOT2]] Sets the input to SDI4 of the Interface Board. Sets the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable [INPUT1] - [INPUT10] transmitter to the specified input.
Page 179: [Schedule]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [ADJUST CLOCK] screen is displayed. Press as to select an item, and press qw to set the local date and time. Press as to select [APPLY], and press the <ENTER> button. f The setting of the date and time will be completed.
Page 180 Switches the input to SDI3 of the Interface Board. [SDI4 [SLOT2]] Switches the input to SDI4 of the Interface Board. Switches the input to DIGITAL LINK, and switches the input of the [INPUT1] - [INPUT10] Panasonic twisted-pair-cable transmitter to the specified input. 180 - ENGLISH...
Page 181: [Multi Projector Sync]
Chapter 4 Settings — [PROJECTOR SETUP] menu Detailed settings of [COMMAND] Description [COMMAND] [NORMAL] Prioritizes luminance. Controls the power to increase the life of the light source with higher [ECO] luminance. [OPERATING MODE] [USER1] Controls the power with the setting set to [USER1]. [USER2] Controls the power with the setting set to [USER2].
Page 182 Chapter 4 Settings — [PROJECTOR SETUP] menu Press qw to switch the item. f The items will switch each time you press the button. Select this item when the contrast synchronization function and the shutter synchronization function [OFF] are not used. Select this item when the contrast synchronization function or the shutter synchronization function is used.
Page 183 Chapter 4 Settings — [PROJECTOR SETUP] menu The projectors are not correctly connected, or not correctly set. Check the cable connection status [NO LINK] and the projector setting for each projector that is linked. Press as to select [SHUTTER SYNC]. Press qw to switch the item. f The items will switch each time you press the button.
Page 184: [Remote2 Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu Setting the communication condition of the <SERIAL OUT> terminal Press as to select [RS-232C]. Press the <ENTER> button. f The [RS-232C] screen is displayed. Press as to select [(OUT) BAUDRATE]. Press qw to switch the item. f The items will switch each time you press the button.
Page 185: [Function Button]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [REMOTE2 MODE]. Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT] Uses pin assignment of the <REMOTE 2 IN> terminal in standard setting. (x page 254) [USER] Changes the setting of the <REMOTE 2 IN>...
Page 186 Chapter 4 Settings — [PROJECTOR SETUP] menu [SERIAL NUMBER] Displays the serial number of the projector. [PROJECTOR RUNTIME] Displays the runtime of the projector. [LIGHT RUNTIME] Displays the runtime of the light source 1 and the light source 2. Displays the elapsed time from when the light source is illuminated. [CONTINUOUS LIGHTING The elapsed time after the illumination of the light source can be confirmed when adjusting the focus.
Page 187 Chapter 4 Settings — [PROJECTOR SETUP] menu Displays the input terminal used for the projected image. Displays the representative input terminal when one image is [INPUT] displayed with multiple input signals. [MULTI DISPLAY] is displayed while in the four-screen display mode. [SIGNAL FORMAT] Displays the format of the input signal.
Page 188: [Ac Voltage Monitor]
Chapter 4 Settings — [PROJECTOR SETUP] menu r [CONTENT INFORMATION] Displays EOTF (Electro-Optical Transfer Function) out of the InfoFrame information added to the [EOTF] input signal. Displays the chromaticity coordinates for the primary color red out [RED] of the InfoFrame information added to the input signal. Displays the chromaticity coordinates for the primary color green [GREEN] out of the InfoFrame information added to the input signal.
Page 189: [Load All User Data]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press qw to select [OK], and press the <ENTER> button. f [PROGRESS] is displayed while saving data. Note f Data set from the computer application is not included in [ALL USER DATA]. f The data saved by executing [SAVE ALL USER DATA] is not deleted even if the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed.
Page 190: [Service Password]
Chapter 4 Settings — [PROJECTOR SETUP] menu f To initialize the setting values of [FOCUS OFFSET BRIGHT] and [FOCUS OFFSET DARK] in the [PROJECTOR SETUP] menu → [LENS] → [ACTIVE FOCUS OPTIMIZER], execute the [PROJECTOR SETUP] menu → [LENS] → [FOCUS OFFSET SETUP] → [INITIALIZE]. f If [ALL USER DATA] is executed, the [INITIAL SETTING] screen is displayed when the projection is started the next time.
Page 191: [Multi Display] Menu
Chapter 4 Settings — [MULTI DISPLAY] menu [MULTI DISPLAY] menu On the menu screen, select [MULTI DISPLAY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 94) for the operation of the menu screen. Using the multi-display function Four images can be displayed simultaneously by dividing the projection screen into four.
Page 192 Chapter 4 Settings — [MULTI DISPLAY] menu g When the [DISPLAY OPTION] menu → [SIMUL INPUT SETTING] is set to anything other than [OFF] g When the [DISPLAY OPTION] menu → [SDI IN] → [SDI LINK] is set to anything other than [SINGLE] g When the [DISPLAY OPTION] menu →...
Page 193: [Test Pattern] Menu
Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 94) for the operation of the menu screen. [TEST PATTERN] Display the test pattern built-in to the projector. Settings of position, size, and other factors will not be reflected in test patterns.
Page 194: [Signal List] Menu
Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 94) for the operation of the menu screen. r Registered signal details Memory number: A1 (1-2) Sub memory number...
Page 195: Protecting The Registered Signal
Chapter 4 Settings — [SIGNAL LIST] menu Note f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen. Protecting the registered signal Press asqw to select the signal to protect. Press the <ENTER> button. f The [REGISTERED SIGNAL STATUS] screen is displayed.
Page 196: Sub Memory
Chapter 4 Settings — [SIGNAL LIST] menu f When a registration signal is deleted, the settings are also deleted. f In an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the setting is set to [WIDE].
Page 197: [Security] Menu
Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 94) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>...
Page 198: [Text Change]
[USER LOGO] Displays the image registered by the user. Note f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). [TEXT CHANGE] Edit the text to be displayed when [TEXT] is selected in [DISPLAY SETTING].
Page 199 Chapter 4 Settings — [SECURITY] menu Press the <ENTER> button. f The [CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed. Press as to select [CONTROL PANEL] or [REMOTE CONTROL]. Press qw to switch [USER]. Press as to select the button item to set. f When [INPUT SELECT BUTTON] is selected, press the <ENTER>...
Page 200 Chapter 4 Settings — [SECURITY] menu r [SDI3/4 BUTTON] [TOGGLE] Switches between [SDI3] and [SDI4] when the button is operated. [SDI3] Fixes to selection operation of the SDI3 input. [SDI4] Fixes to selection operation of the SDI4 input. [DISABLE] Disables button operations. r [DVI-D BUTTON] [DVI-D1 [SLOT1]] and [DVI-D2 [SLOT1]] can be selected when the optional Interface Board for DVI-D 2 input (Model No.: ET-MDNDV10) is installed in <SLOT 1>.
Page 201: [Control Device Password Change]
Chapter 4 Settings — [SECURITY] menu r [SLOT1 BUTTON] The items from [SDI1 [SLOT1]] to [SDI4 [SLOT1]] can be selected when the optional Interface Board with the corresponding input (3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) or Interface Board for 12G-SDI (Model No.: ET-MDN12G10)) is installed in <SLOT 1>.
Page 202: [Network] Menu
Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 94) for the operation of the menu screen. [DIGITAL LINK MODE] Switch the communication method of the <DIGITAL LINK/LAN>...
Page 203: [Network Setup]
Chapter 4 Settings — [NETWORK] menu [SIGNAL QUALITY] is a numerical value of the amount of error, and the display color changes to green, yellow, or red depending on that value. Check the signal quality level while receiving a signal from the twisted-pair-cable transmitter. f [MAX]/[MIN]: Maximum/minimum value of the amount of error [SIGNAL QUALITY] f Green (-12 dB or lower) →...
Page 204: [Network Status]
Chapter 4 Settings — [NETWORK] menu Set to [ON] when connecting the “XTP transmitter” of Extron Electronics to the <DIGITAL LINK/LAN> terminal. The [EXTRON XTP] setting must be set to [OFF] when connecting the optional DIGITAL LINK output [EXTRON XTP] supported device (Model No.: ET-YFB100G, ET-YFB200G). For details of the “XTP transmitter”, visit the website of Extron Electronics.
Page 205: [Art-Net Channel Setting]
Chapter 4 Settings — [NETWORK] menu Press as to select [STORE], and press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. Note f If [ON(2.X.X.X)] or [ON(10.X.X.X)] is selected, IP address is calculated and set automatically. [Art-Net CHANNEL SETTING] Set the assignment of the channel.
Page 206: [Art-Net Status]
Chapter 4 Settings — [NETWORK] menu [ENABLE/DISABLE] Enables/disables the control of the projector with the Art-Net function. [NONE] No definition *1 These items can be selected in following case. When the standard DC motor unit installed in the Zoom Lens (Model No.: ET-D75LE6, ET-D75LE8, ET-D75LE10, ET-D75LE20, ET-D75LE30, ET-D75LE40) is replaced with the stepping motor unit using the Stepping Motor Kit (Model No.: ET-D75MKS10), or when a projection lens with the stepping motor is attached.
Page 207: Chapter 5 Operations
Operations Chapter 5 This chapter describes how to use each function. ENGLISH - 207...
Page 208: Network Connection
The application software “Smart Projector Control” can be used, which enables to set and adjust the projector connected via LAN using a smartphone or tablet device. Visit the Panasonic website (https://panasonic.net/cns/projector/) for details. f Multi Monitoring & Control Software “Multi Monitoring & Control Software”, a software application to monitor and control multiple display devices (projector or flat panel display) connected to intranet, can be used.
Page 209 (https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 210 Chapter 5 Operations — Network connection [DHCP] [IP ADDRESS] 192.168.0.8 [SUBNET MASK] 255.255.255.0 [DEFAULT GATEWAY] 192.168.0.1 [DNS1]/[DNS2] None Operating the computer Turn on the power of the computer. Perform the network setting following the instruction of your network administrator. f Operation from the computer is possible by configuring the network setting of the computer as follows if the projector is in the factory default setting.
Page 211: Web Control Function
Enter the user name and the password. f The factory default settings are User name: dispuser (user rights)/dispadmin (administer rights); Password: @Panasonic. f Change of password is prompted when using the web control function for the first time. Proceed to Step 4).
Page 212 Chapter 5 Operations — Web control function Click OK. f The [Change password] page is displayed. For user rights For administrator rights Enter the new user name and password, and click [Change]. f The screen in Step 3) is displayed again. Enter the new user name and password.
Page 213 Chapter 5 Operations — Web control function Rights for each account The administrator rights allow use of all functions. There is a limitation in the rights that can be used with the user rights. Select the rights depending on the purpose. The function that has l in the administrator rights/user rights column indicates that it can be operated with that rights.
Page 214 Chapter 5 Operations — Web control function [Projector status] page Click [Status] → [Projector status]. Display the status of the projector for the following items. [PROJECTOR TYPE] 11 [LIGHT OUTPUT] Displays the type of the projector. Displays the setting status of [LIGHT OUTPUT]. [MAIN VERSION] 12 [INPUT] Displays the firmware version of the projector.
Page 215 Chapter 5 Operations — Web control function Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status] screen, click it to display the content of the error/warning. f The projector may go into the standby status to protect the projector depending on the contents of the error. Display of error information Error code Displays the alphanumeric symbols and content of errors/...
Page 216 Chapter 5 Operations — Web control function [Mail error log] page Click [Status] → [Mail error log]. E-mail error log is displayed if periodic E-mail sending has failed. Note f [Access error log] and [Mail error log] display the recent few thousand accesses/requests. All information may not be displayed when many accesses/requests are made at once.
Page 217 Chapter 5 Operations — Web control function [Detail control] page Click [Projector control] → [Detail control]. [MULTI DISPLAY MODE] [WAVEFORM MONITOR] Switches the setting of the multi-display mode. Displays the waveform of the input signal. Control of the projector [PROJECTION METHOD] The projector is controlled by clicking the buttons in the same Switches the setting of the projection method.
Page 218 Chapter 5 Operations — Web control function Lens position setting page Click [Projector control] → [Detail control] → [LENS] → [SET POSITION]. [Get] [Back] Acquires the current lens position and displays the acquired Returns to the [LENS] page. values in the lens position information field. [Apply] Lens position information field Moves to the lens position displayed in the lens position...
Page 219 Chapter 5 Operations — Web control function [Network config] page Click [Detailed set up] → [Network config]. f Click [Network config] to display the [CAUTION!] screen. f Click the [Next] button to display the current settings. f Click the [Change] button to display the setting change screen. [PROJECTOR NAME] [DNS1] Enter the name of the projector.
Page 220 Chapter 5 Operations — Web control function [Adjust clock] page Click [Detailed set up] → [Adjust clock]. [Time Zone] [Date] Select the time zone. Enter the date to be changed. [Set time zone] [Time] Updates the time zone setting. Enter the time to be changed. [NTP SYNCHRONIZATION] [Submit] Set to [ON] when setting the date and time automatically.
Page 221 Chapter 5 Operations — Web control function [E-mail set up] page Send an E-mail to preset E-mail addresses (up to two addresses) when a problem has occurred. Click [Detailed set up] → [E-mail set up]. [ENABLE] [MINIMUM TIME] Select [ENABLE] to use the E-mail function. Change the minimum interval for the temperature warning E-mail.
Page 222 Chapter 5 Operations — Web control function [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Auth] [Password] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
Page 223 Chapter 5 Operations — Web control function Contents of E-mail sent Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : PT-RQ22K Serial No...
Page 224 Chapter 5 Operations — Web control function Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : PT-RQ22K Serial No : 123456789012 ----- ERROR INFORMATION ----- U21 Intake air temp.
Page 225 Chapter 5 Operations — Web control function [Change password] page Click [Change password]. [Administrator] [Next] Used to change the setting of the [Administrator]. Used to change the setting of the password. [User] Used to change the setting of the [User]. [Administrator] account [Account] [New] Displays the account to change.
Page 226 Chapter 5 Operations — Web control function [User] account [Account] [OK] Displays the account to change. Determines the change of password. [New] [User name]: Enter the desired new user name. (Up to 16 characters in single byte) [Password]: Enter the desired new password. (Up to 16 characters in single byte) [Password(Retype)]: Enter the desired new password again.
Page 227 Chapter 5 Operations — Web control function Operation page [Tools], [Info], [Help] [Input Select] Tabs for selecting the setting, information, or help page of the Controls input selection. projector. Not available when the power of the projector is turned off. [POWER] Menu screen control buttons Turns off/on the power.
Page 228 Chapter 5 Operations — Web control function [Info] page Click [Info] in the operation page. [Projector Name] [Source] Displays the projector name. Displays the selected input. [Mac Address] [Error Status] Displays the MAC address. Displays the error status. [Lamp1 Hours], [Lamp2 Hours] [Exit] Displays the runtime of the light source 1 and the light source 2.
Page 229: Chapter 6 Maintenance
Maintenance Chapter 6 This chapter describes inspection methods when there are problems, and maintenance methods. ENGLISH - 229...
Page 230: Light Source/Temperature Indicators
Chapter 6 Maintenance — Light source/temperature indicators Light source/temperature indicators When an indicator lights up If a problem occurs inside the projector, the light source indicators <LIGHT1>/<LIGHT2> or temperature indicator <TEMP> will inform you by lighting or blinking in red. Check the status of the indicators and take following measures.
Page 231 Chapter 6 Maintenance — Light source/temperature indicators Temperature indicator <TEMP> Indicator status Status Solution f Wait five minutes when the power is turned on while the temperature is low (approximately 0 °C (32 °F)). f Warm-up status f Install the projector in a location with the operating environment temperature Lighting in red between 0 °C (32 °F) and 45 °C (113 °F) f Internal temperature is high...
Page 232: Maintenance
Chapter 6 Maintenance — Maintenance Maintenance Before maintenance f Make sure to turn off the power before performing the maintenance of the projector. f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 77). Maintenance Outer case Wipe off dirt and dust with a soft, dry cloth.
Page 233: Troubleshooting
Chapter 6 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―...
Page 234 Chapter 6 Maintenance — Troubleshooting Problems Points to be checked Page f Perform [LENS CALIBRATION]. Lens shift cannot be adjusted. f Is the Fixed-focus Lens (Model No.: ET-D3LEW50, ET-D75LE50) attached? ― f Is [QUAD PIXEL DRIVE] set to [OFF]? Geometric adjustment is not possible.
Page 235: Self-Diagnosis Display
Chapter 6 Maintenance — Self-diagnosis display Self-diagnosis display There is a self-diagnosis display on the side of the projector. Self-diagnosis display will automatically display the value of the input supply voltage, or details of errors or warnings when they occur. (x page 32) The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and its details.
Page 236 Chapter 6 Maintenance — Self-diagnosis display Error/warning alphanumeric Error/warning alphanumeric symbol content Action number symbol Color prism fan 3 warning Color prism fan 4 warning Circuit intake fan 1 warning Circuit intake fan 2 warning Light source driver fan warning Lens mounter error Lens memory error Light source 1 error Light source 2 error...
Page 237 Chapter 6 Maintenance — Self-diagnosis display r Measure for error and warning Action Measure number The operating environment temperature is too high. Use the projector in an appropriate operating environment temperature The operating environment temperature is too high, or the air exhaust port may be blocked. Use the projector in an appropriate operating environment temperature .
Page 238: Chapter 7 Appendix
Appendix Chapter 7 This chapter describes the specification of the projector, how to install the optional Interface Board, and after-sales service. 238 - ENGLISH...
Page 239: Technical Information
Chapter 7 Appendix — Technical information Technical information PJLink protocol The network function of this projector supports the PJLink class 1 and class 2, and setting of the projector or querying of the projector status can be performed from the computer using the PJLink protocol. Control commands The following table lists the PJLink protocol commands that can be used to control the projector.
Page 240 Remark string Returns the name set in [PROJECTOR NAME] of [NETWORK NAME ? Projector name query xxxxx SETUP]. Manufacturer name INF1 ? Panasonic Returns manufacturer name. query INF2 ? Model name query PT-RQ22K Returns model name. Other information INF0 ? xxxxx Returns information such as version number.
Page 241: Using Art-Net Function
Chapter 7 Appendix — Technical information *2 When the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) is installed, this corresponds to the input switch for the <SDI 3 IN> terminal. Switching to the <SDI 2 IN/1 OUT> terminal or the <SDI 4 IN/3 OUT> terminal is not possible. PJLink security authentication The password used for PJLink is the same as that of the password set for web control.
Page 242 Chapter 7 Appendix — Technical information Art-Net channel setting Control details [USER] COLOR ― ― ― TINT ― ― ― RASTER PATTERN ― ― ― LENS H SHIFT MSB ― ― ― LENS H SHIFT LSB ― ― ― LENS V SHIFT MSB ―...
Page 243 Chapter 7 Appendix — Technical information r INPUT SELECT (when [Art-Net CHANNEL SETTING] is set to anything other than [1]) Performance Parameter Default value No operation 0-39 DIGITAL LINK 40-47 SDI1 48-55 SDI2 56-63 SDI3 64-71 SDI4 72-79 SLOT1-1 80-87 SLOT1-2 88-95 SLOT2-3 96-103...
Page 244 Chapter 7 Appendix — Technical information r LENS POSITION Performance Parameter Default value No operation 0-31 Move to the home position 32-63 Load LENS MEMORY 1 64-79 Load LENS MEMORY 2 80-95 Load LENS MEMORY 3 96-111 Load LENS MEMORY 4 112-127 Load LENS MEMORY 5 128-143...
Page 245 Chapter 7 Appendix — Technical information r FADE-IN, FADE-OUT Operate together with SHUTTER. Performance Parameter Default value 0-15 0.5s 16-31 1.0s 32-47 1.5s 48-63 2.0s 64-79 2.5s 80-95 3.0s 96-111 3.5s 112-127 4.0s 128-143 5.0s 144-159 7.0s 160-175 10.0s 176-191 No operation 192-255 r GEOMETRY Performance...
Page 246 Chapter 7 Appendix — Technical information r COLOR, TINT Performance Parameter Default value No operation 0-31 Factory default setting 32-63 … … 128-129 … … No operation 192-255 r RASTER PATTERN Performance Parameter Default value No operation 0-15 16-31 WHITE 32-47 YELLOW 48-63 CYAN...
Page 247: Control Commands Via Lan
“ENABLE/DISABLE” of channel 11 to “Disable” and then back to “Enable”. f To create and register the USER LOGO image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/).
Page 248 Chapter 7 Appendix — Technical information f Example: The projector is powered on “00001” (CR) r Error response Termination String Details symbol “ERR1” Undefined control command “ERR2” Out of parameter range “ERR3” Busy state or no-acceptable period (CR) Message 0x0d “ERR4” Timeout or no-acceptable period “ERR5”...
Page 249 Chapter 7 Appendix — Technical information r Received data Termination Header Data section symbol Command ‘0’ ‘0’ Control command (CR) example 0x30 0x30 (ASCII string) 0x0d Data length 1 byte 1 byte Undefined length 1 byte f Example: The power of the projector is in standby status “00000”...
Page 250: Serial In>/ Terminal
Chapter 7 Appendix — Technical information <SERIAL IN>/<SERIAL OUT> terminal The <SERIAL IN>/<SERIAL OUT> terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled from a computer. Connection Single projector Projector connecting terminals Computer D-Sub 9p (female) D-Sub 9p (male) D-Sub 9p (male)
Page 251 Chapter 7 Appendix — Technical information D-Sub 9-pin (male) Pin No. Signal name Details Outside view ― Received data Transmitted data ― Earth ― Connected internally ― Communication conditions (Factory default) Signal level RS-232C-compliant Sync. method Asynchronous Baud rate 9 600 bps Parity None Character length...
Page 252 Chapter 7 Appendix — Technical information Attention f If a command is sent after the light source starts lighting, there may be a delay in response or the command may not be executed. Try sending or receiving any command after 60 seconds. f When transmitting multiple commands, be sure to wait until 0.5 seconds has elapsed after receiving the response from the projector before sending the next command.
Page 253 Chapter 7 Appendix — Technical information Control command The following table lists the commands that can be used to control the projector using a computer. r Projector control command Parameter/response Command Details Remark (parameter) string Power on ― To check if the power is on, use the “Power query” command. Power standby STANDBY Power query...
Page 254: Remote 2 In> Terminal
Chapter 7 Appendix — Technical information r Lens control command Command Sub command Details Remark LNSI2 Lens H shift +00000 = Fine adjustment 1+, +00001 = Fine adjustment 1-, +00100 LNSI3 Lens V shift = Fine adjustment 2+, +00101 = Fine adjustment 2-, +00200 = Coarse LNSI4 Lens focus adjustment+, +00201 = Coarse adjustment-...
Page 255: Setting The Ip Address In Standby Status
Chapter 7 Appendix — Technical information Setting the IP address in standby status The projector can set or confirm the IP address used to connect to the network in the standby status not projecting. Even at the stage before the installation (where the projection lens is not attached), the IP address can be set if the main power is turned on.
Page 256 Chapter 7 Appendix — Technical information Setting the IP address When using the DHCP server IP address can be acquired automatically when there is a DHCP server in the network where the projector is to be connected. Press the <ON> side of the <MAIN POWER> switch to turn on the power. f The power indicator <ON (G)/STANDBY (R)>...
Page 257: Control Device Password
Chapter 7 Appendix — Technical information f The IP address setting mode is canceled when the <ENTER> button is pressed, and the settings are displayed in the self-diagnosis display in two second intervals as follows. Next display is an example when [IP ADDRESS] is set to 192.168.0.10.
Page 258: List Of Compatible Signals
Chapter 7 Appendix — Technical information List of compatible signals The following table specifies the video signals that the projector can project. For details of SDI signal, refer to “List of single link SDI compatible signals” (x page 264), “List of dual link SDI compatible signals” (x page 269), “List of quad link SDI compatible signals”...
Page 259 Chapter 7 Appendix — Technical information Scanning freq. Compatible signal Dot clock Signal name Resolution DIGITAL freq. HDMI DVI-D Horizontal Vertical (SIGNAL FORMAT) (Dots) LINK (MHz) (kHz) (Hz) 800 x 600/56 800 x 600 35.2 56.3 36.0 ― ― ― ― 800 x 600/60 800 x 600 37.9...
Page 260 Chapter 7 Appendix — Technical information Scanning freq. Compatible signal Dot clock Signal name Resolution DIGITAL freq. HDMI DVI-D Horizontal Vertical (SIGNAL FORMAT) (Dots) LINK (MHz) (kHz) (Hz) 1600 x 1200/60 1 600 x 1 200 75.0 60.0 162.0 ― ― ―...
Page 261 Chapter 7 Appendix — Technical information List of plug and play compatible signals The following table specifies the video signals compatible with plug and play. Signal with l in the plug and play compatible signal column is the signal described in the EDID (extended display identification data) of the projector.
Page 262 Chapter 7 Appendix — Technical information Scanning Plug and play compatible signal freq. Signal name Resolution clock (SIGNAL FORMAT) (Dots) freq. DIGITAL LINK HDMI DVI-D Horizontal Vertical (MHz) (kHz) (Hz) 4K/60p 4K/30p 4K/60p 4K/30p EDID1 EDID2 EDID3 800 x 600/75 800 x 600 46.9 75.0 49.5...
Page 263 Chapter 7 Appendix — Technical information Scanning Plug and play compatible signal freq. Signal name Resolution clock (SIGNAL FORMAT) (Dots) freq. DIGITAL LINK HDMI DVI-D Horizontal Vertical (MHz) (kHz) (Hz) 4K/60p 4K/30p 4K/60p 4K/30p EDID1 EDID2 EDID3 1 920 x 1 080 66.6 59.9 138.5...
Page 264 Chapter 7 Appendix — Technical information List of single link SDI compatible signals The following table specifies the single link SDI signals that the projector can project. This is the list of compatible signals including the input of the optional 3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) or the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) installed in the slot, in addition to the standard SDI input.
Page 265 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 1 920 x 1 080 28.1 25.0 74.3 ― HD-SDI 4:2:2 10bit 1 920 x 1 080 28.1 25.0 74.3...
Page 266 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 2 048 x 1 080 27.0 24.0 74.3 ― 3G-SDI Level-A 4:4:4 10bit 2 048 x 1 080 27.0 24.0 74.3...
Page 267 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3 840 x 2 160 56.3 25.0 297.0 6G-SDI Type 2 4:2:2 10bit 3 840 x 2 160 56.3 25.0 297.0...
Page 268 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 4 096 x 2 160 67.5 30.0 297.0 6G-SDI Type 2 4:2:2 10bit 4 096 x 2 160 67.5 30.0 297.0...
Page 269 Chapter 7 Appendix — Technical information List of dual link SDI compatible signals The following table specifies the dual link SDI signals that the projector can project. This is the list of compatible signals including the input of the optional 3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) or the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) installed in the slot, in addition to the standard SDI input.
Page 270 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 1 920 x 1 080 56.3 50.0 148.5 ― HD-SDI 4:2:2 10bit 1 920 x 1 080 56.3 50.0 148.5...
Page 271 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3G-SDI Level-B 3 840 x 2 160 54.0 24.0 297.0 4:2:2 10bit Dual Stream 3G-SDI Level-B 3 840 x 2 160 54.0...
Page 272 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3G-SDI Level-B 4 096 x 2 160 54.0 24.0 297.0 4:2:2 10bit Dual Stream 3G-SDI Level-B 4 096 x 2 160 54.0...
Page 273 Chapter 7 Appendix — Technical information List of quad link SDI compatible signals The following table specifies the quad link SDI signals that the projector can project. This is the list of compatible signals including the input of the optional 3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) or the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) installed in the slot, in addition to the standard SDI input.
Page 274 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3 840 x 2 160 56.3 25.0 297.0 HD-SDI 4:2:2 10bit 3 840 x 2 160 56.3 25.0 297.0...
Page 275 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3 840 x 2 160 67.5 60.0 297.0 HD-SDI 4:2:2 10bit 3 840 x 2 160 67.5 60.0 297.0...
Page 276 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 4 096 x 2 160 56.3 25.0 297.0 HD-SDI 4:2:2 10bit 4 096 x 2 160 56.3 25.0 297.0...
Page 277 Chapter 7 Appendix — Technical information List of simultaneous input compatible signals The following table specifies the simultaneous input compatible video signals that the projector can project. Scanning freq. Simultaneous input compatible signal Signal name Resolution Dot clock freq. HDMI DVI-D Horizontal Vertical (SIGNAL FORMAT)
Page 278: Specifications
Chapter 7 Appendix — Specifications Specifications The specifications of the projector are as follows. Power supply 100 V - 120 V / 200 V - 240 V ~ (100 V - 120 V / 200 V - 240 V alternating current), 50 Hz/60 Hz Power consumption 960 W (9.8 A)/1 650 W (8.5 A) When [STANDBY MODE] is set to [ECO]: 0.3 W...
Page 279 Chapter 7 Appendix — Specifications r Connecting terminal/slot Total 4 sets (BNC) Single link SD-SDI signal SMPTE ST 259 compliant Single link HD-SDI signal SMPTE ST 292 compliant Single link 3G-SDI signal SMPTE ST 424, 425-2 compliant Dual link HD-SDI signal SMPTE ST 372 compliant <SDI IN 1>...
Page 280 Chapter 7 Appendix — Specifications r Compatible signal For details of the types of video signals that can be used with the projector, refer to “List of compatible signals” (x page 258). SDI signal input SD-SDI signal HD-SDI signal 3G-SDI signal 6G-SDI signal 12G-SDI signal DIGITAL LINK signal input...
Page 281: Dimensions
Chapter 7 Appendix — Dimensions Dimensions Unit: mm 299 (11-25/32") 258 (10-5/32") 644 (25-11/32") 516 (20-5/16") 598 (23-17/32") * Actual dimensions may differ depending on the product. ENGLISH - 281...
Page 282: Precautions For Attaching The Ceiling Mount Bracket
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of the Ceiling Mount Bracket other than the Panasonic product, or an inappropriate choice of location for installing the Ceiling Mount Bracket, even if the warranty period of the projector has not expired.
Page 283 Chapter 7 Appendix — Precautions for attaching the Ceiling Mount Bracket r Dimensions for the screw holes to fix the projector (projector bottom view) Unit: mm 110 (4-11/32") 145 (5-23/32") 110 (4-11/32") 135 (5-5/16") 145 (5-23/32") ENGLISH - 283...
Page 284: Installing The Interface Board (Optional)
Chapter 7 Appendix — Installing the Interface Board (optional) Installing the Interface Board (optional) This projector is equipped with two SLOT NX-specification slots. There are four SDI input terminals and one DIGITAL LINK input terminal equipped on this projector as the standard video input terminals.
Page 285: How To Remove The Interface Board
Chapter 7 Appendix — Installing the Interface Board (optional) Attention f The removed slot cover is required when the unnecessary Interface Board is removed. Store it so it can be attached in the future. How to remove the Interface Board Handle Fig.
