Control Commands

Model No.
PT-RQ22K
・Please refer to the Operating Instructions for the serial command format, limitations, connectionand other details.
・シリアルコマンドのフォーマット、制限事項、接続方法およびその他詳細につきましては、 各モデルの取扱説明書をご覧ください。
・有关串行控制命令的格式、限制事项、连接方法以及其他详情、请参阅各机型的使用说明书。
(2018-07)

Advertisement

loading

Related Manuals for Panasonic PT-RQ22K

Summary of Contents for Panasonic PT-RQ22K

  • Page 1: Control Commands

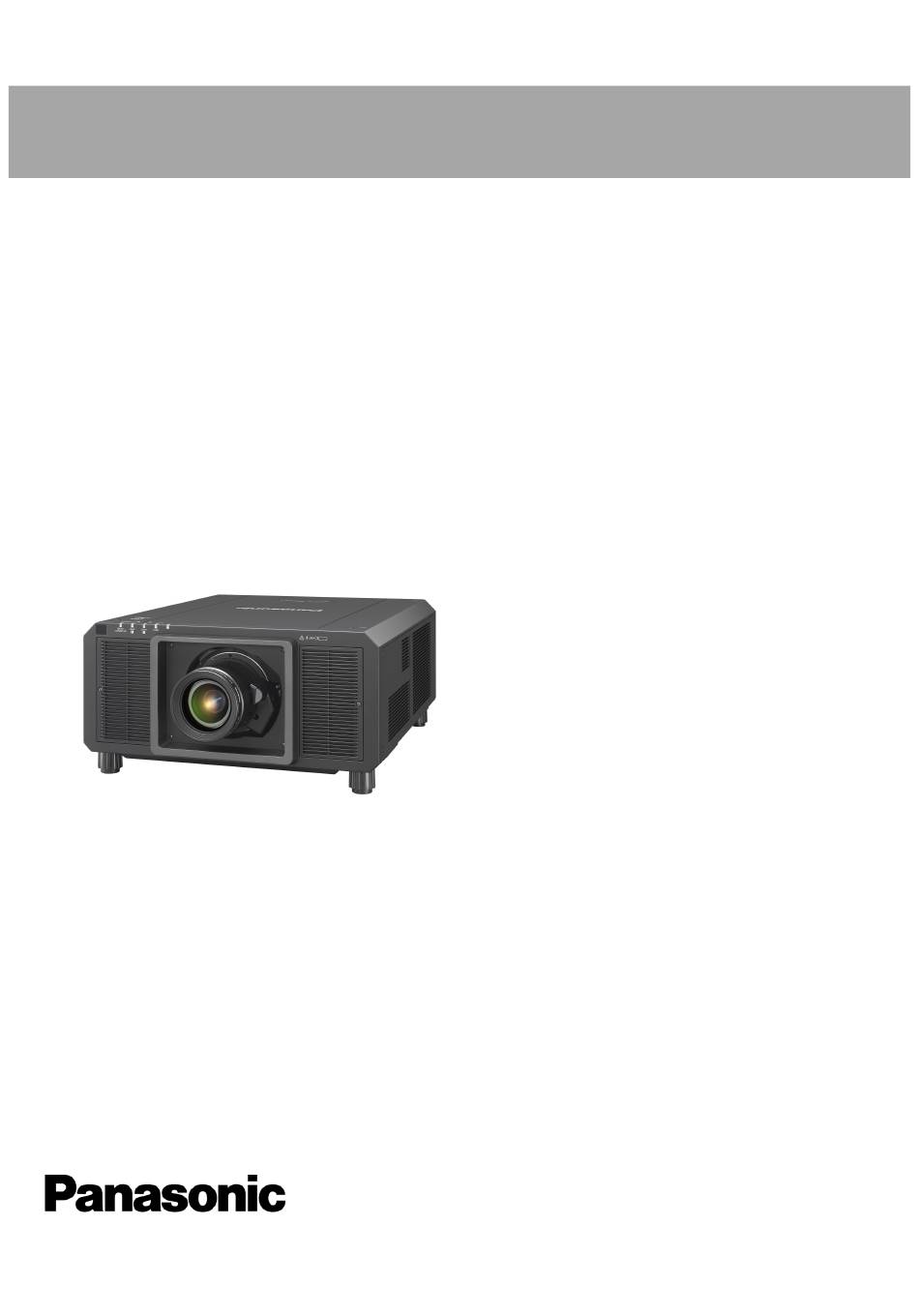

    Control Commands Model No. PT-RQ22K ・Please refer to the Operating Instructions for the serial command format, limitations, connectionand other details. ・シリアルコマンドのフォーマット、制限事項、接続方法およびその他詳細につきましては、 各モデルの取扱説明書をご覧ください。 ・有关串行控制命令的格式、限制事项、连接方法以及其他详情、请参阅各机型的使用说明书。 (2018-07)
  • Page 2 CONTROL COMMANDS 2018/7/17 IDX_CATEG IDX_FUNCTION IDX_PARAMETER IDX_SUB_PARAMETER IDX_QUERY_AOMMANS IDX_FILTER_START select CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC POWER ✔ OFF (STANDBY) ✔ INPUT SELECT SDI1 IIS:SD1 ✔ SDI2 IIS:SD2 ✔ SDI3 IIS:SD3 ✔ SDI4 IIS:SD4 ✔...
  • Page 3 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC PICTURE MODE-NAME SETTING USER PICTUREMODE VXX:NCGS0= PICTUREMODE QVX:NCGS0 NCGS0= PICTUREMODE ✔ PICTURE MODE-NAME CLEAR USER PICTUREMODE VXX:NCLI0=+00000 ✔ CONTRAST VCN:001 ✔ VCN:063 ✔ BRIGHTNESS VBR:001 ✔...
  • Page 4 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC 10.0s VXX:DYCS5=10.0 DYCS5=10.0 ✔ DYNAMIC CONTRAST/MANUAL IRIS OAI:M000 QAI:M ✔ (MANUAL INTENSITY) OAI:M001 ✔ OAI:M255 ✔ DYNAMIC CONTRAST OAI:D0 QAI:D ✔ (DYNAMIC GAMMA) OAI:D1 ✔...
  • Page 5 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC VXX:CNVS6=*:+03.75 CNVS6=*:+03.75 ✔ CONVERGENCE - LOWER LEFT VXX:CNVS7=*:****** QVX:CNVS7 CNVS7=*:****** ✔ HORIZONTAL VXX:CNVS7=R:****** CNVS7=R:***** ✔ VXX:CNVS7=G:****** CNVS7=G:***** ✔ VXX:CNVS7=B:****** CNVS7=B:***** ✔ VXX:CNVS7=*:-03.75 CNVS7=*:-03.75 ✔...
  • Page 6 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC EDGE BLENDING-OVERLAPPED 0 (W,R,G,B) VXX:EBBS3=000,000,000,000 QVX:EBBS3 EBBS3=000,000,000,000 ✔ BLACK LEVEL-RIGHT 255 (W,R,G,B) VXX:EBBS3=255,255,255,255 EBBS3=255,255,255,255 ✔ EDGE BLENDING-OVERLAPPED VXX:EBII3=+00000 QVX:EBII3 EBII3=+00000 ✔ BLACK LEVEL-UPPER INTERLOCKED VXX:EBII3=+00001 EBII3=+00001 ✔...
  • Page 7 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC (OPTION SLOT) VXX:BACI6=+00011 BACI6=+00011 ✔ SDI1 (SLOT1) / SDI2 (SLOT1) VXX:BACI6=+00012 BACI6=+00012 ✔ HDMI1 (SLOT1) / HDMI2 (SLOT1) VXX:BACI6=+00013 BACI6=+00013 ✔ DVI1 (SLOT1) / DVI2 (SLOT1) VXX:BACI6=+00014 BACI6=+00014 ✔...
  • Page 8 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC 4-1019 VXX:SSLI2=+00001 SSLI2=+00001 ✔ SDI IN-SIGNAL LEVEL (DUAL LINK 64-940 VXX:SSLI3=+00000 QVX:SSLI3 SSLI3=+00000 ✔ 1 : SDI1+2) 4-1019 VXX:SSLI3=+00001 SSLI3=+00001 ✔ SDI IN-SIGNAL LEVEL (SDI3) 64-940 VXX:SSLI4=+00000 QVX:SSLI4...
  • Page 9 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC SINGLE / DUAL VXX:SLKI2=+00102 SLKI2=+00102 ✔ SLOT - SDI IN - SDI LINK(ET- * PARAMETER VXX:*****=VXX:*****=+00000 *****=*****=+***** ✔ MDN12G10) * PARAMETER1, 2 SLOT1 VXX:SLSS1=VXX:SLKI3=+***** SLSS1=SLKI3=+***** ✔...
  • Page 10 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC AUTO VXX:*****=VXX:SYSS1=*:****:00000 *****=SYSS1=*:****:00000 ✔ VXX:*****=VXX:SYSS1=*:****:00001 *****=SYSS1=*:****:00001 ✔ * PARAMETER3 YPbPr4:4:4 VXX:*****=VXX:SYSS1=*:****:00002 *****=SYSS1=*:****:00002 ✔ YPbPr4:2:2 VXX:*****=VXX:SYSS1=*:****:00003 *****=SYSS1=*:****:00003 ✔ VXX:*****=VXX:SYSS1=*:****:00004 *****=SYSS1=*:****:00004 ✔ SLOT：SDI：BIT DEPTH * PARAMETER VXX:*****=VXX:*****=+***** QVX:*****=QVX:***** *****=*****=+*****...
  • Page 11 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC Progressive VXX:*****=VXX:*****=*********:p *****=*****=*********:p ✔ * PARAMETER4 Interlace VXX:*****=VXX:*****=*********:i *****=*****=*********:i ✔ SLOT：HDMI：EDID VERTICAL * PARAMETER VXX:*****=VXX:*****=+***** QVX:*****=QVX:***** *****=*****=+***** ✔ SCAN FREQUENCY HDMI1 VXX:SLSS1=VXX:EDVI3=+***** SLSS1=EDVI3=+***** ✔...
  • Page 12 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC 1400x1050 VXX:*****=VXX:*****=1400:1050:* *****=*****=1400:1050:* ✔ 1440x900 VXX:*****=VXX:*****=1440:0900:* *****=*****=1440:0900:* ✔ * PARAMETER3 1600x900 VXX:*****=VXX:*****=1600:0900:* *****=*****=1600:0900:* ✔ 1600x1200 VXX:*****=VXX:*****=1600:1200:* *****=*****=1600:1200:* ✔ 1680x1050 VXX:*****=VXX:*****=1680:1050:* *****=*****=1680:1050:* ✔ 1920x1080 VXX:*****=VXX:*****=1920:1080:* *****=*****=1920:1080:* ✔...
  • Page 13 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC 3(WHITE) MOD:2 ✔ 4(GREEN) MOD:3 ✔ 5(PEACH) MOD:4 ✔ 6(BROWN) MOD:5 ✔ MENU MODE NORMAL VXX:MMDI1=+00000 QVX:MMDI1 MMDI1=+00000 ✔ SIMPLE VXX:MMDI1=+00001 MMDI1=+00001 ✔ SCREEN SETTING 16:10 VSF:0...
  • Page 14 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC VXX:BCMI0=+00002 BCMI0=+00002 ✔ BRIGHTNESS CONTROL-SETUP- VXX:BCLI0=+00000 QVX:BCLI0 BCLI0=+00000 ✔ LINK GROUP A VXX:BCLI0=+00001 BCLI0=+00001 ✔ GROUP B VXX:BCLI0=+00002 BCLI0=+00002 ✔ GROUP C VXX:BCLI0=+00003 BCLI0=+00003 ✔...
  • Page 15 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC 70min OAF:70 ✔ 80min OAF:80 ✔ 90min ODR:90 ✔ NO SIGNAL LIGHTS-OUT DISABLE VXX:SLOI1=+00000 QVX:SLOI1 SLOI1=+00000 ✔ 10SEC. VXX:SLOI1=+00010 SLOI1=+00010 ✔ 20SEC. VXX:SLOI1=+00020 SLOI1=+00020 ✔...
  • Page 16 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC LENS MEMORY2 VXX:LNMI3=+00001 ✔ LENS MEMORY3 VXX:LNMI3=+00002 ✔ LENS MEMORY4 VXX:LNMI3=+00003 ✔ LENS MEMORY5 VXX:LNMI3=+00004 ✔ LENS MEMORY6 VXX:LNMI3=+00005 ✔ LENS MEMORY7 VXX:LNMI3=+00006 ✔...
  • Page 17 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC SLOT1 : DVI2 VXX:MDIS3=AU1,DV2 MDIS3=AU1,DV2 ✔ SLOT2 : DVI3 VXX:MDIS3=AU2,DV3 MDIS3=AU2,DV3 ✔ SLOT2 : DVI4 VXX:MDIS3=AU2,DV4 MDIS3=AU2,DV4 ✔ MULTI DISPLAY INPUT - LOWER DIGITAL LINK VXX:MDIS4=DL1 MDIS4=DL1...
  • Page 18 CONTROL COMMANDS 2018/7/17 CONTROL QUERY RQ22K SERIES RQ22K COMMANDS COMMANDS CALL BACK CATEGORY FUNCTION Parameter/Name Sub-Parameter SRQ22KC MULTI VXX:MIRI1=+00002 MIRI1=+00002 ✔ SINGLE VXX:MIRI1=+00004 MIRI1=+00004 ✔ Note: The commands or parameters with "*" shows avalable commands or parameters for the projector which has been activated by the Upgrade Kit. 17/17...
