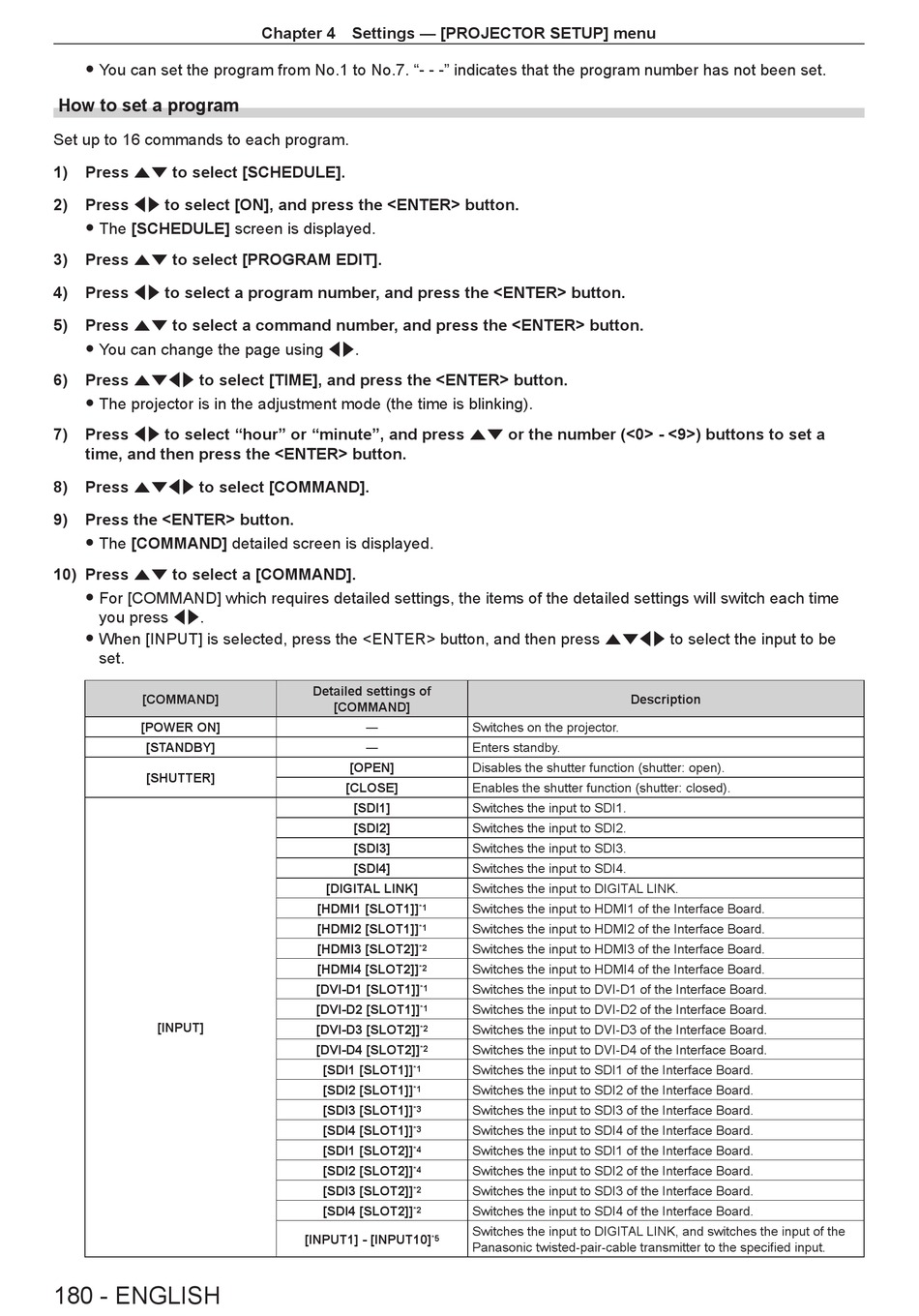

f You can set the program from No.1 to No.7. "- - -" indicates that the program number has not been set.
How to set a program
Set up to 16 commands to each program.
1)
Press as to select [SCHEDULE].
2)
Press qw to select [ON], and press the <ENTER> button.
f The [SCHEDULE] screen is displayed.
3)
Press as to select [PROGRAM EDIT].
4)
Press qw to select a program number, and press the <ENTER> button.
5)
Press as to select a command number, and press the <ENTER> button.
f You can change the page using qw.
6)
Press asqw to select [TIME], and press the <ENTER> button.
f The projector is in the adjustment mode (the time is blinking).
7)
Press qw to select "hour" or "minute", and press as or the number (<0> - <9>) buttons to set a
time, and then press the <ENTER> button.
8)
Press asqw to select [COMMAND].
9)
Press the <ENTER> button.
f The [COMMAND] detailed screen is displayed.
10) Press as to select a [COMMAND].
f For [COMMAND] which requires detailed settings, the items of the detailed settings will switch each time
you press qw.
f When [INPUT] is selected, press the <ENTER> button, and then press asqw to select the input to be
set.
[COMMAND]
[POWER ON]
[STANDBY]
[SHUTTER]
[INPUT]
180 - ENGLISH
Chapter 4 Settings — [PROJECTOR SETUP] menu
Detailed settings of
[COMMAND]
―
―
[OPEN]
[CLOSE]
[SDI1]
[SDI2]
[SDI3]
[SDI4]
[DIGITAL LINK]
[HDMI1 [SLOT1]]
*1
[HDMI2 [SLOT1]]
*1
[HDMI3 [SLOT2]]
*2
[HDMI4 [SLOT2]]
*2
[DVI-D1 [SLOT1]]
*1
[DVI-D2 [SLOT1]]
*1
[DVI-D3 [SLOT2]]
*2
[DVI-D4 [SLOT2]]
*2
[SDI1 [SLOT1]]
*1
[SDI2 [SLOT1]]
*1
[SDI3 [SLOT1]]
*3
[SDI4 [SLOT1]]
*3
[SDI1 [SLOT2]]
*4
[SDI2 [SLOT2]]
*4
[SDI3 [SLOT2]]
*2
[SDI4 [SLOT2]]
*2
[INPUT1] - [INPUT10]
*5
Description
Switches on the projector.
Enters standby.
Disables the shutter function (shutter: open).
Enables the shutter function (shutter: closed).
Switches the input to SDI1.
Switches the input to SDI2.
Switches the input to SDI3.
Switches the input to SDI4.
Switches the input to DIGITAL LINK.
Switches the input to HDMI1 of the Interface Board.
Switches the input to HDMI2 of the Interface Board.
Switches the input to HDMI3 of the Interface Board.
Switches the input to HDMI4 of the Interface Board.
Switches the input to DVI-D1 of the Interface Board.
Switches the input to DVI-D2 of the Interface Board.
Switches the input to DVI-D3 of the Interface Board.
Switches the input to DVI-D4 of the Interface Board.
Switches the input to SDI1 of the Interface Board.
Switches the input to SDI2 of the Interface Board.
Switches the input to SDI3 of the Interface Board.
Switches the input to SDI4 of the Interface Board.
Switches the input to SDI1 of the Interface Board.
Switches the input to SDI2 of the Interface Board.
Switches the input to SDI3 of the Interface Board.
Switches the input to SDI4 of the Interface Board.
Switches the input to DIGITAL LINK, and switches the input of the
Panasonic twisted-pair-cable transmitter to the specified input.
