Thank you for purchasing this Panasonic product.

■ The Operating Instructions correspond to the firmware's main version 3.00 and higher.

■ This manual is common to all the models regardless of suffixes of the Model No.

z for Taiwan

PT-RQ32KT

z for India

PT-RQ32KD

z for other countries or regions

PT-RQ32K

■ Before operating this product, please read the instructions carefully and save this manual

for future use.

■ Before using this product, be sure to read "Read this first!" ( x pages 5 to 13).

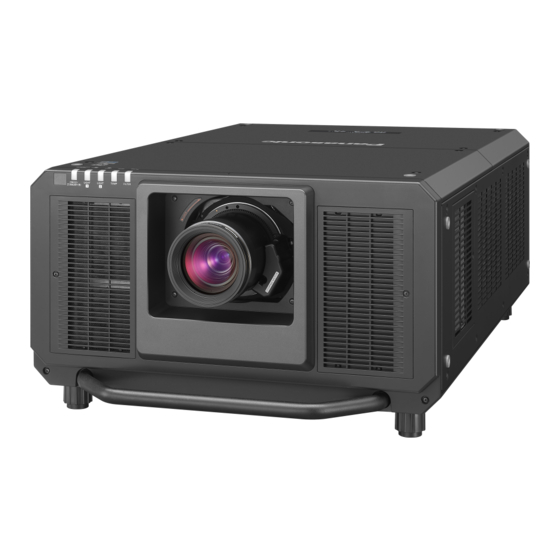

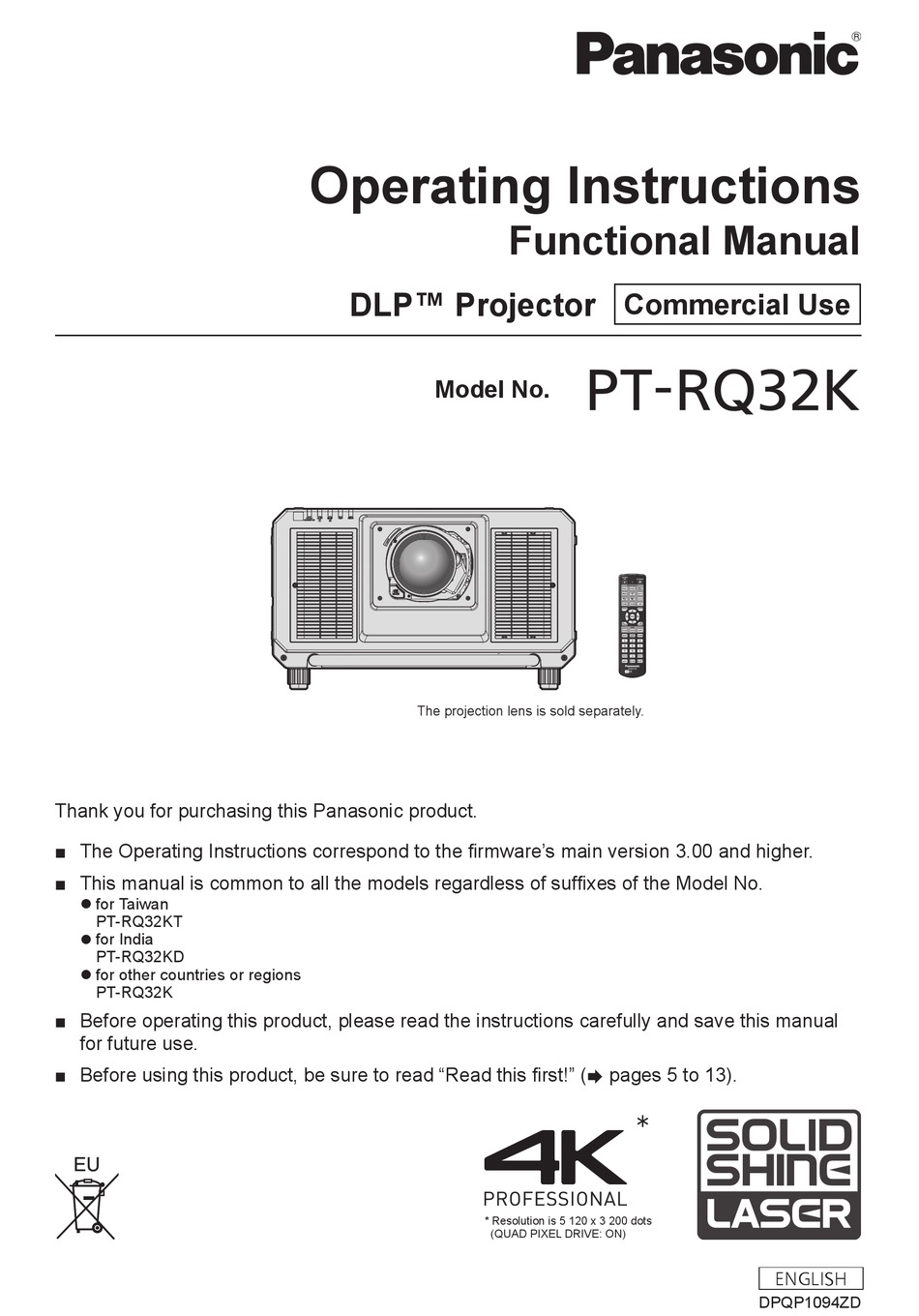

Operating Instructions

DLP™ Projector

Model No.

The projection lens is sold separately.

Functional Manual

Commercial Use

PT-RQ32K

* Resolution is 5 120 x 3 200 dots

(QUAD PIXEL DRIVE: ON)

ENGLISH

DPQP1094ZD

Table of Contents

Need help?

Do you have a question about the PT-RQ32KE and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic PT-RQ32KE

Page 1 Model No. The projection lens is sold separately. Thank you for purchasing this Panasonic product. ■ The Operating Instructions correspond to the firmware’s main version 3.00 and higher. ■ This manual is common to all the models regardless of suffixes of the Model No.
Page 2: Table Of Contents
Contents Contents Read this first! Chapter 3 Basic Operations Switching on/off the projector Chapter 1 Preparation Connecting the power cord Power indicator Precautions for use Switching on the projector Cautions when transporting When the initial setting screen is displayed Cautions when installing Making adjustments and selections Cautions when setting up the projector Switching off the projector...
Page 3 Contents [PICTURE] menu [PROJECTOR SETUP] menu [PICTURE MODE] [PROJECTOR ID] [CONTRAST] [PROJECTION METHOD] [BRIGHTNESS] [LENS] [COLOR] [OPERATION SETTING] [TINT] [LIGHT OUTPUT] [COLOR TEMPERATURE] [BRIGHTNESS CONTROL] [GAMMA] [STANDBY MODE] [SYSTEM DAYLIGHT VIEW] [NO SIGNAL SHUT-OFF] [SHARPNESS] [NO SIGNAL LIGHTS-OUT] [NOISE REDUCTION] [INITIAL STARTUP] [DYNAMIC CONTRAST] [STARTUP INPUT SELECT]...
Page 4 Contents [NETWORK] menu Attaching the Smoke Cut Filter Unit (optional) [DIGITAL LINK MODE] Removing the air filter unit [DIGITAL LINK STATUS] Attaching the Smoke Cut Filter [NETWORK SETUP] Setting the filter [NETWORK CONTROL] Installing the Interface Board (optional) [NETWORK STATUS] Before installing or removing [DIGITAL LINK MENU] How to install the Interface Board...

Page 5: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view.
Page 6 Read this first! WARNING: Do not look at the light emitted from the lens while the projector is being used. Indicated on the projector Notice on laser (for USA and Canada) This projector is the Class 3R laser product that complies with IEC 60825-1:2007. For North America “Complies with 21 CFR Parts 1040.10 and 1040.11 except for deviations pursuant to Laser Notice...
Page 7 Read this first! WARNING (North America) This projector would become Class IIIb laser product if used with interchangeable lens, types ET-D75LE8/LE30/ LE40; and if used without lens hood mounted over the long lens. If you use under this condition, you must receive variance approval letter from FDA before usage.
Page 8 FCC NOTICE (USA) Verification Model Number: PT-RQ32K Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: https://panasonic.net/cns/projector/ This device complies with Part 15 of the FCC Rules.
Page 9 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock, or will cause visual impairment.
Page 10 Read this first! WARNING: Do not cover the air intake/exhaust ports or place anything within 500 mm (19-11/16") of them. Doing so will cause the projector to overheat, which can cause fire or damage to the projector. f Do not place the projector in narrow, badly ventilated places. f Do not place the projector on cloth or papers, as these materials could be drawn into the air intake port.
Page 11 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
Page 12 Read this first! CAUTION: r ACCESSORIES When not using the projector for an extended period of time, remove the batteries from the remote control. Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire or contamination of surrounding area.
Page 13 Read this first! Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento.
Page 14 SOLID SHINE is a trademark of Panasonic Corporation. f Windows, Internet Explorer, and Microsoft Edge are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. f Mac, macOS, and Safari are trademarks of Apple Inc., registered in the United States and other countries.
Page 15 Features of the Projector Quick Steps For details, refer to the corresponding pages. 1. Set up the projector. High picture quality (x page 38) ▶ In addition to high luminance exceeding 26 000 lm and high contrast of 20 000:1 high-density image exceeding 4K is 2.
Page 16: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. 16 - ENGLISH...
Page 17: Precautions For Use
Chapter 1 Preparation — Precautions for use Precautions for use Cautions when transporting f Transport the projector with four or more people. Failure to do so may drop the projector, which may result in damage or deformation of the projector, or injury. f When transporting the projector, hold it securely by its front side and back side handles and avoid excessive vibration and impacts.
Page 18: Cautions When Setting Up The Projector
Chapter 1 Preparation — Precautions for use rDo not use the projector in a location that the ambient temperature exceeds 45 °C (113 °F). Using the projector in a location that the altitude is too high or the ambient temperature is too high may reduce the life of the components or result in malfunctions.
Page 19 Chapter 1 Preparation — Precautions for use f When installing and using the projector in a method other than the floor installation using the adjustable feet, remove the adjustable feet (4 locations) and use the six screw holes to fix the projector to a mount (as shown in the figure).
Page 20 Panasonic takes no responsibility for any damage to the product caused by an inappropriate choice of location for installing the projector, even if the warranty period of the product has not expired.
Page 21: Security
Change your password periodically. A password can be set in the [SECURITY] menu → [SECURITY PASSWORD CHANGE]. f Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in case you receive such inquiries.
Page 22: Quad Pixel Drive
QUAD PIXEL DRIVE “QUAD PIXEL DRIVE” is a technology unique to Panasonic that will enhance the resolution of the projected image with the signal processing for the high resolution of up to 5 120 x 3 200 dots and quadrupling the resolution by shifting the image pixels in horizontal and vertical directions.
Page 23 The input for HDMI, DVI-D, and SDI can be added by installing the optional Interface Board in the slot. “SLOT NX” is a name of the slot unique to Panasonic supporting the signal input for the 4K image. ENGLISH - 23...
Page 24: Accessories
Chapter 1 Preparation — Precautions for use Accessories Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories. Wireless/wired remote control unit <1> Lens fixing screw <1> (N2QAYB001052 [N2QAYB001176]) (XYN4+J18FJ) Replacement Filter Unit <4>...
Page 25 Note f The “List of Compatible Device Models” for the flat panel display compatible with the “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/prodisplays/). ENGLISH - 25...
Page 26: Optional Accessories
The model numbers of optional accessories are subject to change without prior notice. f The optional accessories described in this document are as of December 2017. Optional accessories may be added or changed without prior notice. For the latest information, visit the Panasonic website (https://panasonic.net/cns/projector/). 26 - ENGLISH...
Page 27: About Your Projector
Chapter 1 Preparation — About your projector About your projector Remote control Front Bottom A strap can be attached depending on the usage. Remote control indicator 12 Input selection buttons (<DIGITAL LINK>, <DVI-D>, <HDMI>, <SLOT 1>, <SLOT 2>, <SDI>) Blinks if any button in the remote control is pressed. Switches the input signal to project.
Page 28: Projector Body
Chapter 1 Preparation — About your projector 23 Strap hole Attention f Do not drop the remote control. f Avoid contact with liquids or moisture. f Do not attempt to modify or disassemble the remote control. f Do not swing the remote control holding onto the strap when a strap is attached. f Observe the following instructions that are indicated on the caution label at the back of the remote control: g Do not use old battery with new one.
Page 29 Chapter 1 Preparation — About your projector Adjustable feet 13 Control panel (x page 30) Adjusts the projection angle. 14 Connecting terminals (x page 31) Air intake port 15 Security slot Screw holes for eyebolts This security slot is compatible with the Kensington security Screw diameter: M10, tapping depth inside the projector: cables.
Page 30 Chapter 1 Preparation — About your projector r Control panel Power on <b> button <MENU> button Sets the projector to projection mode when the <MAIN Displays or hides the main menu. (x page 87) POWER> switch on the projector is set to <ON> and the power Returns to the previous menu when a sub-menu is displayed.
Page 31 Chapter 1 Preparation — About your projector r Connecting terminals <DC OUT 1> terminal/<DC OUT 2> terminal <MULTI PROJECTOR SYNC IN> terminal/<MULTI This is the USB terminal dedicated for power supply. (DC 5 V, PROJECTOR SYNC OUT> terminal maximum 900 mA) This terminal is used to connect multiple projectors when Use this terminal when a power supply is required to wireless balancing the contrast as a combined screen or synchronizing...
Page 32: Names And Functions Of The Interface Board (Optional)
Chapter 1 Preparation — About your projector Names and functions of the Interface Board (optional) This projector is equipped with two SLOT NX-specification slots. There are four SDI input terminals and one DIGITAL LINK input terminal equipped on this projector as the standard video input terminals.
Page 33 Chapter 1 Preparation — About your projector Note f This projector does not support audio output because it is not equipped with audio function. However, when SDI signal with audio is input to the <3G-SDI 1 IN>/<3G-SDI 2 IN>/<3G-SDI 3 IN>/<3G-SDI 4 IN> terminal, a signal with audio is output from the <3G-SDI 1 OUT>/<3G-SDI 2 OUT>/<3G-SDI 3 OUT>/<3G-SDI 4 OUT>...
Page 34 Chapter 1 Preparation — About your projector r 3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) The 3G-SDI Terminal Board with Audio with the firmware version 2.00 or later has the version displayed on the product. The firmware version can also be confirmed in the [STATUS] screen. (x page 173) Display example Ver.
Page 35: Preparing The Remote Control
Chapter 1 Preparation — Preparing the remote control Preparing the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order.
Page 36: Connecting The Remote Control To The Projector With A Cable
Chapter 1 Preparation — Preparing the remote control Connecting the remote control to the projector with a cable If you control the multiple projectors with a single remote control, use commercially available M3 stereo mini jack cables to connect to the <REMOTE 1 IN>/<REMOTE 1 OUT> terminals of the projectors. The remote control is effective even in places where an obstacle stands in the light path or where devices are susceptible to outside light.
Page 37: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. ENGLISH - 37...
Page 38: Setting Up
Chapter 2 Getting Started — Setting up Setting up Usable outlet This projector supports AC 100 V to AC 120 V, and AC 200 V to AC 240 V as the power supply. A grounded outlet supporting 30 A is required when using the projector with AC 200 V to AC 240 V. A grounded outlet supporting 15 A is required when using the projector with AC 100 V to AC 120 V.
Page 39: Interface Board (Optional)
Chapter 2 Getting Started — Setting up Portrait setting and projecting forward Portrait setting and projecting from the rear (Using the translucent screen) Menu item Setting value Menu item Setting value [FRONT/REAR] [FRONT] [FRONT/REAR] [REAR] Set in accordance with the image Set in accordance with the image [FLOOR/CEILING] [FLOOR/CEILING]...
Page 40: Projected Image And Throw Distance
Chapter 2 Getting Started — Setting up Projected image and throw distance Install the projector referring to the projected image size and projection distance. Image size and image position can be adjusted in accordance with the screen size and screen position. When the Fixed-focus Lens (Model No.: ET-D75LE95, ET-D75LE90) is used, the projection relation between the screen and the projector differs from that of other lenses.
Page 41 Chapter 2 Getting Started — Setting up r Fixed-focus Lens (Model No.: ET-D75LE95, ET-D75LE90) Projected image Screen Screen (Unit: m) Projected image height Projected image width Projected image size Projection distance (from the screen to the mirror reflection surface Distance between the projector and the screen (from the screen to the tip of the lens) Distance between the projector and the screen (from the screen to the front surface of the projector) Distance between the projector and the screen (from the screen to the rear surface of the projector) Distance between the projector and the screen (from the screen bottom edge to the projector top)
Page 42 Chapter 2 Getting Started — Setting up [GEOMETRY] projection range [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above) Screen Screen Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above) Projection distance Projection distance Arc radius Arc radius Screen Screen...
Page 43 Chapter 2 Getting Started — Setting up Standard status [KEYSTONE] and [CURVED CORRECTION] used Only [CURVED Only [KEYSTONE] used together CORRECTION] used Projection Vertical Horizontal Vertical Horizontal lens Model keystone keystone keystone keystone Min. value of Min. value of Min. value of Min.
Page 44 Chapter 2 Getting Started — Setting up Projection distance of each projection lens A ±5 % error in listed projection distances may occur. When [GEOMETRY] is used, distance is corrected to become smaller than the specified image size. r When the image aspect ratio is 16:10 (Unit: m) Lens type Zoom Lens...
Page 45 Chapter 2 Getting Started — Setting up r When the image aspect ratio is 16:9 (Unit: m) Lens type Zoom Lens Projection lens Model No. ET-D75LE6 ET-D75LE10 ET-D75LE20 ET-D75LE30 ET-D75LE40 ET-D75LE8 Throw ratio 1.00-1.18:1 1.39-1.79:1 1.79-2.59:1 2.58-5.00:1 4.95-7.91:1 7.87-14.8:1 Projected image size Projection distance (L) Height Min.
Page 46 Chapter 2 Getting Started — Setting up r When the image aspect ratio is 4:3 (Unit: m) Lens type Zoom Lens Projection lens Model No. ET-D75LE6 ET-D75LE10 ET-D75LE20 ET-D75LE30 ET-D75LE40 ET-D75LE8 Throw ratio 1.20-1.42:1 1.67-2.15:1 2.15-3.11:1 3.10-6.01:1 5.95-9.50:1 9.46-17.8:1 Projected image size Projection distance (L) Height Min.
Page 47 Chapter 2 Getting Started — Setting up Formula for calculating the projection distance per projection lens To use a projected image size not listed in this manual, check the projected image size SD (m) and use the respective formula to calculate projection distance. The unit of all the formulae is m.
Page 48: Adjusting Adjustable Feet
Chapter 2 Getting Started — Setting up Adjusting adjustable feet Install the projector on a flat surface so that the front of the projector is parallel to the screen surface and the projection screen is rectangular. If the screen is tilted downward, extend the front adjustable feet so that the projected image becomes rectangular. The adjustable feet can also be used to adjust the projector to be level when it is tilted in the horizontal direction.
Page 49: Attaching/Removing The Projection Lens (Optional)
Do not install the Fixed-focus Lens (Model No.: ET-D75LE5 (production discontinued)) on the projector. Installing by mistake will cause malfunction of the projector. f Panasonic takes no responsibility for any damage or malfunction of the product resulting from the use of projection lenses which are not manufactured by Panasonic. Be sure to use the specified projection lenses.
Page 50: Removing The Projection Lens
Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Remove the lens hole cover. (Fig. 2) f While pressing the lens release button, turn the lens hole cover counterclockwise until the mark on the lens hole cover (E) aligns with the mark on the projector (E on the left side of LOCK). Insert the projection lens by aligning the mark on the projection lens (orange) with the mark on the projector (E on the left side of LOCK) and turn clockwise until it clicks.
Page 51 Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Remove the projection lens by turning it counterclockwise while pressing the lens release button. (Fig. 1) f Turn the projection lens counterclockwise until the mark on the projection lens (orange) is aligned with the mark on the projector (E on the left side of LOCK).
Page 52: Connecting
Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
Page 53 Chapter 2 Getting Started — Connecting f Directly connect the projector with the external device that will output the signal without going through a distributor, etc., when inputting dual link signals. A phase difference is generated between the LINK-A signal and the LINK-B signal, and the image may not be projected correctly.
Page 54 Chapter 2 Getting Started — Connecting For <SDI 1 IN>/<SDI 2 IN/1 OUT>/<SDI 3 IN>/<SDI 4 IN/3 OUT> terminals of the Interface Board This is an example when the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) is installed in <SLOT 1>. 12G-SDI signal output compatible device SD-SDI signal, HD-SDI signal, 3G-SDI signal, 6G-SDI signal, or 12G-SDI signal Note...
Page 55 Chapter 2 Getting Started — Connecting For <HDMI IN 1>/<HDMI IN 2> terminals and <HDMI IN 3>/<HDMI IN 4> terminals of the Interface Board This is an example when the optional Interface Board for HDMI 2 input (Model No.: ET-MDNHM10) is installed in <SLOT 1>.
Page 56: Connecting Example: Computers
Chapter 2 Getting Started — Connecting For <DVI-D IN 1>/<DVI-D IN 2> terminals and <DVI-D IN 3>/<DVI-D IN 4> terminals of the Interface Board This is an example when the optional Interface Board for DVI-D 2 input (Model No.: ET-MDNDV10) is installed in <SLOT 2>.
Page 57: Connecting Example Using Digital Link
Chapter 2 Getting Started — Connecting f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. However, when the following 4K video signal exceeding the supported transmission speed of the HDMI High Speed cable is to be input, use the HDMI cable supporting the high speed transmission of 18 Gbps such as the one with Premium HDMI cable authentication.
Page 58: Connecting Example When Using The Contrast Synchronization Function/Shutter Synchronization Function
(https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 59 Chapter 2 Getting Started — Connecting r Connecting example Connect all the projectors to be linked in a loop by daisy chain connection when using the contrast synchronization function/shutter synchronization function. The number of linked projectors is limited to the maximum of 64 projectors. Connecting terminals of the synchronization source Connecting terminals of the projector to synchronize...
Page 60: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. 60 - ENGLISH...
Page 61: Switching On/Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord Confirm that the <MAIN POWER> switch is on the <OFF> side before connecting the supplied power cord. Use the power cord matching with the power supply voltage and the shape of the outlet. For details of power cord handling, refer to “Read this first!”...
Page 62: Power Indicator
Chapter 3 Basic Operations — Switching on/off the projector Power indicator Indicate the status of the power. Check the status of the power indicator <ON (G)/STANDBY (R)> before operating the projector. Power indicator <ON (G)/STANDBY (R)> Indicator status Projector status The main power is switched off. The power is switched off.
Page 63: Switching On The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on the projector Install the projection lens before switching on the projector. Remove the lens cover first. Connect the power cord to the projector. Connect the power plug to an outlet. Press the <ON>...
Page 64: When The Initial Setting Screen Is Displayed
Chapter 3 Basic Operations — Switching on/off the projector When the initial setting screen is displayed When the projector is switched on for the first time after purchase, as well as when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the focus adjustment screen is displayed after projection starts, and then the [INITIAL SETTING] screen is displayed.
Page 65 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (operation setting) Set the items for the operating method depending on the projector’s application and duration of usage. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP] menu →...
Page 66 Chapter 3 Basic Operations — Switching on/off the projector Press as to select [LIGHT OUTPUT]. Press qw to adjust. f When the Fixed-focus Lens (Model No.: ET-D75LE90) is used, set [LIGHT OUTPUT] to 77.0 % or less considering the focus quality. The luminance when [LIGHT OUTPUT] is set to 77.0 % is 20 000 lm (approximate).
Page 67 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (installation setting) Set [FRONT/REAR] and [FLOOR/CEILING] in [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 38) for details. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [PROJECTION METHOD].
Page 68 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (screen setting) Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING]. Press qw to switch the setting.
Page 69 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (time zone) Set [TIME ZONE] in accordance with the country or region where you use the projector. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE AND TIME].
Page 70: Making Adjustments And Selections
Chapter 3 Basic Operations — Switching on/off the projector Making adjustments and selections It is recommended to perform the focus adjustment after 30 minutes have elapsed with the focus test pattern displayed. For details of the test pattern, refer to “[TEST PATTERN] menu” (x page 181). To use the active focus optimizer function, set the [PROJECTOR SETUP] menu →...
Page 71: Switching Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching off the projector Press the power standby <v> button. f The [POWER OFF(STANDBY)] confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. (Or press the power standby <v> button again.) f Projection of the image will stop, and the power indicator <ON (G)/STANDBY (R)>...
Page 72: Projecting
Chapter 3 Basic Operations — Projecting Projecting Check the projection lens attachment (x page 49), external device connection (x page 52), power cord connection (x page 61), switch on the power (x page 63) to start projecting. Select the video for projection, and adjust appearance of the projected image.
Page 73 Chapter 3 Basic Operations — Projecting Note f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/ LAN> terminal, the input on the DIGITAL LINK output supported device changes each time the <DIGITAL LINK> button is pressed. The input can also be changed using the RS-232C control command.
Page 74: Adjusting The Focus, Zoom, And Lens Shift
Chapter 3 Basic Operations — Projecting Switching the input by displaying the input selection screen The input of the image for projection can be selected by displaying the input selection screen. Press the <INPUT MENU> button on the remote control or control panel. f The input selection screen is displayed.
Page 75: Adjusting The Focus When The Fixed-Focus Lens (Model No.: Et-D75Le95, Et-D75Le90) Is Used
Chapter 3 Basic Operations — Projecting CAUTION During the lens shift operation, do not insert your hand in any opening around the lens. Your hand may be caught in between, resulting to injury. Note f The zoom adjustment screen is not displayed when the projection lens without the zoom function is attached. f When the Fixed-focus Lens (Model No.: ET-D75LE50) is used, do not adjust the lens shift, and use the projection lens in the home position.
Page 76: Setting The Lens Type
Chapter 3 Basic Operations — Projecting f The projected image size and scale shown on the periphery focus adjustment ring are an approximate guide. Setting the lens type When the projector is used for the first time or when the projection lens is replaced, confirm the [LENS TYPE] setting.
Page 77 Chapter 3 Basic Operations — Projecting Note f [LENS CALIBRATION] cannot be executed when the [PROJECTOR SETUP] menu → [LENS] → [LENS TYPE] is set to [NOT SELECTED]. f For details of operation, refer to the [PROJECTOR SETUP] menu → [LENS] → [LENS CALIBRATION] (x page 155). f The origin position of the lens mounter and the home position of the projection lens are automatically updated when the lens shift calibration is performed.
Page 78: Moving The Projection Lens To The Home Position
Chapter 3 Basic Operations — Projecting Moving the projection lens to the home position Operate in following procedure to move the projection lens to the home position. When operating from the main menu Press the <MENU> button. f The [MAIN MENU] screen is displayed. Press as to select [PROJECTOR SETUP].
Page 79: Lens Shift Range
Chapter 3 Basic Operations — Projecting Lens shift range The projector can adjust the position of the projected image within the lens shift range for each projection lens based on the position of the projected image in the home position (standard projection position). Perform the lens shift adjustment within the range indicated in the following illustration.
Page 80: Adjusting The Lens Mounter When The Focus Is Unbalanced
Chapter 3 Basic Operations — Projecting Adjusting the lens mounter when the focus is unbalanced Focus balance Relationship between the tilt of the lens and the screen focus surface When the projection lens is tilted in contrast with the image forming surface, tilting the front side (screen side) of the projection lens downwards (in the direction of the dotted arrow line), the upper side of the screen focus surface will tilt inwards and the lower side will tilt outwards as shown in the example.
Page 81 Chapter 3 Basic Operations — Projecting Adjustment procedure r Relationship between the adjustment location and adjustment screws (b)+(c) Adjustment location: Location where the just focus point of the screen is in the inner side of the screen When the just focus point of When the just focus point of the When the just focus point of When the just focus point of the...
Page 82: Operating With The Remote Control
Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the shutter function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image temporarily. button Press the <SHUTTER>...
Page 83: Using The Automatic Setup Function
Chapter 3 Basic Operations — Operating with the remote control Note f The hide condition of the on-screen display can also be canceled by pressing the <MENU> button on the control panel for at least three seconds while the on-screen display is off (hidden). Using the automatic setup function The image position when DVI-D/HDMI signal is input can be adjusted automatically.
Page 84: Displaying Internal Test Pattern
Chapter 3 Basic Operations — Operating with the remote control Displaying internal test pattern The projector has nine types of internal test patterns to check the condition of the projector. To display test patterns, perform the following steps. button Press the <TEST PATTERN> button. Press qw to select the test pattern.
Page 85: Using The Ac Voltage Monitor Function
Chapter 3 Basic Operations — Operating with the remote control Using the AC voltage monitor function The value of input supply voltage can be displayed on the self-diagnosis display at the side of the projector. r To display during projection Press the power on <b> button. f The value of the input supply voltage is displayed only as numeric value on the self-diagnosis display.
Page 86: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. 86 - ENGLISH...
Page 87: Menu Navigation
Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed.
Page 88: Main Menu
Chapter 4 Settings — Menu navigation Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings. f Some items will switch in order as follows each time you press qw. f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note...
Page 89: Sub-Menu
Chapter 4 Settings — Menu navigation Main menu item Page [DISPLAY OPTION] [PROJECTOR SETUP] [MULTI DISPLAY] [TEST PATTERN] [SIGNAL LIST] [SECURITY] [NETWORK] Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. [PICTURE] Sub-menu item Factory default...
Page 90 Chapter 4 Settings — Menu navigation Sub-menu item Factory default Page [RASTER POSITION] ― *1 Depends on the signal input. [DISPLAY LANGUAGE] Details (x page 111) [DISPLAY OPTION] Sub-menu item Factory default Page [COLOR MATCHING] [OFF] [LARGE SCREEN CORRECTION] [OFF] [SCREEN SETTING] ―...
Page 91 Chapter 4 Settings — Menu navigation Sub-menu item Factory default Page [SERVICE PASSWORD] ― [MULTI DISPLAY] Details (x page 179) [TEST PATTERN] Details (x page 181) [SIGNAL LIST] Details (x page 182) [SECURITY] Sub-menu item Factory default Page [SECURITY PASSWORD] [OFF] [SECURITY PASSWORD CHANGE] ―...
Page 92: [Picture] Menu
Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 87) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
Page 93: [Brightness]
Chapter 4 Settings — [PICTURE] menu Attention f Adjust [BRIGHTNESS] first when you need to adjust the black level. [BRIGHTNESS] You can adjust the dark (black) part of the projected image. Press as to select [BRIGHTNESS]. Press qw or the <ENTER> button. f The [BRIGHTNESS] individual adjustment screen is displayed.
Page 94 Chapter 4 Settings — [PICTURE] menu [USER1] Adjusts white balance as desired. Refer to “Adjusting desired white balance” (x page 94) for details. [USER2] [3200K] - [9300K] Allows you to set in increments of 100 K. Select so that images become natural. Note f When [PICTURE MODE] (x page 92) is set to [USER] or [DICOM SIM.], [DEFAULT] cannot be selected.
Page 95: [Gamma]
Chapter 4 Settings — [PICTURE] menu Press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. f The [USER1] or [USER2] data is overwritten. f If you press qw to select [CANCEL] and then press the <ENTER> button, the data will not be overwritten. f The [WHITE BALANCE HIGH] screen is displayed.
Page 96: [System Daylight View]
Chapter 4 Settings — [PICTURE] menu [1.0] [1.8] Set so that images become as you like. [2.0] - [2.8] can be set in increments of 0.1. [2.0] - [2.8] *1 When [PICTURE MODE] is set to [DYNAMIC], [USER], or [DICOM SIM.], [DEFAULT] cannot be selected. Note f DICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine”...
Page 97: [Noise Reduction]
Chapter 4 Settings — [PICTURE] menu Note f If you press w while the adjustment value is [+15], the value will become [0]. If you press q while the adjustment value is [0], the value will become [+15]. [NOISE REDUCTION] You can reduce noises when the input image is degraded and noise is occurring in the image signal. Press as to select [NOISE REDUCTION].
Page 98: [Color Space]
Chapter 4 Settings — [PICTURE] menu Setting item Details [OFF] Does not adjust the light source. [AUTO CONTRAST] The higher the value, the stronger the light adjustment of the light (Automatic light source [1] - [255] source. adjustment) Can be set in increments of 1. Adjusts the light source when the brightness level of the video [BRIGHT SIGNAL LEVEL] signal being input gets lower than the set value.
Page 99: [System Selector]
Chapter 4 Settings — [PICTURE] menu [SYSTEM SELECTOR] The projector will automatically detect the input signal, but you can set the system method manually when an unstable signal is input. Set the system method matching the input signal. Press as to select [SYSTEM SELECTOR]. Press the <ENTER>...
Page 100: [Position] Menu
Chapter 4 Settings — [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 87) for the operation of the menu screen. Note f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/ LAN>...
Page 101: [Zoom]
Chapter 4 Settings — [POSITION] menu Displays images with the aspect ratio converted to 16:9 when standard signals are input . When [16:9] wide-screen signals are input , the images are displayed without changing the aspect ratio. Displays images without changing the aspect ratio when standard signals are input .
Page 102: [Geometry]
Chapter 4 Settings — [POSITION] menu Press the <ENTER> button. f The [ZOOM] screen is displayed. Press as to select [MODE]. Press qw to switch the item. [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT]. [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT]. Press as to select [INTERLOCKED].
Page 103 Chapter 4 Settings — [POSITION] menu [KEYSTONE] [LENS THROW RATIO] Set the throw ratio. Select the value close to the actual projection distance divided by projected image width here. [VERTICAL KEYSTONE] [HORIZONTAL KEYSTONE] [VERTICAL BALANCE] [HORIZONTAL BALANCE] Adjust the setting according to the lens shift range in the vertical Adjust the setting according to the lens shift range in the horizontal direction.
Page 104 Chapter 4 Settings — [POSITION] menu [CORNER CORRECTION] [UPPER LEFT] [UPPER RIGHT] [LOWER LEFT] [LOWER RIGHT] [LINEARITY] Horizontal direction Vertical direction Note f The menu or logo may run off the screen when [GEOMETRY] is set. f If [EDGE BLENDING] (x page 106) adjustment and [GEOMETRY] are used together, correct edge blending adjustment may not be possible in certain environments.
Page 105: [Advanced Menu] Menu
[OFF] ([PC-1], [PC-2], [PC-3]). Up to three blanking settings adjusted using the computer can be saved. [CUSTOM MASKING] uses the masking function of the Panasonic computer application. To use the [CUSTOM MASKING] function, the optional Upgrade Kit (Model No.: ET-UK20) is required. To purchase the product, consult your dealer.
Page 106: [Edge Blending]
The upper limit of the adjustment range may be restricted so that the entire projected image is not covered by blanking width. f The [CUSTOM MASKING] setting in [BLANKING] is disabled in the following cases, and the masking function of Panasonic computer application cannot be used.
Page 107 Chapter 4 Settings — [ADVANCED MENU] menu Press as to select [MARKER]. Press qw to switch to [ON]. f A marker for image position adjustment is displayed. The position where the red and green lines overlap for the projectors to be joined will be the optimal point. Make sure to set the correction width for the projectors to be joined with the same value.
Page 108: [Frame Response]
Chapter 4 Settings — [ADVANCED MENU] menu 24) Press as to select an item, and press qw to adjust the setting. [BLACK BORDER WIDTH] (Right) Projection range Edge blending [WIDTH] (Right) [MARKER] (Red) Edge blending [START] (Right) ([MARKER] (Green)) [OVERLAPPED BLACK LEVEL] (Right) [NON-OVERLAPPED BLACK LEVEL] [BLACK BORDER LEVEL] Note...
Page 109: [Frame Creation]
Chapter 4 Settings — [ADVANCED MENU] menu [FRAME CREATION] Set the amount of image frame interpolation. The image with fast movement can be displayed more smoothly by automatically generating the intermediate frame from the previous and next frame. Press as to select [FRAME CREATION]. Press the <ENTER>...
Page 110: [Quad Pixel Drive]
Chapter 4 Settings — [ADVANCED MENU] menu [QUAD PIXEL DRIVE] Set the enable/disable of the QUAD PIXEL DRIVE function to enhance the resolution of the projected image. Press as to select [QUAD PIXEL DRIVE]. Press qw to switch the item. f The items will switch each time you press the button. [ON] Enables the QUAD PIXEL DRIVE function.
Page 111: [Display Language] Menu
Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu. Refer to “Navigating through the menu” (x page 87) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display.
Page 112: [Display Option] Menu
Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 87) for the operation of the menu screen. [COLOR MATCHING] Correct the color difference between projectors when using multiple projectors simultaneously.
Page 113: [Large Screen Correction]
Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [MEASURED DATA] screen is displayed. Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter. Press as to select a color, and press qw to adjust the setting. f Set [AUTO TESTPATTERN] to [ON] to display a test pattern of selected colors.
Page 114: [Auto Signal]
Chapter 4 Settings — [DISPLAY OPTION] menu [AUTO SIGNAL] Set whether to execute automatic setup of signals automatically. The screen display position or signal level can be adjusted automatically without pressing the <AUTO SETUP> button on the remote control on each occasion if you input unregistered signals frequently at meetings, etc. Press as to select [AUTO SIGNAL].
Page 115: [Backup Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SIGNAL LEVEL ADJUST]. Press qw to switch the item. [OFF] Does not perform automatic adjustment. Adjusts black level (the [PICTURE] menu → [BRIGHTNESS]) and white level (the [PICTURE] menu [ON] →...
Page 116: [Simul Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Switches to the secondary input (primary input) automatically when the input signal for primary input [ENABLE] (secondary input) is disrupted. [DISABLE] Disables the automatic input switching function. Note f The backup function is enabled when [BACKUP INPUT MODE] is set to anything other than [OFF] and same signal is input to the primary input and the secondary input.
Page 117: [Sdi In]
[OFF] ([PC-1], [PC-2], [PC-3]). [CUSTOM MASKING] uses the masking function of the Panasonic computer application. f [SIMUL INPUT SETTING] cannot be set when the [MULTI DISPLAY] menu → [MULTI DISPLAY MODE] is set to anything other than [OFF] and displaying the four-screen display.
Page 118 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [SDI LINK] screen is displayed. Press as to select the setting. [AUTO] Automatically selects the single link, the dual link, or the quad link. [SINGLE] Sets each of the SDI1 input, the SDI2 input, the SDI3 input, and the SDI4 input to single link. Sets the SDI1 input and the SDI2 input to dual link, and the SDI3 input and the SDI4 input to single [DUAL/SINGLE] link.
Page 119 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [DUAL LINK SETTING] or [QUAD LINK SETTING], and press the <ENTER> button. f The [DUAL LINK SETTING] screen or the [QUAD LINK SETTING] screen is displayed. f When [DUAL LINK SETTING] is selected, press as to select [SDI1-2] or [SDI3-4], and press the <ENTER>...
Page 120: [Digital Link In]
Chapter 4 Settings — [DISPLAY OPTION] menu [AUTO] Automatically selects [RGB], [YP 4:4:4], [YP 4:2:2], or [XYZ]. [RGB] Fixes to [RGB]. 4:4:4] Fixes to [YP 4:4:4]. 4:2:2] Fixes to [YP 4:2:2]. [XYZ] Fixes to [XYZ]. Setting [BIT DEPTH] in [SDI IN] Press as to select [SDI IN].
Page 121 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [DIGITAL LINK IN] screen is displayed. Press as to select [SIGNAL LEVEL]. Press qw to switch the item. f The items will switch each time you press the button. [AUTO] Automatically sets the signal level.
Page 122: [Slot In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [RESOLUTION] screen is displayed. Press asqw to select [RESOLUTION]. f Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], [1920x1200p], [2048x1080p], [2560x1600p], or [3840x2400p]. Press the <ENTER>...
Page 123 Chapter 4 Settings — [DISPLAY OPTION] menu Sets the HDMI1 input and the HDMI2 input to single link, and the HDMI3 input and the HDMI4 input [SINGLE/DUAL] to dual link. Sets the HDMI1 input and the HDMI2 input to dual link, and the HDMI3 input and the HDMI4 input to [DUAL/DUAL] dual link.
Page 124 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [EDID SELECT] in [SLOT IN] (HDMI input) Press as to select [SLOT IN]. Press the <ENTER> button. f The [SLOT IN] screen is displayed. Press as to select [EDID SETTING], and press the <ENTER> button. f The [EDID SETTING] screen is displayed.
Page 125 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [VERTICAL SCAN FREQUENCY] screen is displayed. 10) Press qw to select [VERTICAL SCAN FREQUENCY]. f Select [60Hz], [50Hz], or [30Hz] when [3840x2400p] is selected for [RESOLUTION]. f Select [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [2048x2160p], [2048x1080p], [1920x2160p], or [1920x1080p] is selected for [RESOLUTION].
Page 126 Chapter 4 Settings — [DISPLAY OPTION] menu r Structure of the projected image The single link is a setting to display one image with one input signal. The dual link is a setting to display one image with two input signals. The quad link is a setting to display one image with four input signals. DVI-D1 DVI-D2 DVI-D1/...
Page 127 Chapter 4 Settings — [DISPLAY OPTION] menu Select this item mainly when the external device (such as computer) which outputs the still image [EDID2:PC] signal is connected to the <DVI-D IN 1> terminal, the <DVI-D IN 2> terminal, the <DVI-D IN 3> terminal, or the <DVI-D IN 4>...
Page 128 Chapter 4 Settings — [DISPLAY OPTION] menu When the optional 3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) is installed To use the 3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G), it is necessary for the firmware version of the 3G-SDI Terminal Board with Audio to be 2.00 or later. Consult your dealer regarding the version update to the latest firmware if the version is earlier than 2.00.
Page 129 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SDI1], [SDI2], [SDI3], or [SDI4], and press the <ENTER> button. f The [SINGLE LINK SETTING] screen for the selected item is displayed. Press as to select [RESOLUTION], and press the <ENTER> button. f The [RESOLUTION] screen is displayed.
Page 130 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [SYSTEM SELECTOR] in [SLOT IN] (SDI input) Press as to select [SLOT IN]. Press the <ENTER> button. f The [SLOT IN] screen is displayed. Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the <ENTER>...
Page 131 Chapter 4 Settings — [DISPLAY OPTION] menu f Proceed to Step 5) when [DUAL LINK SETTING] or [QUAD LINK SETTING] is selected. Press as to select [SDI1], [SDI2], [SDI3], or [SDI4], and press the <ENTER> button. f The [SINGLE LINK SETTING] screen for the selected item is displayed. Press as to select [SIGNAL LEVEL].
Page 132 Chapter 4 Settings — [DISPLAY OPTION] menu Note f The single link is a setting to display one image with one input signal. The dual link is a setting to display one image with two input signals. The quad link is a setting to display one image with four input signals. f [SDI LINK] is fixed to [SINGLE] in the following cases.
Page 133 Chapter 4 Settings — [DISPLAY OPTION] menu [AUTO] Automatically selects [SQUARE] or [INTERLEAVE]. [SQUARE] Fixes the transmission method to Square Division. [INTERLEAVE] Fixes the transmission method to 2-Sample Interleave Division. Setting [SDI MAPPING] in [SLOT IN] (SDI input) Set the mapping method for the SDI1 input and the SDI3 input. Press as to select [SLOT IN].
Page 134 Chapter 4 Settings — [DISPLAY OPTION] menu Note f This function does not operate when the SD-SDI signal or the HD-SDI signal is input. f [3G-SDI MAPPING] cannot be set when [SDI LINK] is set to [AUTO]. Setting [SYSTEM SELECTOR] in [SLOT IN] (SDI input) Press as to select [SLOT IN].
Page 135: [On-Screen Display]
Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SINGLE LINK SETTING], [DUAL LINK SETTING], or [QUAD LINK SETTING], and press the <ENTER> button. f The [SINGLE LINK SETTING] screen, the [DUAL LINK SETTING] screen, or the [QUAD LINK SETTING] screen is displayed.
Page 136 Chapter 4 Settings — [DISPLAY OPTION] menu Note f [OSD SIZE] cannot be set when the [ADVANCED MENU] menu → [QUAD PIXEL DRIVE] is set to [ON]. The menu screen with the text size enlarged to double size is displayed. f [OSD SIZE] cannot be set when the [DISPLAY OPTION] menu → [SIMUL INPUT SETTING] is set to [AUTO(x2-speed)] or [AUTO(x4- speed)] and displaying the image in simultaneous format.
Page 137: [Back Color]
Displays the entire projection area in blue. [BLACK] Displays the entire projection area in black. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. Note f To create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
Page 138: [Uniformity]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. [NONE] Disables the startup logo display.
Page 139: [Shutter Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu [SHUTTER SETTING] The operation of the shutter function is set. Setting [MECHANICAL SHUTTER] Press as to select [SHUTTER SETTING]. Press the <ENTER> button. f The [SHUTTER SETTING] screen is displayed. Press as to select [MECHANICAL SHUTTER]. Press qw to switch the item.
Page 140 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [SHUT-OFF] Automatically open/close the mechanical shutter when the power is turned off. Press as to select [SHUTTER SETTING]. Press the <ENTER> button. f The [SHUTTER SETTING] screen is displayed. Press as to select [SHUT-OFF]. Press qw to switch the item.
Page 141: [Freeze]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. [OFF] Select this item when the shutter synchronization function is not used. [ON] Select this item when the shutter synchronization function is used. Note f The [MULTI PROJECTOR SYNC] setting item is common with the following menu item.
Page 142 Chapter 4 Settings — [DISPLAY OPTION] menu f The waveform monitor turns off when [MULTI DISPLAY] is executed during waveform monitoring. f The waveform monitor is not displayed when on-screen display is hidden (off). Adjusting the waveform Project the luminance adjustment signal of a commercial test disk (0 % (0 IRE or 7.5 IRE) – 100 % (100 IRE)) and adjust.
Page 143: [Cut Off]
Chapter 4 Settings — [DISPLAY OPTION] menu [CUT OFF] Each red, green, and blue color component can be removed. Press as to select [CUT OFF]. Press the <ENTER> button. f The [CUT OFF] screen is displayed. Press as to select [RED], [GREEN], or [BLUE]. Press qw to switch the item.
Page 144: [Projector Setup] Menu
Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 87) for the operation of the menu screen. [PROJECTOR ID] The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control.
Page 145: [Lens]
Chapter 4 Settings — [PROJECTOR SETUP] menu Select this item when installing the projector with the top surface of the projector facing down such as [CEILING] ceiling attachment. Projected image is inverted upside down. Note f Refer to “Angle sensor” (x page 39) for details on the range of the installation attitude that can be detected by the built-in angle sensor. [LENS] Perform the setting and operation regarding the projection lens.
Page 146 Chapter 4 Settings — [PROJECTOR SETUP] menu [LENS INFORMATION SETTING] Confirming the projection lens information Press as to select [LENS]. Press the <ENTER> button. f The [LENS] screen is displayed. Press as to select [LENS INFORMATION SETTING]. Press the <ENTER> button. f The [LENS INFORMATION SETTING] screen is displayed.
Page 147 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [LENS INFORMATION SETTING] screen is displayed. Press as to select [LENS NAME]. Press the <ENTER> button. f The [LENS NAME INPUT] screen is displayed. Press asqw to select the character, and press the <ENTER> button to enter the character. Press asqw to select [OK], and press the <ENTER>...
Page 148 Chapter 4 Settings — [PROJECTOR SETUP] menu Note f The numeric value information of the zoom position is displayed only in following cases. g When the standard DC motor unit installed in the Zoom Lens (Model No.: ET-D75LE6, ET-D75LE8, ET-D75LE10, ET-D75LE20, ET-D75LE30, ET-D75LE40, etc.) is replaced with the stepping motor unit using the Stepping Motor Kit (Model No.: ET-D75MKS10) g When the projection lens with stepping motor is attached Loading the lens position...
Page 149 Chapter 4 Settings — [PROJECTOR SETUP] menu f The name of the saved lens memory and its lens position information ([VERTICAL POSITION]/ [HORIZONTAL POSITION]/[FOCUS POSITION]/[ZOOM POSITION]) are displayed in the [LENS MEMORY DELETE] screen. Press as to select the item to delete, and press the <ENTER> button. f The confirmation screen is displayed.
Page 150 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [LENS] screen is displayed. Press as to select [LENS HOME POSITION]. Press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. f [PROGRESS] is displayed in the [HOME POSITION] screen, and the projection lens is moved to the origin position.
Page 151 Chapter 4 Settings — [PROJECTOR SETUP] menu Performing simplified setting using the internal test pattern Set the parameters for [FOCUS OFFSET BRIGHT] and [FOCUS OFFSET DARK] using the test pattern built in the projector following the guidance of [SETUP ASSISTANT]. Press as to select [LENS]. Press the <ENTER>...
Page 152 Chapter 4 Settings — [PROJECTOR SETUP] menu f It will return to previous screen by selecting [BACK] and pressing the <ENTER> button. 18) Wait until [Waiting time] turns [0s]. f Wait until the focus is stabilized. f When the [Waiting time] turns [0s], the [Please wait...] message disappears, and [NEXT] becomes selectable.
Page 153 Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [ACTIVE FOCUS OPTIMIZER]. Press the <ENTER> button. f The [ACTIVE FOCUS OPTIMIZER] screen is displayed. Press as to select [FOCUS OFFSET SETUP]. Press the <ENTER> button. f The [FOCUS OFFSET SETUP] screen is displayed. Press as to select [SETUP ASSISTANT].
Page 154 Chapter 4 Settings — [PROJECTOR SETUP] menu 20) Press qw to select [NEXT], and press the <ENTER> button. f The [SETUP ASSISTANT] screen (page 5/8) is displayed. f It will return to previous screen by selecting [BACK] and pressing the <ENTER> button. 21) Press asqw to select [FOCUS POSITION].
Page 155 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [FOCUS OFFSET SETUP] screen is displayed. Press as to select [FOCUS OFFSET BRIGHT] or [FOCUS OFFSET DARK]. Press qw to set the parameter. f Set the parameter in the range from [-99] to [+99]. Displaying the test pattern The internal focus test pattern used with [SETUP ASSISTANT] is displayed.
Page 156 Chapter 4 Settings — [PROJECTOR SETUP] menu Zoom Lens with DC motor, the Fixed-focus Lens This section describes the operating procedure when the Zoom Lens (Model No.: ET-D75LE6, ET-D75LE8, ET-D75LE10, ET-D75LE20, ET-D75LE30, ET-D75LE40, etc.) in which the DC motor has not been replaced with the stepping motor unit is attached, or when the Fixed-focus Lens (Model No.: ET-D75LE50, ET-D75LE95, ET-D75LE90, etc.) without the zoom function is attached.
Page 157: [Operation Setting]
Chapter 4 Settings — [PROJECTOR SETUP] menu f To cancel, select [CANCEL]. Note f [LENS CALIBRATION] cannot be executed when the [PROJECTOR SETUP] menu → [LENS] → [LENS TYPE] is set to [NOT SELECTED]. f [PROGRESS] is displayed in the menu during lens calibration. The operation cannot be canceled during calibration. f [INCOMPLETE] is displayed when the lens calibration is not performed correctly.
Page 158 Chapter 4 Settings — [PROJECTOR SETUP] menu Setting [MAX LIGHT OUTPUT LEVEL] Adjust the maximum level to correct screen brightness according to the changes in brightness of the light source. Press as to select [OPERATION SETTING]. Press the <ENTER> button. f The [OPERATION SETTING] screen is displayed. Press as to select [MAX LIGHT OUTPUT LEVEL].
Page 159: [Light Output]
Chapter 4 Settings — [PROJECTOR SETUP] menu Interrelation of luminance and runtime The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP]. Interrelation of luminance and runtime is as follows.
Page 160: [Brightness Control]
Chapter 4 Settings — [PROJECTOR SETUP] menu Note f [LIGHT OUTPUT] can be adjusted individually for each setting item of [OPERATING MODE]. f The uniformity of the brightness between multiple displays can be maintained by adjusting [LIGHT OUTPUT] for each projector when structuring a multi-display screen by combining the projected images from multiple projectors.
Page 161 Chapter 4 Settings — [PROJECTOR SETUP] menu 11) Press qw to select “hour” or “minute”, and press as or the number (<0> - <9>) buttons to set a time. f Selecting “hour” allows setting of only the hour in increments of one hour, and selecting “minute” allows setting of only the minute in increments of one minute between 00 and 59.
Page 162 Chapter 4 Settings — [PROJECTOR SETUP] menu [BRIGHTNESS CONTROL STATUS] screen display example When [CONSTANT MODE] is set to [OFF] The screen shows the status that the brightness control is disabled. BRIGHTNESS CONTROL STATUS CONSTANT MODE PROJECTOR RETURN MENU When [CONSTANT MODE] is set to [AUTO], and [LINK] is set to [OFF] The screen shows the status of the brightness control in one projector.
Page 163 Chapter 4 Settings — [PROJECTOR SETUP] menu Display the status by color. Green: There is an allowance for brightness correction. Yellow: There is little allowance for brightness correction. Red: There is a brightness control error. Display error detailed messages. Display error messages. When the message [Failed to apply BRIGHTNESS CONTROL to some projectors.] appears, it means that synchronization with the projector displayed in red has failed.
Page 164: [Standby Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu 12) Adjust [LIGHT OUTPUT] of each projector. f Adjust [LIGHT OUTPUT] of all the other projectors so that the brightness will be the same as the projector with the least brightness. 13) Set [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in all projectors.
Page 165: [Initial Startup]
The no signal lights-out function is disabled when the [DISPLAY OPTION] menu → [BACK COLOR] is set to either [DEFAULT LOGO] or [USER LOGO] and the Panasonic logo or the image registered by the user is displayed on the projected image.
Page 166: [Date And Time]
Chapter 4 Settings — [PROJECTOR SETUP] menu *4 When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the projector, its input name is automatically reflected from [INPUT1] to [INPUT10]. When an item that does not reflect the input name is selected, it will be disabled. [DATE AND TIME] Set the time zone, date, and time of the built-in clock of the projector.
Page 167: [Schedule]
Chapter 4 Settings — [PROJECTOR SETUP] menu [SCHEDULE] Set the command execution schedule for each day of the week. Enabling/disabling the schedule function Press as to select [SCHEDULE]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Disables the schedule function.
Page 168 Switches the input to SDI4 of the Interface Board. Switches the input to DIGITAL LINK, and switches the input of the [INPUT1] - [INPUT10] Panasonic twisted-pair-cable transmitter to the specified input. The life of the light source shortens compared to [NORMAL], but the [HIGH] luminance increases more than [NORMAL].
Page 169: [Multi Projector Sync]
Chapter 4 Settings — [PROJECTOR SETUP] menu Note f To delete a command that has been already set, press the <DEFAULT> button on the remote control while the screen in Step 5) is displayed, or select [DELETE] at the screen in Step 6) and press the <ENTER> button. f If multiple commands have been set for the same time, they are executed in chronological order starting from the smallest command number.
Page 170 Chapter 4 Settings — [PROJECTOR SETUP] menu [OFF] Select this item when the contrast synchronization function is not used. [ON] Select this item when the contrast synchronization function is used. Note f The contrast synchronization function will operate when all of the following conditions are fulfilled. g All the projectors to be linked are connected in a loop with the daisy chain connection.
Page 171 Chapter 4 Settings — [PROJECTOR SETUP] menu Setting the communication condition of the <SERIAL IN> terminal Press as to select [RS-232C]. Press the <ENTER> button. f The [RS-232C] screen is displayed. Press as to select [INPUT SELECT]. Press qw to switch the item. [PROJECTOR] Performs the RS-232C communication with the <SERIAL IN>...
Page 172: [Remote2 Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [RS-232C] screen is displayed. Press as to select [RESPONSE(ID ALL)]. Press qw to switch the item. [ON] Returns the response when an ID is designated as ALL. [OFF] Does not return the response when an ID is designated as ALL.
Page 173: [Status]
Chapter 4 Settings — [PROJECTOR SETUP] menu Switches the [SYSTEM SELECTOR] setting according to the input signal of the image being projected. f When the input is SDI1 to SDI4 equipped on this projector as the standard projector. g The [DISPLAY OPTION] menu → [SDI IN] → [SINGLE LINK SETTING] → [SDI1]/[SDI2]/[SDI3]/ [SDI4] →...
Page 174 Chapter 4 Settings — [PROJECTOR SETUP] menu [LENS NAME] Displays the name set to the projection lens. Displays the range of throw ratio supported by the projection lens in accordance with the [LENS [LENS THROW RATIO] TYPE] setting. [LENS ZOOM TYPE] Displays the drive method of the zoom motor attached to the projection lens.
Page 175: [Ac Voltage Monitor]
Chapter 4 Settings — [PROJECTOR SETUP] menu [INPUT] Displays the input terminal used for the projected image. [UPPER LEFT INPUT], [UPPER RIGHT INPUT], Displays the input terminal corresponding to each screen while in [LOWER LEFT INPUT], the four-screen display mode. [LOWER RIGHT INPUT] [SIGNAL FORMAT] Displays the format of the input signal.
Page 176: [Filter Setting]
Chapter 4 Settings — [PROJECTOR SETUP] menu f Even when [OFF] is set, the value of input supply voltage can be displayed temporarily in the self-diagnosis display by operating the button on the remote control. (x page 85) f The value of input supply voltage cannot be displayed in the self-diagnosis display during standby when the [PROJECTOR SETUP] menu →...
Page 177: [Save All User Data]
Chapter 4 Settings — [PROJECTOR SETUP] menu When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button. f The [PROJECTOR SETUP] menu → [STATUS] → [FILTER COUNTER] is displayed as “0”. Note f If the recommended time to replace the filter is set, the filter runtime (counter numerical value) and the recommended time to replace the filter are displayed in [FILTER COUNTER RESET].
Page 178: [Service Password]
Chapter 4 Settings — [PROJECTOR SETUP] menu When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button. Note f The security password is the password set in the [SECURITY] menu → [SECURITY PASSWORD CHANGE]. Initial password of the factory default setting: awsqawsq f The following settings are not initialized even if [ALL USER DATA] is executed.
Page 179: [Multi Display] Menu
Chapter 4 Settings — [MULTI DISPLAY] menu [MULTI DISPLAY] menu On the menu screen, select [MULTI DISPLAY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 87) for the operation of the menu screen. Using the multi-display function Four images can be displayed simultaneously by dividing the projection screen into four.
Page 180 Chapter 4 Settings — [MULTI DISPLAY] menu g When the [DISPLAY OPTION] menu → [SIMUL INPUT SETTING] is set to anything other than [OFF] g When the [DISPLAY OPTION] menu → [SDI IN] → [SDI LINK] is set to anything other than [SINGLE] g When the [DISPLAY OPTION] menu →...
Page 181: [Test Pattern] Menu
Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 87) for the operation of the menu screen. [TEST PATTERN] Display the test pattern built-in to the projector. Settings of position, size, and other factors will not be reflected in test patterns.
Page 182: [Signal List] Menu
Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 87) for the operation of the menu screen. r Registered signal details Memory number: A1 (1-2) Sub memory number...
Page 183: Protecting The Registered Signal
Chapter 4 Settings — [SIGNAL LIST] menu Note f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen. Protecting the registered signal Press asqw to select the signal to protect. Press the <ENTER> button. f The [REGISTERED SIGNAL STATUS] screen is displayed.
Page 184: Sub Memory
Chapter 4 Settings — [SIGNAL LIST] menu f When a registration signal is deleted, the settings are also deleted. f In an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the setting is set to [WIDE].
Page 185: [Security] Menu
Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 87) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>...
Page 186: [Text Change]
Chapter 4 Settings — [SECURITY] menu Press qw to switch the item. f The items will switch each time you press the button. [OFF] Hides the security message. [TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE]. [USER LOGO] Displays the image registered by the user.
Page 187 Chapter 4 Settings — [SECURITY] menu Press the <ENTER> button. f The [CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed. Press as to select [CONTROL PANEL] or [REMOTE CONTROL]. Press qw to switch [USER]. Press as to select the button item to set. f When [INPUT SELECT BUTTON] is selected, press the <ENTER>...
Page 188 Chapter 4 Settings — [SECURITY] menu Item that can be set with [INPUT SELECT BUTTON] When [INPUT SELECT BUTTON] is selected in Step 7) of “Enabling/disabling any button” (x page 186), the item that can be selected varies depending on the button to set. The item that can be selected when each button is set is as follows.
Page 189: [Control Device Password Change]
Chapter 4 Settings — [SECURITY] menu [SDI3] Fixes to selection operation of the SDI3 input. [SDI4] Fixes to selection operation of the SDI4 input. [SDI1 [SLOT1]] Fixes to selection operation of the SDI1 input of the Interface Board. [SDI2 [SLOT1]] Fixes to selection operation of the SDI2 input of the Interface Board. [SDI3 [SLOT1]] Fixes to selection operation of the SDI3 input of the Interface Board.
Page 190 Chapter 4 Settings — [SECURITY] menu Press asqw to select the text, and press the <ENTER> button to enter the text. Press asqw to select [OK], and press the <ENTER> button. f To cancel, select [CANCEL]. Attention f The initial password is “AAAA” by the factory default or when [ALL USER DATA] in [INITIALIZE] (x page 177) is executed. f Change the password periodically that is hard to guess.
Page 191: [Network] Menu
Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 87) for the operation of the menu screen. [DIGITAL LINK MODE] Switch the communication method of the <DIGITAL LINK/LAN>...
Page 192: [Network Setup]
Chapter 4 Settings — [NETWORK] menu [NETWORK SETUP] Perform the initial setting of the network before using the network function. Press as to select [NETWORK SETUP]. Press the <ENTER> button. f The [NETWORK SETUP] screen is displayed. Press as to select an item, and change the settings according to the operation instructions of the menu.
Page 193: [Network Status]
Chapter 4 Settings — [NETWORK] menu [NETWORK STATUS] Display the status of the projector network. Press as to select [NETWORK STATUS]. Press the <ENTER> button. f The [NETWORK STATUS] screen is displayed. [DHCP] Displays the status of use of the DHCP server. [IP ADDRESS] Displays the [IP ADDRESS].
Page 194: [Art-Net Channel Setting]
Chapter 4 Settings — [NETWORK] menu [Art-Net CHANNEL SETTING] Set the assignment of the channel. For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net function” (x page 236). Press as to select [Art-Net CHANNEL SETTING]. Press qw to switch the item.
Page 195: [Art-Net Status]
Chapter 4 Settings — [NETWORK] menu f Same item cannot be set for multiple channels, except for [NONE]. Note f Assign each item of [LENS H SHIFT MSB], [LENS V SHIFT MSB], [LENS FOCUS MSB], and [LENS ZOOM MSB] to a channel together with [LENS H SHIFT LSB], [LENS V SHIFT LSB], [LENS FOCUS LSB], and [LENS ZOOM LSB].
Page 196: Chapter 5 Operations
Operations Chapter 5 This chapter describes how to use each function. 196 - ENGLISH...
Page 197: Network Connection
The application software “Smart Projector Control” can be used, which enables to set and adjust the projector connected via LAN using a smartphone or tablet device. Visit the Panasonic website (https://panasonic.net/cns/projector/) for details. f Multi Monitoring & Control Software “Multi Monitoring & Control Software”, which is a software application to monitor and control multiple display devices (projector or flat panel display) connected via LAN, can be used.
Page 198 (https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 199 Chapter 5 Operations — Network connection r Factory default setting f Following setting has been made as a factory default. [DHCP] [IP ADDRESS] 192.168.0.8 [SUBNET MASK] 255.255.255.0 [DEFAULT GATEWAY] 192.168.0.1 [DNS1]/[DNS2] None Operating the computer Turn on the power of the computer. Perform the network setting following the instruction of your network administrator.
Page 200: Web Control Function
Enter the IP address set on the projector into the URL entry field of the web browser. Enter the user name and the password. f The factory default setting of the user name is user1 (user rights)/admin1 (administrator rights) and the password is panasonic (lower case). 200 - ENGLISH...
Page 201 Chapter 5 Operations — Web control function Click OK. f The [Projector status] page is displayed. Note f If you use a web browser to control the projector, set the [NETWORK] menu → [NETWORK CONTROL] → [WEB CONTROL] to [ON]. f Do not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple computers.
Page 202 Chapter 5 Operations — Web control function Descriptions of items Page tab [Detailed set up] Switches pages by clicking this item. The [Detailed set up] page is displayed by clicking this item. [Status] [Change password] The status of the projector is displayed by clicking this item. The [Change password] page is displayed by clicking this item.
Page 203 Chapter 5 Operations — Web control function Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status] screen, click it to display the content of the error/warning. f The projector may go into the standby status to protect the projector depending on the contents of the error. Display of error information Error code Displays the alphanumeric symbols and content of errors/...
Page 204 Chapter 5 Operations — Web control function [Mail error log] page Click [Status] → [Mail error log]. E-mail error log is displayed if periodic E-mail sending has failed. Note f [Access error log] and [Mail error log] display the recent few thousand accesses/requests. All information may not be displayed when many accesses/requests are made at once.
Page 205 Chapter 5 Operations — Web control function [Detail control] page Click [Projector control] → [Detail control]. [MULTI DISPLAY MODE] [WAVEFORM MONITOR] Switches the setting of the multi-display mode. Displays the waveform of the input signal. Control of the projector [PROJECTION METHOD] The projector is controlled by clicking the buttons in the same Switches the setting of the projection method.
Page 206 Chapter 5 Operations — Web control function Lens position setting page Click [Projector control] → [Detail control] → [LENS] → [SET POSITION]. [Get] [Apply] Acquires the current lens position and displays the acquired Moves to the lens position displayed in the lens position values in the lens position information field.
Page 207 Chapter 5 Operations — Web control function [Network config] page Click [Detailed set up] → [Network config]. f Click [Network config] to display the [CAUTION!] screen. f Click the [Next] button to display the current settings. f Click the [Change] button to display the setting change screen. [PROJECTOR NAME] [DNS1] Enter the name of the projector.
Page 208 Chapter 5 Operations — Web control function [Adjust clock] page Click [Detailed set up] → [Adjust clock]. [Time Zone] [Date] Select the time zone. Enter the date to be changed. [Set time zone] [Time] Updates the time zone setting. Enter the time to be changed. [NTP SYNCHRONIZATION] [Submit] Set to [ON] when setting the date and time automatically.
Page 209 Chapter 5 Operations — Web control function [E-mail set up] page Send an E-mail to preset E-mail addresses (up to two addresses) when a problem has occurred. Click [Detailed set up] → [E-mail set up]. [ENABLE] [MINIMUM TIME] Select [ENABLE] to use the E-mail function. Change the minimum interval for the temperature warning E-mail.
Page 210 Chapter 5 Operations — Web control function [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Auth] [Password] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
Page 211 Chapter 5 Operations — Web control function Contents of E-mail sent Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : RQ32K Serial No...
Page 212 Chapter 5 Operations — Web control function Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : RQ32K Serial No : 123456789012 ----- ERROR INFORMATION ----- U21 Intake air temp.
Page 213 Chapter 5 Operations — Web control function [Change password] page Click [Change password]. [Administrator] [Next] Used to change the setting of the [Administrator]. Used to change the setting of the password. [User] Used to change the setting of the [User]. [Administrator] account [Account] [New] [User name]:...
Page 214 Chapter 5 Operations — Web control function [User] account [Account] [OK] Displays the account to change. Determines the change of password. [New] [User name]: Enter the desired new user name. (Up to 16 characters in single byte) [Password]: Enter the desired new password. (Up to 16 characters in single byte) [Password(Retype)]: Enter the desired new password again.
Page 215 Chapter 5 Operations — Web control function Operation page [Tools], [Info], [Help] [Input Select] Tabs for selecting the setting, information, or help page of the Controls input selection. projector. Not available when the power of the projector is turned off. [POWER] Menu screen control buttons Turns on/off the power.
Page 216 Chapter 5 Operations — Web control function [Info] page Click [Info] in the operation page. [Projector Name] [Source] Displays the projector name. Displays the selected input. [Mac Address] [Error Status] Displays the error status. Displays the MAC address. [Lamp1 Hours], [Lamp2 Hours] [Exit] Displays the runtime of the light source 1 and the light source 2.
Page 217: Chapter 6 Maintenance
Maintenance Chapter 6 This chapter describes methods of inspection when there are problems, maintenance, and replacement of the units. ENGLISH - 217...
Page 218: Light Source/Temperature/Filter Indicators
Chapter 6 Maintenance — Light source/temperature/filter indicators Light source/temperature/filter indicators When an indicator lights up If a problem occurs inside the projector, the light source indicators <LIGHT1>/<LIGHT2>, temperature indicator <TEMP>, or filter indicator <FILTER> will inform you by lighting or blinking in red. Check the status of the indicators and take following measures.
Page 219 Chapter 6 Maintenance — Light source/temperature/filter indicators Temperature indicator <TEMP> Indicator status Status Solution f Wait five minutes when the power is turned on while the temperature is low (approximately 0 °C (32 °F)). f Warm-up status f Install the projector in a location with the operating environment temperature Lighting in red between 0 °C (32 °F) and 45 °C (113 °F) f Internal temperature is high...
Page 220 Chapter 6 Maintenance — Light source/temperature/filter indicators r When the Smoke Cut Filter (Model No.: ET-SFR330) is attached Indicator status Status Solution f Replace the Smoke Cut Filter in the following cases. (x page 278) f The filter is clogged. g The filter is dirty. f The runtime of the filter exceeds the recommended time to replace the g The recommended time to replace the filter has been exceeded.
Page 221: Maintenance/Replacement
Chapter 6 Maintenance — Maintenance/replacement Maintenance/replacement Before performing maintenance/replacement f Make sure to turn off the power before maintaining or replacing the unit. f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 71). Maintenance Outer case Wipe off dirt and dust with a soft, dry cloth.
Page 222 Chapter 6 Maintenance — Maintenance/replacement For the air filter unit The section describes the maintenance of the standard air filter unit attached to the projector. This air filter unit is the same as the Replacement Filter Unit (Model No.: ET-EMF330) (accessory/optional accessory).
Page 223 Chapter 6 Maintenance — Maintenance/replacement Performing maintenance of the air filter unit Fig. 1 Fig. 2 Wash the air filter unit. (Fig. 1) i) Soak the air filter unit in cold or warm water and then lightly rinse it. f Do not use cleaning tools such as brushes. f When rinsing, hold the frame of the air filter unit without putting strong pressure on the filter unit.
Page 224 Chapter 6 Maintenance — Maintenance/replacement f Hook the air filter unit frame at the bottom side to the tabs on the projector body (d), and perform Step 3) in “Removing the air filter unit” (x page 222) in the reverse order to attach. f Confirm that the tabs on the projector body (c) and (d) are hooked to the air filter unit frame.
Page 225 Chapter 6 Maintenance — Maintenance/replacement Remove the long life filter cover. (Fig. 1) f Remove the long life filter cover fixing screws (two locations at right and left) by turning them counterclockwise, and remove the long life filter cover from the long life filter mount clasp. f When loosening the long life filter cover fixing screws, hold the screws with your hand so they will not fall.
Page 226 Chapter 6 Maintenance — Maintenance/replacement Attaching the air filter unit Cross section Guide on the long life filter cover (e) Air filter unit Grip on the air filter unit (a) Long life filter cover Air filter unit Grip on the air filter unit (b) Guide on the long life filter cover (f) Fig.
Page 227: Replacing The Unit
Chapter 6 Maintenance — Maintenance/replacement Resetting the filter counter Turn on the power of the projector. Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed. Press as to select [PROJECTOR SETUP]. Press the <ENTER> button. f The [PROJECTOR SETUP] screen is displayed.
Page 228 Chapter 6 Maintenance — Maintenance/replacement For the Long Life Filter Unit This section describes the replacement procedure of the air filter unit when the optional Long Life Filter Unit (Model No.: ET-EMFU330) is attached instead of the standard air filter unit attached to the projector. The Long Life Filter Unit uses two of the same standard air filters attached to the projector or the Replacement Filter Unit (Model No.: ET-EMF330) (accessory/optional accessory).
Page 229: Troubleshooting
Chapter 6 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―...
Page 230 Chapter 6 Maintenance — Troubleshooting Problems Points to be checked Page f Perform [LENS CALIBRATION]. Lens shift cannot be adjusted. f Is the Fixed-focus Lens (Model No.: ET-D75LE50) attached? ― f Is [QUAD PIXEL DRIVE] set to [OFF]? Geometric adjustment is not possible.
Page 231: Self-Diagnosis Display
Chapter 6 Maintenance — Self-diagnosis display Self-diagnosis display There is a self-diagnosis display on the side of the projector. Self-diagnosis display will automatically display the value of the input supply voltage, or details of errors or warnings when they occur. (x page 30) The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and its details.
Page 232 Chapter 6 Maintenance — Self-diagnosis display Error/warning alphanumeric Error/warning alphanumeric symbol content Action number symbol Radiator fan 7 warning Radiator fan 8 warning Radiator fan 9 warning Radiator fan 10 warning Radiator fan 11 warning Radiator fan 12 warning Exhaust fan 1 warning Exhaust fan 2 warning Exhaust fan 3 warning Exhaust fan 4 warning...
Page 233 Chapter 6 Maintenance — Self-diagnosis display Error/warning alphanumeric Error/warning alphanumeric symbol content Action number symbol Liquid cooling pump R error Liquid cooling pump G error Liquid cooling pump B error Liquid cooling pump light source 1-B error Liquid cooling pump light source 1-S error Liquid cooling pump light source 2-B error Liquid cooling pump light source 2-S error Light source 1-B unit error...
Page 234: Chapter 7 Appendix
Appendix Chapter 7 This chapter describes the specification of the projector, how to install the optional Interface Board, and after-sales service. 234 - ENGLISH...
Page 235: Technical Information
Input selection list query ― Returns the name set in [PROJECTOR NAME] of [NETWORK NAME? Projector name query xxxxx SETUP]. Manufacturer name INF1? Panasonic Returns manufacturer name. query INF2? Model name query RQ32K Returns model name. Other information INF0? xxxxx Returns information such as version number.
Page 236: Using Art-Net Function
Chapter 7 Appendix — Technical information PJLink security authentication The password used for PJLink is the same as that of the password set for web control. When using the projector without security authentication, do not set a password for web control. f For specifications related to PJLink, visit the website of Japan Business Machine and Information System Industries Association.
Page 237 Chapter 7 Appendix — Technical information Art-Net channel setting Control details [USER] RASTER PATTERN ― ― ― LENS H SHIFT MSB ― ― ― LENS H SHIFT LSB ― ― ― LENS V SHIFT MSB ― ― ― LENS V SHIFT LSB ―...
Page 238 Chapter 7 Appendix — Technical information r INPUT SELECT (when [Art-Net CHANNEL SETTING] is set to anything other than [1]) Performance Parameter Default value No operation 0-39 DIGITAL LINK 40-47 SDI1 48-55 SDI2 56-63 SDI3 64-71 SDI4 72-79 SLOT1-1 80-87 SLOT1-2 88-95 SLOT2-3 96-103...
Page 239 Chapter 7 Appendix — Technical information r LENS FUNCTION SELECT Operate together with LENS CONTROL. Performance Parameter Default value No operation 0-15 LENS H SHIFT 16-31 LENS V SHIFT 32-47 LENS FOCUS 48-63 LENS ZOOM 64-79 Move to the home position 80-95 Load LENS MEMORY 1 96-111...
Page 240 Chapter 7 Appendix — Technical information r POWER Performance Parameter Default value Standby 0-63 No operation 64-191 Power on 192-255 r SHUTTER Performance Parameter Default value SHUTTER: Open 0-63 No operation 64-191 SHUTTER: Closed 192-255 r FADE-IN, FADE-OUT Operate together with SHUTTER. Performance Parameter Default value...
Page 241 Chapter 7 Appendix — Technical information r FREEZE Performance Parameter Default value No operation 0-31 32-95 No operation 96-159 160-223 No operation 224-255 r COLOR, TINT Performance Parameter Default value No operation 0-31 Factory default setting 32-63 … … 128-129 … …...
Page 242: Control Commands Via Lan
Generate a 32-byte hash value from the following data using MD5 algorithm. f “xxxxxx:yyyyy:zzzzzzzz” xxxxxx Administrator rights user name for the web control (default user name is “admin1”) yyyyy Password of above administrator rights user (default password is “panasonic”) zzzzzzzz 8-byte random number obtained in Step 2) 242 - ENGLISH...
Page 243 Chapter 7 Appendix — Technical information Command transmission method Transmit using the following command formats. r Transmitted data Termination Header Data section symbol Command Hash value ‘0’ ‘0’ Control command (CR) example “Connecting” (x page 242) 0x30 0x30 (ASCII string) 0x0d Data length 32 bytes 1 byte...
Page 244 Chapter 7 Appendix — Technical information Command transmission method Transmit using the following command formats. r Transmitted data Termination Header Data section symbol Command ‘0’ ‘0’ Control command (CR) example 0x30 0x30 (ASCII string) 0x0d Data length 1 byte 1 byte Undefined length 1 byte f Example: Transmission of power supply status acquisition command...
Page 245: Serial In>/ Terminal
Chapter 7 Appendix — Technical information <SERIAL IN>/<SERIAL OUT> terminal The <SERIAL IN>/<SERIAL OUT> terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled from a computer. Connection Single projector Projector connecting terminals Computer D-Sub 9p (female) D-Sub 9p (male) D-Sub 9p (male)
Page 246 Chapter 7 Appendix — Technical information D-Sub 9-pin (male) Pin No. Signal name Details Outside view ― Received data Transmitted data ― Earth ― Connected internally ― Communication conditions (Factory default) Signal level RS-232C-compliant Sync. method Asynchronous Baud rate 9 600 bps Parity None Character length...
Page 247 Chapter 7 Appendix — Technical information Attention f If a command is sent after the light source starts lighting, there may be a delay in response or the command may not be executed. Try sending or receiving any command after 60 seconds. f When transmitting multiple commands, be sure to wait until 0.5 seconds has elapsed after receiving the response from the projector before sending the next command.
Page 248 Chapter 7 Appendix — Technical information Control command The following table lists the commands that can be used to control the projector using a computer. r Projector control command Parameter/response Command Details Remark (parameter) string Power on ― To check if the power is on, use the “Power query” command. Power standby STANDBY Power query...
Page 249: Remote 2 In> Terminal
Chapter 7 Appendix — Technical information r Lens control command Command Sub command Details Remark LNSI2 Lens H shift +00000 = Fine adjustment 1+, +00001 = Fine adjustment 1-, +00100 LNSI3 Lens V shift = Fine adjustment 2+, +00101 = Fine adjustment 2-, +00200 = Coarse LNSI4 Lens focus adjustment+, +00201 = Coarse adjustment-...
Page 250: Control Device Password
Chapter 7 Appendix — Technical information Control device password To initialize your password, consult your distributor. Upgrade Kit If the optional Upgrade Kit (Model No.: ET-UK20) is applied, the following functions are extended. Function Standard status When the Upgrade Kit is applied Adjustment range of Maximum of ±40°...
Page 251: List Of Compatible Signals
Chapter 7 Appendix — Technical information List of compatible signals The following table specifies the video signals that the projector can project. For details of SDI signal, refer to “List of single link SDI compatible signals” (x page 256), “List of dual link SDI compatible signals” (x page 261), “List of quad link SDI compatible signals”...
Page 252 Chapter 7 Appendix — Technical information Scanning freq. Compatible signal Dot clock Signal name Resolution DIGITAL freq. HDMI DVI-D Horizontal Vertical (SIGNAL FORMAT) (Dots) LINK (MHz) (kHz) (Hz) 800 x 600/72 800 x 600 48.1 72.2 50.0 ― ― ― ― 800 x 600/75 800 x 600 46.9...
Page 253 Chapter 7 Appendix — Technical information Scanning freq. Compatible signal Dot clock Signal name Resolution DIGITAL freq. HDMI DVI-D Horizontal Vertical (SIGNAL FORMAT) (Dots) LINK (MHz) (kHz) (Hz) 1680 x 1050/60 1 680 x 1 050 65.3 60.0 146.3 ― ― ―...
Page 254 Chapter 7 Appendix — Technical information List of plug and play compatible signals The following table specifies the video signals compatible with plug and play. Signal with l in the plug and play compatible signal column is the signal described in the EDID (extended display identification data) of the projector.
Page 255 Chapter 7 Appendix — Technical information Scanning Plug and play compatible signal freq. Signal name Resolution clock (SIGNAL FORMAT) (Dots) freq. DIGITAL LINK HDMI DVI-D Horizontal Vertical (MHz) (kHz) (Hz) 4K/60p 4K/30p 4K/60p 4K/30p EDID1 EDID2 EDID3 832 x 624/75 832 x 624 49.7 74.6 57.3...
Page 256 Chapter 7 Appendix — Technical information Scanning Plug and play compatible signal freq. Signal name Resolution clock (SIGNAL FORMAT) (Dots) freq. DIGITAL LINK HDMI DVI-D Horizontal Vertical (MHz) (kHz) (Hz) 4K/60p 4K/30p 4K/60p 4K/30p EDID1 EDID2 EDID3 1920 x 1200/60 1 920 x 1 200 74.6 59.9 193.3...
Page 257 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 1 920 x 1 080 27.0 24.0 74.3 ― HD-SDI 4:2:2 10bit 1 920 x 1 080 27.0 24.0 74.3...
Page 258 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 1 920 x 1 080 67.5 60.0 148.5 ― 3G-SDI Level-A 4:2:2 10bit 1 920 x 1 080 67.5 60.0 148.5...
Page 259 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3 840 x 2 160 54.0 24.0 297.0 6G-SDI Type 2 4:2:2 10bit 3 840 x 2 160 54.0 24.0 297.0...
Page 260 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 4 096 x 2 160 56.3 25.0 297.0 6G-SDI Type 2 4:2:2 10bit 4 096 x 2 160 56.3 25.0 297.0...
Page 261 Chapter 7 Appendix — Technical information List of dual link SDI compatible signals The following table specifies the dual link SDI signals that the projector can project. This is the list of compatible signals including the input of the optional 3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) or the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) installed in the slot, in addition to the standard SDI input.
Page 262 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 1 920 x 1 080 56.3 50.0 148.5 ― HD-SDI 4:2:2 10bit 1 920 x 1 080 56.3 50.0 148.5...
Page 263 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3G-SDI Level-B 3 840 x 2 160 54.0 24.0 297.0 4:2:2 10bit Dual Stream 3G-SDI Level-B 3 840 x 2 160 54.0...
Page 264 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3G-SDI Level-B 4 096 x 2 160 54.0 24.0 297.0 4:2:2 10bit Dual Stream 3G-SDI Level-B 4 096 x 2 160 54.0...
Page 265 Chapter 7 Appendix — Technical information List of quad link SDI compatible signals The following table specifies the quad link SDI signals that the projector can project. This is the list of compatible signals including the input of the optional 3G-SDI Terminal Board with Audio (Model No.: TY-TBN03G) or the optional Interface Board for 12G-SDI (Model No.: ET-MDN12G10) installed in the slot, in addition to the standard SDI input.
Page 266 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3 840 x 2 160 56.3 25.0 297.0 HD-SDI 4:2:2 10bit 3 840 x 2 160 56.3 25.0 297.0...
Page 267 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 3 840 x 2 160 67.5 60.0 297.0 HD-SDI 4:2:2 10bit 3 840 x 2 160 67.5 60.0 297.0...
Page 268 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) division (MHz) (kHz) (Hz) 4 096 x 2 160 56.3 25.0 297.0 HD-SDI 4:2:2 10bit 4 096 x 2 160 56.3 25.0 297.0...
Page 269 Chapter 7 Appendix — Technical information List of simultaneous input compatible signals The following table specifies the simultaneous input compatible video signals that the projector can project. Scanning freq. Simultaneous input compatible signal Signal name Resolution Dot clock freq. HDMI DVI-D Horizontal Vertical (SIGNAL FORMAT)
Page 270: Specifications
Chapter 7 Appendix — Specifications Specifications The specifications of the projector are as follows. 100 V - 120 V / 200 V - 240 V ~ (100 V - 120 V / 200 V - 240 V PT-RQ32K, PT-RQ32KT alternating current), 50 Hz/60 Hz Power supply PT-RQ32KD 200 V - 240 V ~ (200 V - 240 V alternating current), 50 Hz/60 Hz...
Page 271 Chapter 7 Appendix — Specifications *6 The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1 400 m (4 593') and 4 200 m (13 780') above sea level. When the [PROJECTOR SETUP] menu → [OPERATION SETTING] → [OPERATING MODE] is set to [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3], the operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F), regardless of the altitude.
Page 272 Chapter 7 Appendix — Specifications r Compatible signal For details of the types of video signals that can be used with the projector, refer to “List of compatible signals” (x page 251). SDI signal input SD-SDI signal HD-SDI signal 3G-SDI signal 6G-SDI signal 12G-SDI signal DIGITAL LINK signal input...
Page 273: Dimensions
Chapter 7 Appendix — Dimensions Dimensions Unit: mm 350 (13-25/32") 951 (37-7/16") 290 (11-13/32") 580 (22-27/32") 700 (27-9/16") * Actual dimensions may differ depending on the product. ENGLISH - 273...
Page 274 Chapter 7 Appendix — Dimensions r When the optional Long Life Filter Unit (Model No.: ET-EMFU330) is attached 112.2 (4-13/32") 290 (11-13/32") 580 (22-27/32") 700 (27-9/16") 274 - ENGLISH...
Page 275: Attaching The Long Life Filter Unit (Optional)
Chapter 7 Appendix — Attaching the Long Life Filter Unit (optional) Attaching the Long Life Filter Unit (optional) The optional Long Life Filter Unit (Model No.: ET-EMFU330) uses two of the same standard air filter unit attached to the projector or the Replacement Filter Unit (Model No.: ET-EMF330) (accessory/optional accessory). The interval to perform maintenance/replacement of filters is extended roughly two times by attaching the Long Life Filter Unit instead of the standard air filter unit.
Page 276: Attaching The Long Life Filter Mount Clasp
Chapter 7 Appendix — Attaching the Long Life Filter Unit (optional) Attention f Take care not to touch the radiator fin, etc., when removing dirt or dust. f Store the removed air filter cover in a safe place. Attaching the long life filter mount clasp Attach the long life filter mount clasp in the area the standard air filter unit was removed.
Page 277: Attaching The Long Life Filter Cover
Chapter 7 Appendix — Attaching the Long Life Filter Unit (optional) Attaching the long life filter cover Attach the long life filter cover with the air filters to the long life filter mount clasp on the projector body. Long life filter cover fixing screws Fig.
Page 278: Removing The Air Filter Unit
Chapter 7 Appendix — Attaching the Smoke Cut Filter Unit (optional) Attaching the Smoke Cut Filter Unit (optional) The optional Smoke Cut Filter (Model No.: ET-SFR330) is attached when using the projector in an environment generating smoke such as an event. Attach the Smoke Cut Filter instead of the standard air filter unit attached to the projector.
Page 279: Attaching The Smoke Cut Filter
Chapter 7 Appendix — Attaching the Smoke Cut Filter Unit (optional) Attaching the Smoke Cut Filter Air filter unit compartment (Smoke Cut Filter compartment) Tabs on the projector body (c) Air filter cover fixing screw Tabs on the projector body (d) Smoke Cut Filter Tabs on the projector body (d) Air filter cover...
Page 280 Chapter 7 Appendix — Attaching the Smoke Cut Filter Unit (optional) 10) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button. f The [PROJECTOR SETUP] menu → [STATUS] → [FILTER COUNTER] is displayed as “0”. Attention f When use of the Smoke Cut Filter is finished and replaced with a standard air filter unit, make sure to reset the filter counter after setting [PROJECTOR SETUP] menu →...
Page 281: Installing The Interface Board (Optional)
Chapter 7 Appendix — Installing the Interface Board (optional) Installing the Interface Board (optional) This projector is equipped with two SLOT NX-specification slots. There are four SDI input terminals and one DIGITAL LINK input terminal equipped on this projector as the standard video input terminals.
Page 282: How To Remove The Interface Board
Chapter 7 Appendix — Installing the Interface Board (optional) Attention f The removed slot cover is required when the unnecessary Interface Board is removed. Store it so it can be attached in the future. How to remove the Interface Board Handle Fig.
