Load Cards

• Fan the cards to separate the edges.
• Insert ISO magnetic stripe cards with the stripe facing down and to the right.
• Insert smart cards with the chip facing up and toward the back of the hopper.
Note: A diagram inside the hoppers shows the correct orientation for each type of
card.

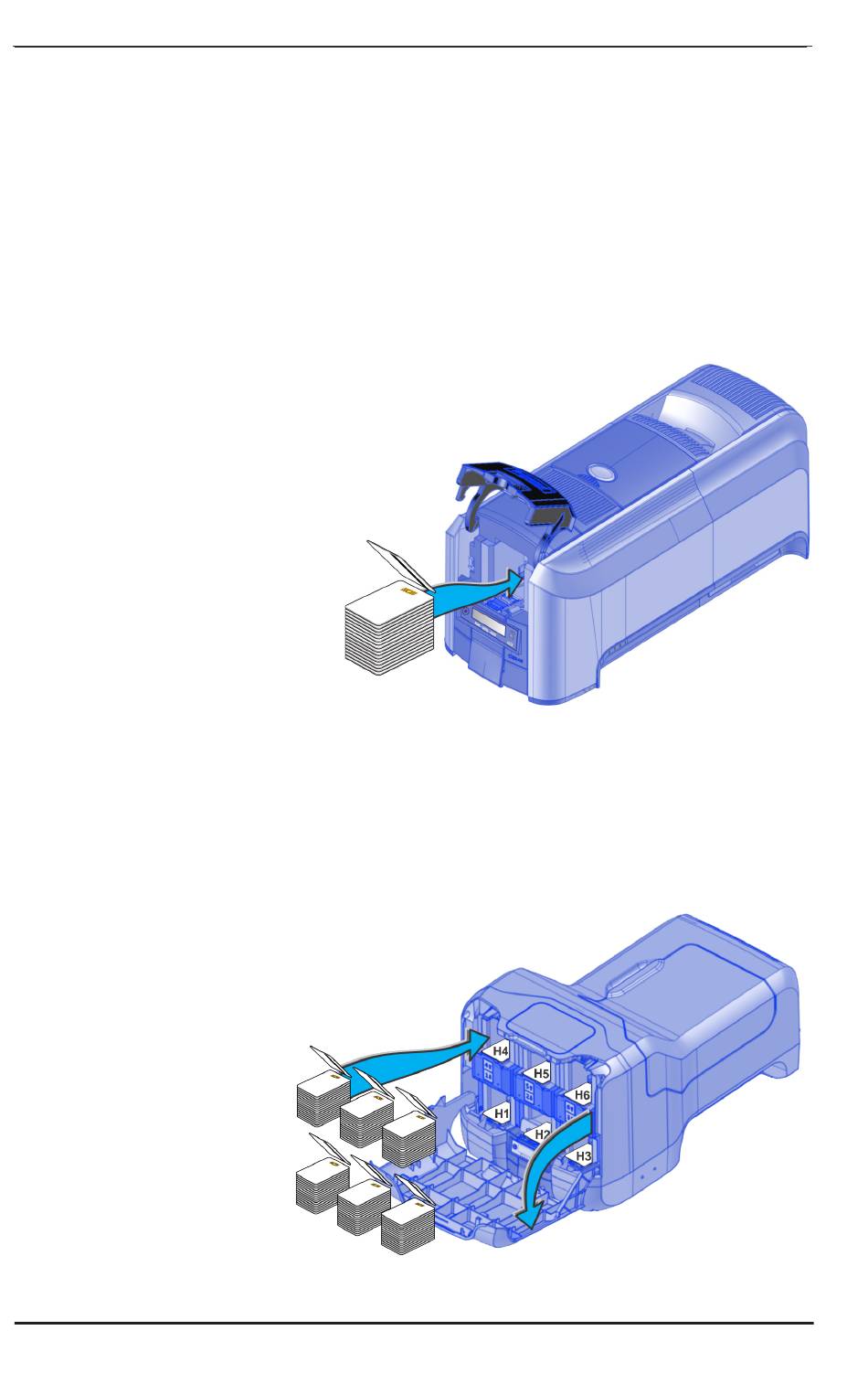

Single-Hopper Printer
1. Unlock the printer and open the input hopper.
2. Load cards into the input hopper.
3. Close the hopper and lock the printer.
Multi-Hopper Printer
1. Unlock the printer and open the multi-hopper door.
2. Load cards into each hopper (H1 through H6). Each hopper holds up to 100
cards.
3. Close the multi-hopper door and lock the printer.
