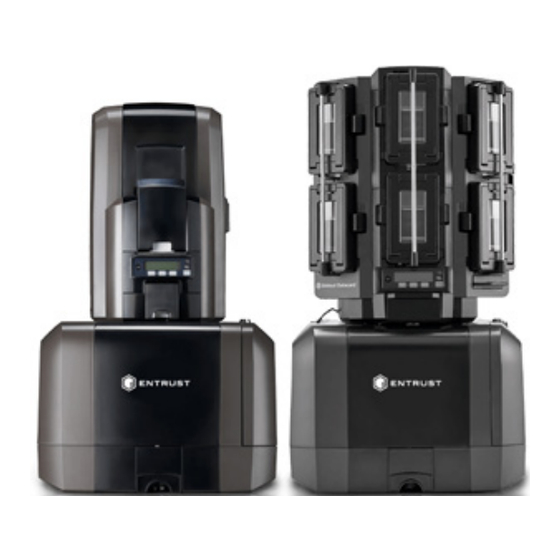

Quick Install Guide
CE875™ Retransfer Card
Printer
December 2020
527762-001EN, Rev H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE875 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Entrust CE875

Summary of Contents for Entrust CE875

  • Page 1 Quick Install Guide CE875™ Retransfer Card Printer December 2020 527762-001EN, Rev H...
  • Page 2 Attention: CE870™ System Users If you are converting your CE870 system to a CE875 Instant Issuance System, refer to the CE870 to CE875 System Upgrade Installation Instructions located in the Upgrade Kit box. WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm.

  • Page 3: Unpack The Printer

    Quick Install Guide For detailed installation instructions, refer to the CR825 and CE875 Instant Issuance System Installation and Administrator’s Guide. Unpack the Printer Lift printer from the sides only 527762-001_H...

  • Page 4: Unpack The Embosser

    CE875 Instant Issuance System Unpack the Embosser 527762-001_H...

  • Page 5: Remove Shipping Items From The Embosser

    Quick Install Guide Remove Shipping Items From the Embosser 527762-001_H...

  • Page 6: Secure The Embosser

    CE875 Instant Issuance System Secure the Embosser 527762-001_H...
  • Page 7 Quick Install Guide Install the Optional Multi-Hopper 1. Unpack the multi-hopper 527762-001_H...
  • Page 8 CE875 Instant Issuance System Install the Optional Multi-Hopper (cont.) 2. Prepare the multi-hopper Restraining Pins Multi-Hopper Bottom Multi-Hopper Top Save the restraining pins after removing them from the multi- hopper. They are required if you need to repackage and return the multi-hopper for service.
  • Page 9 Quick Install Guide Install the Optional Multi-Hopper (cont.) 3. Assemble the multi-hopper printer Multi-Hopper Back Multi-Hopper Attachment Hooks Hopper Attachment Slots 1 in. 25.4 mm 527762-001_H...

  • Page 10: Assemble The System

    CE875 Instant Issuance System Assemble the System Interconnect Cable Lock Unlock Connect the interconnect cable. 527762-001_H...

  • Page 11: Load The Indent Ribbon

    Quick Install Guide Load the Indent Ribbon Click Click 527762-001_H...

  • Page 12: Load The Topping Foil

    CE875 Instant Issuance System Load the Topping Foil Click Click 527762-001_H...
  • Page 13 Quick Install Guide Install the Embosser Cartridges 527762-001_H...

  • Page 14: Connect The Power Cords

    CE875 Instant Issuance System Connect the Power Cords 527762-001_H...

  • Page 15: Power On The System

    Quick Install Guide Power On the System The printer may or may not require activation. If Print job queue is deactivated displays on the LCD panel, • continue with “Activate the System” on page • If Ready displays on the LCD panel, continue with “Clean the Printer”...
  • Page 16 CE875 Instant Issuance System Activate the System Printer Serial Number Embosser Serial Number Call 1-800-328-3996 for the activation code. 527762-001_H...
  • Page 17 Quick Install Guide Activate the System (cont.) Press until correct digit displays Repeat 6 & 7 for each digit 527762-001_H...

  • Page 18: Clean The Printer

    CE875 Instant Issuance System Clean the Printer Remove the isopropanol cleaning card from the ink ribbon package. Continue with: Isopropanol “Single-Hopper Printer” Cleaning Card “Multi-Hopper Printer” on page 17 Single-Hopper Printer Remove the cleaning card from its package. Isopropanol Cleaning Card Load the cleaning card in the input hopper.
  • Page 19 Quick Install Guide Clean the Printer (cont.) Multi-Hopper Printer Remove the cleaning card from its package. Isopropanol Cleaning Card 1. Pull out the multi-hopper exception slide and insert the cleaning card. 2. Push in the exception slide. If the cleaning card appears bowed, insert it as shown.
  • Page 20 CE875 Instant Issuance System Clean the Printer (cont.) Start the Cleaning Cycle 527762-001_H...

  • Page 21: Install The Ink Ribbon

    Quick Install Guide Install the Ink Ribbon 527762-001_H...
  • Page 22 CE875 Instant Issuance System Install the Ink Ribbon (cont.) Click Click 527762-001_H...

  • Page 23: Install The Cleaning Sleeve

    Quick Install Guide Install the Cleaning Sleeve 527762-001_H...
  • Page 24 CE875 Instant Issuance System Install the Cleaning Sleeve (cont.) 527762-001_H...
  • Page 25 Quick Install Guide Install the Retransfer Film Click 527762-001_H...
  • Page 26 CE875 Instant Issuance System Install the Retransfer Film (cont.) Click 527762-001_H...
  • Page 27 Quick Install Guide Store the User Reference Guide 527762-001_H...

  • Page 28: Load Cards

    CE875 Instant Issuance System Load Cards “Single-Hopper Printer” “Multi-Hopper Printer” on page 27 Single-Hopper Printer 527762-001_H...
  • Page 29 Quick Install Guide Load Cards (cont.) Multi-Hopper Printer 1. Unlock the multi-hopper lock. 2. Slide the lock bar release button (B1) to the left. 3. Rotate a lock bar to the left. 527762-001_H...
  • Page 30 CE875 Instant Issuance System Load Cards (cont.) 4. Press the cartridge release button at the top of the cartridge and open the cartridge door. 5. Lift the card weight to the top of the cartridge and pull it forward until it locks in position.

  • Page 31: Set A Static Ip Address

    Quick Install Guide Connect the Network Data Cable Set a Static IP Address IP Address _____________________________________ Subnet Mask __________________________________ Gateway Address _______________________________ 527762-001_H...
  • Page 32 CE875 Instant Issuance System Set a Static IP Address (cont.) Press until correct digit displays Repeat 10 & 11 for each section 527762-001_H...
  • Page 33 Quick Install Guide Set a Static IP Address (cont.) Press until correct digit displays Press until correct digit displays Repeat 18 & 19 for each section Repeat 14 & 15 for each section Press the Power button to power off the printer. Restart the printer and verify that the static IP address is correct.
  • Page 34 CE875 Instant Issuance System Print a Test Card (Optional) 527762-001_H...

  • Page 35: Next Steps

    Quick Install Guide Next Steps Refer to the printer’s Installation and Administrator’s Guide for • complete installation instructions. • Define the printer to CardWizard Administrator. Refer to the CardWizard Issuance Software and Card Printer Setup Guide. • Refer to your CardWizard documentation for complete informa- tion about using CardWizard issuance software.
