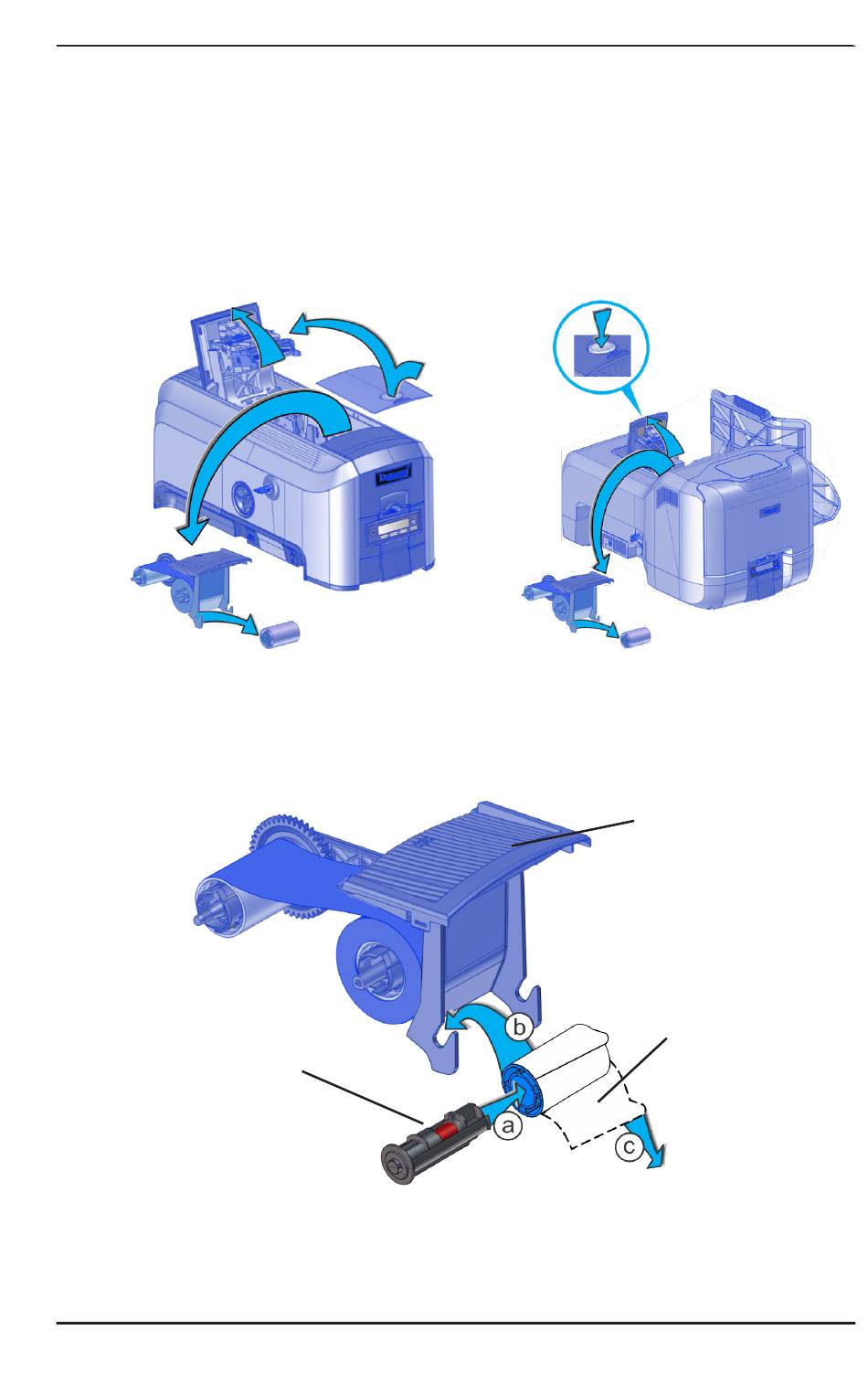

Replace the Cleaning Sleeve

1. Unlock the printer and open the printer supplies access door (multi-hopper).
2. Press the latch button to open the printer swingarm.
3. Remove the print ribbon cartridge.
4. Remove the cleaning roller spindle from the ribbon cartridge.
5. Slide the spindle into the cleaning sleeve (a).
6. Place the spindle back onto the ribbon cartridge (b).
7. Remove the protective wrapper from the cleaning sleeve (c).
8. Reinstall the ribbon cartridge.
9. Close the printer swingarm (and close the supplies door on the multi-hopper)
and lock the printer.
Cleaning Roller
Spindle
User Reference Guide
Print Ribbon
Cartridge
Protective
Wrapper
