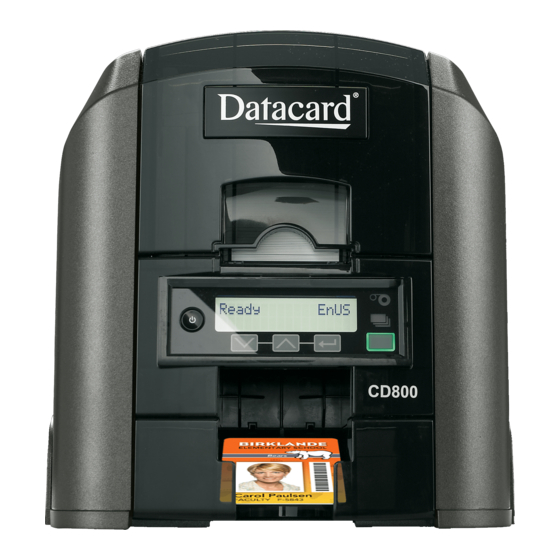

- Page 1 Quick Install Guide CD800™ Card Printer October 2020 527662-001, Rev G...
-
Page 2: Select A Location For The Printer
Refer to the printer’s Installation and Administrator’s Guide, found on the Owner’s Library CD, for detailed installation instructions. The latest firmware and user documentation for your CD800 printer is available for download at www.entrustdatacard.com. 1. Select a Location for the Printer •... -
Page 3: Set Up The Printer
Quick Install Guide 2. Set Up the Printer a. Remove the printer from its shipping carton. Refer to the following illustration if the printer has the optional multi-hopper. - Page 4 CD800 Card Printer b. Unlock the printer (if necessary) and open the printer cover. c. If the printer has the optional multi-hopper, unlock the printer and open the printer supplies access door and the multi-hopper cover. Remove the packing material inserted behind the multi-...
-
Page 5: Load Supplies
Quick Install Guide 3. Load Supplies Supplies are ordered separately. a. Remove the print ribbon cartridge. b. Load the print ribbon onto the cartridge. - Page 6 CD800 Card Printer c. Load the cleaning sleeve onto the ribbon cartridge. d. Install the print ribbon cartridge in the printer. e. Close the printer cover. Press down on the cover ridges to make sure that the cover latches completely on both...
- Page 7 Quick Install Guide Load cards in the hopper. Single Hopper Multi-Hopper g. Close the printer doors and lock the printer, if necessary.
-
Page 8: Plug In And Power On The Printer
CD800 Card Printer 4. Plug In and Power On the Printer a. Connect the printer power cord to the printer and to the power supply. b. Plug the power supply cord into the power outlet. c. Press the power button on the front panel to power on the printer. - Page 9 Quick Install Guide 5. Retrieve the Network IPv4 Address Use the front panel to find the printer IP address. You need to enter the printer IP address if you install the Card Printer Driver and to access Printer Manager from a browser window.
- Page 10 CD800 Card Printer 7. Print a Test Card (Optional) Use the printer’s LCD panel to print a test card:...
-
Page 11: Next Steps
Quick Install Guide 8. Next Steps • If you use the XPS Card Printer Driver, refer to the XPS Card Printer Driver User’s Guide for setup instructions. • Contact your system administrator to set up the rest of the system. •... - Page 12 Entrust, Sigma and the hexagon design are trademarks, registered trademarks and/ or service marks of the Entrust Corporation in the United States and other countries. Datacard is a registered trademark and service mark of Entrust Corporation in the United States and other countries. All other trademarks are the property of their respective owners.
