Software Interface Elements

3.1

ServoStudio Screen Components

The ServoStudio software window has five main function areas:
Sidebar
Status Bar

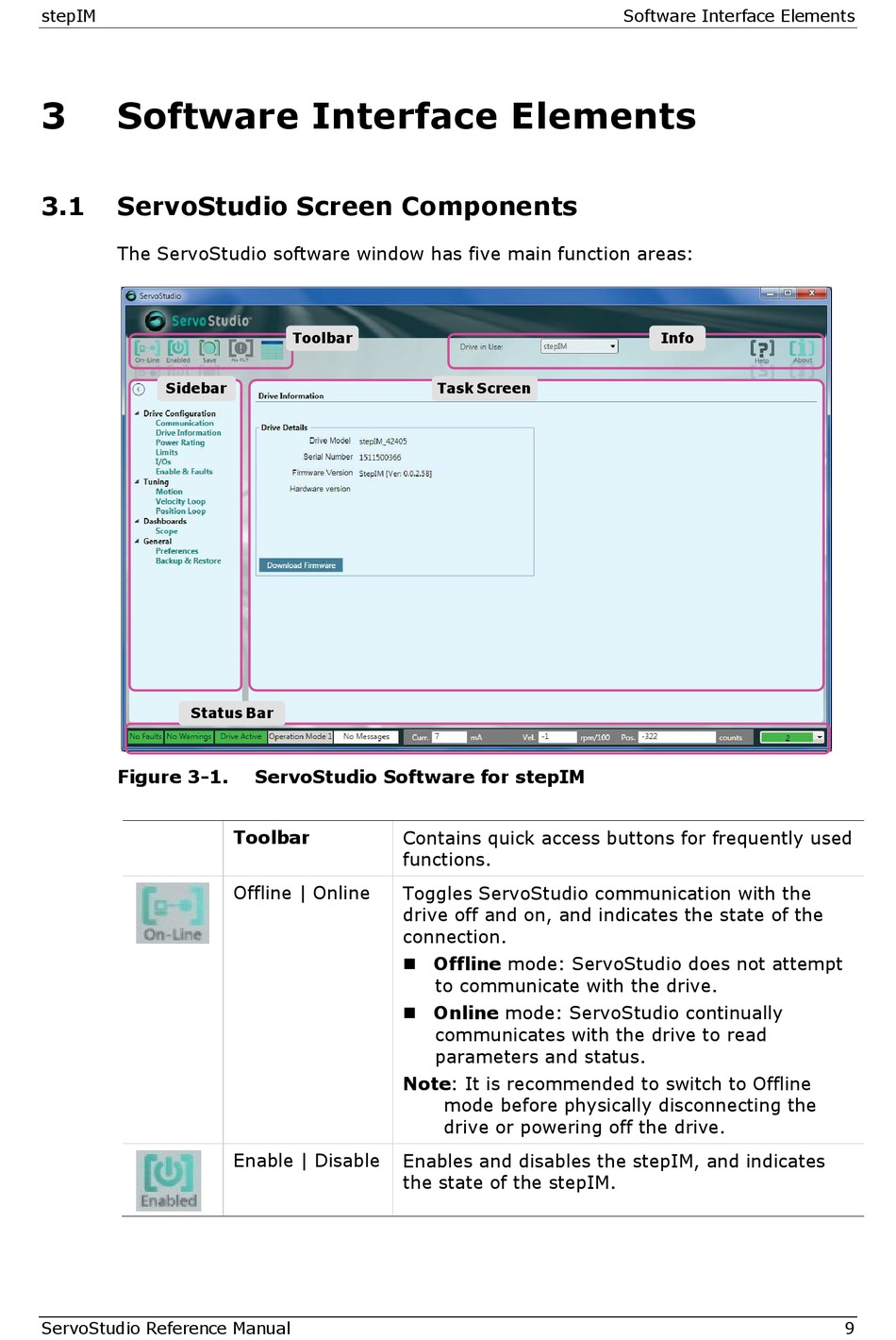

Figure 3-1.
ServoStudio Reference Manual
Toolbar
ServoStudio Software for stepIM
Toolbar
Offline | Online
Enable | Disable
Task Screen
Contains quick access buttons for frequently used
functions.
Toggles ServoStudio communication with the
drive off and on, and indicates the state of the
connection.
 Offline mode: ServoStudio does not attempt
to communicate with the drive.
 Online mode: ServoStudio continually
communicates with the drive to read
parameters and status.
Note: It is recommended to switch to Offline
mode before physically disconnecting the
drive or powering off the drive.
Enables and disables the stepIM, and indicates
the state of the stepIM.
