Measurements

The Measure tab in the Scope screen presents several measurements from the
data currently displayed in the chart.
The values displayed change as you drag the cursors to different locations on the
chart.

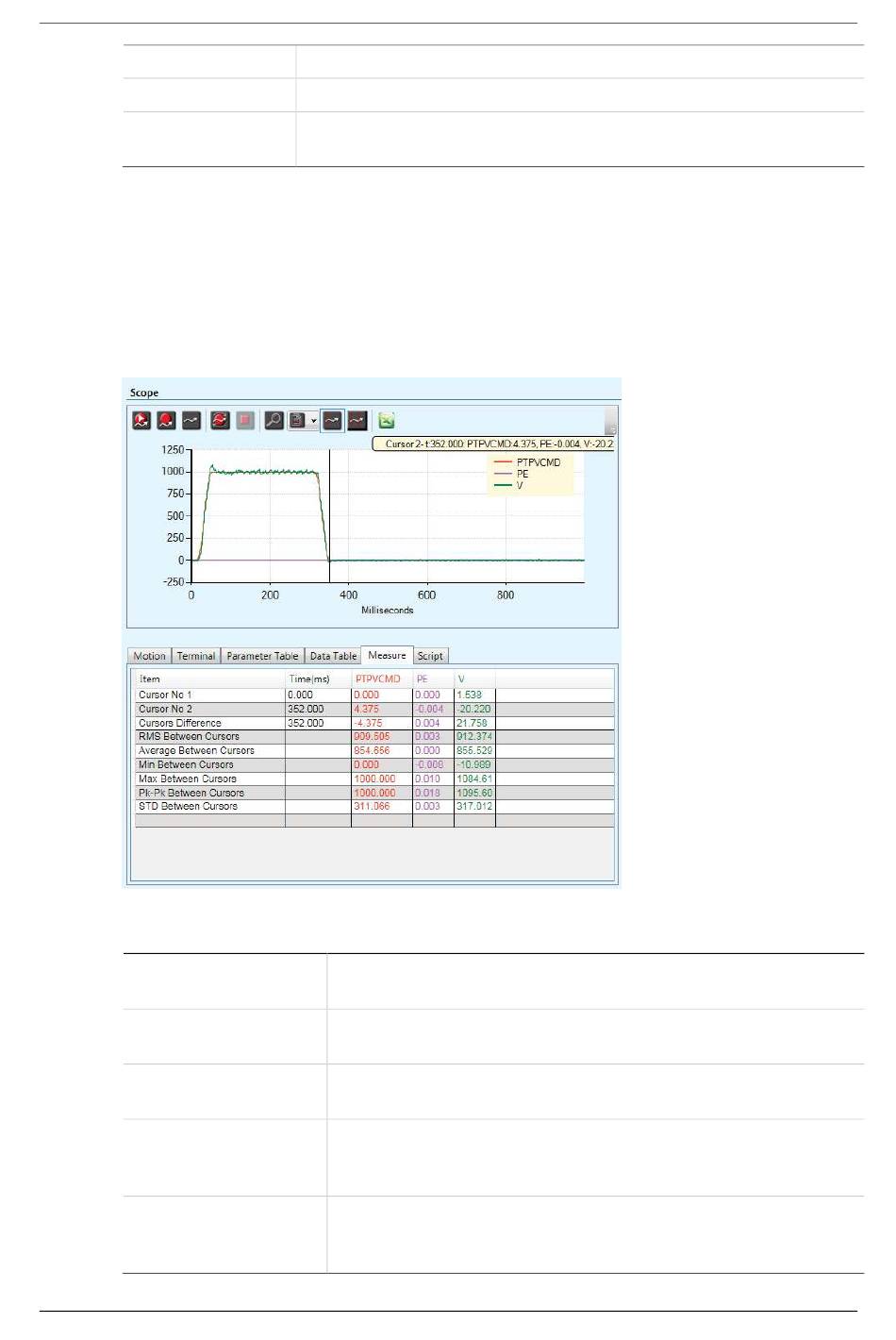

Figure 14-5. ServoStudio – Scope Measurement Tab
Cursor No.1
Cursor No.2
Cursor Difference
RMS/RMS
Between Cursors
Average/
Average Between
Cursors
ServoStudio Reference Manual
A sequential number for identifying the recorded sample.
The time of the recorded sample.
Columns showing the names and values of the variables
selected for recording.
X-axis = time (in ms); value of trace at the point
crossed by cursor.
X-axis = time (in ms); value of trace at the point
crossed by cursor.
Time difference between the two cursors. (Cursor 2 –
Cursor 1)
The root mean square for the entire recording; or the
root mean square for the recording between the two
cursors.
The average value for the entire recording; or the
average value for the recording between the two
cursors.
