Scope Dashboard

14.3 Chart Options

The options in the Chart Options menu can also be accessed by right-clicking
anywhere on the chart.
Some of the chart options, together with additional trace options, are accessed
by right-clicking on any of the cells in the Record Variables pane.

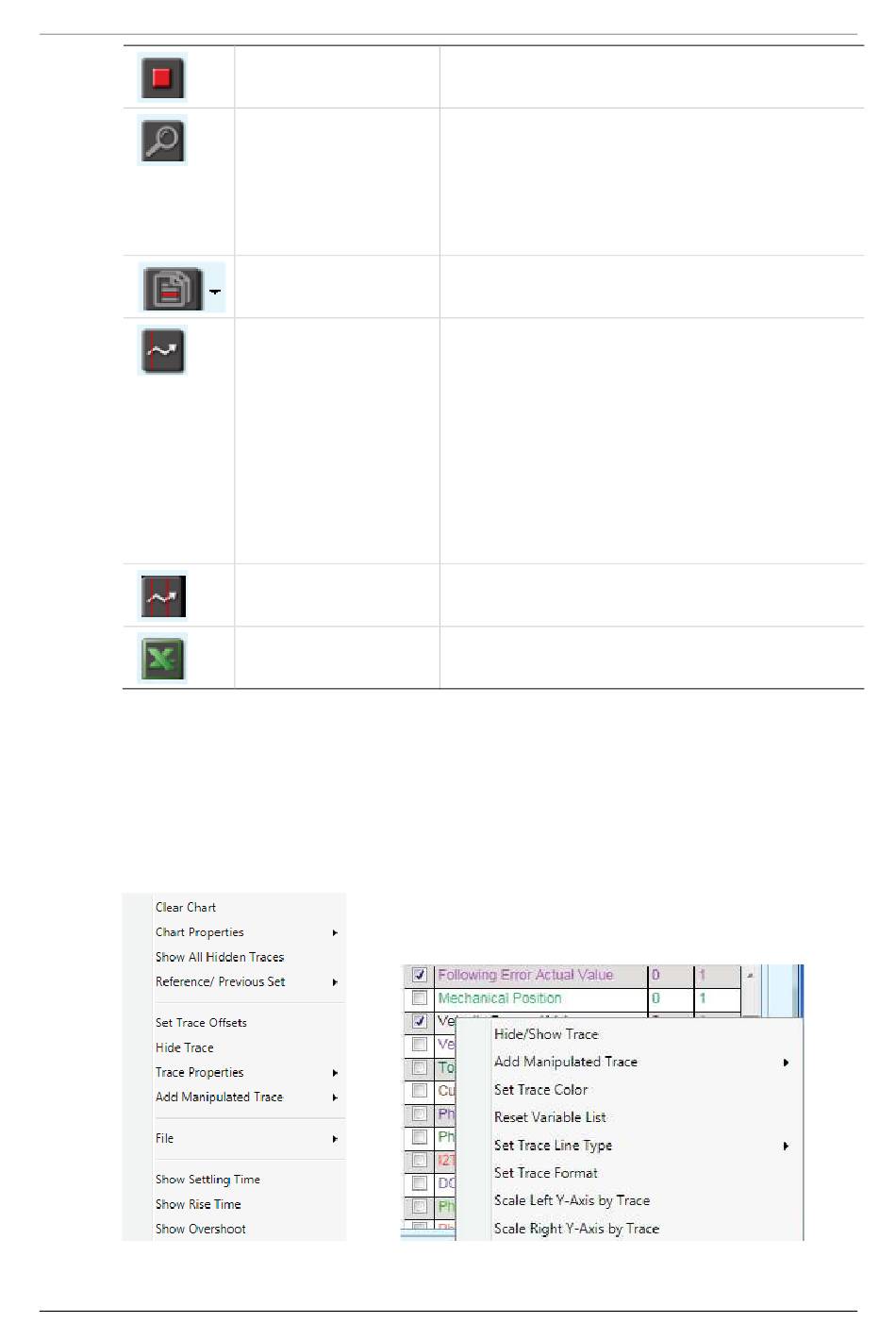

Figure 14-2. ServoStudio – Chart Options menu / Trace Options menu
36
Stop Recording
Toggle Cursor to
Zoom
Chart Options
Toggle Zoom to
Cursor
Select Cursor
View in Excel
Stops a recording. Aborts the command.
Toggles Zoom In and Zoom Out view of
graph.
When Zoom In is selected, a minus sign
appears on the button. Using the left mouse
button, click-and-drag to select an area on
the graph for magnification.
Refer to Chart Options.
Cancels the cursor zoom. Hides/displays
cursor line/s.
When cursor is displayed, use left mouse
button to select and position the cursor on
the graph.
Variable values at the cursor point are
displayed in a floating box.
Use the Measure tab to view additional
variable values at the point marked by the
cursor.
Displays a second cursor line. Click on the
graph to position the second cursor.
Copies recorded data to a temporary CSV
file and opens Microsoft Excel to display it.
