Scope Dashboard
File
Save As
Load From
Show Settling Time
Settling time is the time elapsed from the application of a step command to the
time at which the output has entered and remained within a specified error
window. Still in development.
Show Rise Time
Rise time is the time required for a signal to change from a specified low value to
a specified high value. Typically, these values are 10% and 90% of the step
command. Still in development.
Show Overshoot
Overshoot is when a signal exceeds its target. Still in development.

14.4 Scope Tabs/Panels

Motion

Data Table

Measure
Terminal
Script
14.4.1 Data Table
A tabular view of the data generated by the recording.

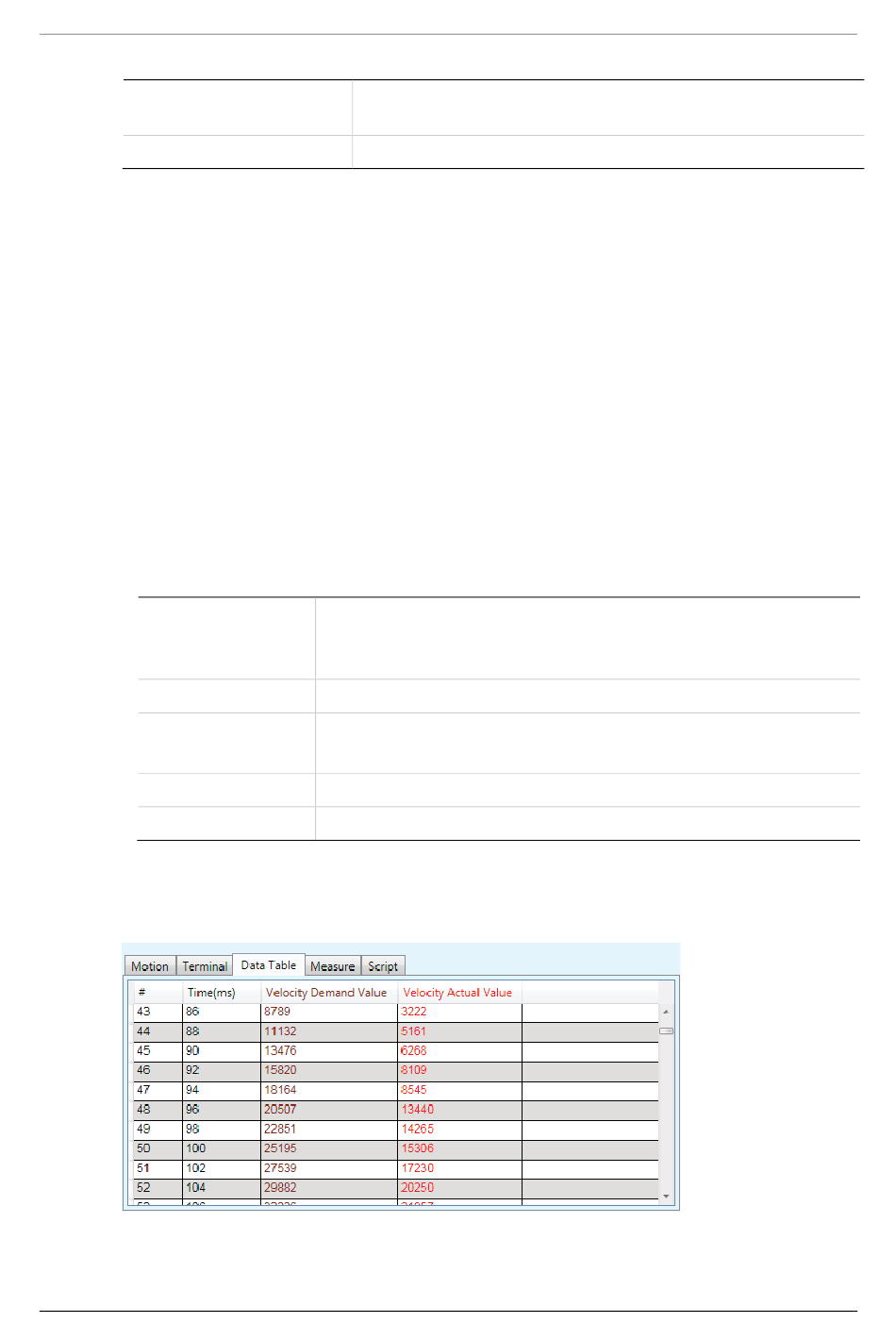

Figure 14-4. ServoStudio – Scope Data Table
40
Exports a recording to a CSV file, so that it can be
viewed and analyzed in Microsoft Excel.
Loads recorded data that was saved in a CSV file.
Change operation mode and initiate motion using the
Motion panel.
Refer to Motion – Operating
A tabular view of the data generated by the recording.
View measurements from the plot of a recording.
Refer to Measurements.
Not currently supported for use with stepIM system.
Not currently supported for use with stepIM system.
Modes.
